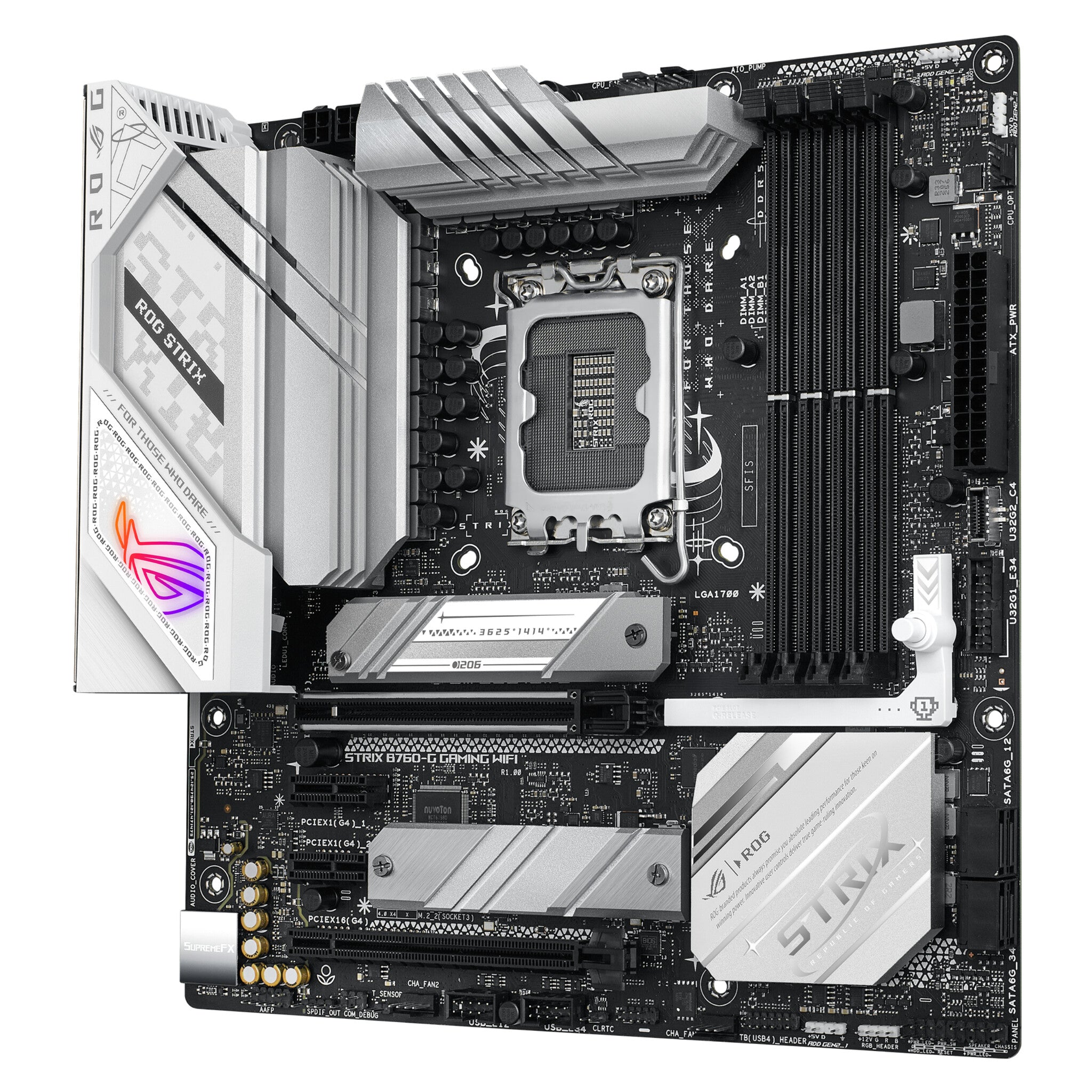

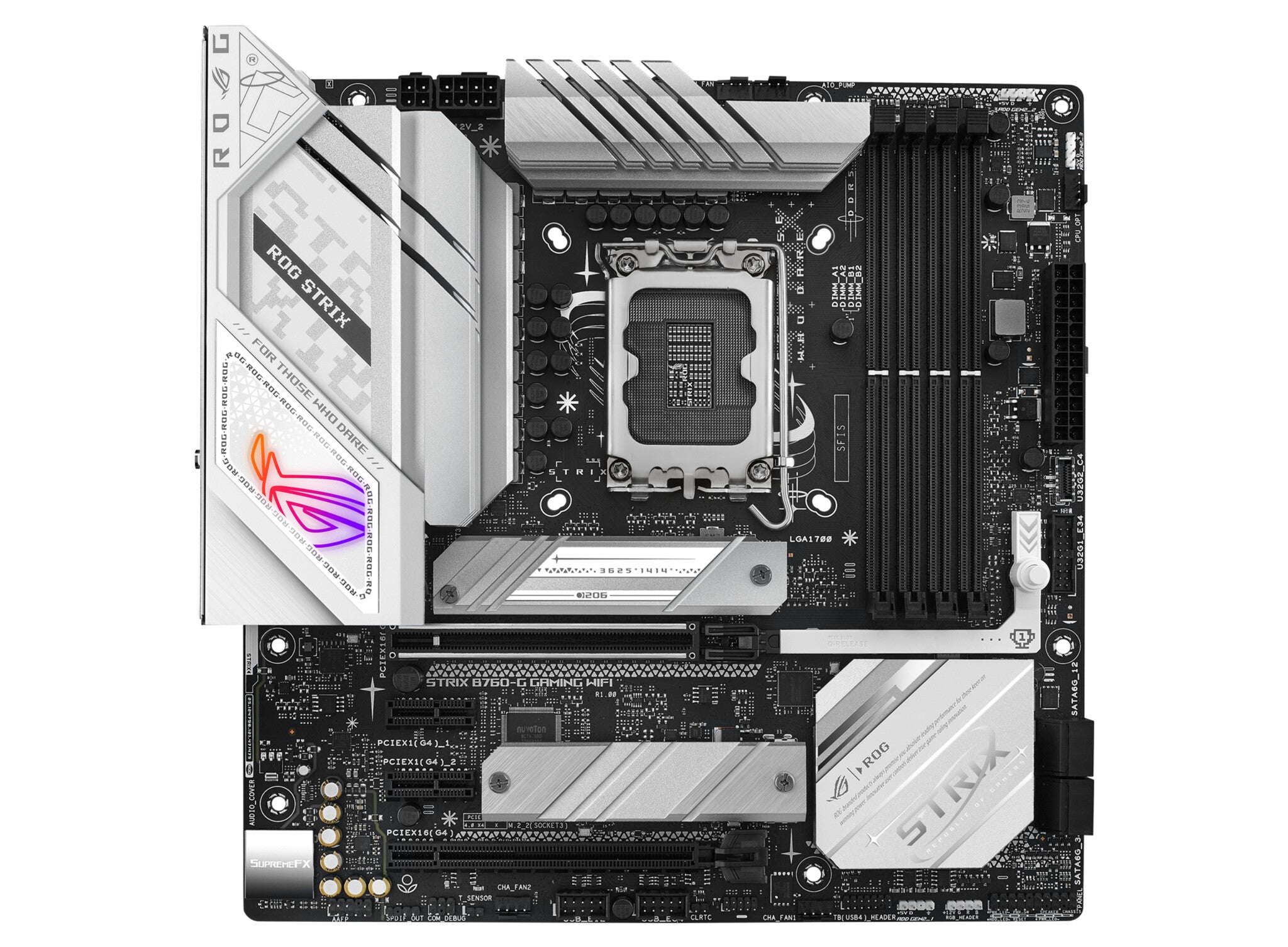

ROG STRIX B760-G GAMING WIFI
Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.
PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
ALL-ROUND PERFORMANCE
A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.
TEAMED POWER ARCHITECTURE
12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
8+4 PIN PROCOOL POWER CONNECTORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
LEADING CONNECTIVITY
The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
PLAY IN STYLE
The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.
| Processor |
|---|
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speed (max) |
7800 MHz |
| Supported memory clock speeds |
7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Number of storage drives supported |
6 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Thunderbolt headers |
1 |
| 12V power connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of chassis fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| S/PDIF out connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| Rear panel I/O ports |
|---|
| WiFi-AP antenna jack |
1 |
| Microphone in |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
|---|
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Audio chip |
SupremeFX S1220A |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x1 (Gen 4.x) slots |
2 |
| BIOS |
|---|
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
|---|
| Depth |
244 mm |
| Width |
244 mm |
| Packaging content |
|---|
| Cables included |
SATA |
