BSS Coloring Boosts Connection Efficiency
WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately.* This greatly reduces router waiting times and boosts network efficiency.
*A BSS Coloring-compatible client is needed to enjoy the benefit.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Modulation |
1024-QAM, OFDMA |
| WLAN data transfer rate (second band) |
574 Mbit/s |
| WLAN data transfer rate (first band) |
2402 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
3000 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Server IPSecVPN Server Open VPNVPN Server PPTP |
| Dynamic DNS (DDNS) |
Yes |
| Port triggering |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |

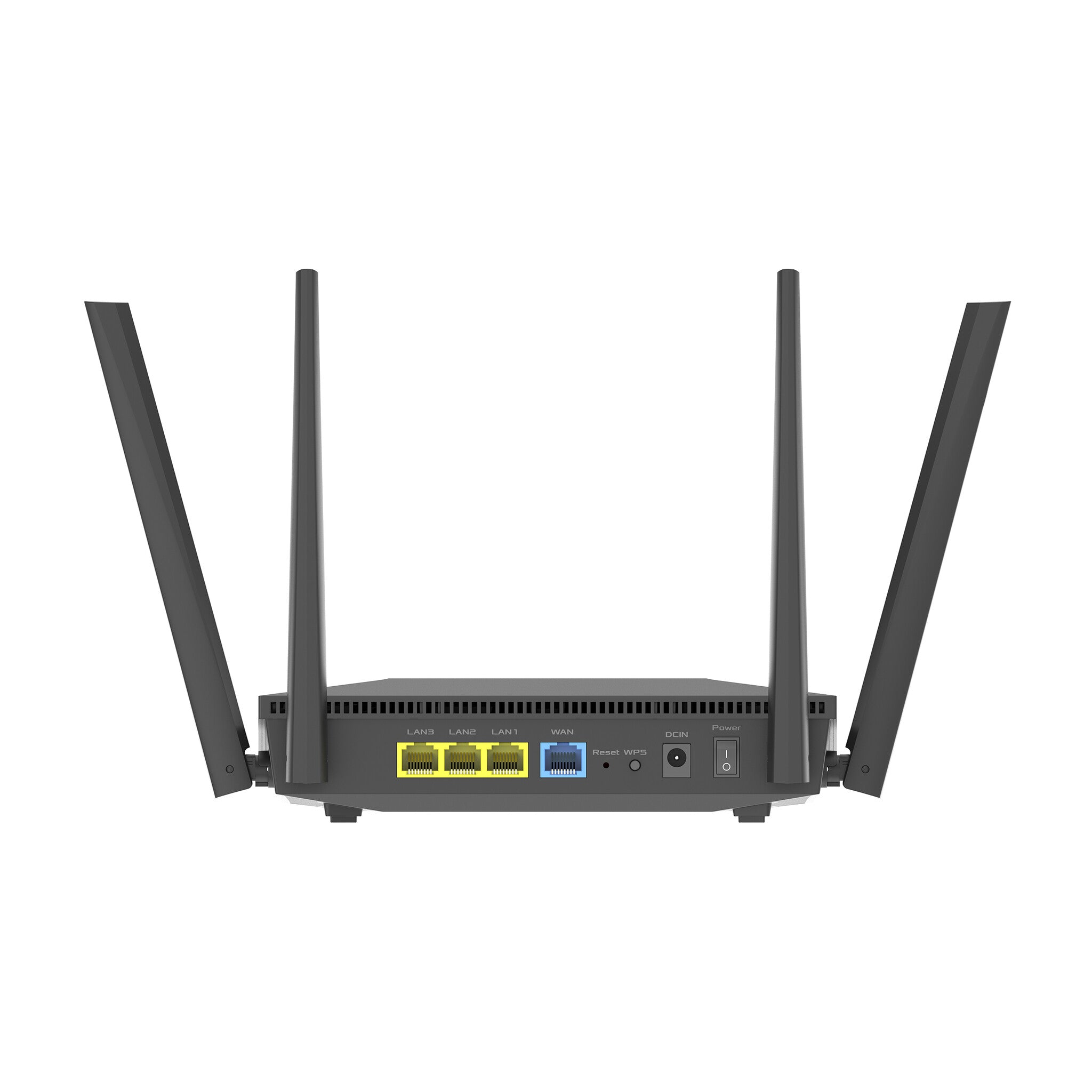

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| Wake-on-LAN ready |
Yes |
| Quality of Service (QoS) support |
Yes |
| Bandwidth control |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| System event log |
Yes |
| MAC address filtering |
Yes |
| Parental control |
Yes |
| Firewall |
Yes |
| Security algorithms |
SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal |
| Protocols |
|---|
| DHCP server |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| LED indicators |
Power, WPS, LAN, WAN |
| Product colour |
Black |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Warranty card |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna type |
2x2 |
| Antenna design |
External |
| Features |
|---|
| Built-in processor |
Yes |
| Power |
|---|
| Power source type |
AC |
| Weight & dimensions |
|---|
| Width |
190 mm |
| Depth |
126 mm |
| Height |
45 mm |
| Weight |
342 g |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Package type |
Box |
| Package weight |
685 g |
| Package height |
55 mm |
| Package depth |
255 mm |
| Package width |
254 mm |
