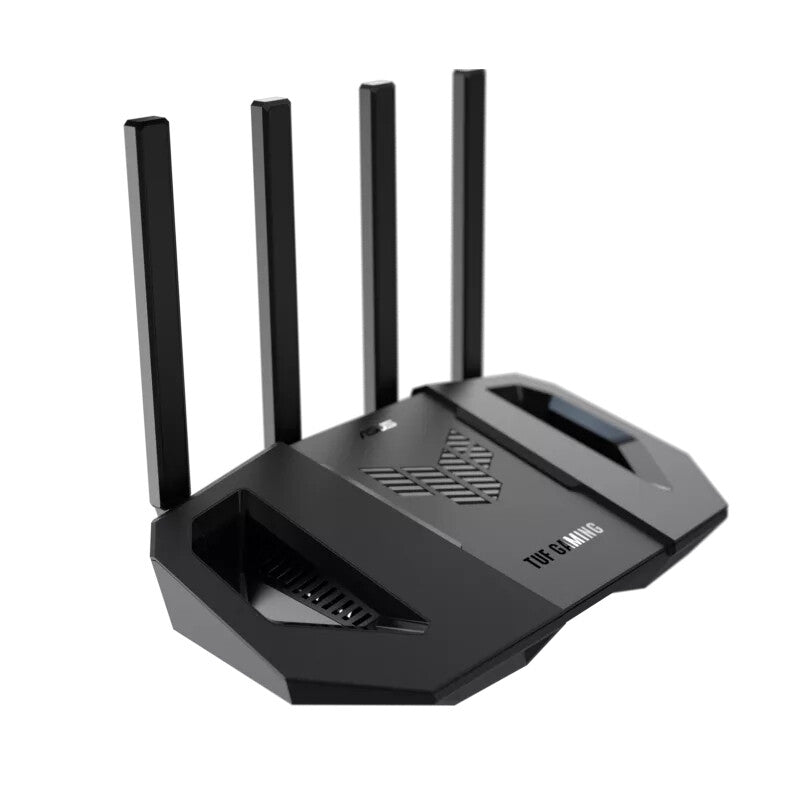

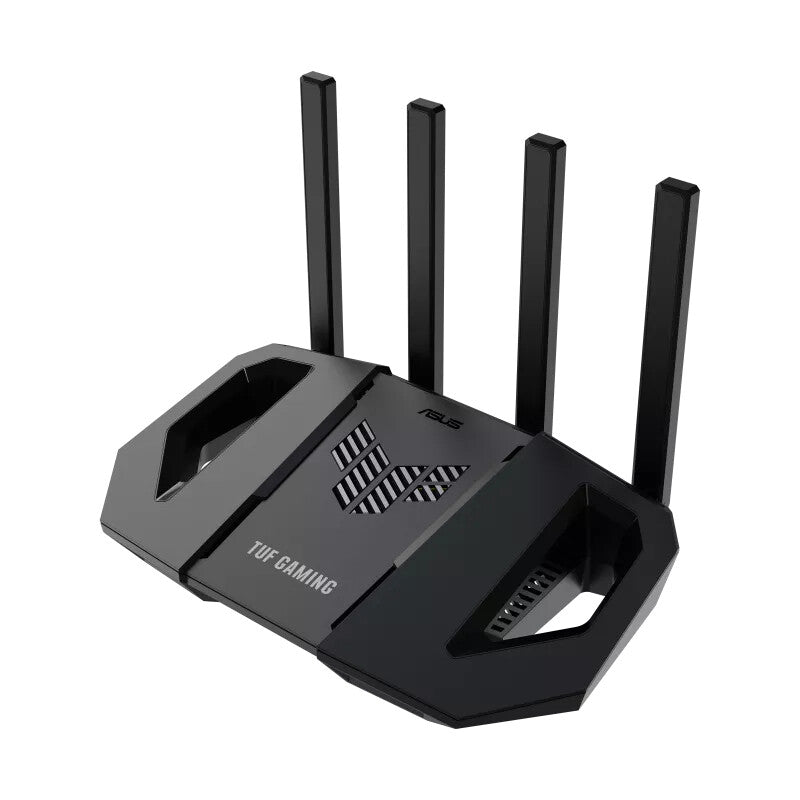

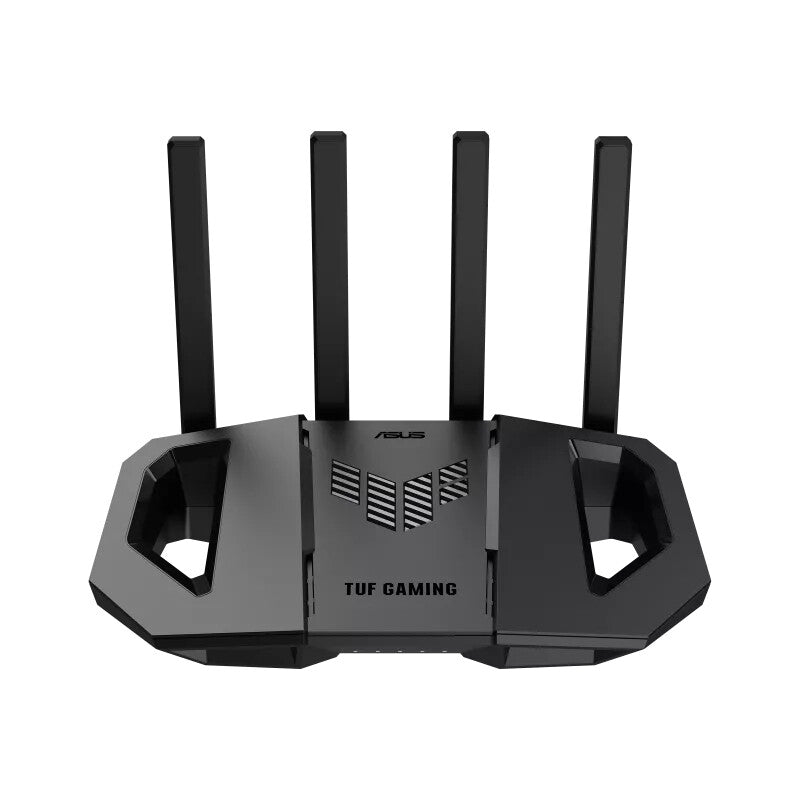

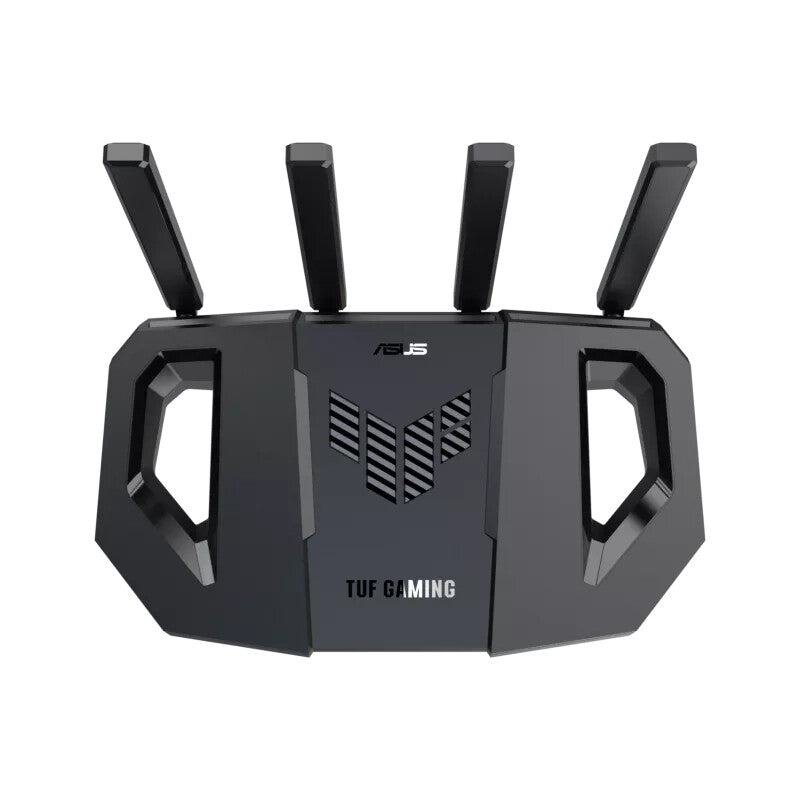

TUF Gaming BE3600
Inspired by the unique design and power wings of drones, the TUF Gaming BE3600 combines a sleek appearance with advanced cooling efficiency. Its hollow design on both sides enhances heat dissipation for stable all-day operation, enhancing your internet and gaming experience.
4K-QAM
Compared to 1024-QAM with WiFi 6/6E, 4096-QAM (Quadrature Amplitude Modulation)* allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.
Multi-Link Operation (MLO)
Multi-Link Operation (MLO)* enables buffering-free connection by intelligently combining and switching between the 2.4 GHz and 5 GHz bands. TUF Gaming BE3600 is built to be future-proof with all WiFi 7 devices, regardless of the MLO mode they utilize*.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Modulation |
4096-QAM, OFDMA |
| WLAN data transfer rate (second band) |
2882 Mbit/s |
| WLAN data transfer rate (first band) |
688 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) |
2882 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
VPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuardVPN Fusion |
| VPN server |
VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard |
| Built-in FTP server |
Yes |
| Support Samba (storage) |
Yes |
| Number of guest networks (2.4 GHz) |
3 |
| Number of guest networks (5 GHz) |
3 |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |

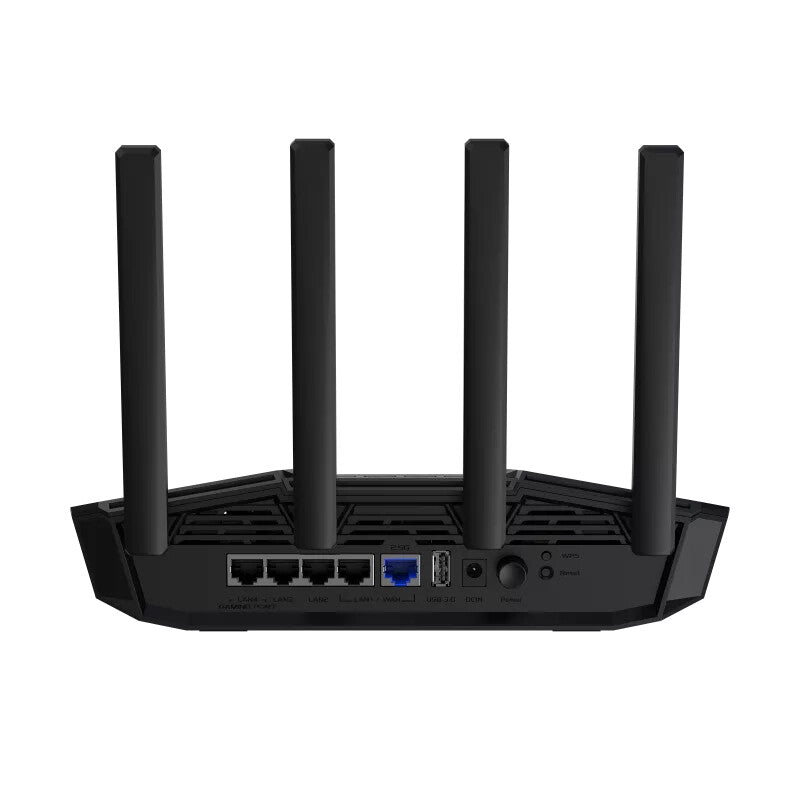

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
5 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Wake-on-LAN ready |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| NAT functionality |
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| System event log |
Yes |
| URL filtering |
Yes |
| MAC address filtering |
Yes |
| Parental control |
Yes |
| Firewall security |
Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| Firewall |
Yes |
| Security algorithms |
SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal, WPS |
| Protocols |
|---|
| DHCP server |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| LED indicators |
LAN, Power, WAN |
| Product colour |
Black |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Warranty card |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna design |
External |
| Features |
|---|
| Flash memory |
256 MB |
| Internal memory |
1000 MB |
| Processor cores |
4 |
| Processor frequency |
2000 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| Output current |
2 A |
| Output voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Width |
274 mm |
| Depth |
168 mm |
| Height |
205 mm |
| Weight |
561 g |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Package type |
Box |
| Package weight |
1.13 kg |
| Package height |
90 mm |
| Package depth |
190 mm |
| Package width |
420 mm |
