Game TUF. Built to Last.

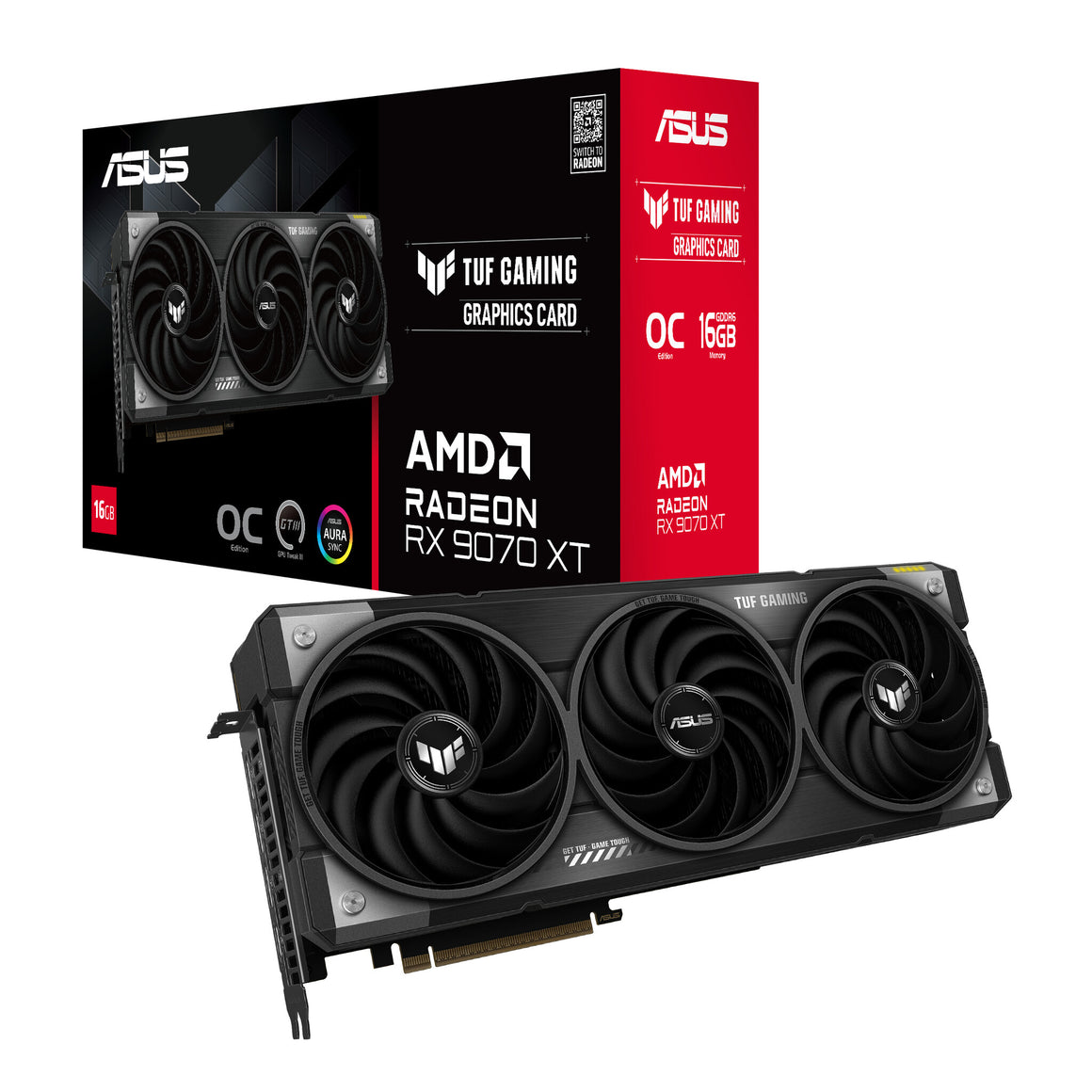

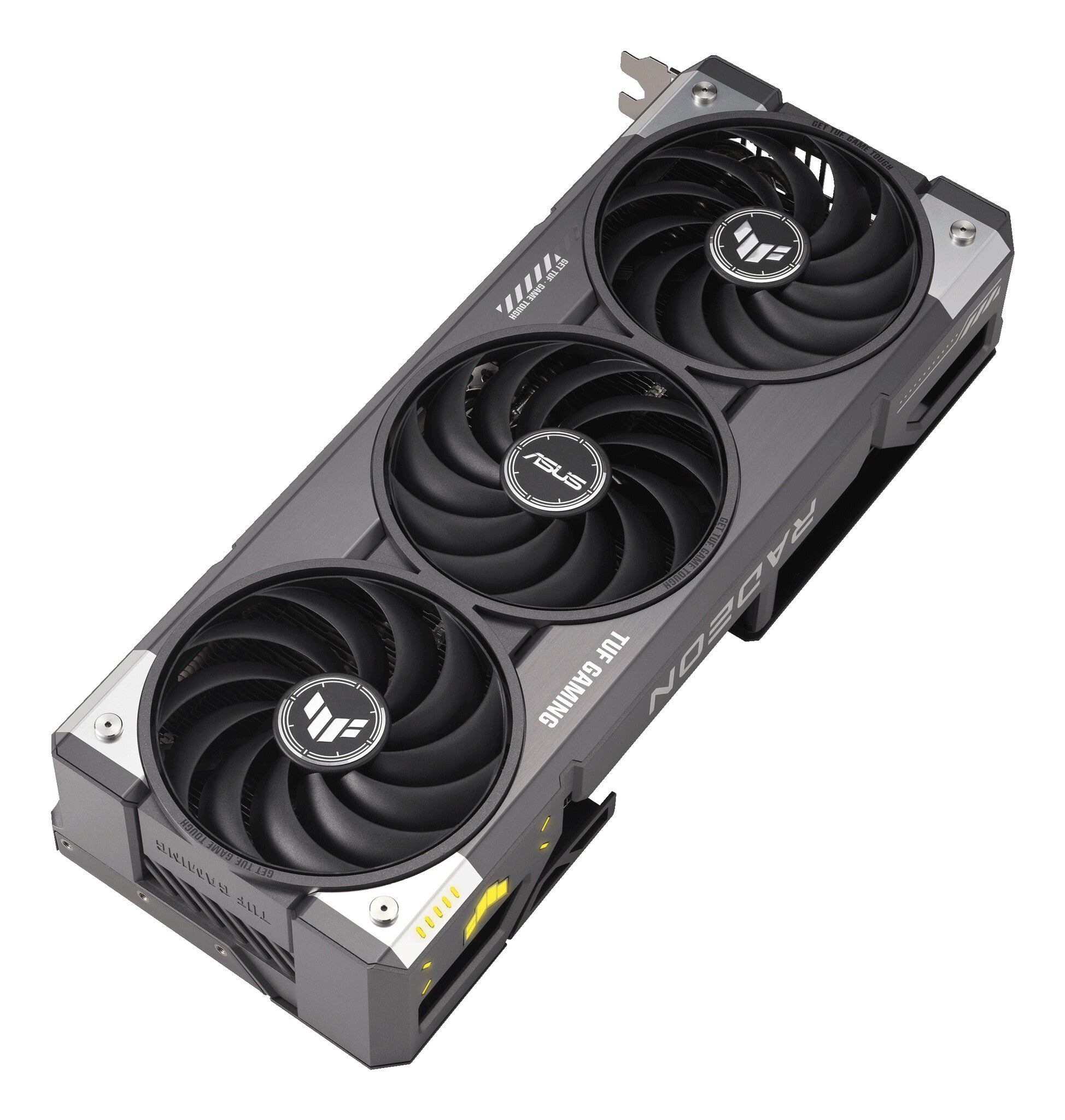

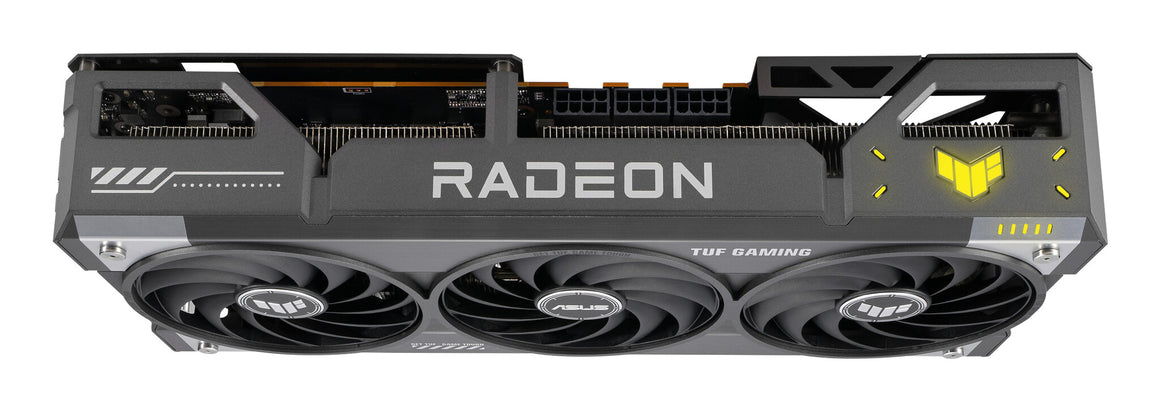

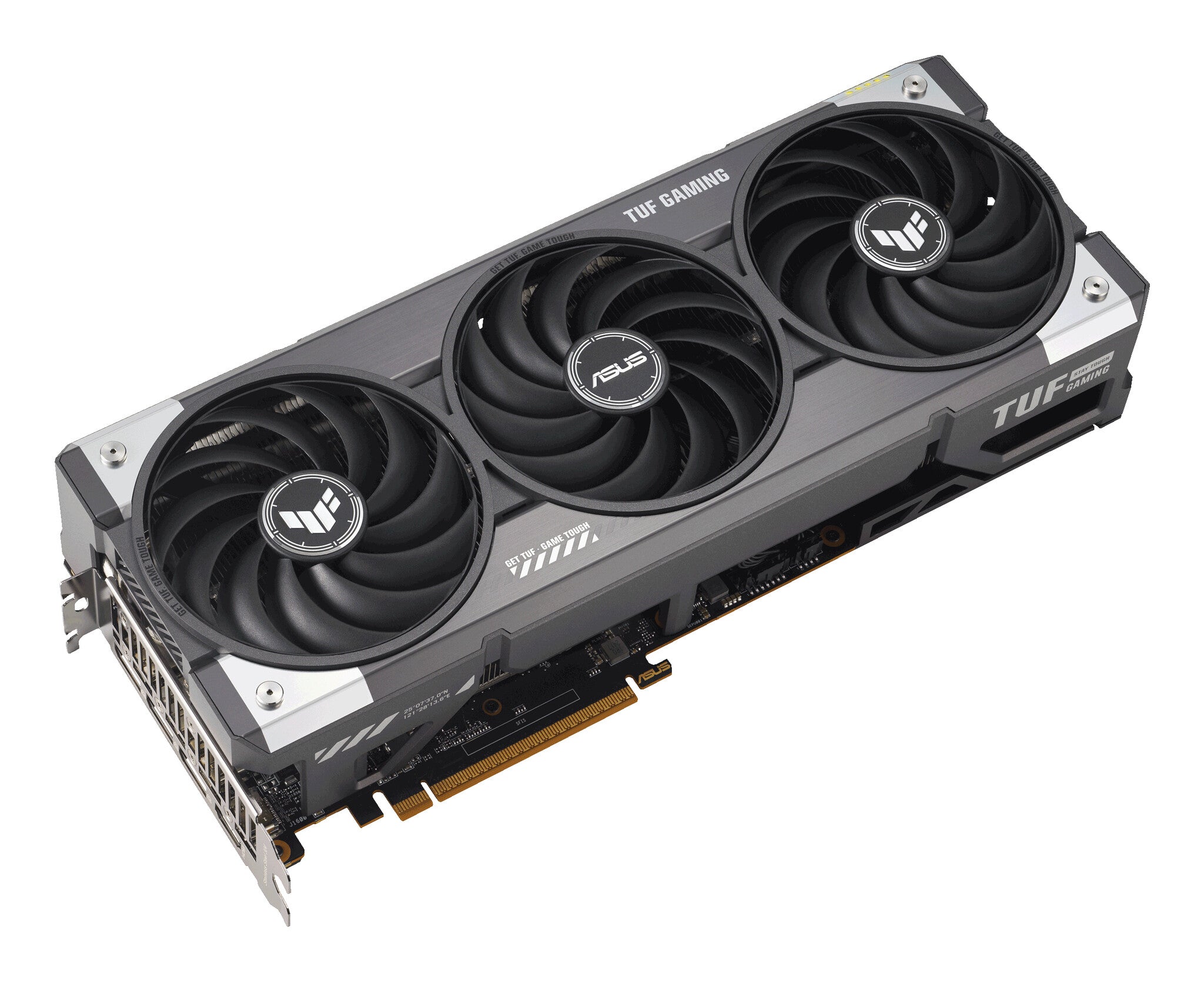

ASUS TUF Gaming Radeon™ RX 9070 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Premium Durability
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

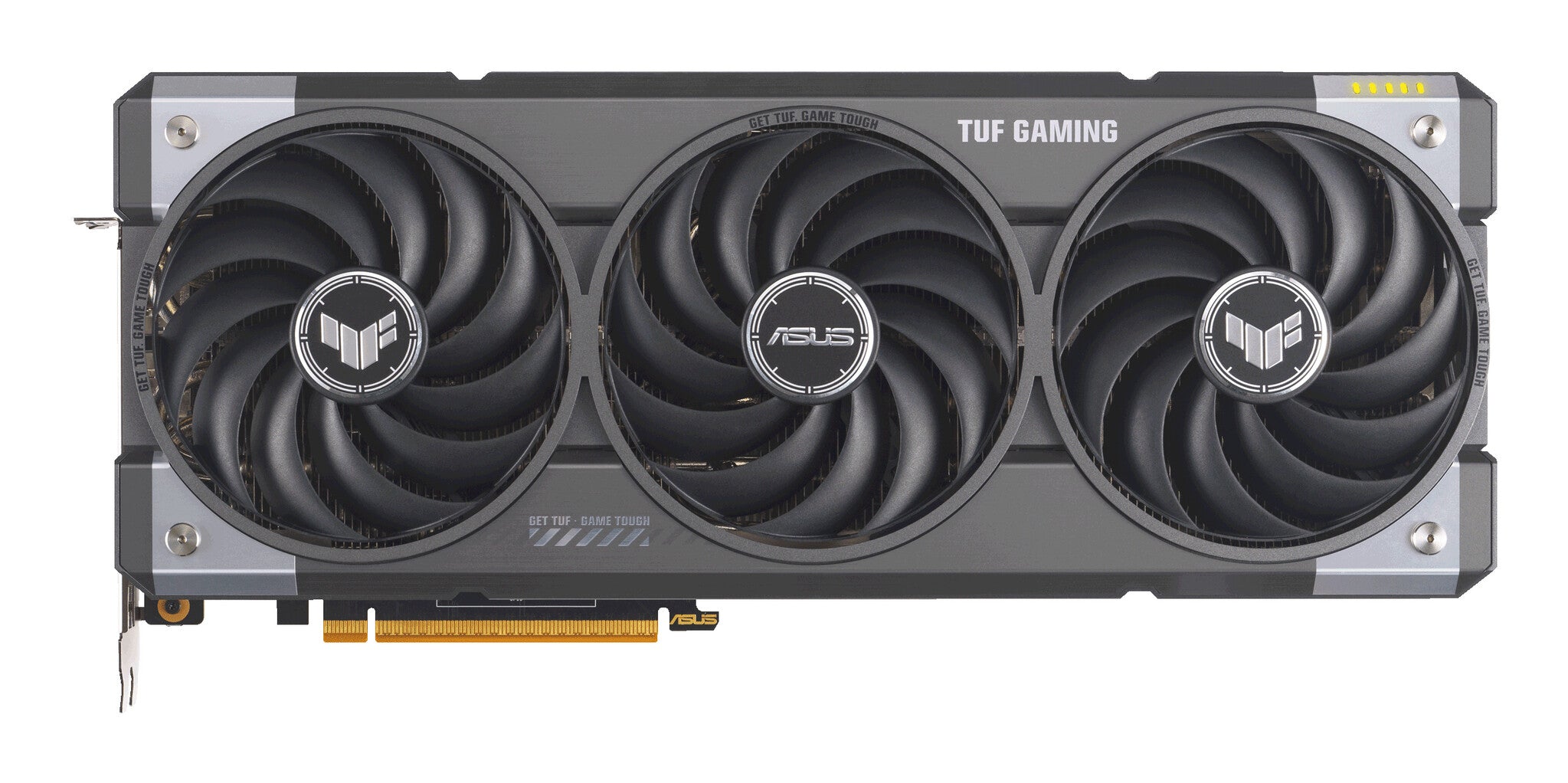

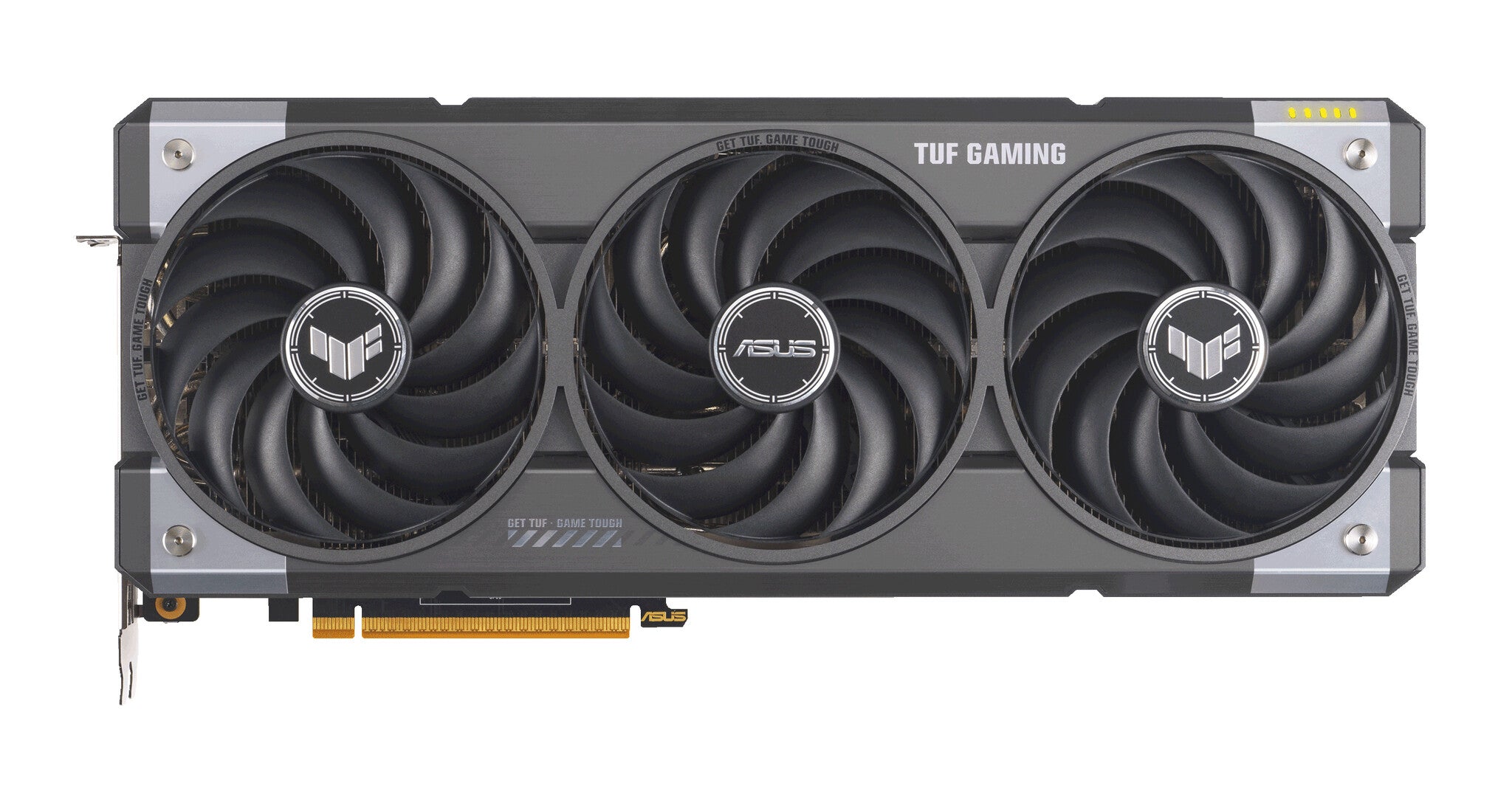

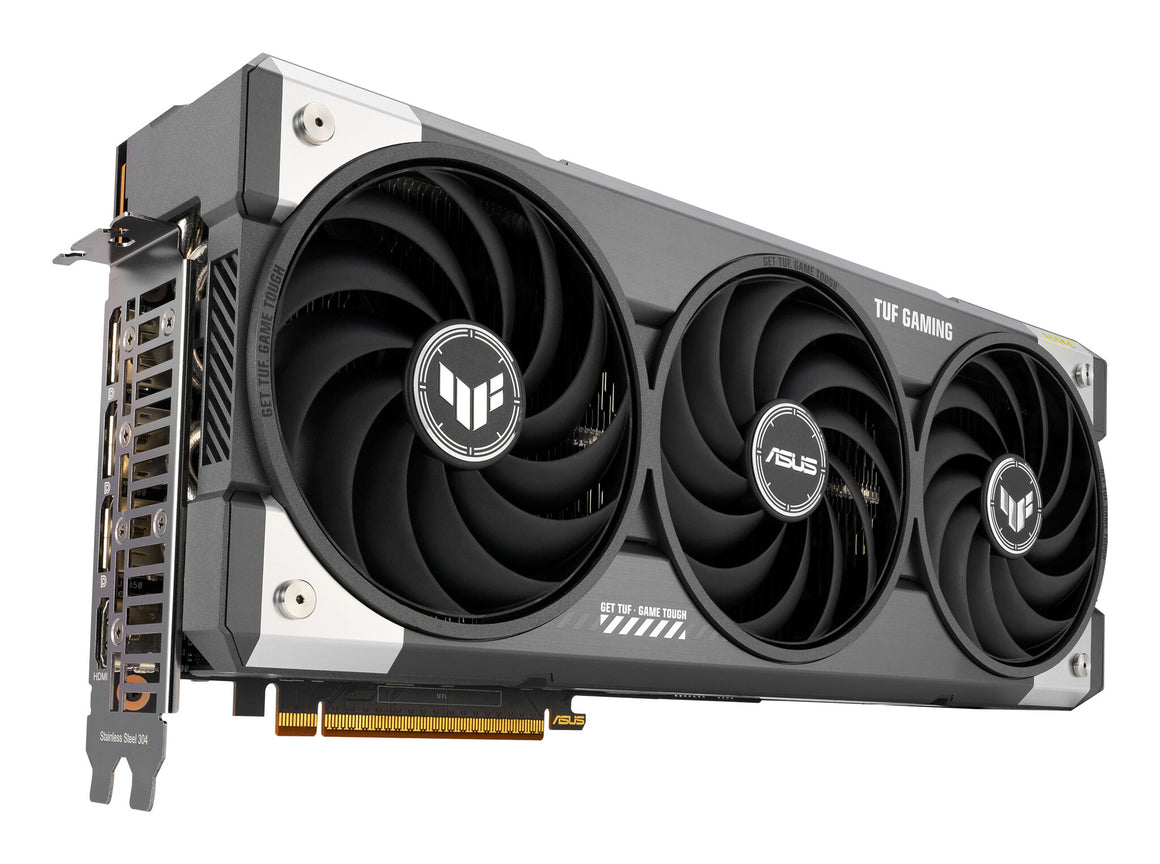

Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 31% more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.

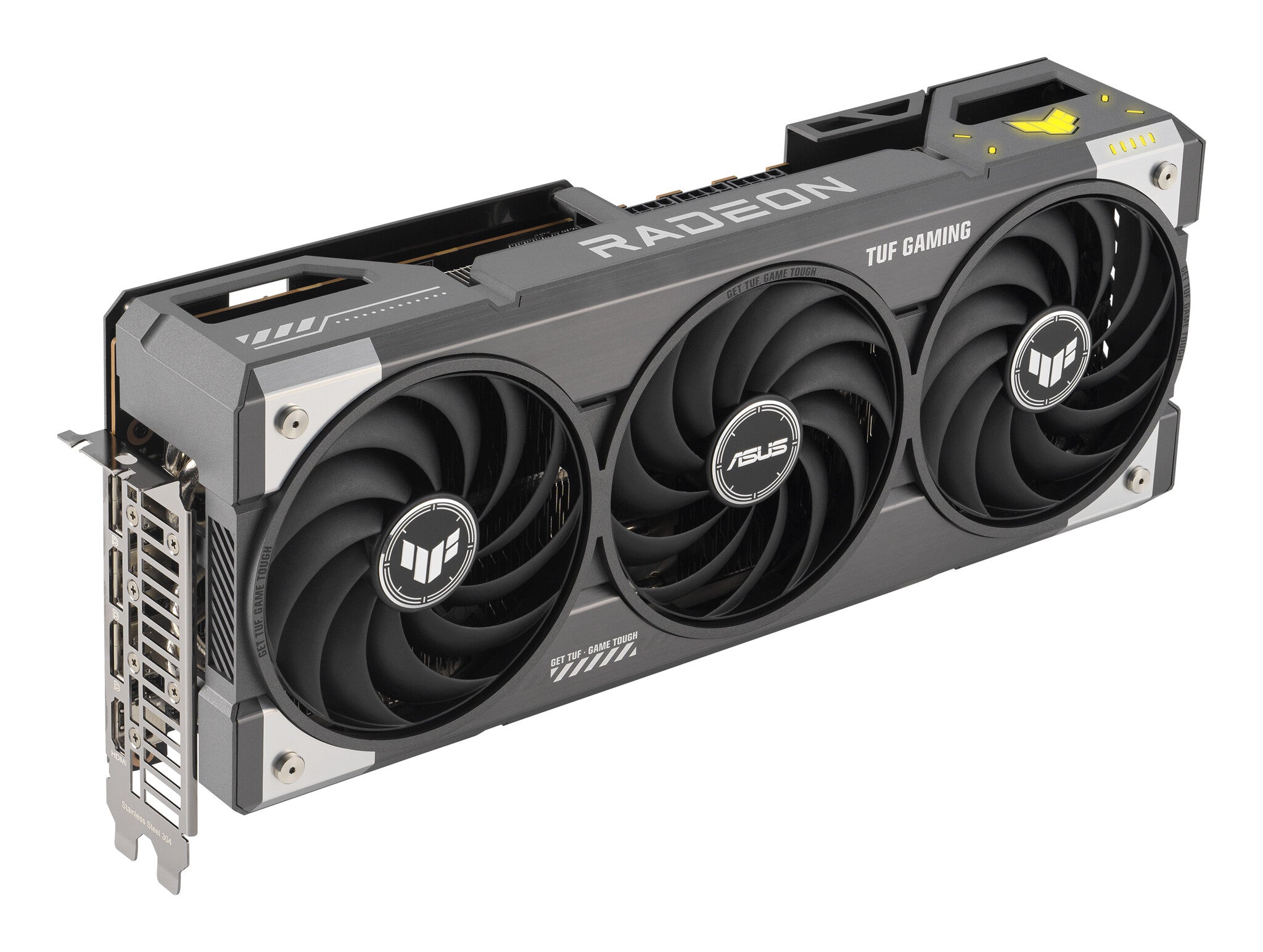

Vented Exoskeleton

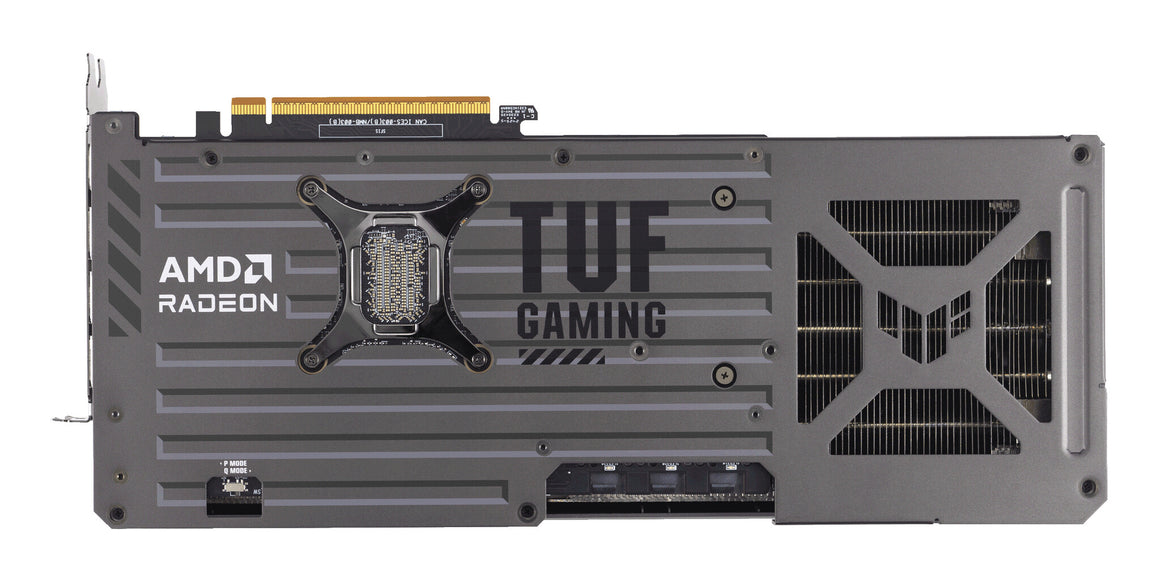

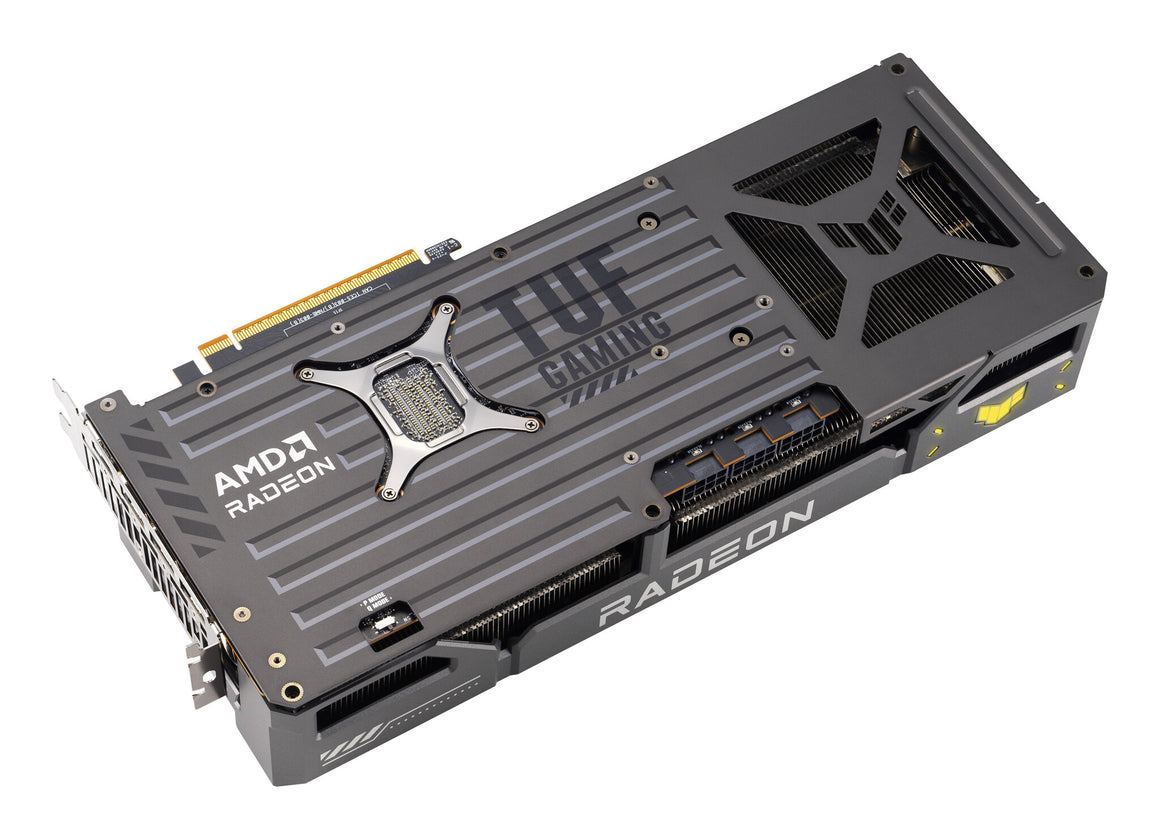

A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.
The Perfect PSU for the TUF Gaming Radeon™ RX 9000 Series
The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.
Reliability
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
No |
| Graphics processor family |
AMD |
| Memory |
|---|
| Data transfer rate |
20 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
16 GB |
| Ports & interfaces |
|---|

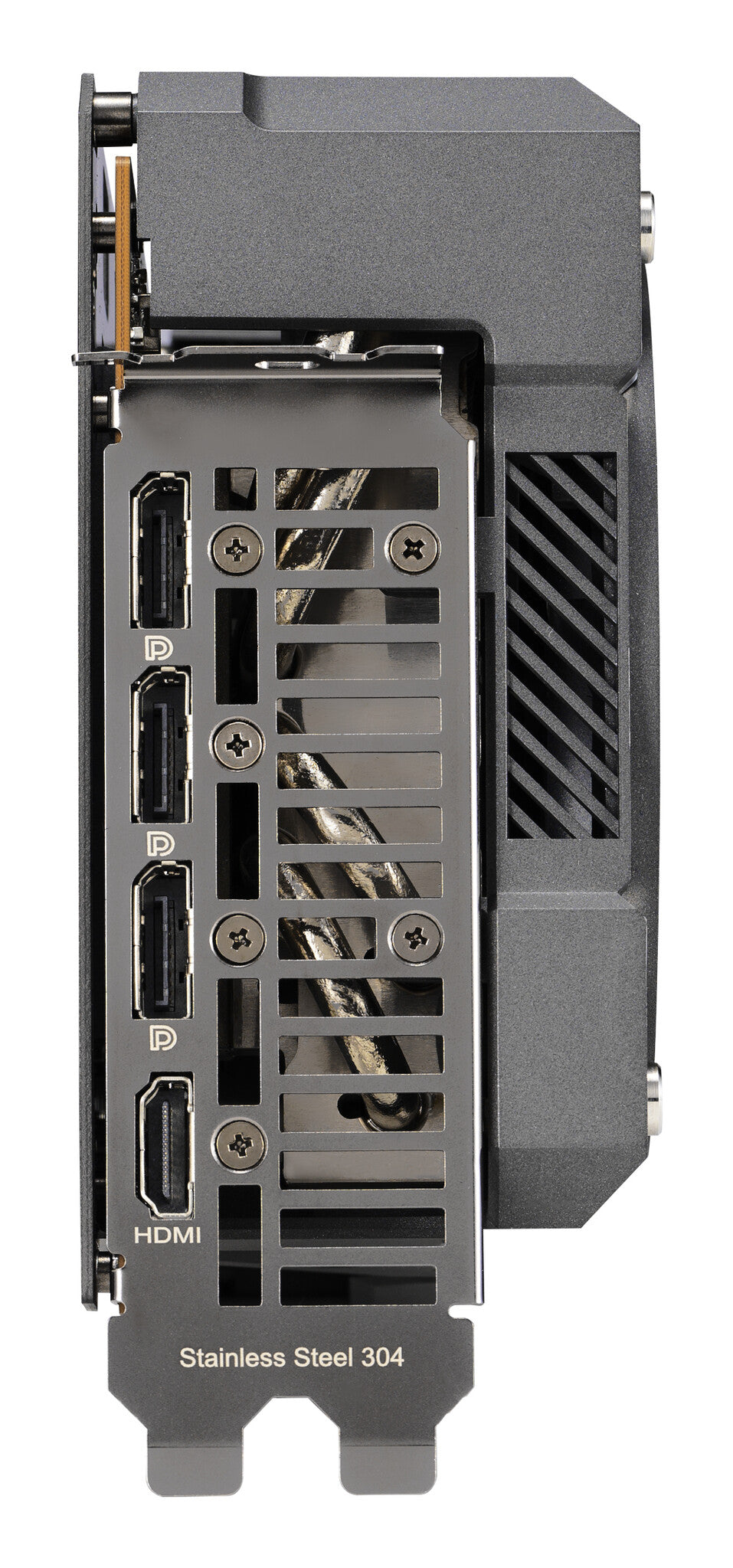

| DisplayPort version |
2.1a |
| HDMI version |
2.1b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| Overclocked (OC) edition |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black, Silver |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3.125 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
3x 8-pin |
| Minimum system power supply |
850 W |
| Weight & dimensions |
|---|
| Height |
140 mm |
| Depth |
62.5 mm |
| Length |
330 mm |
| Weight |
1.48 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.56 kg |
| Package height |
126 mm |
| Package depth |
226 mm |
| Package width |
420 mm |

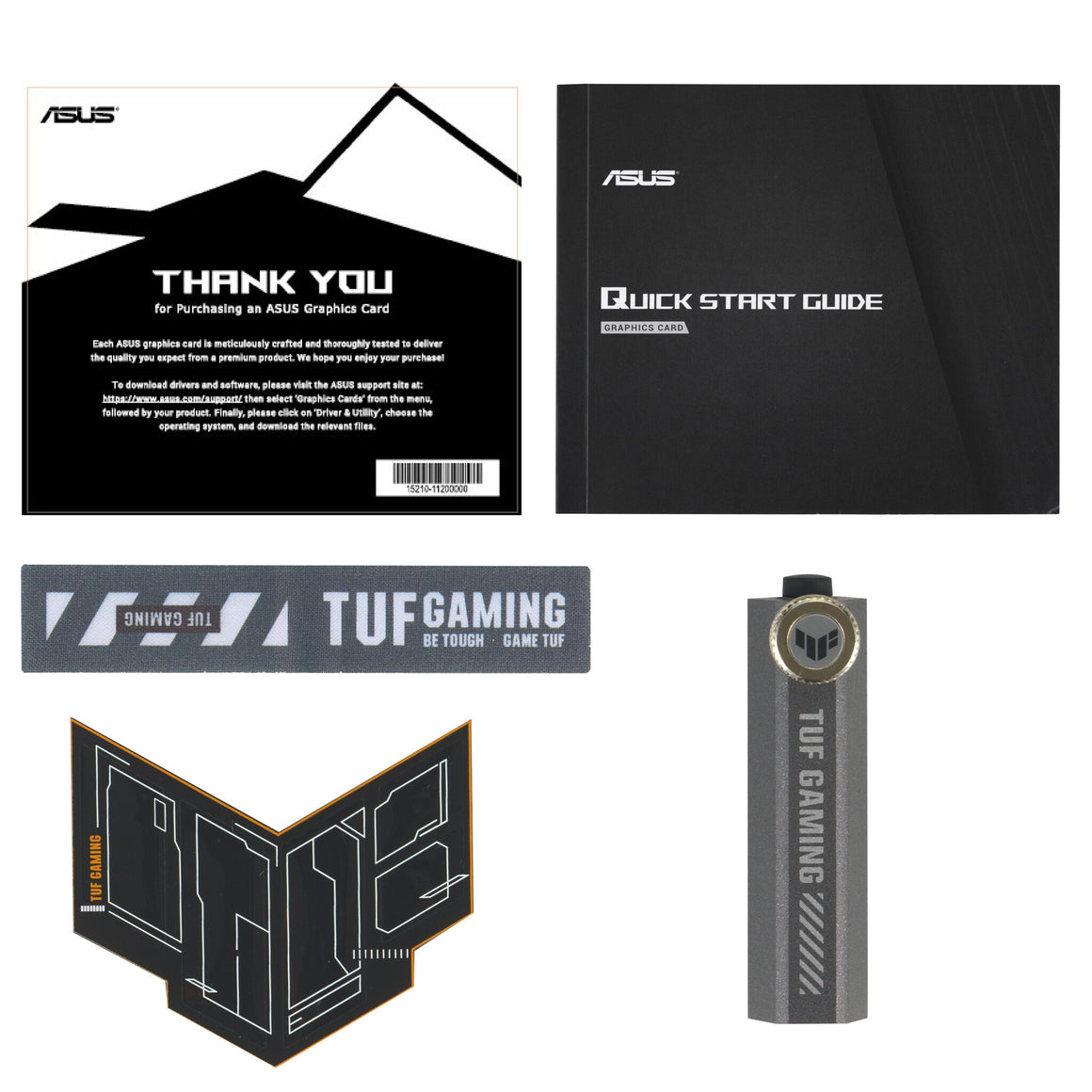

| Packaging content |
|---|
| User guide |
Yes |
| General |
|---|
| Product family |
TUF Gaming |
