Game TUF. Built to Last.

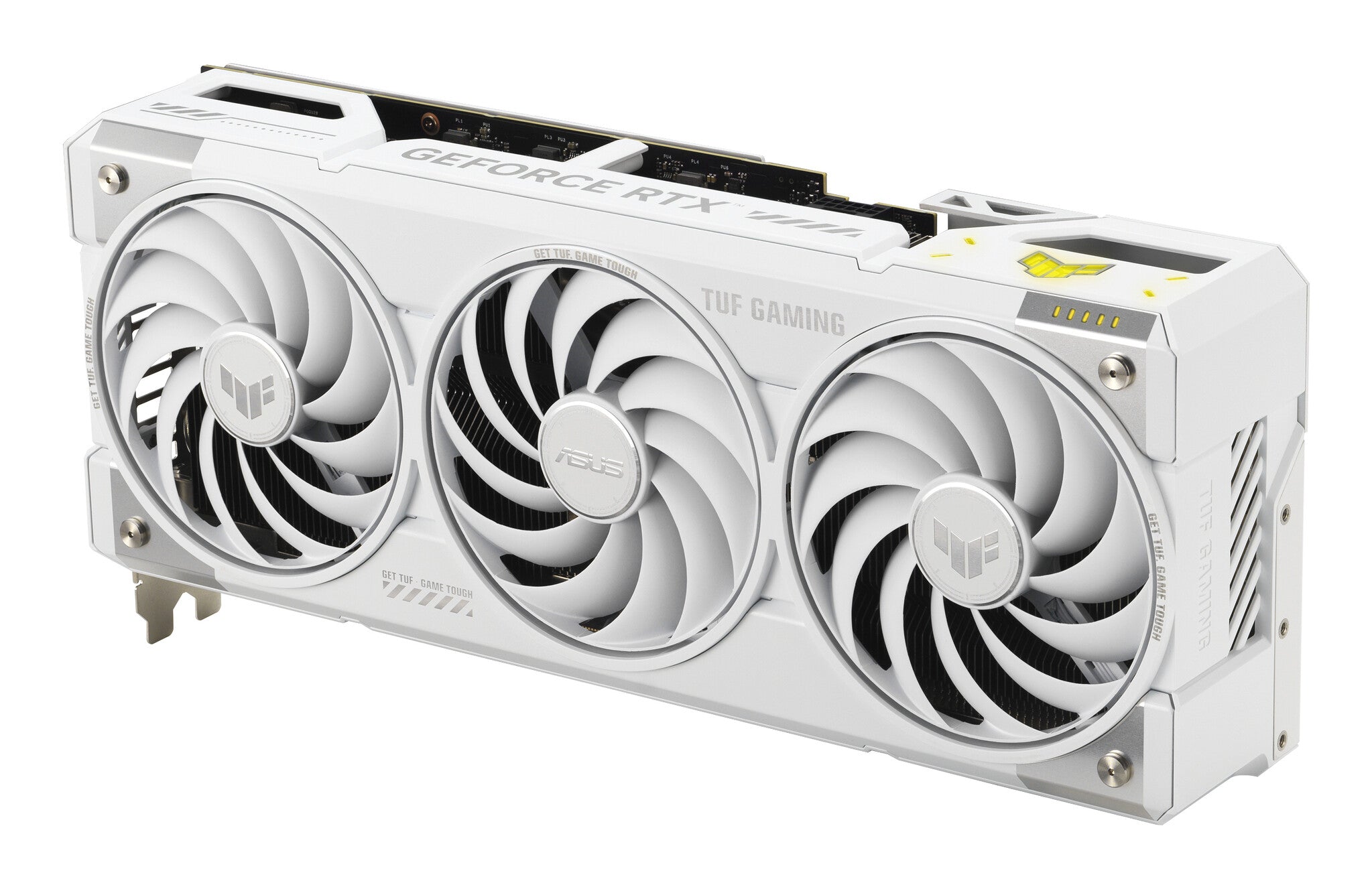

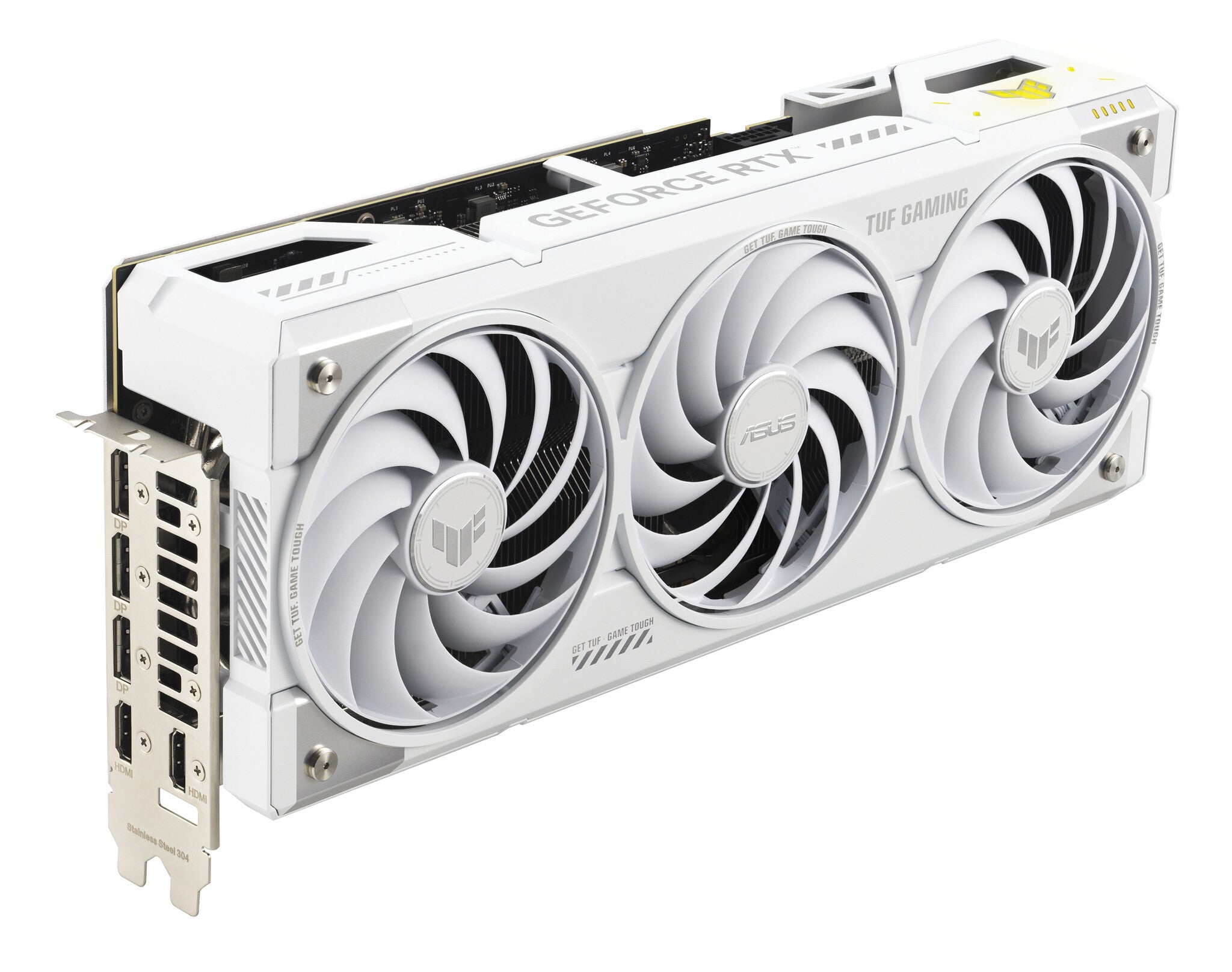

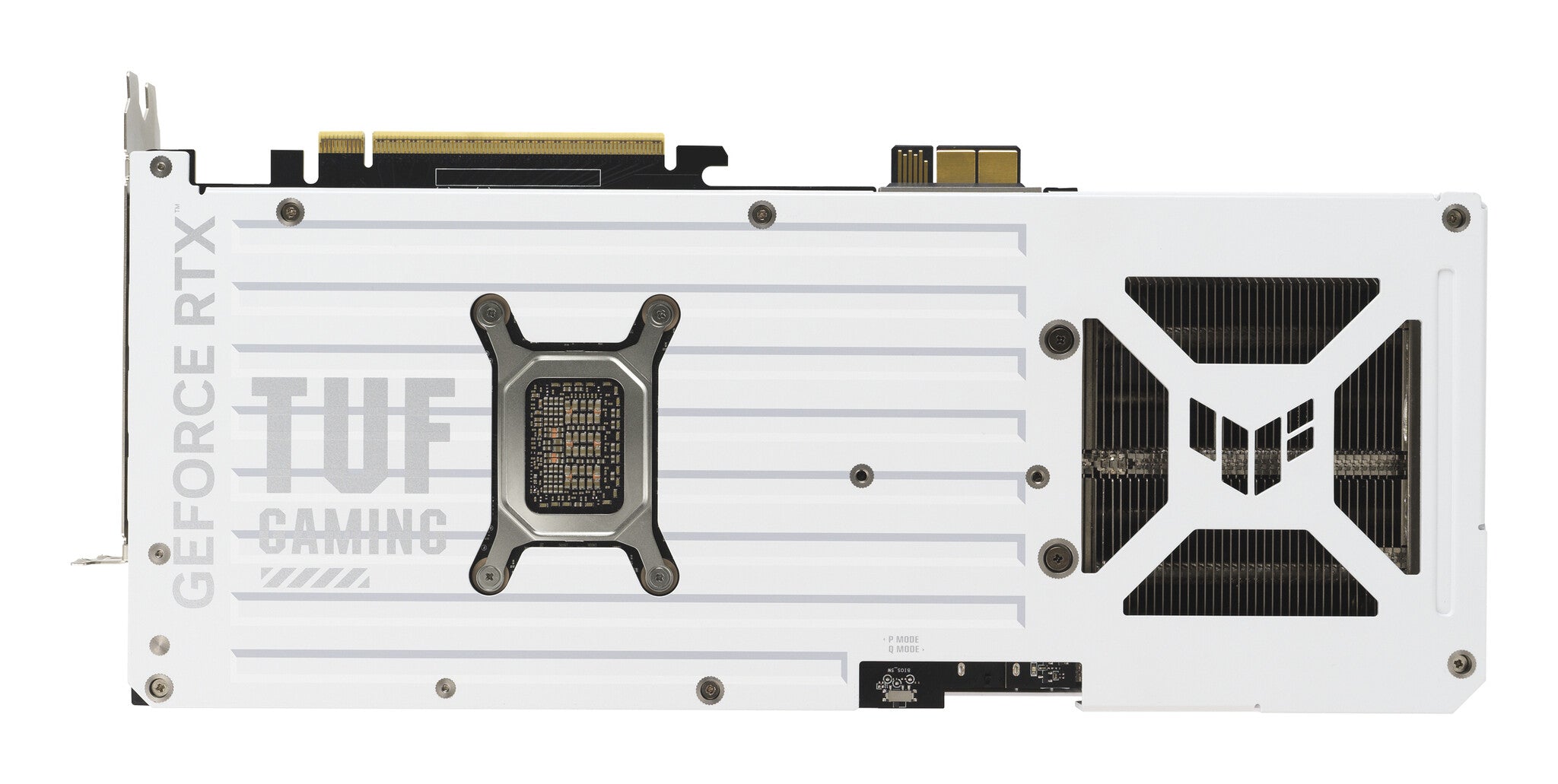

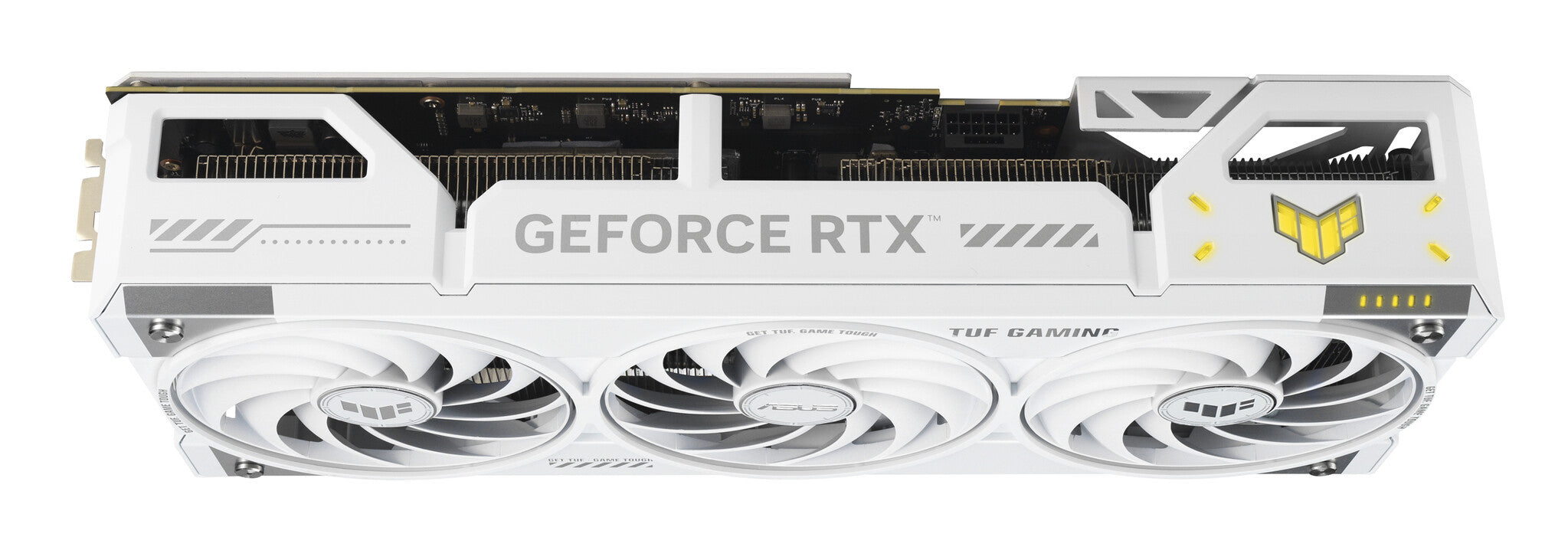

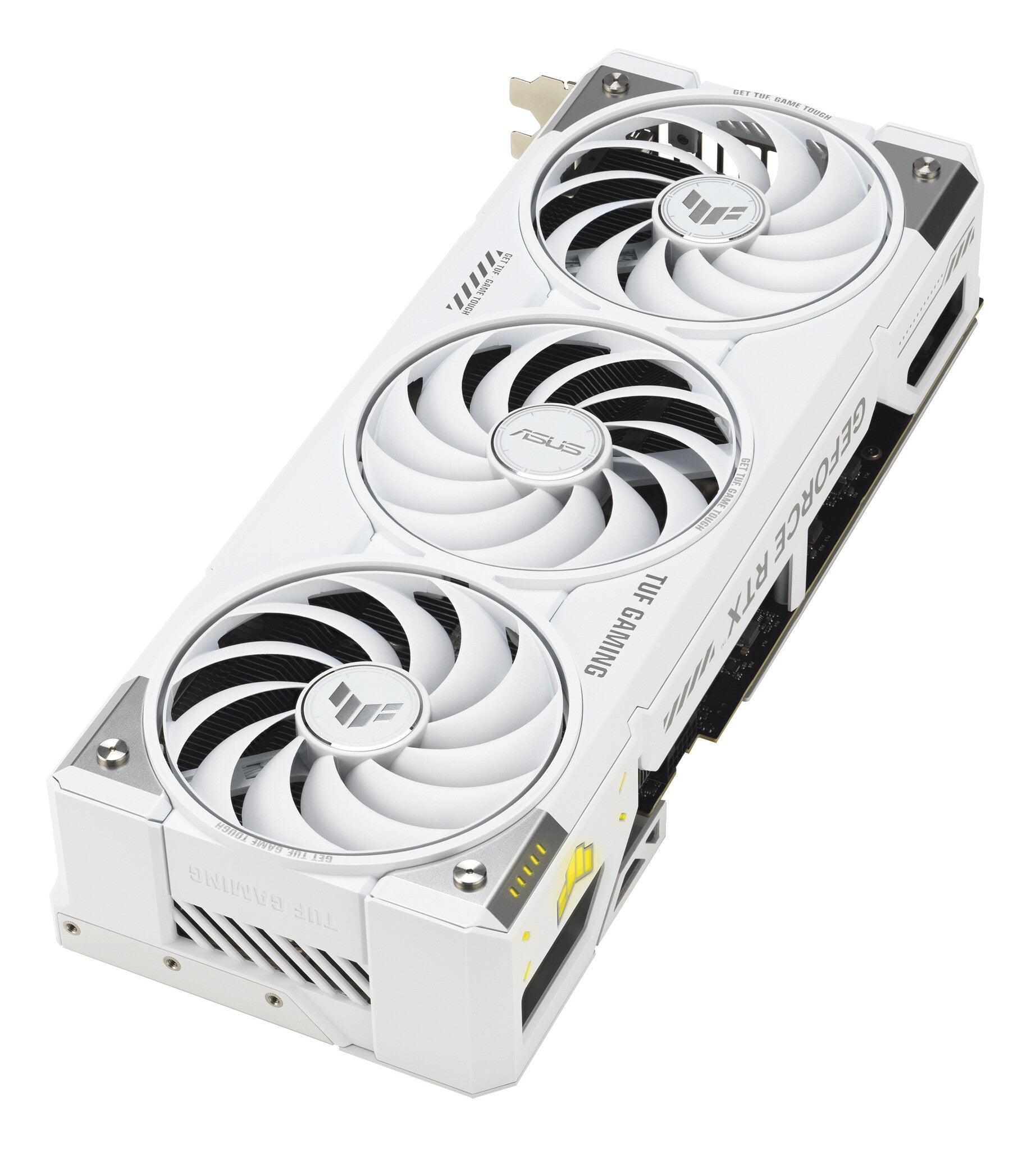

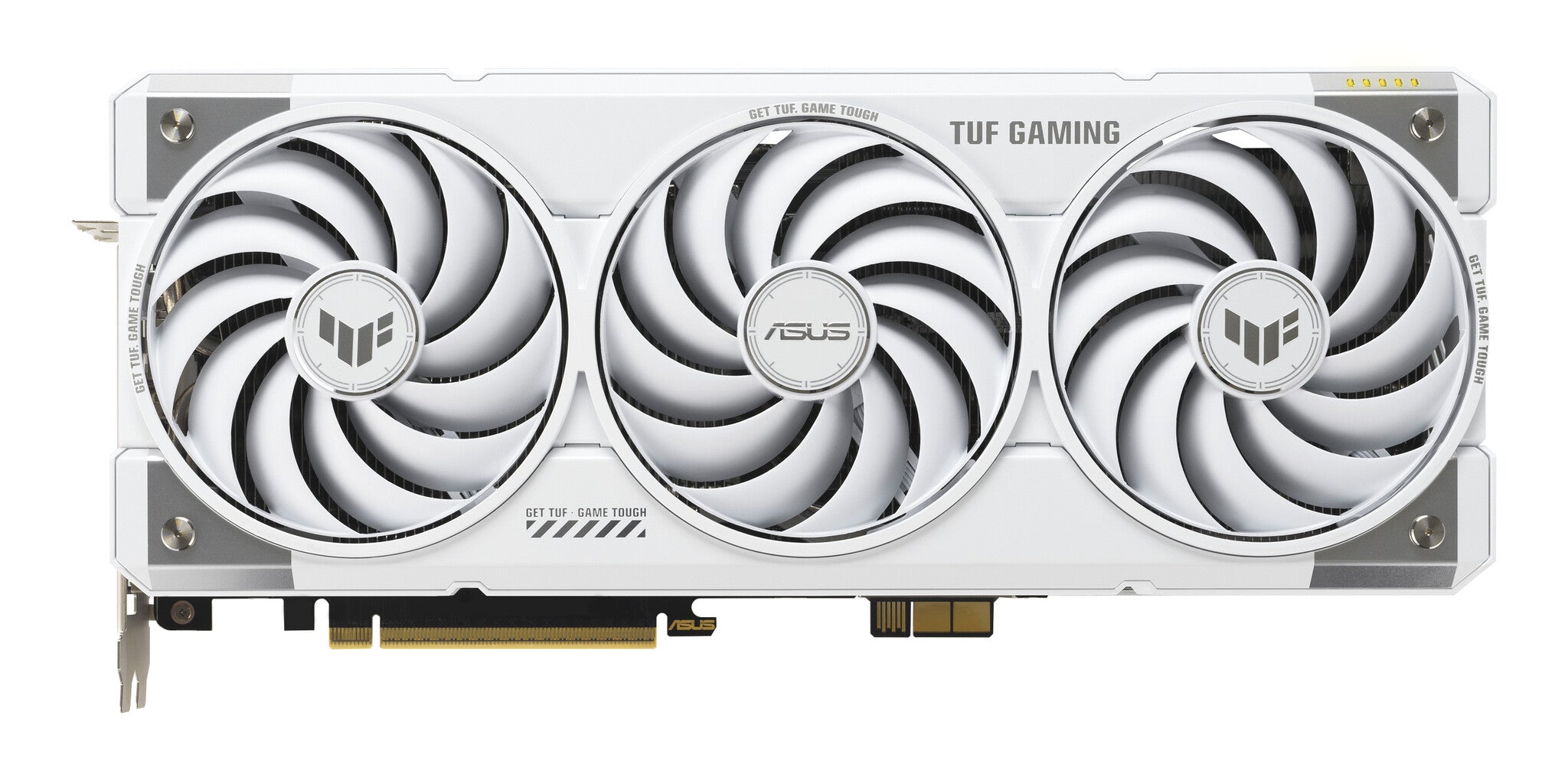

ASUS TUF Gaming GeForce RTX™ 5070 Ti BTF White Edition
Featuring the latest BTF technology, it incorporates an innovative graphics card high-power (GC-HPWR) adapter that can withstand up to 1000 watts, whose detachable design ensures compatibility with both standard and BTF motherboards.
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070 Ti BTF White Edition, designed to withstand the harshest conditions and deliver unparalleled performance.
ASUS BTF ECOSYSTEM
Truly Cable-Free Hidden-Connector Design
Experience the future of PC building with the BTF series. Combining a BTF graphics card, motherboard, and chassis unlocks a complete hidden-connector experience, eliminating visible cables for an unparalleled clean aesthetic. The advanced BTF approach, powered by the graphics card high-power slot on BTF motherboards, delivers substantial power. And now, with our innovative detachable graphics card high power (GC-HPWR) adapter design, BTF graphics cards offer unmatched compatibility, working seamlessly with both standard and BTF motherboards. Plus, the enhanced GC-HPWR adapter now withstands up to 1000 watts, ensuring optimal performance for even the most demanding GPUs.

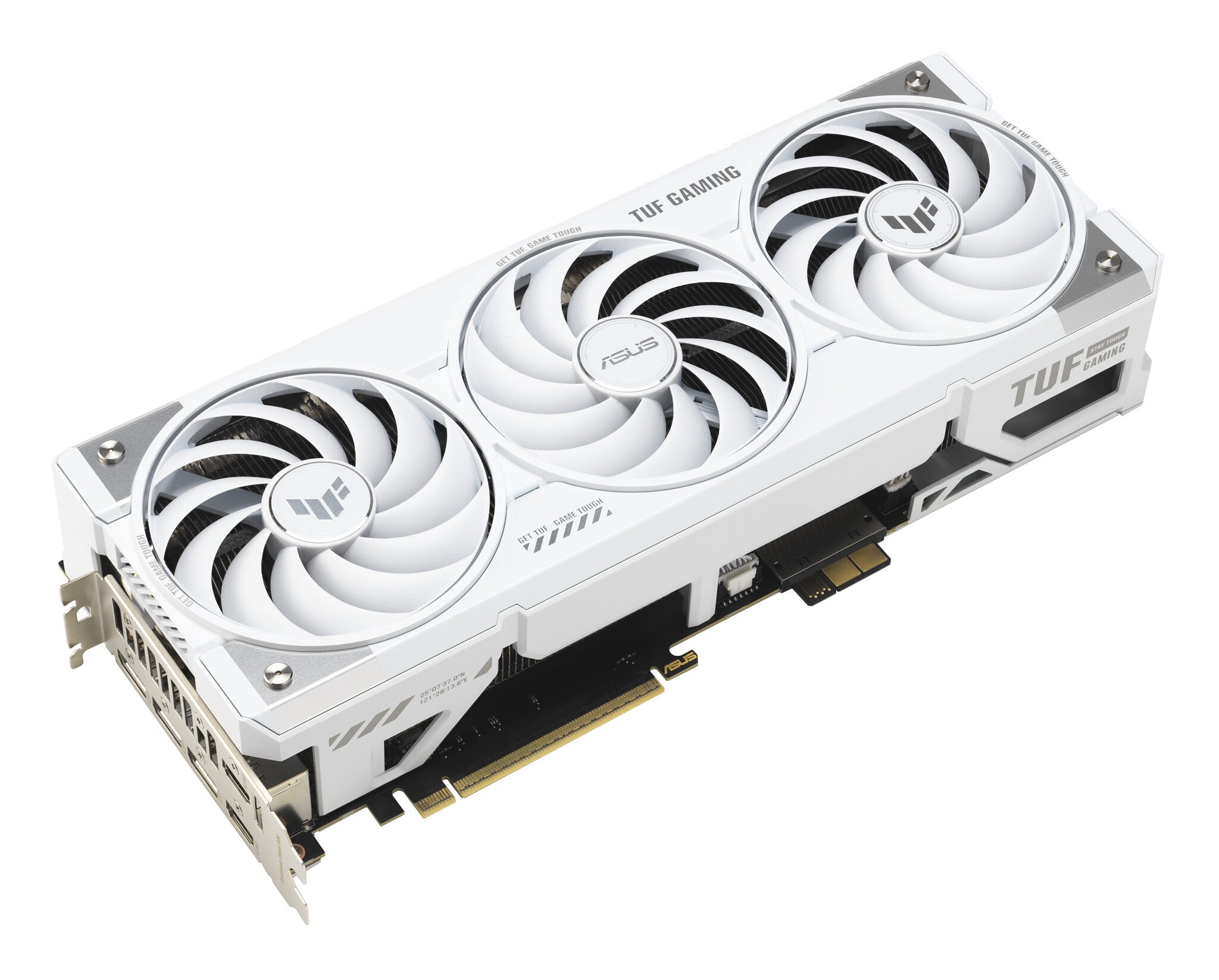

Detachable Graphics Card High Power (GC-HPWR) Adapter
The detachable Graphics Card High Power (GC-HPWR) adapter makes BTF graphics cards compatible with both standard and BTF motherboards, giving users greater flexibility and upgradability for their system builds.
The adapter can withstand up to 1000 watts for peak performance.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
Yes |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Data transfer rate |
28 Gbit/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |
| Discrete graphics card memory |
16 GB |

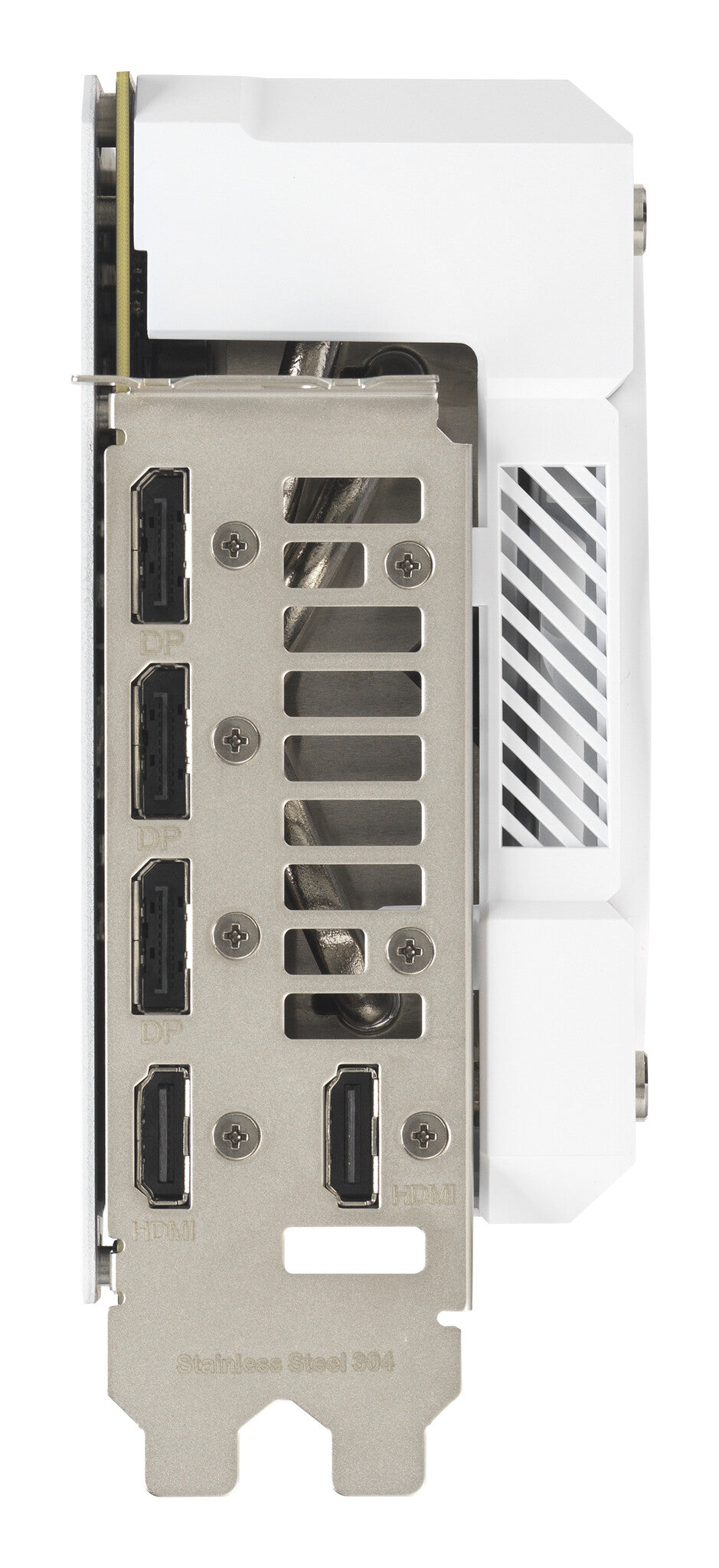

| Ports & interfaces |
|---|
| DisplayPort version |
2.1b |
| HDMI version |
2.1b |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 5.0 |
| Performance |
|---|
| Overclocked (OC) edition |
Yes |
| NPU performance up to |
1484 TOPs |
| Dual Link DVI |
No |
| HDCP |
Yes |
| HDCP version |
2.3 |
| OpenGL version |
4.6 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
White |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3.125 |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
850 W |
| Weight & dimensions |
|---|
| Height |
140 mm |
| Depth |
62.5 mm |
| Length |
329 mm |
| Weight |
1.67 kg |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
2.46 kg |
| Package height |
87 mm |
| Package depth |
226 mm |
| Package width |
420 mm |

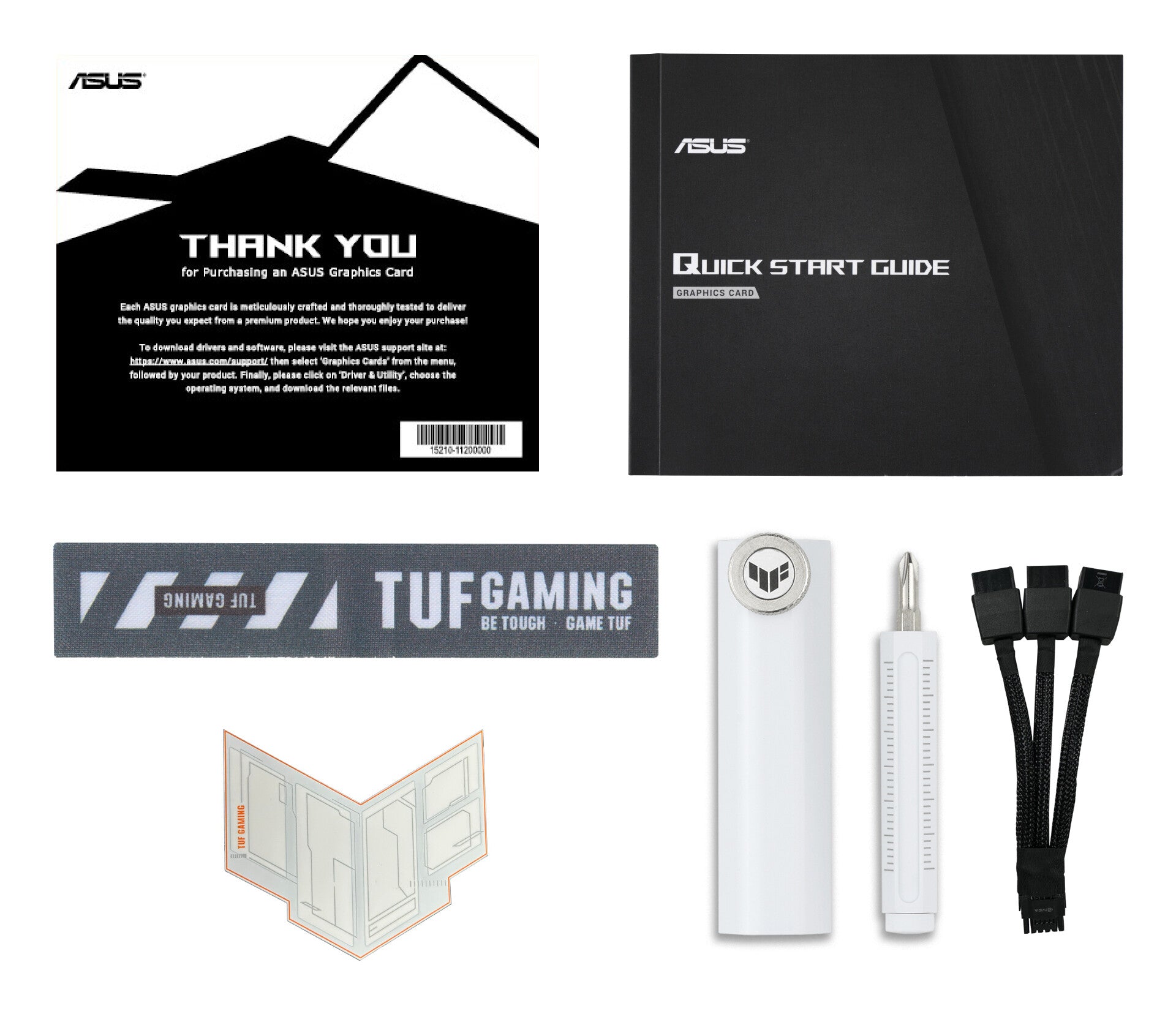

| Packaging content |
|---|
| Manual |
Yes |
