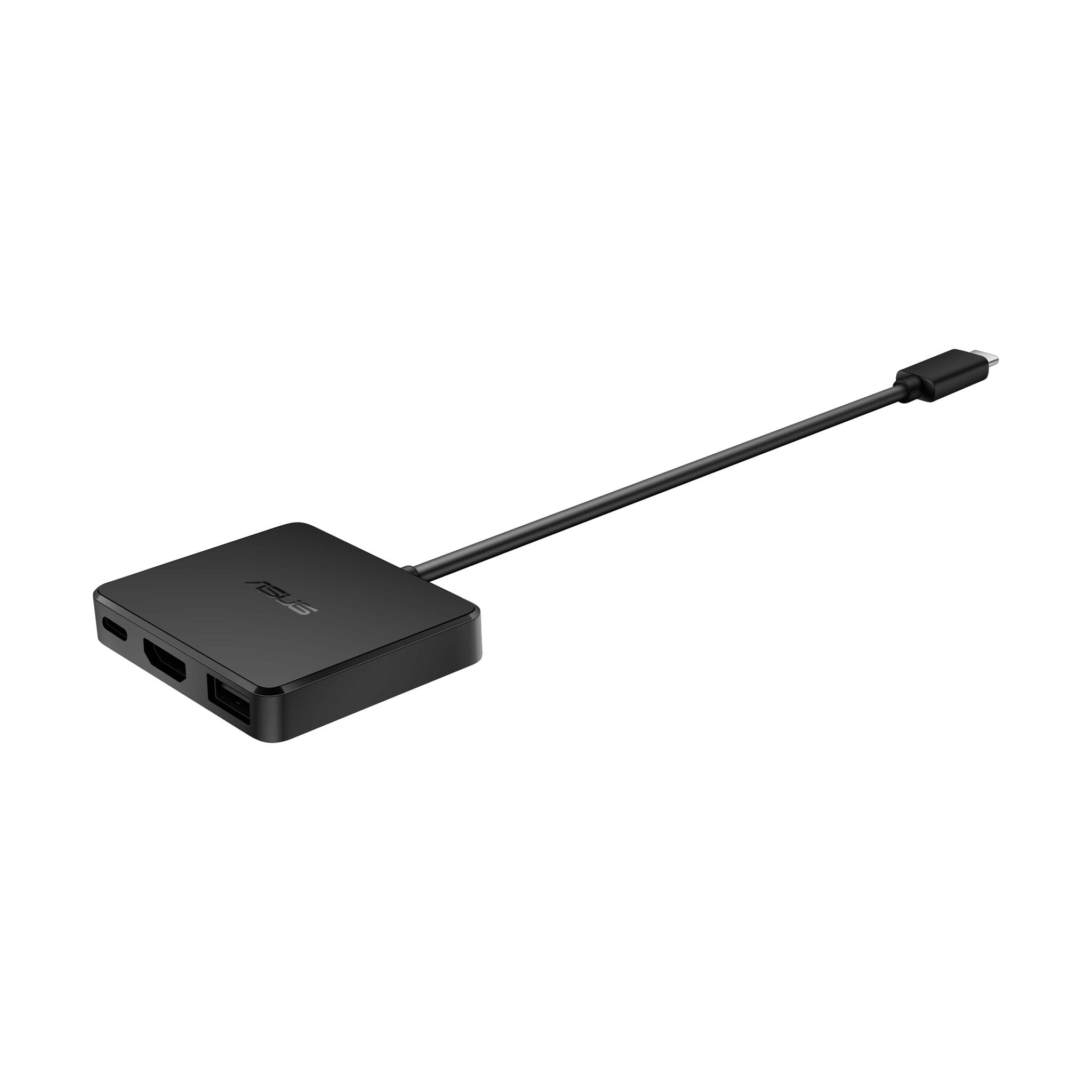

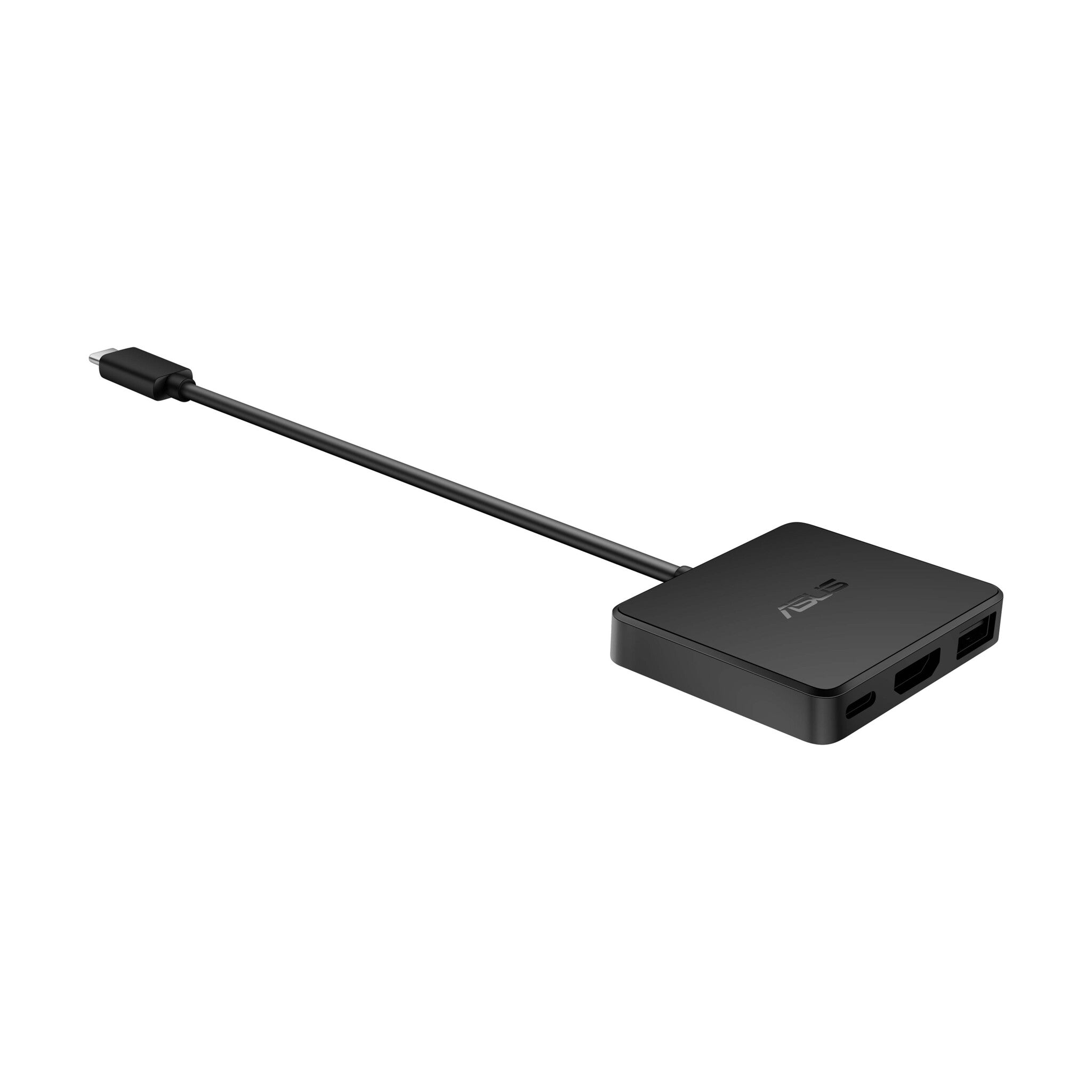

ASUS USB-C Mini Dock Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

SKU: 90XB0820-BDS000

£53.88 inc. VAT

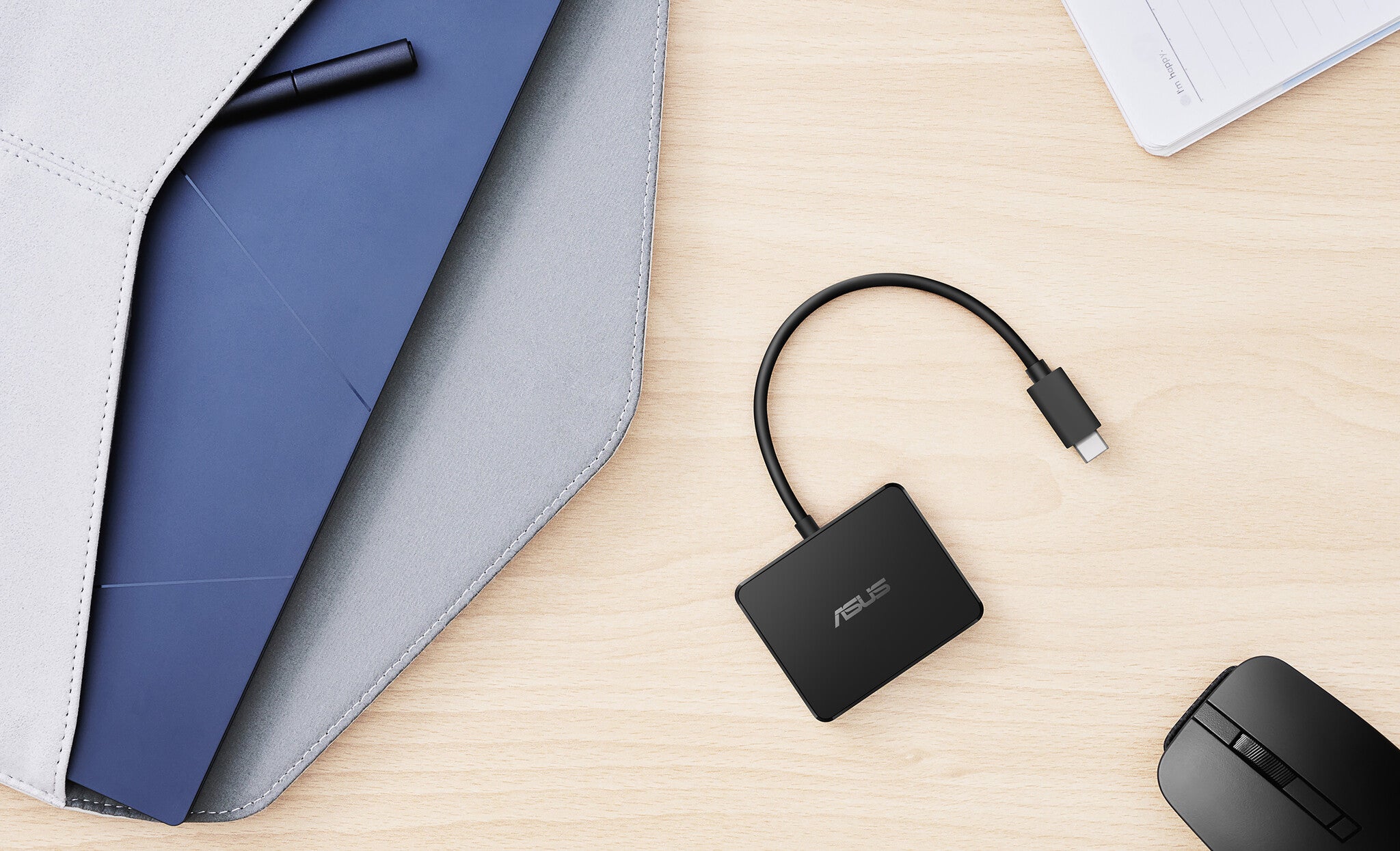

48g lightweight with cable

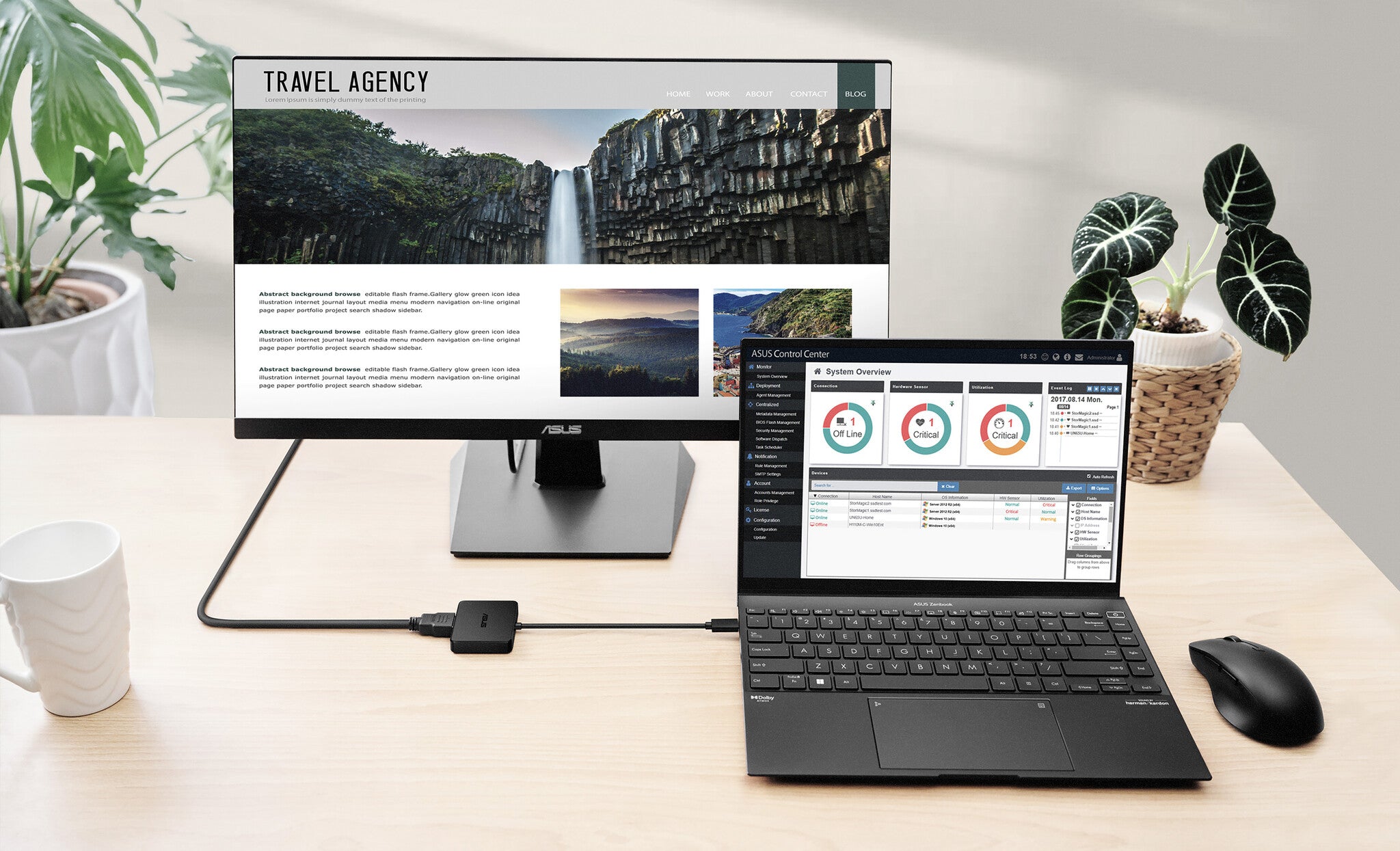

4K connectivity via HDMI
Up to 100 W Power Delivery of USB-C
Up to 7.5 W Output of USB-C

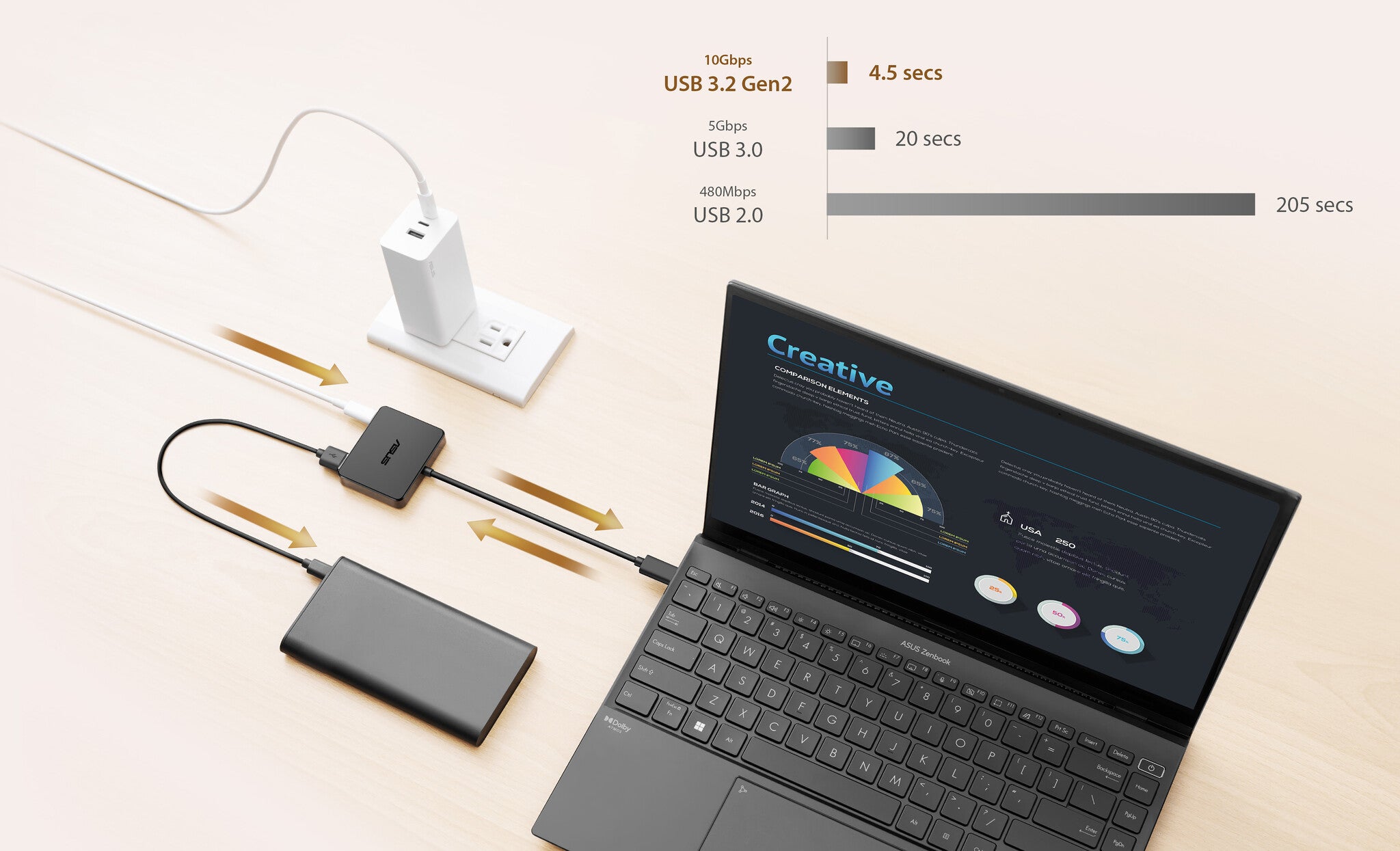

Up to 10 Gbps data transfers of both USB Type-A and USB-C

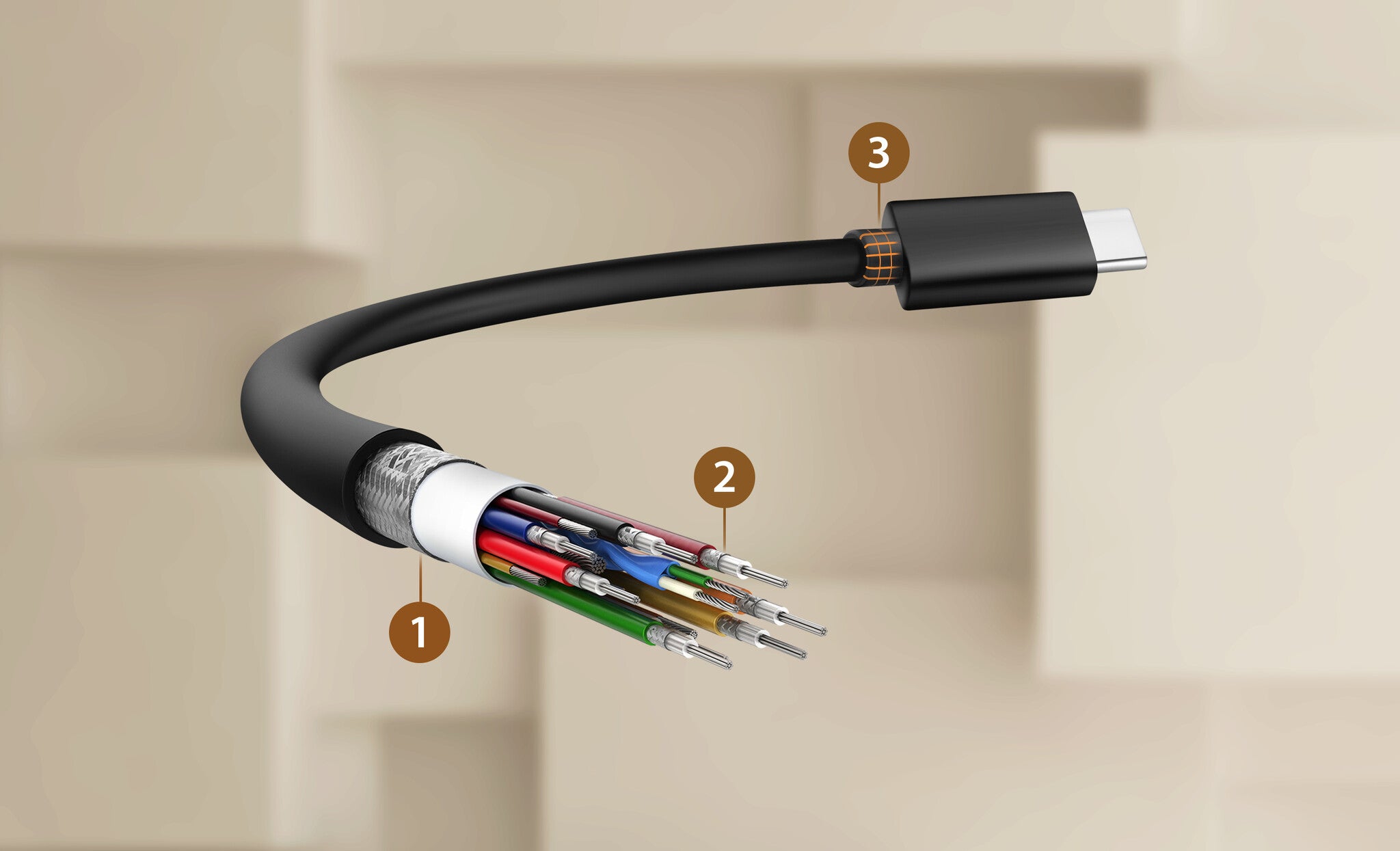

The coaxial cable provides 1.7x better coverage than traditional cables

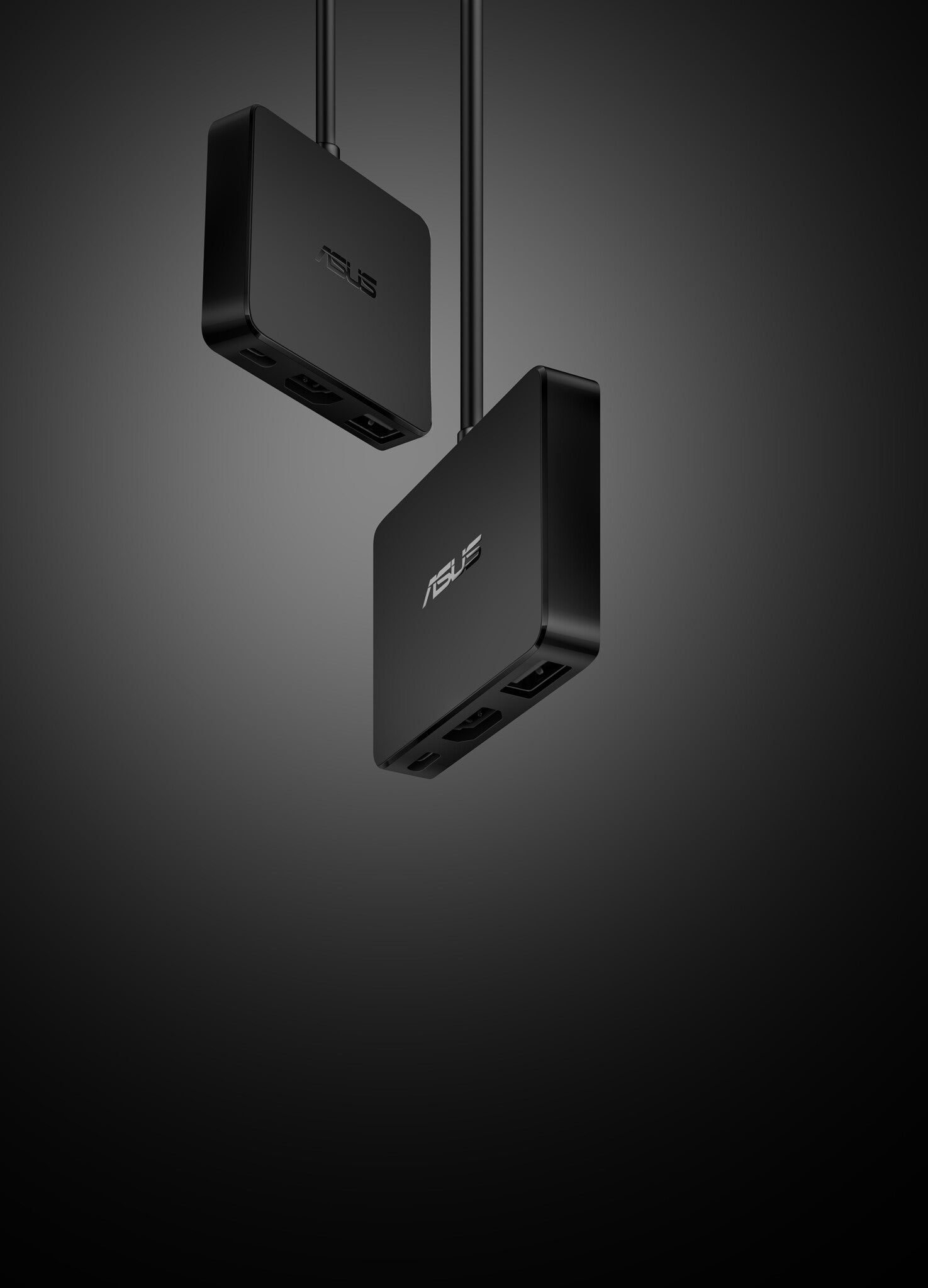

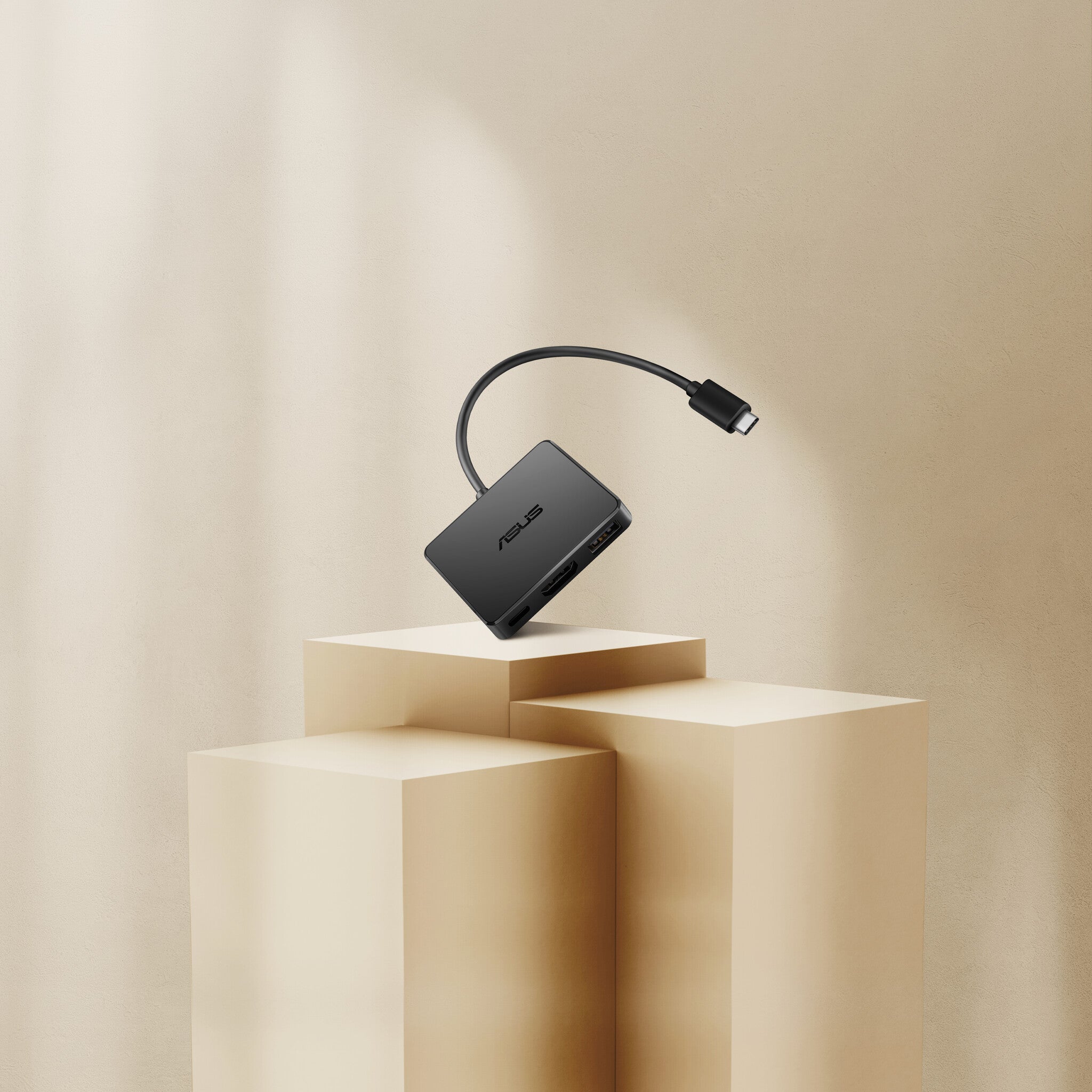

Introducing the ASUS USB-C Mini Dock

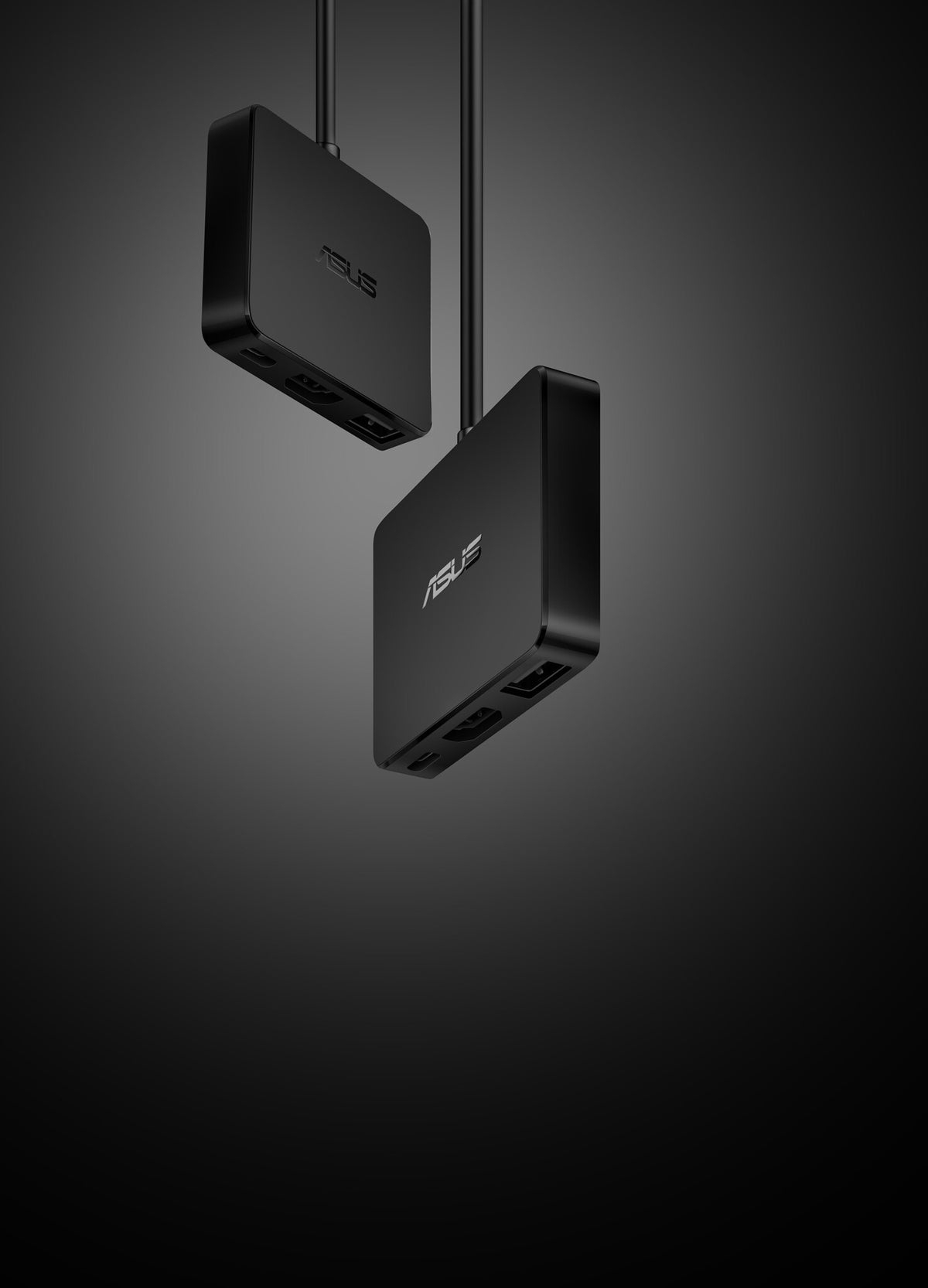

Small in Size. Big on Features.

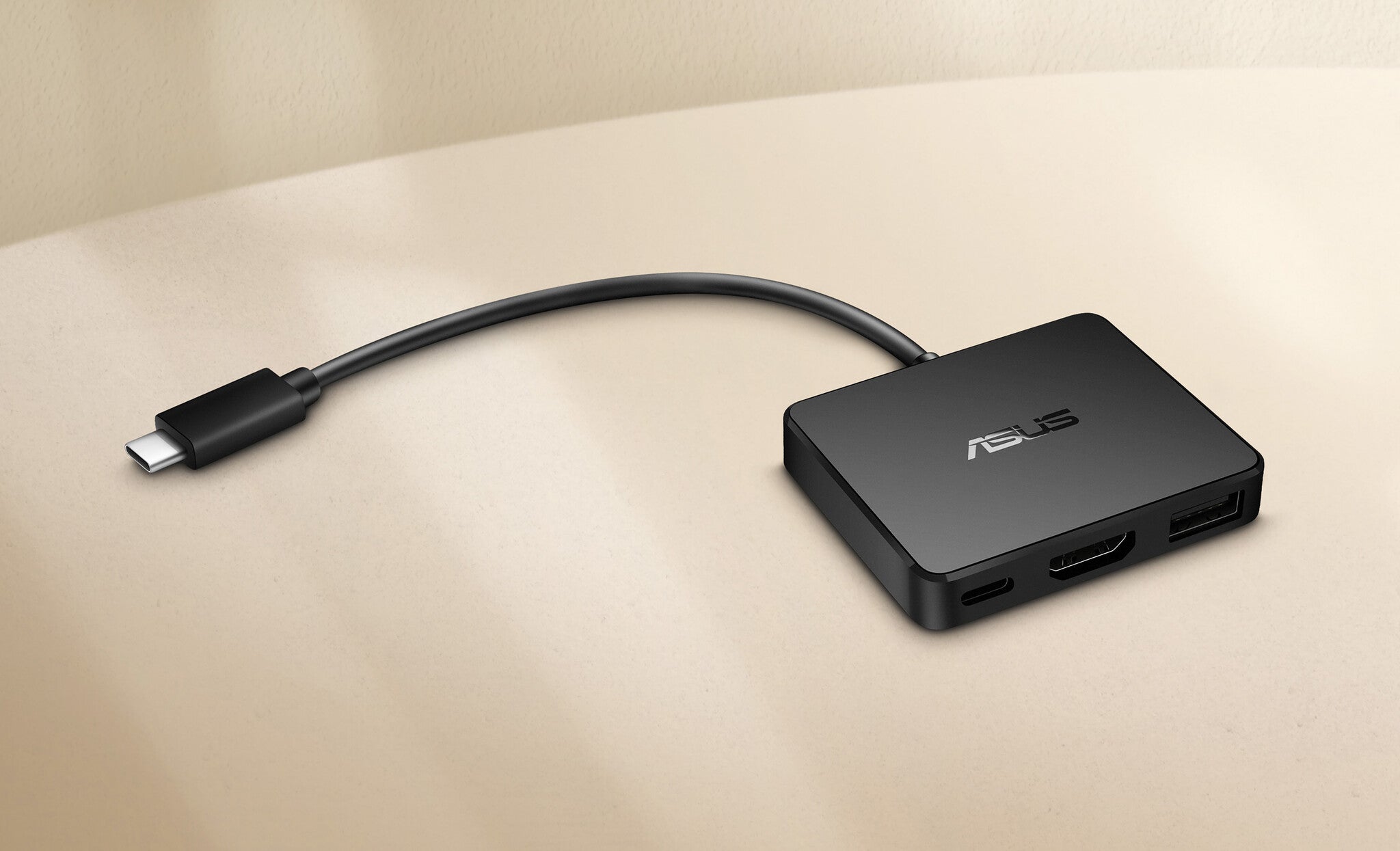

ASUS USB-C Mini Dock is a compact and lightweight USB-C® dock that gives PCs and laptops additional expandability options. It features a HDMI® with 4K output, USB Type-A and USB-C for up to 10 Gbps transfer speeds, plus up to 100 W power delivery passthrough.

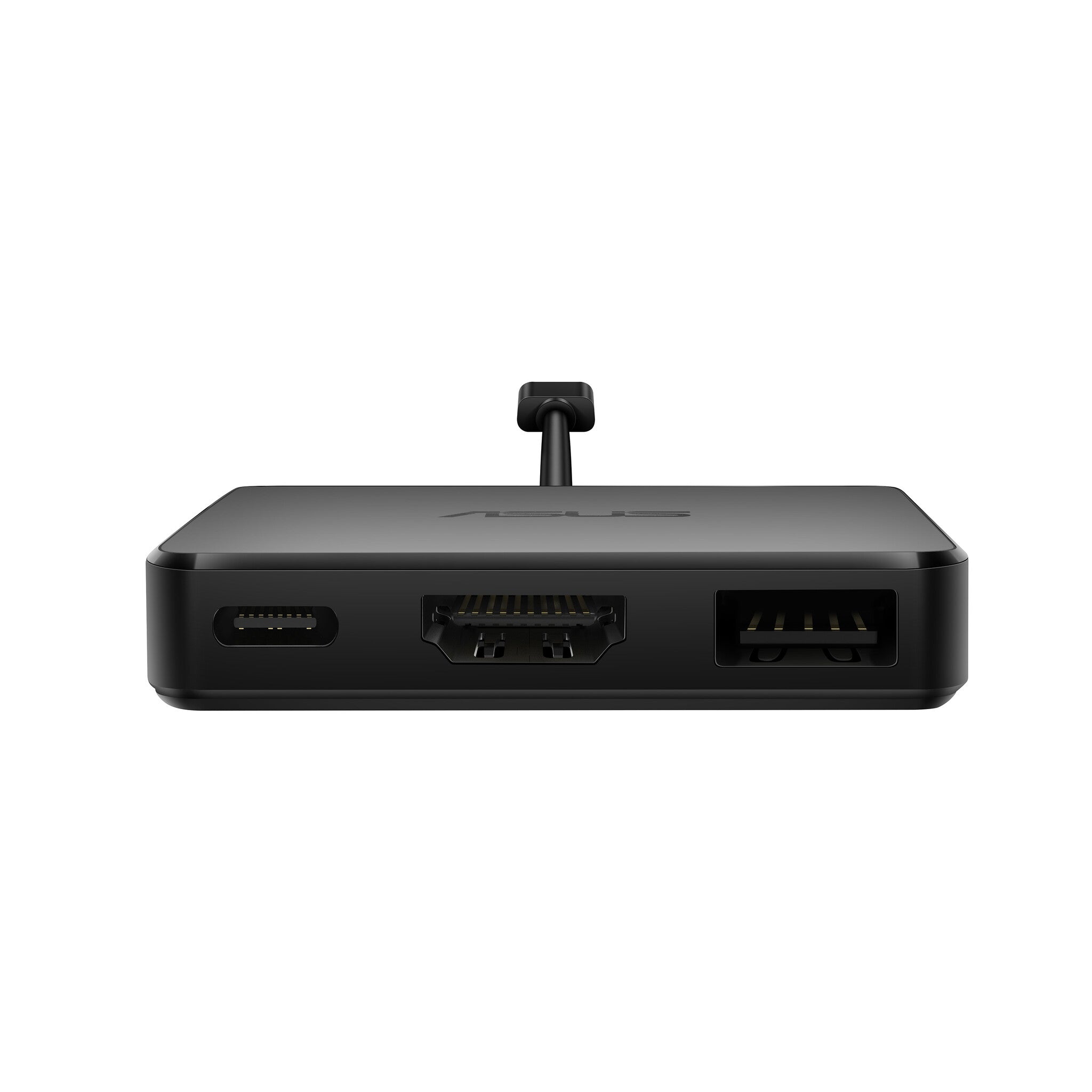

Ports & interfaces
Microphone in	No
HDMI version	2.0
HDMI ports quantity	1
USB Power Delivery up to	100 W
USB Power Delivery (USB PD)	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Connectivity technology	Wired

Network
Ethernet LAN	No

Performance
Housing material	Plastic
Maximum refresh rate	144 Hz
Number of displays supported	2
Maximum digital resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Data transfer rate	10 Gbit/s
Card reader integrated	No
Product colour	Black

Power
USB cable length	0.15 m
Power source type	USB

Software
Windows operating systems supported	Windows 10, Windows 11

Operational conditions
Storage relative humidity (H-H)	20 - 85%
Operating relative humidity (H-H)	20 - 85%
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 35 °C

Weight & dimensions
Weight	48 g
Height	11.3 mm
Depth	48 mm
Width	59 mm

Packaging data
Quantity per pack	1 pc(s)
