Hyper-fast 10Gbps Networking

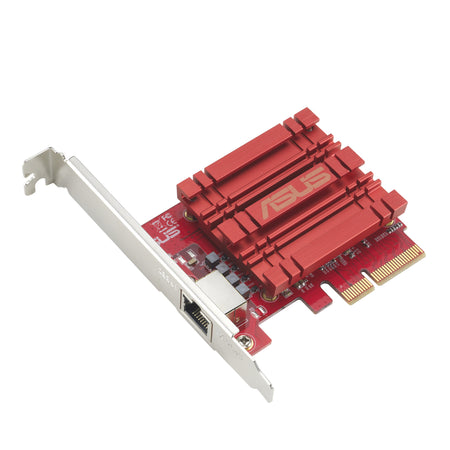

XG-C100C uses next-generation 10GBase-T (10G) networking technology to deliver speeds of up to 10Gbps –10X faster than standard gigabit Ethernet. It enables ultra-fast 10Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.
*Minimum Category 5e network cables (within 30m range) required for 10Gbps operation according to ASUS testing result.
| Ports & interfaces |
|---|
| PCI version |
3.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Network |
|---|
| VLAN support |
Yes |
| Ethernet LAN data rates |
100,1000,2500,5000,10000 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u |
| Maximum data transfer rate |
10000 Mbit/s |
| Design |
|---|
| LED indicators |
Link, Speed |
| Product colour |
Red |
| Component for |
PC |
| Internal |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
90 g |
| Height |
21.6 mm |
| Depth |
95.3 mm |
| Width |
120.5 mm |
| Packaging data |
|---|
| Package weight |
280 g |
| Package height |
45 mm |
| Package depth |
146 mm |
| Package width |
168 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Mounting brackets included |
Yes |
