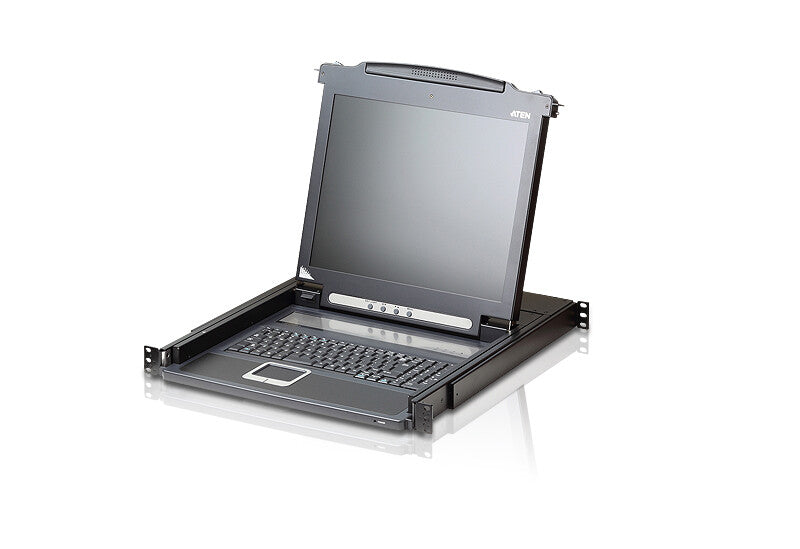

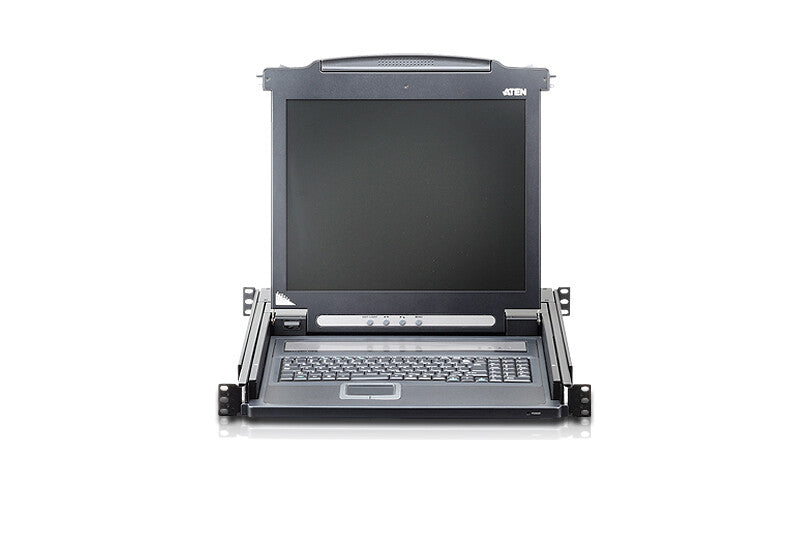

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Display |
|---|
| Display number of colours |
16.78 million colours |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
160° |
| Pixel pitch |
0.264 x 0.264 mm |
| Display |
TFT-LCD |
| Display resolution |
1280 x 1024 pixels |
| Display diagonal |
43.2 cm (17") |
| Technical details |
|---|
| Rack capacity |
1U |
| Product colour |
Black |
| Maximum resolution |
1920 x 1200 pixels |

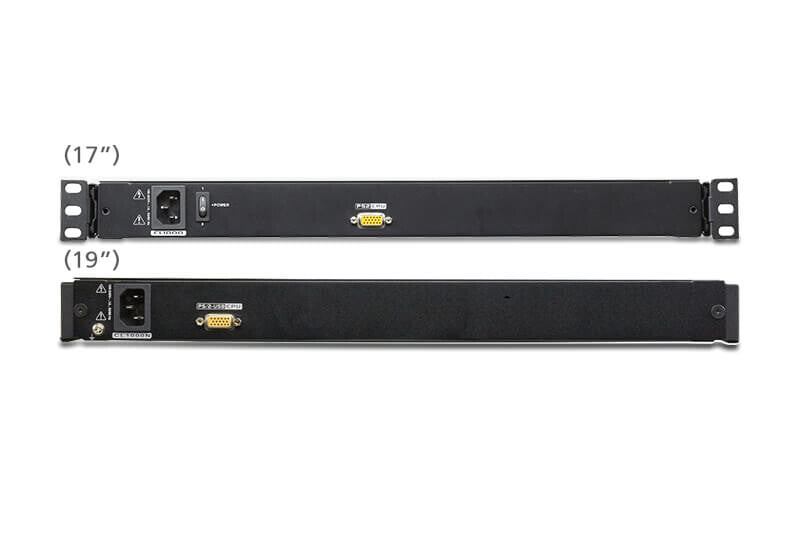

| Connector type |
SPHD |
| Operating relative humidity (H-H) |
0 - 80% |
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Compliance certificates |
RoHS |
| Number of computers controlled |
1 |
| Material |
Metal, Plastic |
| Ports & interfaces |
|---|
| Keyboard port type |
PS/2 |
| Mouse port type |
PS/2 |
| Keyboard |
|---|
| Hot keys |
Yes |
| Built-in touchpad |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Power |
|---|
| Input current |
1 A |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Power consumption (typical) |
21.3 W |
| Weight & dimensions |
|---|
| Weight |
12 kg |
| Depth |
480 mm |
| Height |
44 mm |
| Width |
538.3 mm |
| Packaging data |
|---|
| Package height |
130 mm |
| Package depth |
604 mm |
| Package width |
650 mm |
| Package weight |
14.6 kg |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Quick installation guide |
Yes |
| Cables included |
AC, KVM |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
14.6 kg |
| Master (outer) case height |
130 mm |
| Master (outer) case length |
604 mm |
| Master (outer) case width |
650 mm |
| Master (outer) case net weight |
12 kg |
