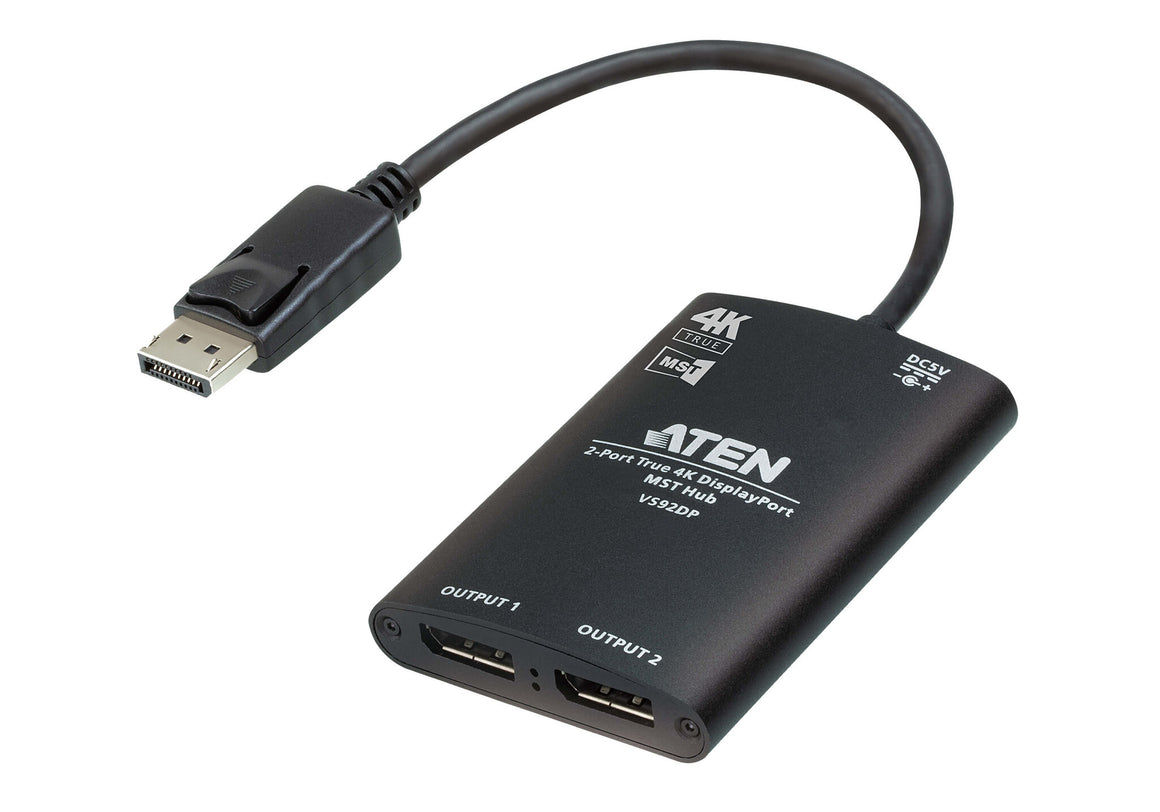

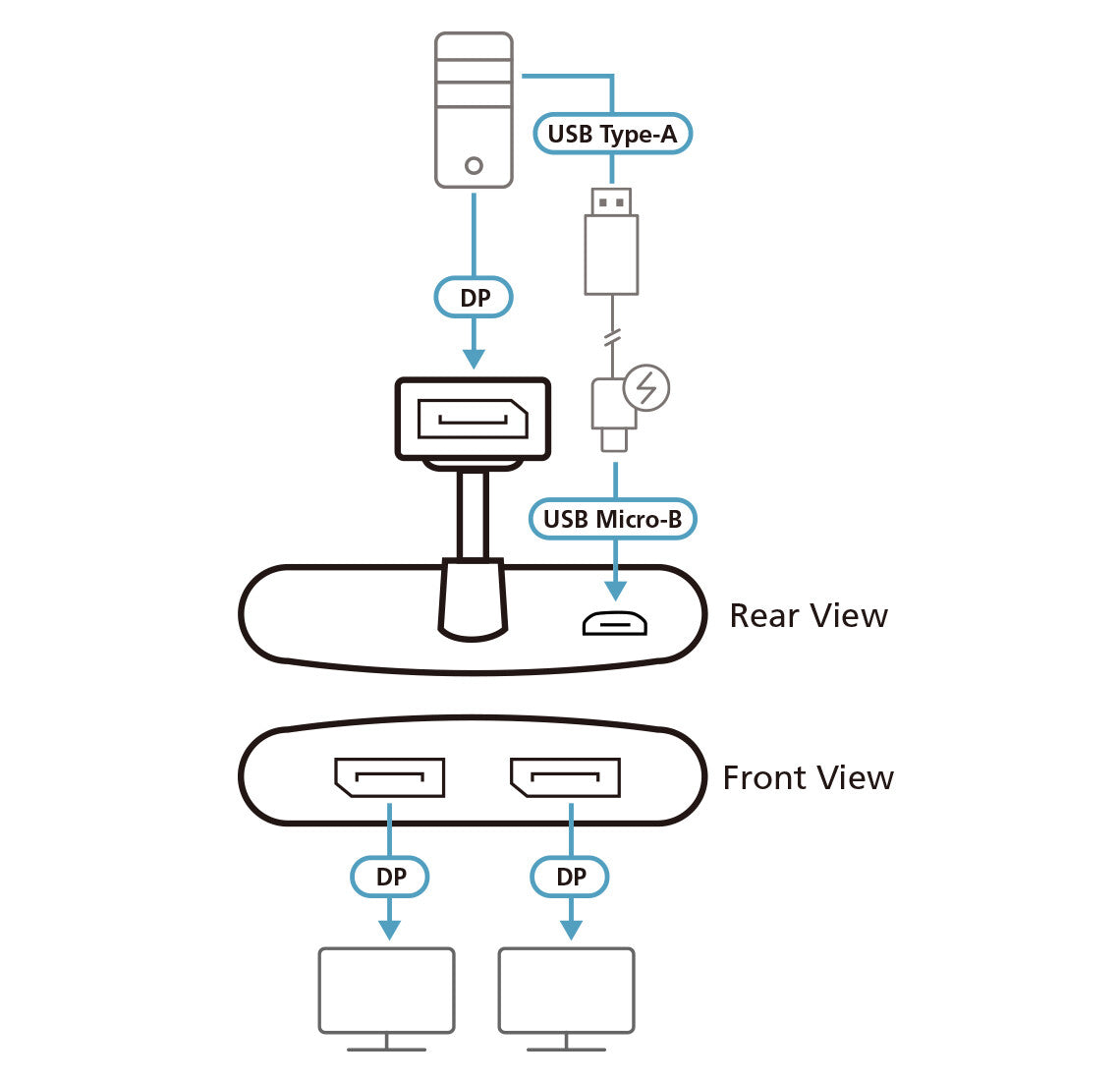

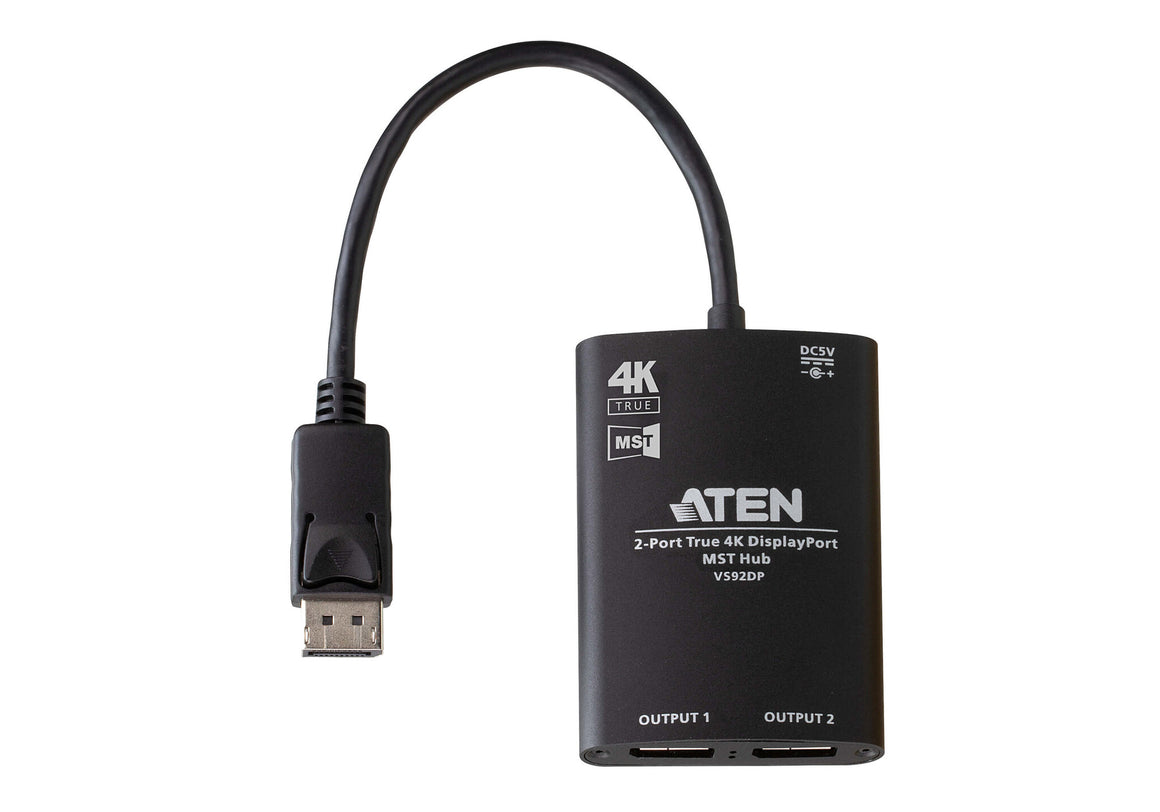

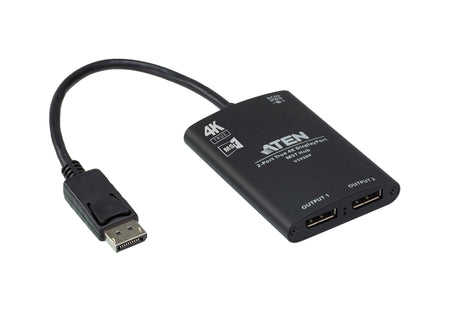

Designed with a cost effective, yet advanced DisplayPort MST solution in mind, the ATEN VS92DP 2-Port True 4K DisplayPort MST Hub allows the high-defi nition video to be transmitted to two different locations without losing quality. Productivity is enhanced with its feature that permits up to two displays to be connected to a Windows-based laptop / PC. Meanwhile, users can mirror the same image onto two displays or display independent content to each display for multitasking.
1x VS92DP 2-Port True 4K DisplayPort MST Hub
1x USB Type-A to USB Micro-B cable
1x user instructions
| Ports & interfaces |
|---|
| Video out |
2x DisplayPort |
| Video port type |
DisplayPort |
| Video ports quantity |
2 |
| Features |
|---|
| LED indicators |
Status |
| HDCP |
Yes |
| Cable length |
0.15 m |
| HDCP version |
1.3 |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Housing material |
Aluminium |
| Product colour |
Black |
| Power |
|---|
| Power consumption (max) |
2 W |
| Weight & dimensions |
|---|
| Weight |
120 g |
| Height |
150 mm |
| Depth |
88 mm |
| Width |
60 mm |
| Packaging data |
|---|
| Package weight |
200 g |
| Package height |
160 mm |
| Package depth |
119 mm |
| Package width |
59 mm |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
2.34 kg |
| Master (outer) case height |
338 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case width |
315 mm |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case net weight |
1.2 kg |
