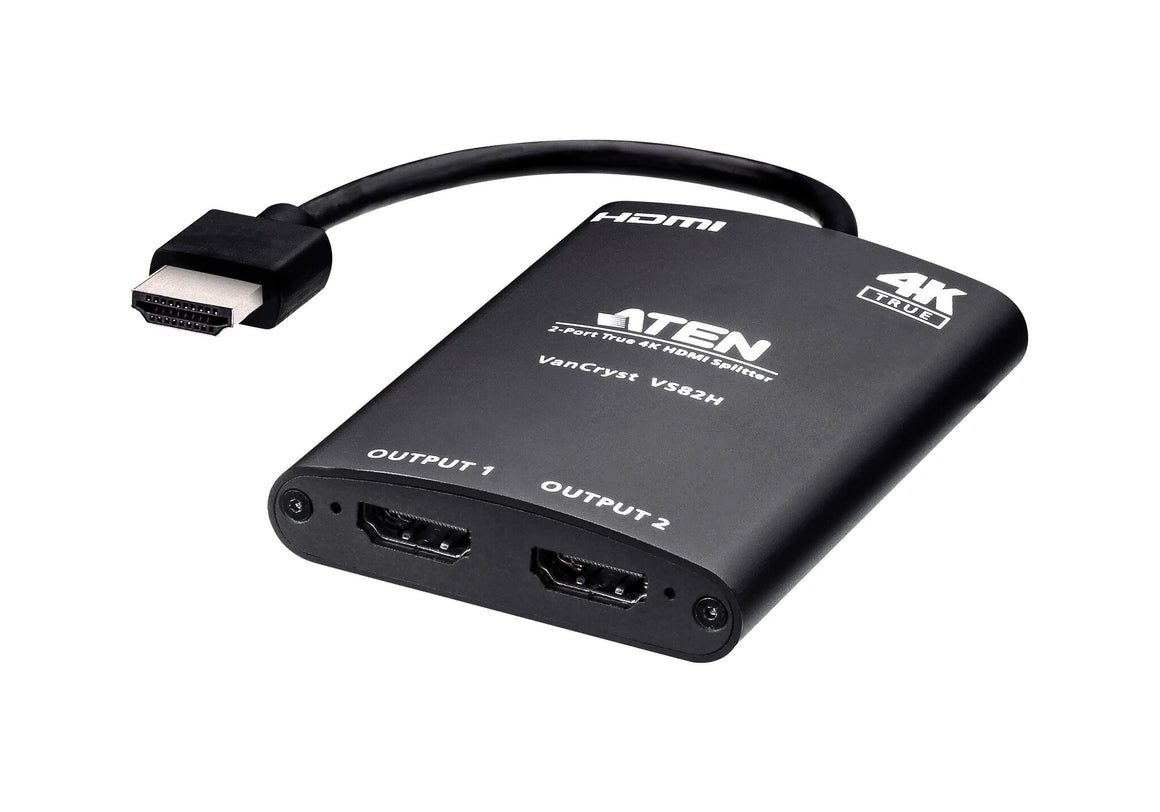

The ATEN VS82H splitter offers you superior video resolution of True 4K and lossless quality when sending one source of digital high-definition video to two displays. It supports HDMI-enabled equipments from DVD players, satellite set-top boxes to all HDMI displays.
Aside from being HDCP 2.2 compliant, the VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio channel, the VS82H ensures you distortionless and outstanding audio quality.
What’s more, the VS82H is a bus-powered splitter that can be charged directly from a device connected through Micro-USB port. Integrating the above functionalities provides you an effective solution for personal, corporate, educational and commercial applications.
| Ports & interfaces |
|---|
| HDMI version |
2.0 |
| Video out |
2x HDMI |
| Video port type |
HDMI |
| Video ports quantity |
2 |
| Features |
|---|
| LED indicators |
Status |
| Dolby technologies |
DTS-HD Master Audio, Dolby TrueHD |
| HDCP version |
2.2 |
| Bandwidth |
600 MHz |
| Maximum refresh rate |
60 Hz |
| Maximum operating distance |
5 m |
| 3D |
Yes |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Housing material |
Aluminium |
| Product colour |
Black |
| Power |
|---|
| USB powered |
Yes |
| Power consumption (typical) |
1.35 W |
| AC input voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
120 g |
| Height |
88 mm |
| Depth |
150 mm |
| Width |
60 mm |
| Packaging data |
|---|
| Package weight |
196 g |
| Package height |
160 mm |
| Package depth |
119 mm |
| Package width |
59 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Cables included |
Micro-USB |
| Manual |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Products per master (outer) case |
40 pc(s) |
| Master (outer) case gross weight |
8.36 kg |
| Master (outer) case height |
338 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case width |
315 mm |
| Harmonized System (HS) code |
85176990 |
| Master (outer) case net weight |
4.8 kg |
