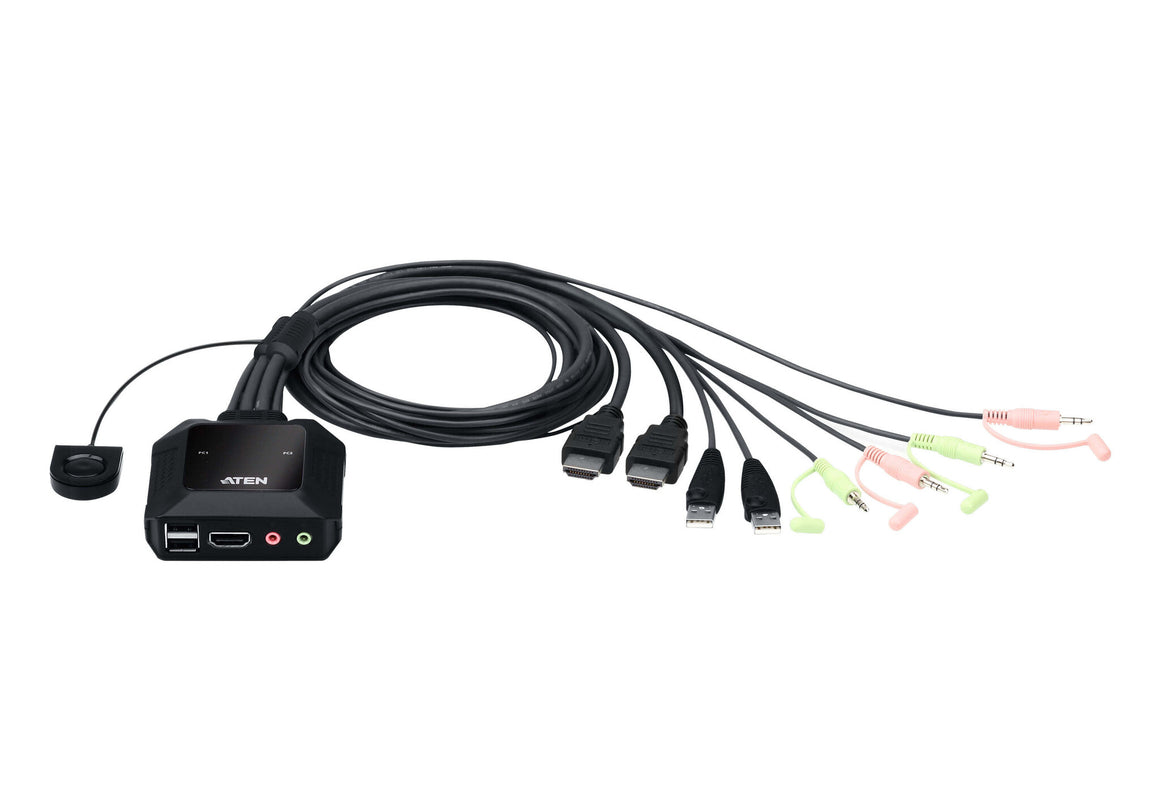

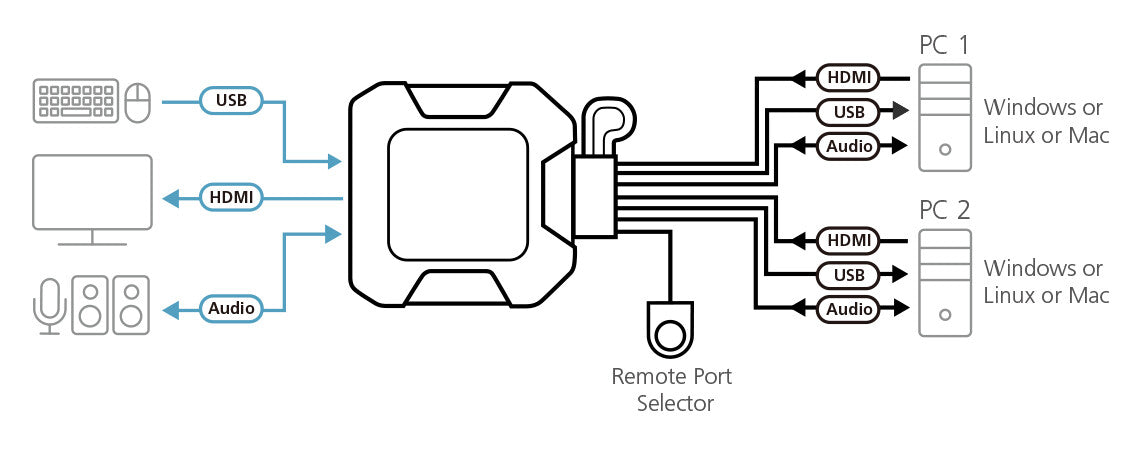

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

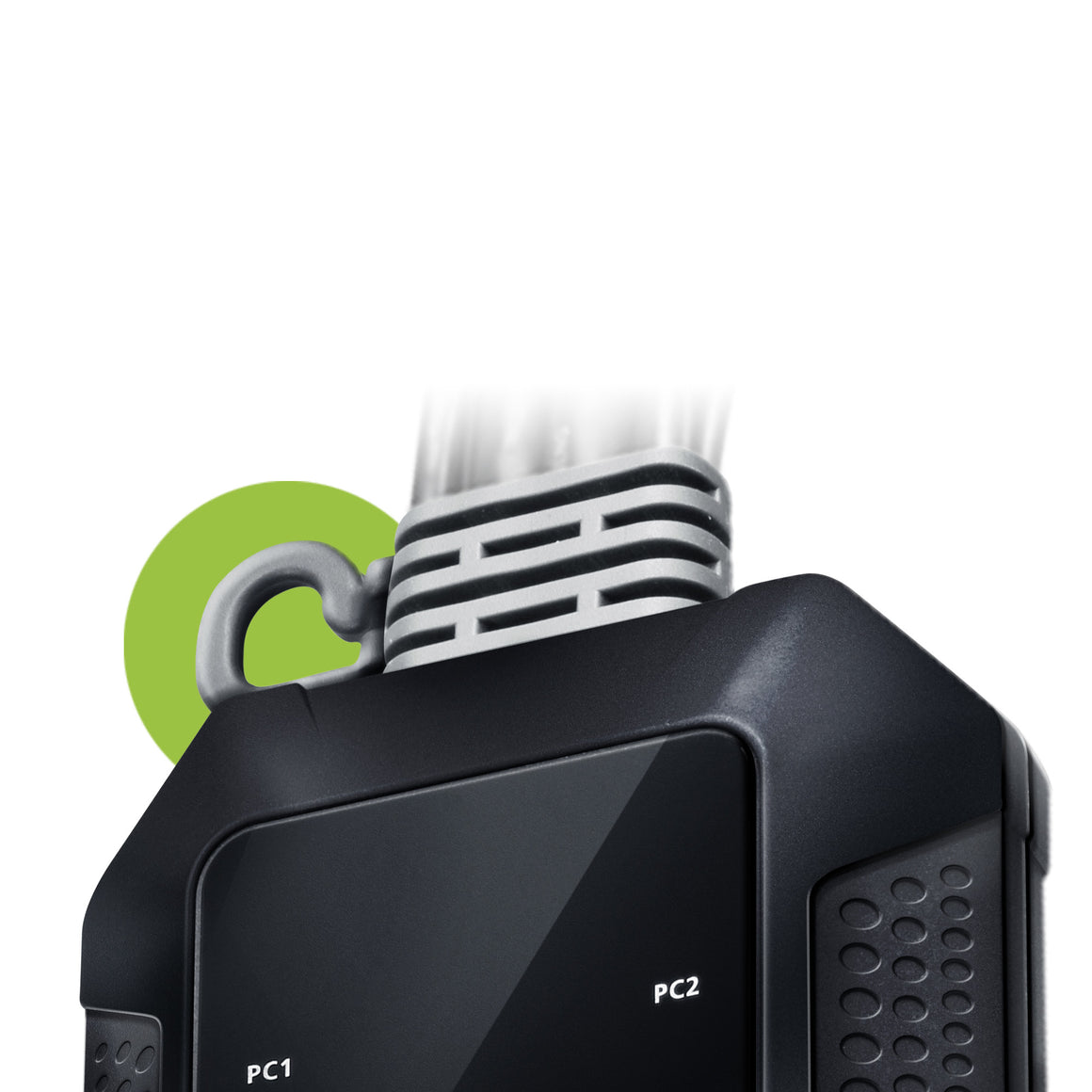

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

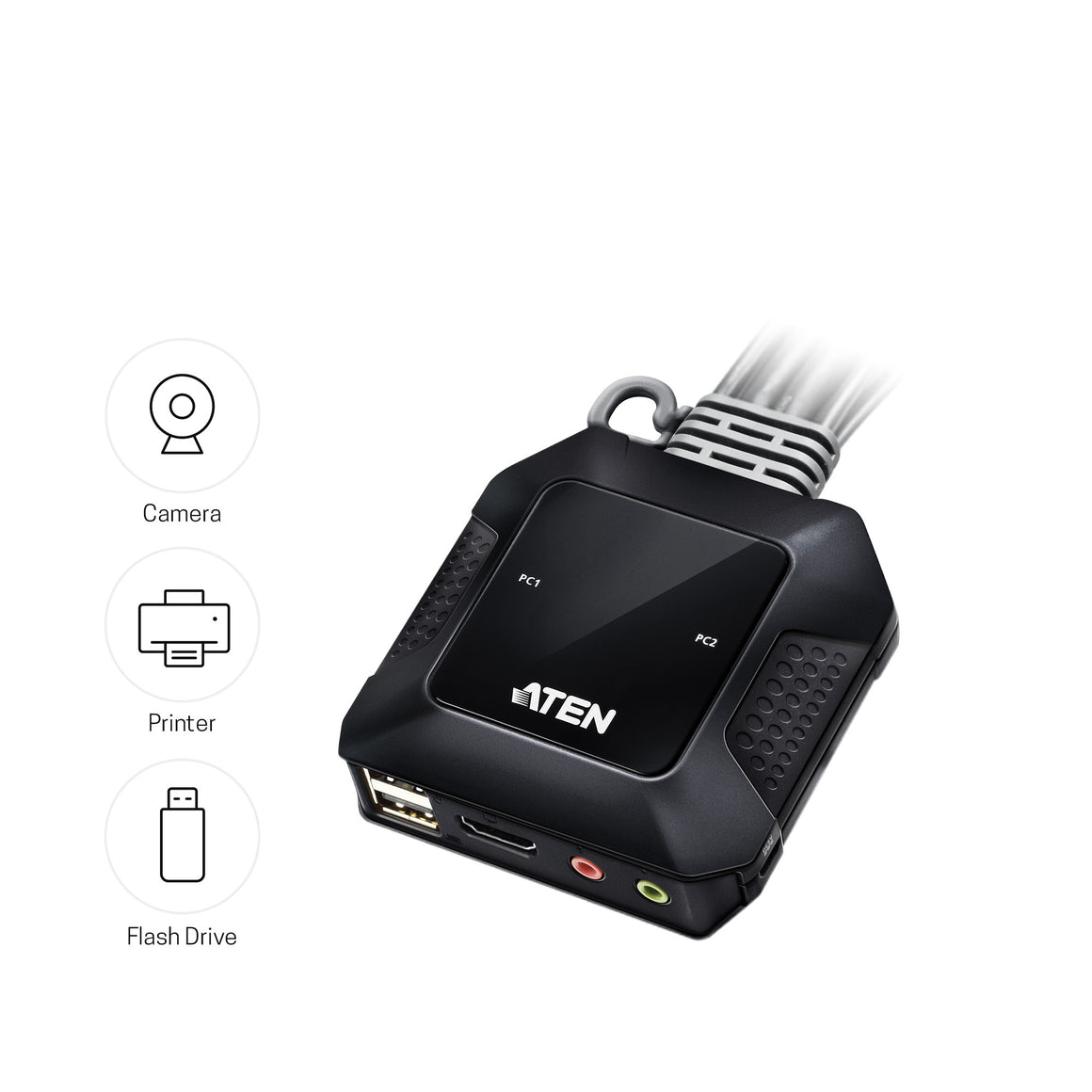

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
| Ports & interfaces |
|---|
| Number of microphone inputs |
3 |
| Headphone outputs |
3 |
| Audio connections |
Yes |
| USB connector type |
USB Type-A |
| Console HDMI ports quantity |
1 |

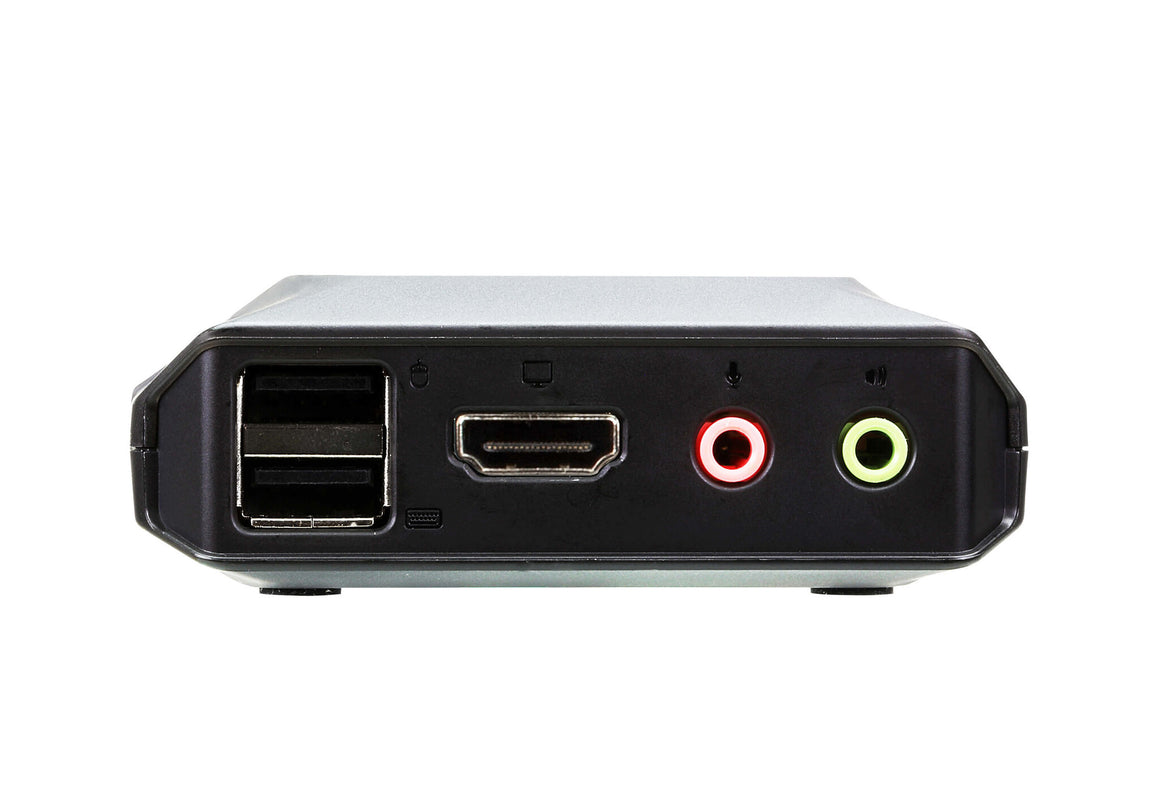

| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity |
2 |
| HDMI ports quantity |
3 |
| Video port type |
HDMI |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| HDCP version |
2.2 |
| Plug and Play |
Yes |
| Hot-Plug support |
Yes |
| HDCP |
Yes |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
|---|
| LED indicators |
Yes |
| Remote switch cable length |
1.8 m |
| Cable length |
1.2 m |
| Wired remote switch |
Yes |
| Housing material |
Plastic |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
3.47 W |
| Input voltage |
5 V |
| Power source |
USB |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
340 g |
| Height |
30.4 mm |
| Depth |
83.4 mm |
| Width |
84.2 mm |
| Packaging data |
|---|
| Package weight |
420 g |
| Package height |
223 mm |
| Package depth |
155 mm |
| Package width |
55 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
9.3 kg |
| Master (outer) case height |
330 mm |
| Master (outer) case length |
389 mm |
| Master (outer) case width |
328 mm |
| Master (outer) case net weight |
6.8 kg |
| Harmonized System (HS) code |
85176200 |
