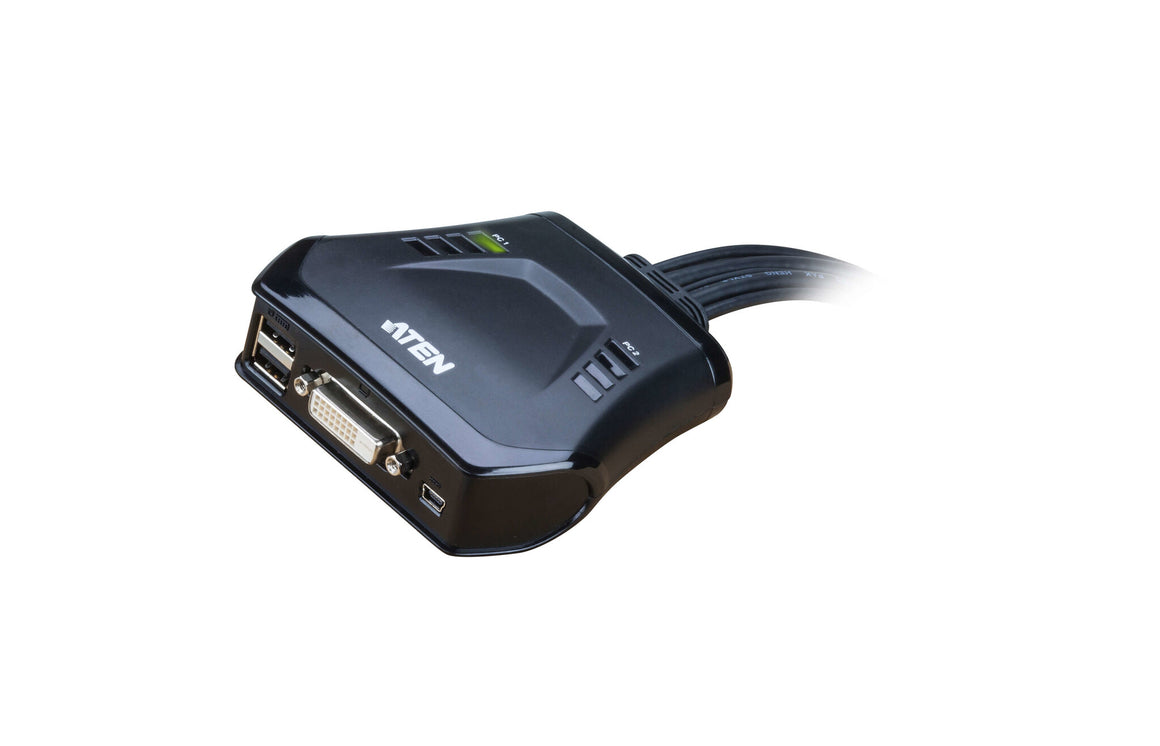

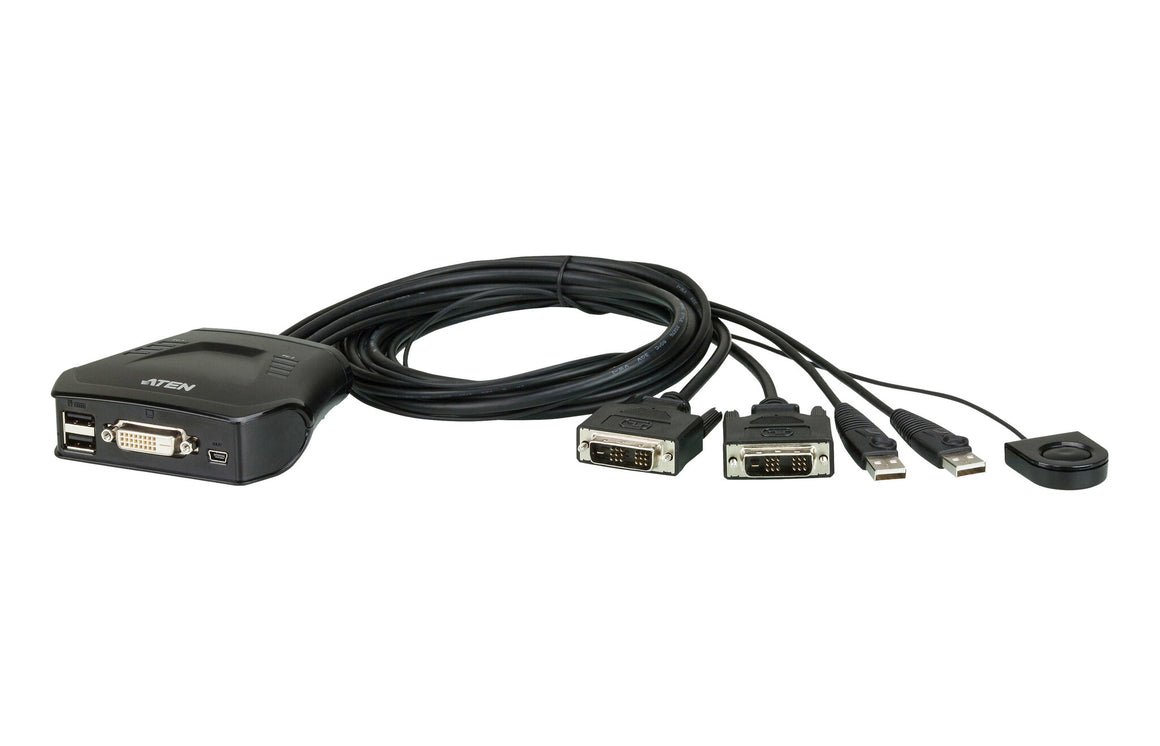

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
1 x CS22D 2-Port USB DVI KVM Switch
1 x User Instructions
| Ports & interfaces |
|---|
| Console ports |
DVI-D, USB A, Mini-USB B |
| DVI-D ports quantity |
2 |
| Video port type |
DVI-D |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| HD type |
WUXGA |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
0.93 W |
| Input voltage |
5 V |
| Power source |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
340 g |
| Height |
30.1 mm |
| Depth |
96.6 mm |
| Width |
99.5 mm |
| Packaging data |
|---|
| Package weight |
408 g |
| Package height |
223 mm |
| Package depth |
155 mm |
| Package width |
55 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
9.06 kg |
| Master (outer) case height |
330 mm |
| Master (outer) case length |
389 mm |
| Master (outer) case width |
328 mm |
| Master (outer) case net weight |
6.8 kg |
| Harmonized System (HS) code |
85176200 |
