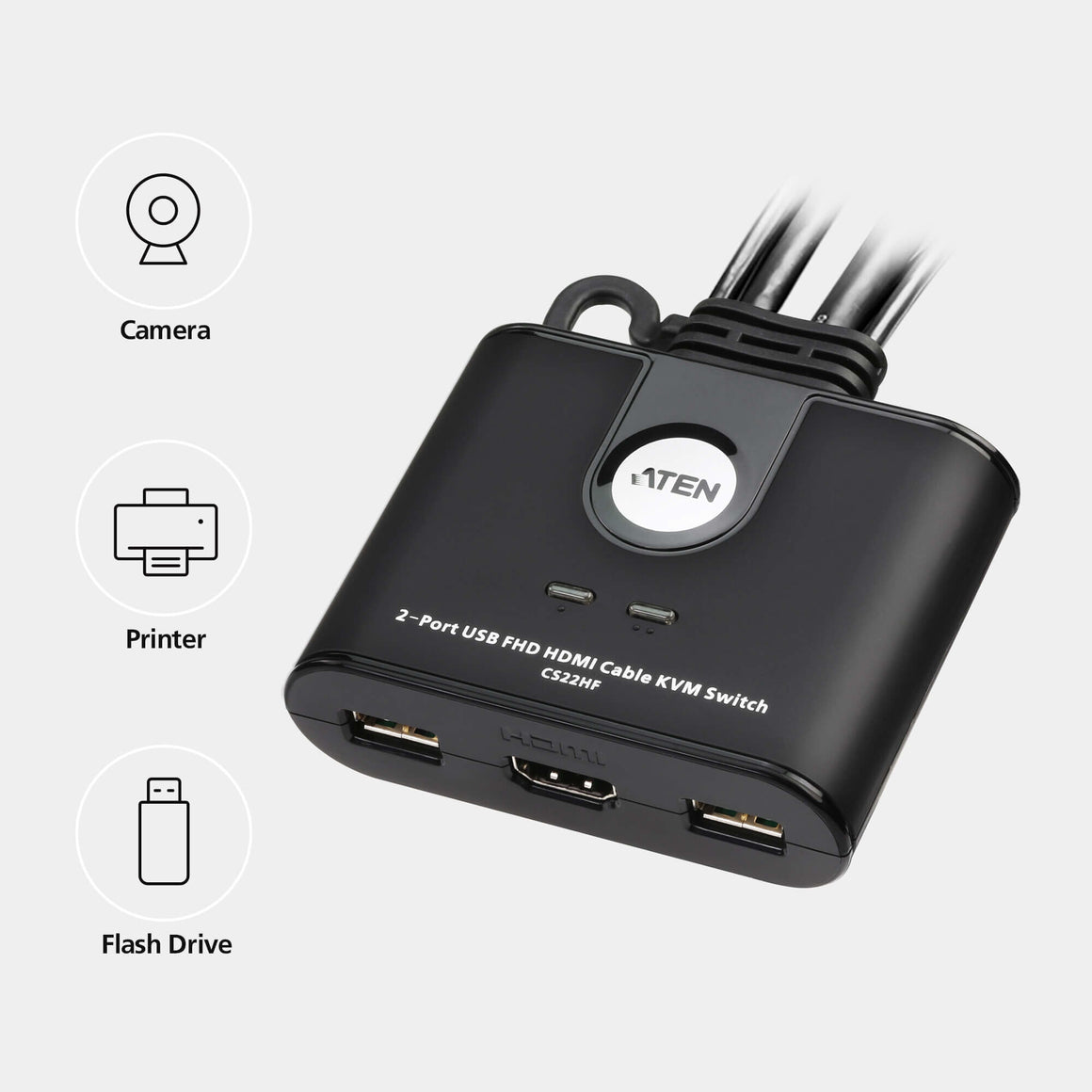

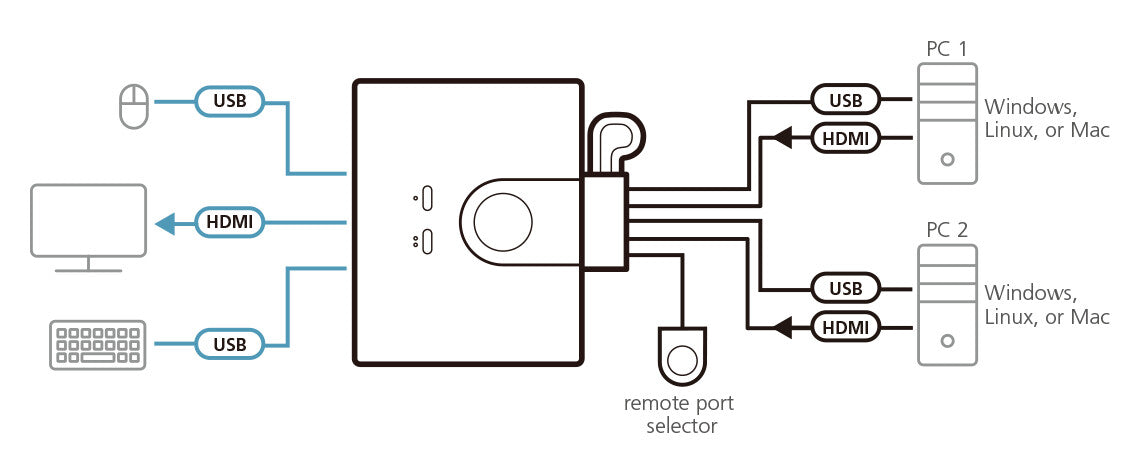

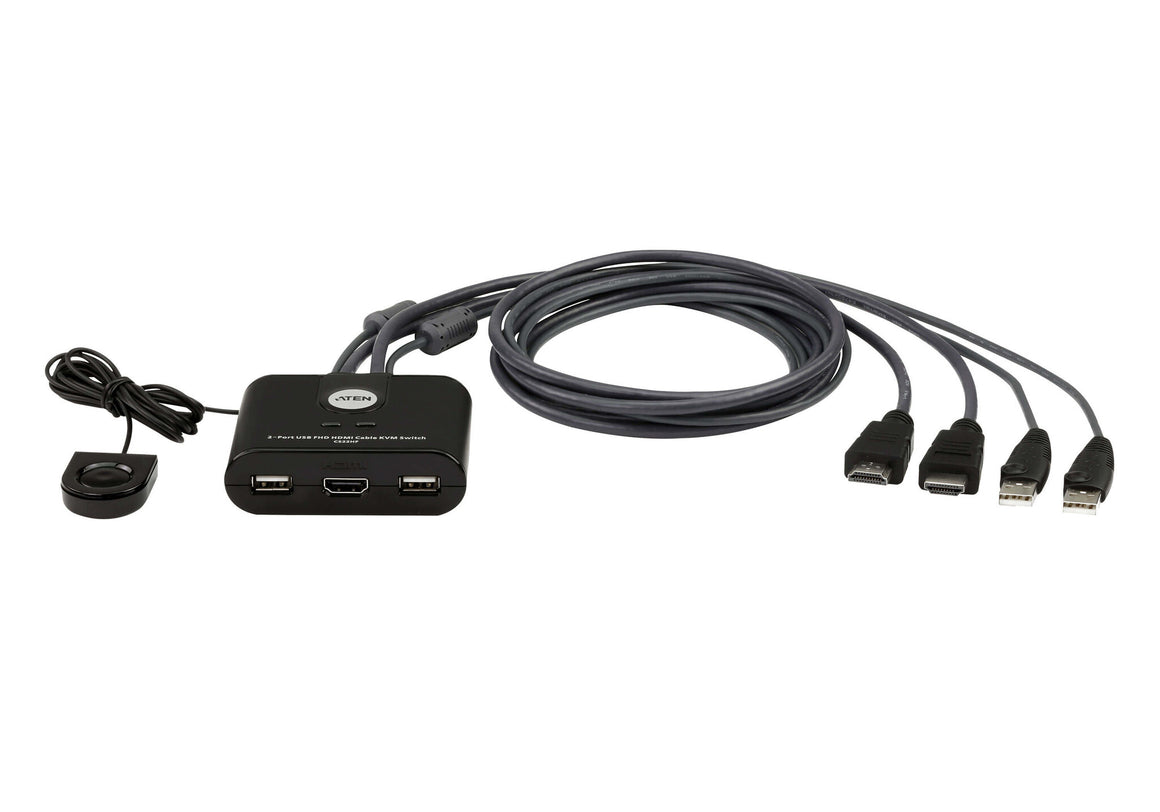

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB connector type |
USB Type-A |
| Console ports |
HDMI, USB A |
| HDMI ports quantity |
1 |
| Video port type |
HDMI |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| HDCP |
Yes |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| HD type |
Full HD |
| Design |
|---|
| LED indicators |
Yes |
| Remote switch cable length |
1.8 m |
| Cable length |
1.2 m |
| Housing material |
Plastic |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
1.518 W |
| Input voltage |
5 V |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
260 g |
| Height |
25.2 mm |
| Depth |
82.4 mm |
| Width |
66.5 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
360 g |
| Package volume |
1982.18 cm³ |
| Package height |
223 mm |
| Package depth |
155 mm |
| Package width |
55 mm |
| Packaging content |
|---|
| Packaging content |
1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch1x user instructions |
| Logistics data |
|---|
| Country of origin |
Taiwan |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case volume |
42192.1 cm³ |
| Master (outer) case gross weight |
7.9 kg |
| Master (outer) case height |
330 mm |
| Master (outer) case length |
389 mm |
| Master (outer) case width |
328 mm |
| Harmonized System (HS) code |
85176200 |
