SKU: CS22U-AT

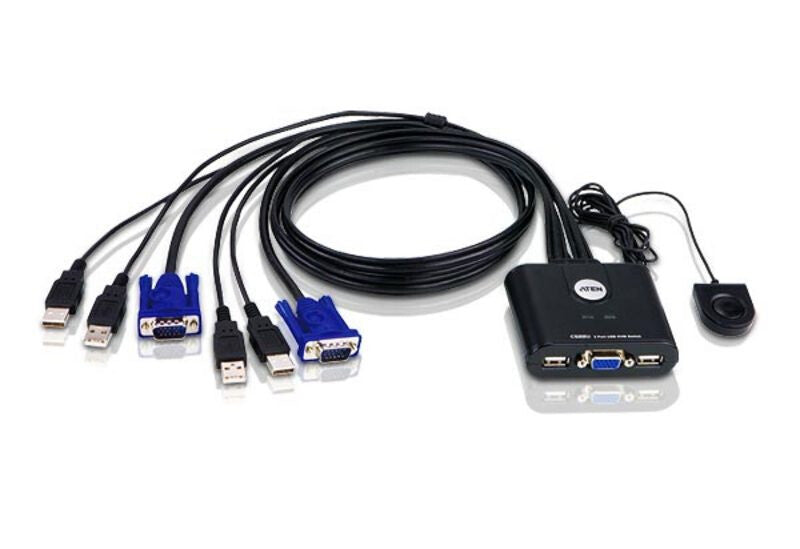

ATEN 2-Port USB VGA KVM Switch

Aten
£22.33
Price history

Price changes in the past 30 days

November 26, 2025 £22.33 GBP
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Computer Selection via a Remote Port Selector
  • Multiplatform support - Windows, Mac, Linux and Sun
  • Bus-powered design

The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers- a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector
1x User Instructions

Ports & interfaces
USB connector type USB Type-A
USB 2.0 Type-A hub ports quantity 2
USB hub Yes
Console ports USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity 2
Video port type VGA
Mouse port type USB
Keyboard port type USB
Number of computers controlled 2
Performance
DDC2B support Yes
Maximum resolution 2048 x 1536 pixels
HD type QXGA
Design
LED indicators Yes
Housing material Plastic
Product colour Black
Rack mounting No
Display
Built-in display No
Power
Power consumption (typical) 0.14 W
Input voltage 5 V
Power source DC
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 302 g
Height 24.6 mm
Depth 70.1 mm
Width 82.4 mm
Packaging data
Package weight 400 g
Package height 223 mm
Package depth 155 mm
Package width 55 mm
Packaging content
Quick installation guide Yes
Logistics data
Products per master (outer) case 20 pc(s)
Master (outer) case gross weight 8.48 kg
Master (outer) case height 330 mm
Master (outer) case length 389 mm
Master (outer) case width 328 mm
Master (outer) case net weight 6.04 kg
Harmonized System (HS) code 85176200
