SKU: UE2120H

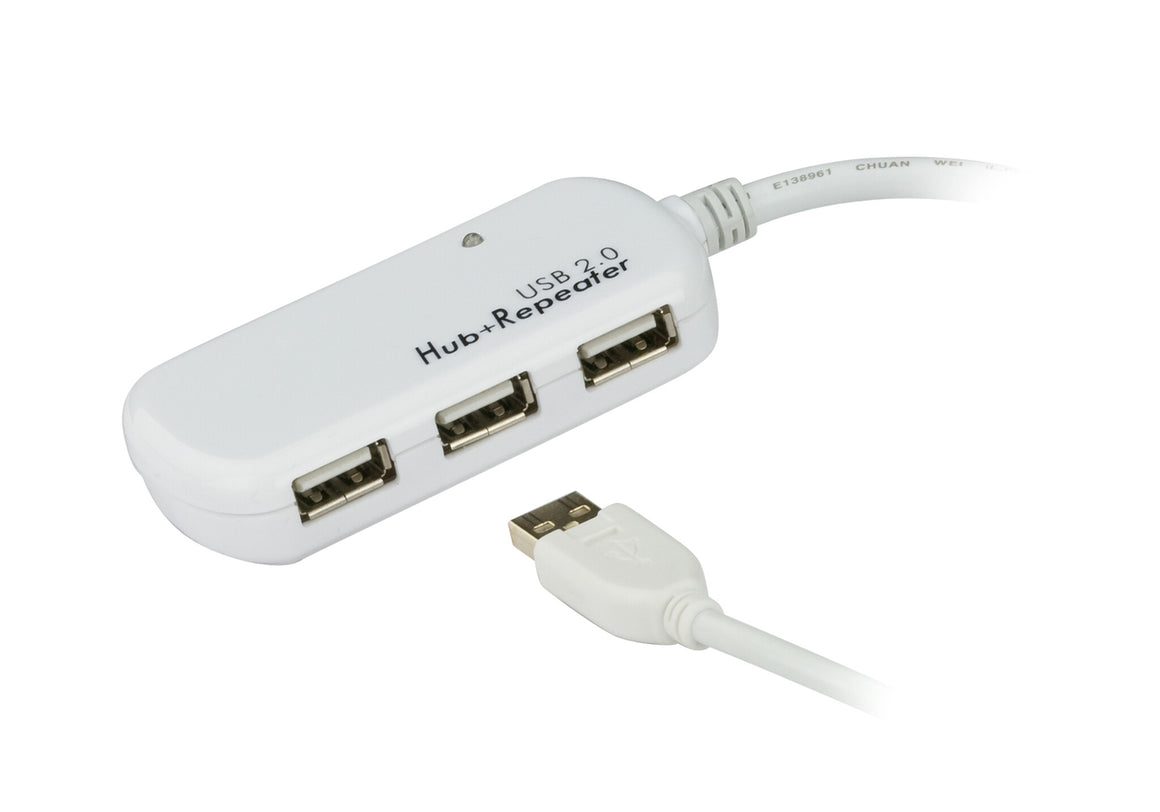

ATEN 4-Port USB 2.0 Extender Hub 60m

Aten
£39.60
  • Extends the distance to your USB device(s) up to 12 meters (36’)
  • 4 Downstream USB 2.0 ports
  • USB specification version 2.0 / 1.1 compliant
  • Plug and play - No additional driver required
  • Up to 4 extender cables (UH2120) and 1 Extender Hub (UH2120H) can be chained for a distance of up to 60 meters
  • Bus powered. No power adapter required
  • Multiplatform support – Windows, Mac

The UE2120H allows users to extend the distance between a computer and USB device(s) up to 12 meters via the active extender hub. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards. Up to 4 extender cables (UE2120) and 1 Extender Hub (UE2120H) can be chained together, so that cable distance is increased by up to 60 meters.

Ports & interfaces
DC-in jack No
USB 2.0 ports quantity 4
Hub interfaces USB 2.0
Host interface USB 2.0
Ports quantity 4
Features
Certification RoHS
Plug and Play Yes
Cable length 12 m
LED indicators Yes
Product colour White
Housing material Plastic
Data transfer rate 480 Mbit/s
Power
Input voltage 5 V
Weight & dimensions
Weight 484 g
Height 17 mm
Depth 82 mm
Width 41 mm
Packaging data
Package weight 592 g
Package height 157 mm
Package depth 186 mm
Package width 56 mm
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Logistics data
Harmonized System (HS) code 84719000
Products per master (outer) case 20 pc(s)
Master (outer) case gross weight 11.8 kg
Master (outer) case height 335 mm
Master (outer) case length 390 mm
Master (outer) case width 305 mm
Master (outer) case net weight 9.68 kg
