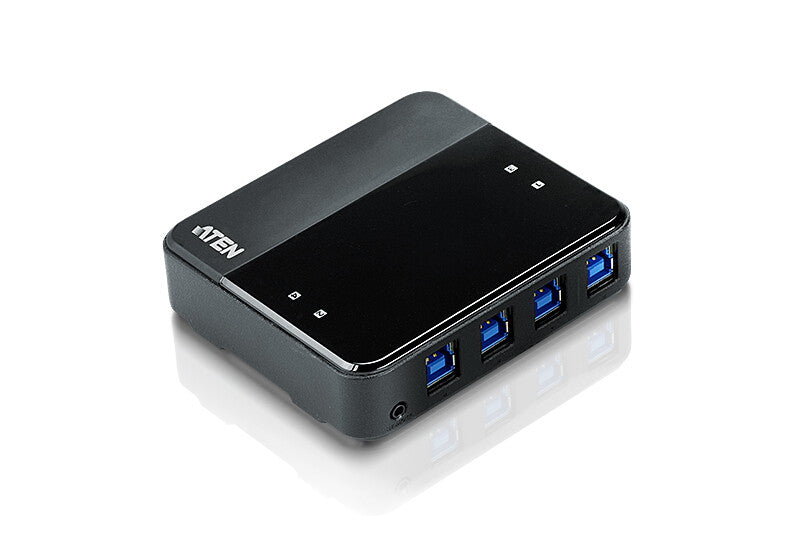

ATEN US434 is a 4-port USB 3.2 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.2 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
1x US434 4 x 4 USB 3.2 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.2 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.2 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Performance |
|---|
| Housing material |
Plastic |
| Product colour |
Black |
| Power connector |
Micro-USB Type-B |
| LED indicators |
Yes |
| Remote control function |
Yes |
| Maximum data transfer rate |
5 Gbit/s |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
439 g |
| Height |
26.8 mm |
| Depth |
93.7 mm |
| Width |
36.6 mm |
| Packaging data |
|---|
| Package weight |
576 g |
| Package height |
195 mm |
| Package width |
70 mm |
| Package depth |
163 mm |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case gross weight |
6.46 kg |
| Master (outer) case length |
405 mm |
| Master (outer) case width |
395 mm |
| Master (outer) case height |
182 mm |
| Master (outer) case net weight |
4.39 kg |
