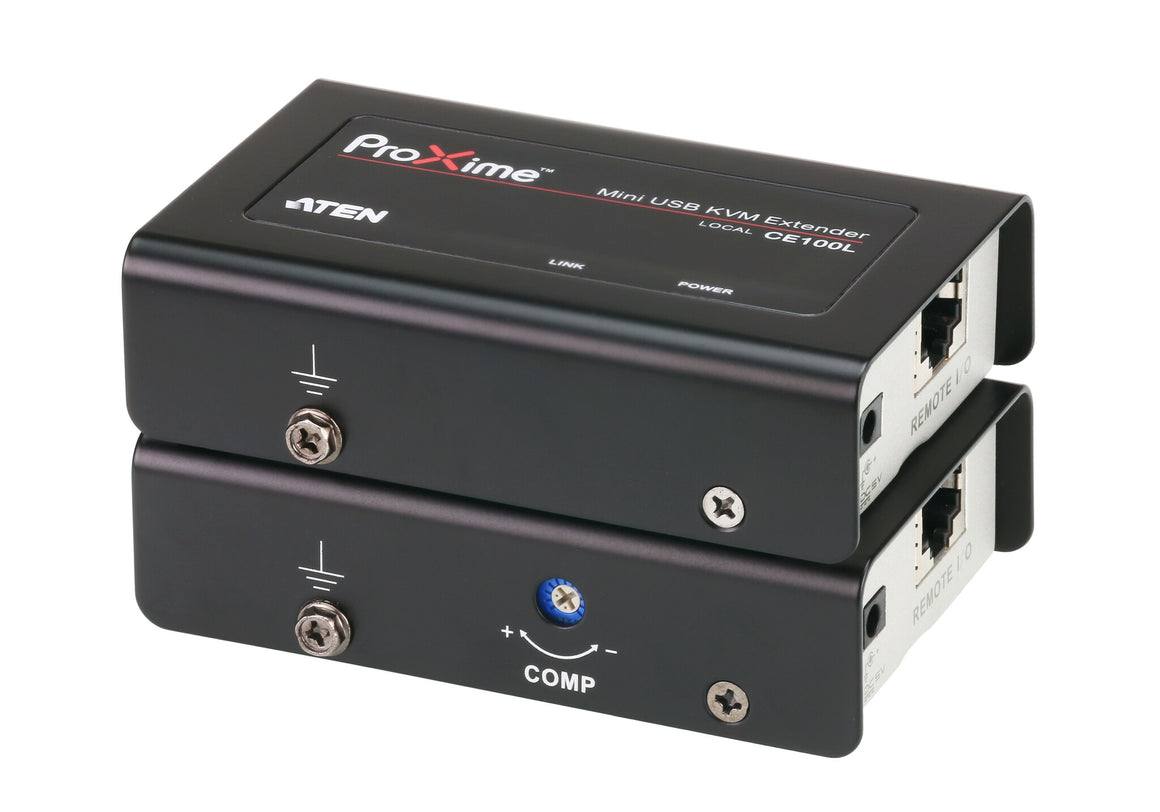

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
1x CE100L Mini USB KVM Extender (Local Unit)
1x CE100R Mini USB KVM Extender (Remote Unit)
1x LIN5-21X1-X27G USB/VGA Cable (1.8m)
1x 0AD6-1705-10EG Power Adapter (for Remote Unit)
1x Mounting Kit
1x User Instructions
Key features

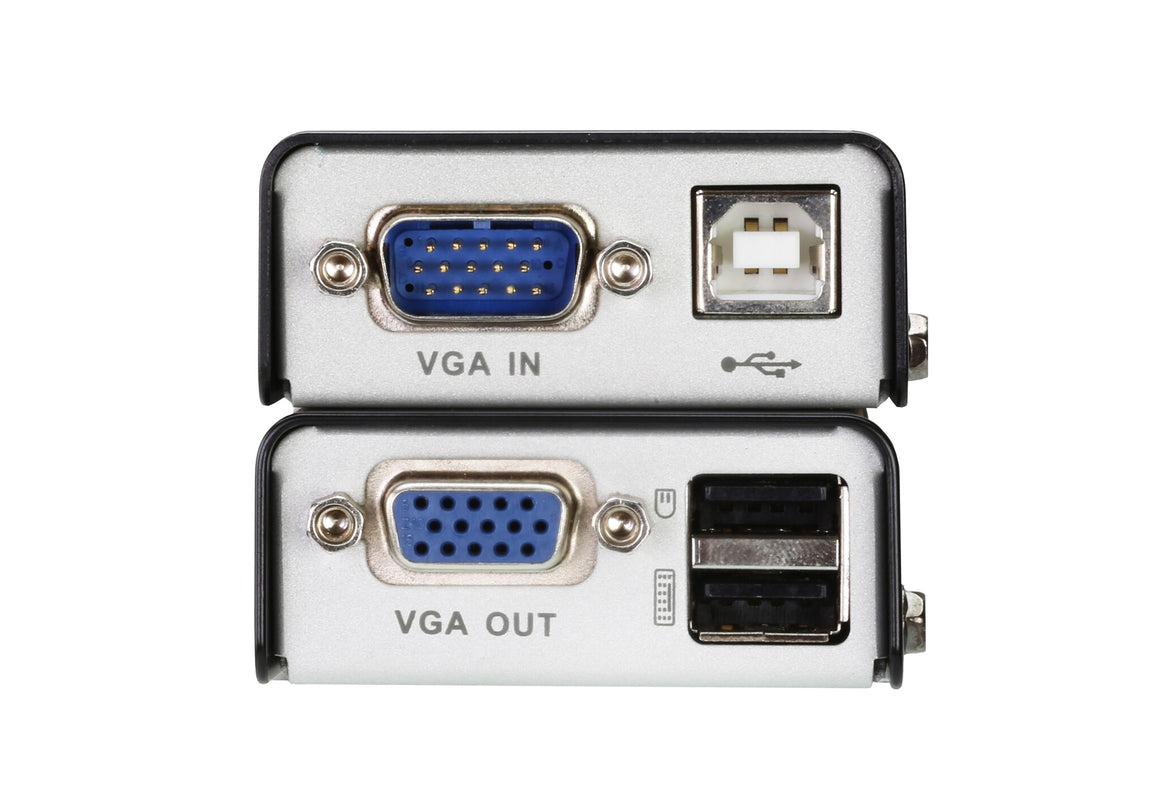

- Extends local PC VGA/keyboard/Mouse to Remote side

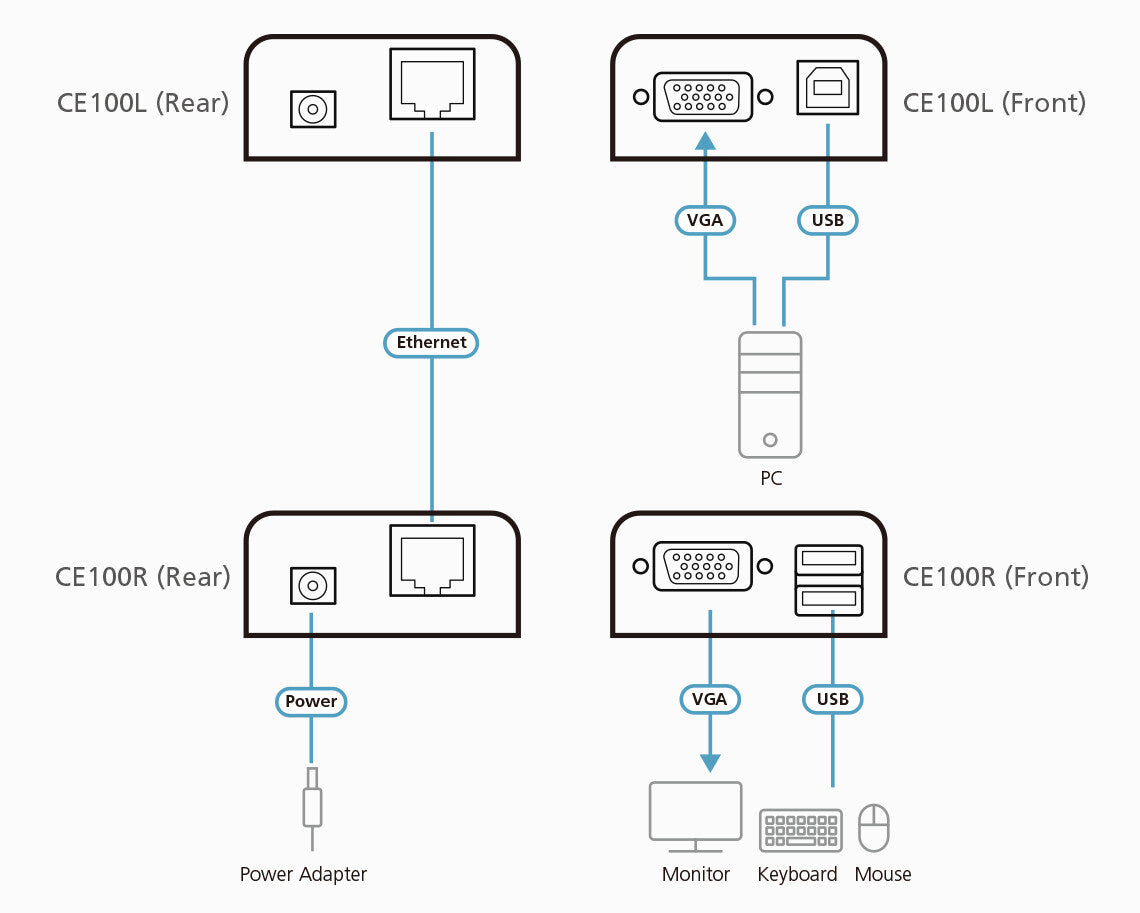

- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
| Features |
|---|
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
100 m |
| Cable types supported |
Cat5 |
| Maximum digital resolution |
1920 x 1200 pixels |
| Product colour |
Black |
| Material |
Metal |
| LED indicators |
Link, Power |
| Ports & interfaces |
|---|
| USB port type |
USB Type-B/ USB Type-A |
| USB 2.0 ports quantity |
3 |

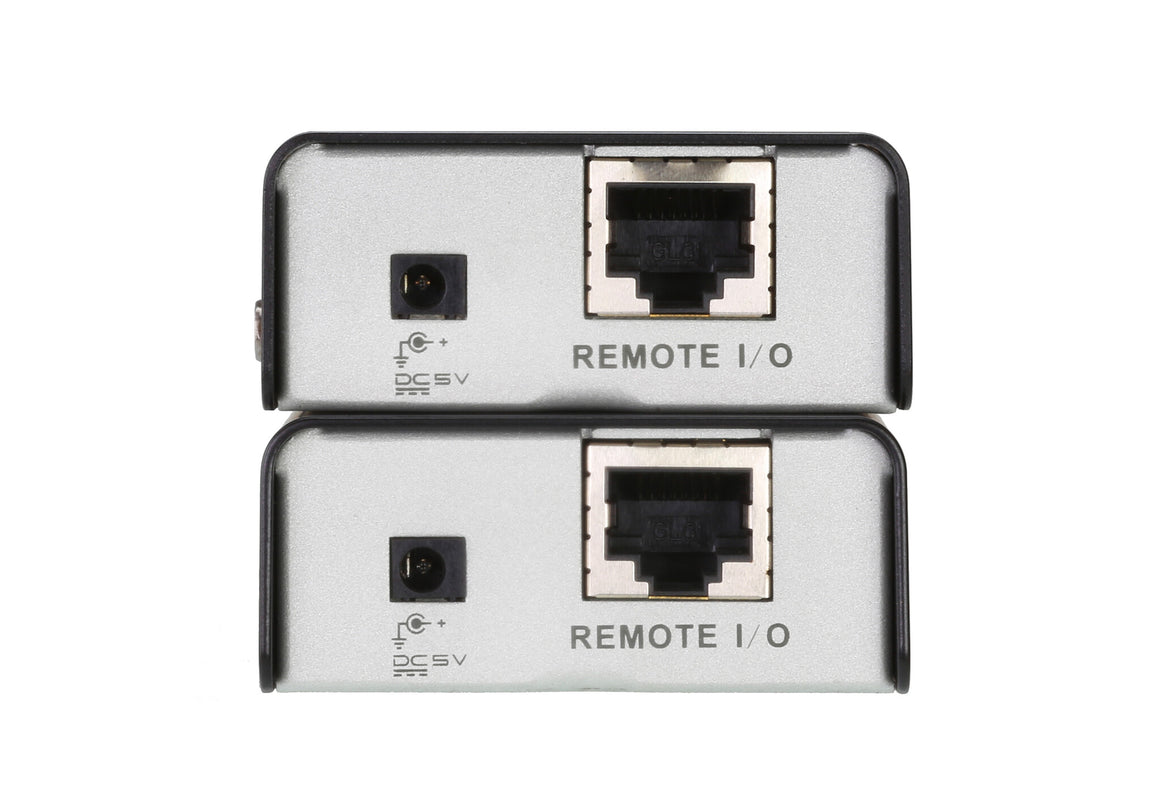

| RJ-45 ports quantity |
2 |
| Weight & dimensions |
|---|
| Transmitter width |
5.74 cm |
| Transmitter depth |
9.1 cm |
| Transmitter height |
2.4 cm |
| Transmitter weight |
170 g |
| Receiver width |
5.74 cm |
| Receiver depth |
9.1 cm |
| Receiver height |
2.4 cm |
| Receiver weight |
170 g |
| Packaging data |
|---|
| Package width |
59 mm |
| Package depth |
239 mm |
| Package height |
160 mm |
| Package weight |
745 g |
| Packaging content |
|---|
| Cables included |
USB, VGA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Technical details |
|---|
| Weight |
603 g |
