SKU: CE600-AT-E

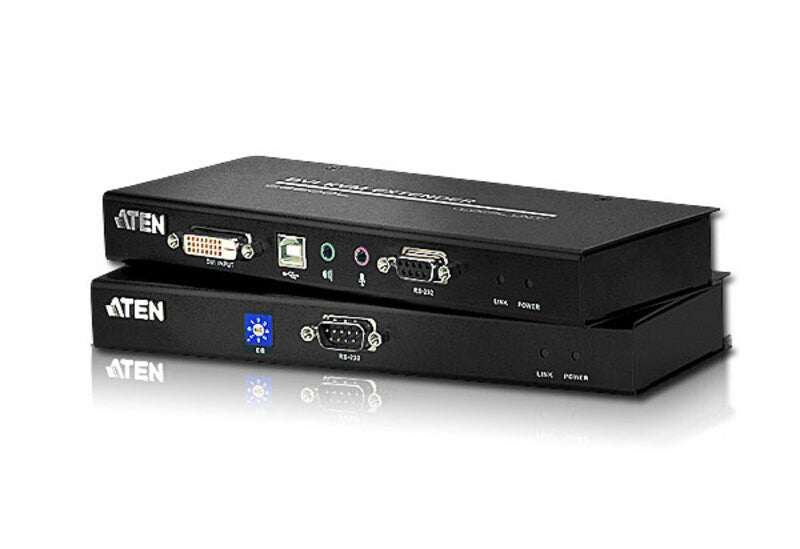

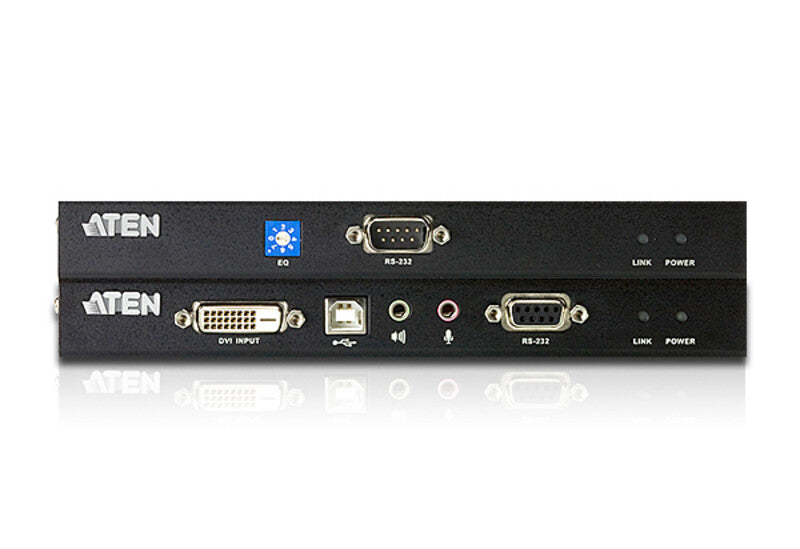

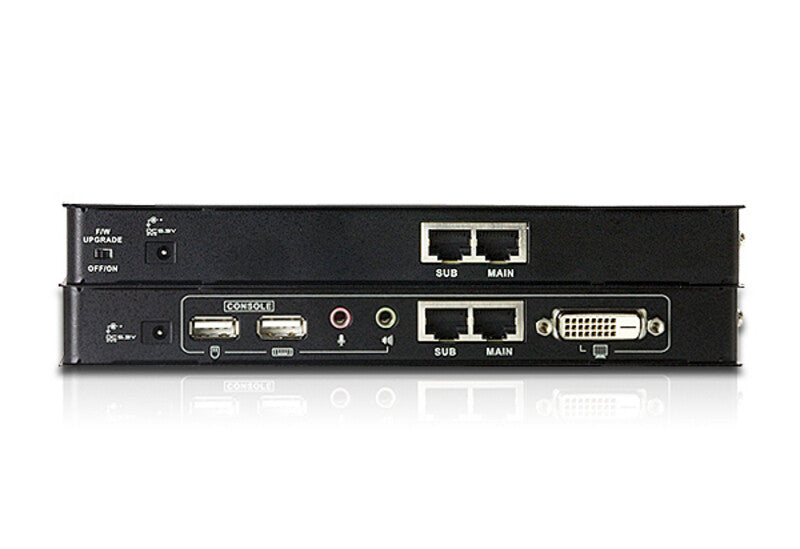

ATEN CE600-AT-E KVM extender Transmitter & receiver

Aten
£300.29
iFrame
  • Local and Remote Units connect at distances up to 60 m using Cat 5e cable
  • Features ATEN technology that allows A/V transmission over one cat 5e cable
  • Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions
  • Manual compensation control to adjust signal strength in order to compensate for distance

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.
1x CE600L DVI KVM Extender (Local Unit)
1x CE600R DVI KVM Extender (Remote Unit)
1x 2L-7D02U 1.8 m USB DVI-D Single Link KVM Cable Set
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions

Features
LED indicators Link, Power
Material Metal
Product colour Black
Supported resolutions 1920 x 1200, 1024 x 768
Maximum digital resolution 1920 x 1200 pixels
Rack mounting Yes
Cable types supported Cat5, Cat5e
Maximum transfer distance 60 m
Connectivity technology Wired
Type Transmitter & receiver
Transmitter
RJ-45 ports quantity (transmitter) 2
Transmitter local keyboard/mouse port type USB
Transmitter video port type DVI-D
Receiver
RJ-45 ports quantity (receiver) 2
Receiver local video port type DVI-D
Receiver local keyboard/mouse port type USB
Power
AC adapter output voltage 5.3 V
Weight & dimensions
Receiver weight 480 g
Receiver height 2.5 cm
Receiver depth 8.5 cm
Receiver width 20.2 cm
Transmitter weight 480 g
Transmitter height 2.5 cm
Transmitter depth 8.54 cm
Transmitter width 20.2 cm
Packaging data
Package weight 1.84 kg
Package height 210 mm
Package depth 325 mm
Package width 98 mm
Packaging content
Quick installation guide Yes
Manual Yes
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Weight 1.79 kg
