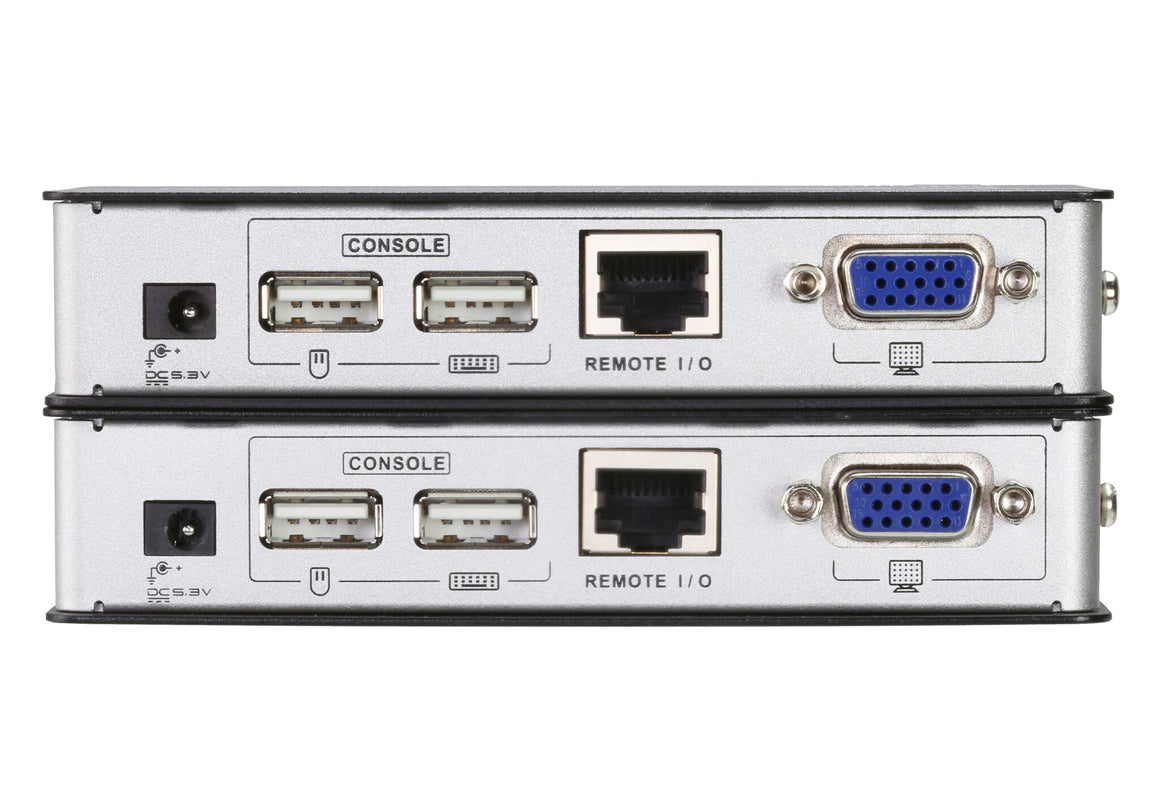

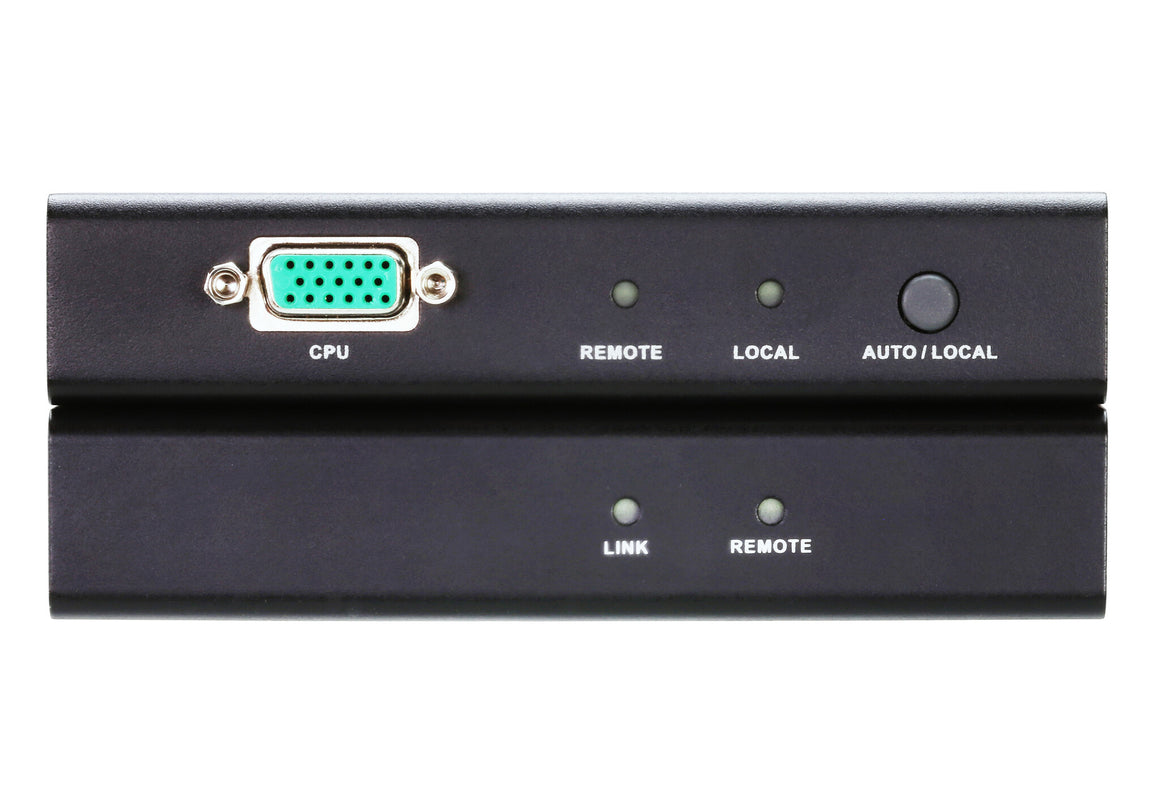

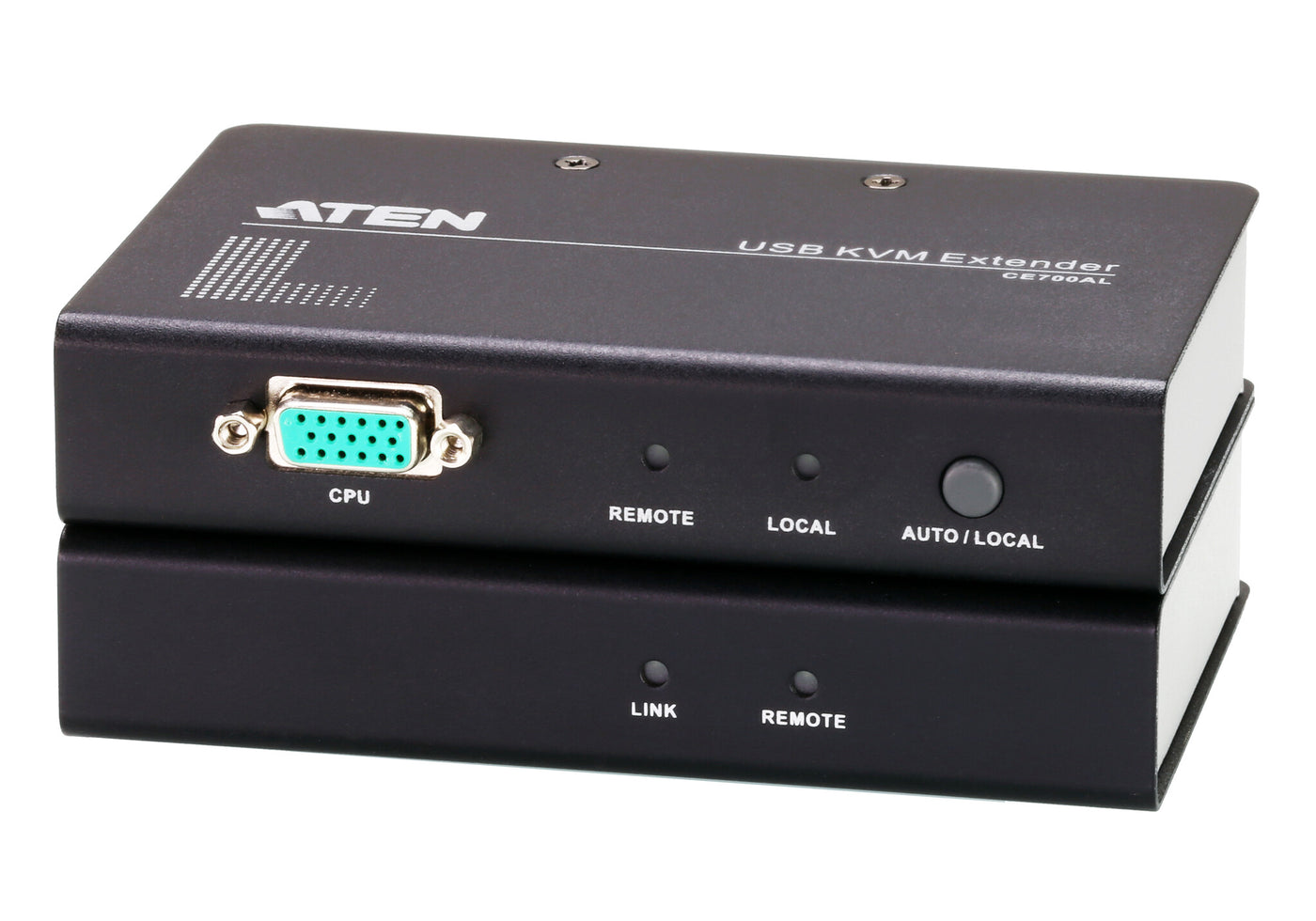

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
1x CE700AL USB KVM Extender (Local Unit)

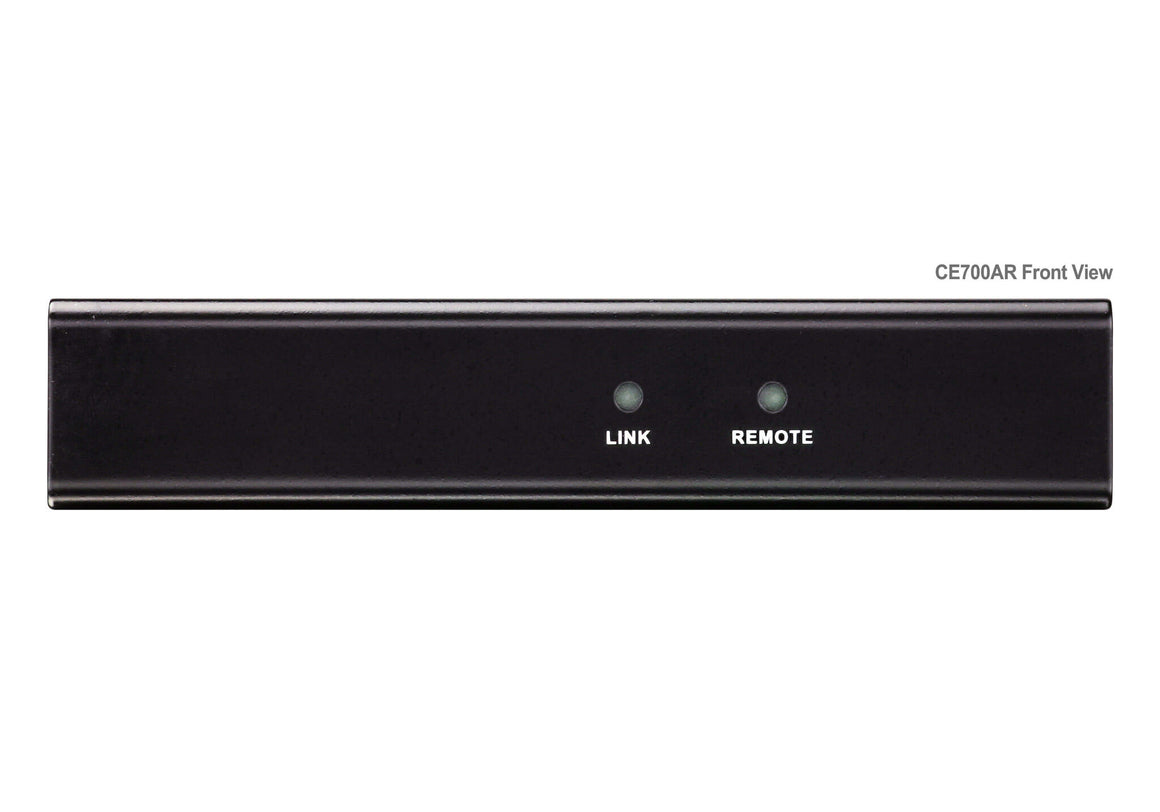

1x CE700AR USB KVM Extender (Remote Unit)
2x 0AD6-1605-09EG Power Adapters
1x USB KVM Cable (1.8m)
1x Mounting Kit
1x User Instructions
Key features
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance
| Features |
|---|
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
150 m |
| Cable types supported |
Cat5e |
| Rack mounting |
Yes |
| Supported resolutions |
1920 x 1200, 1600 x 1200, 1280 x 1024 |
| Product colour |
Black, Grey |
| Material |
Metal |
| LED indicators |
Link, Power |
| Transmitter |
|---|
| Transmitter video port type |
VGA |
| Transmitter local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (transmitter) |
1 |
| Receiver |
|---|
| Receiver local video port type |
VGA |
| Receiver local keyboard/mouse port type |
USB |
| RJ-45 ports quantity (receiver) |
1 |
| Power |
|---|
| AC adapter output voltage |
5.3 V |
| Weight & dimensions |
|---|
| Transmitter width |
12.7 cm |
| Transmitter depth |
8.65 cm |
| Transmitter height |
2.5 cm |
| Transmitter weight |
330 g |
| Receiver width |
12.7 cm |
| Receiver depth |
8.14 cm |
| Receiver height |
2.5 cm |
| Receiver weight |
320 g |
| Packaging data |
|---|
| Package width |
100 mm |
| Package depth |
283 mm |
| Package height |
173 mm |
| Package weight |
1.41 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Quick installation guide |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Technical details |
|---|
| Weight |
1.14 kg |
