The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

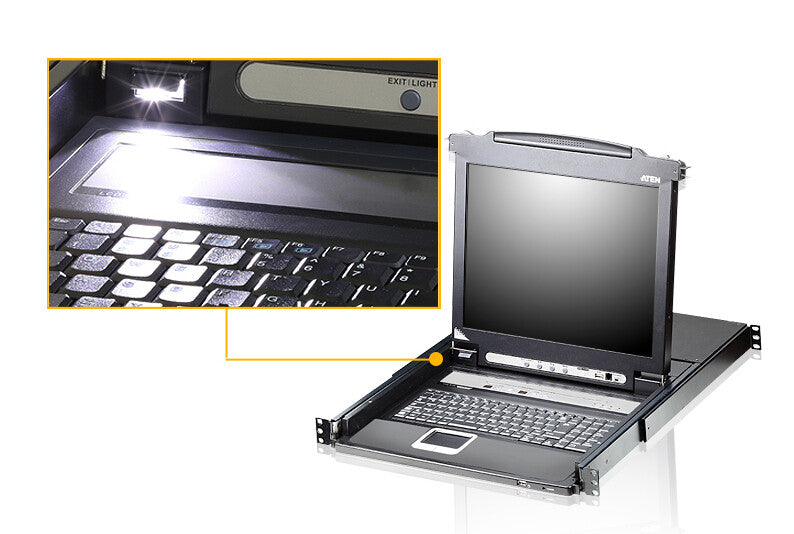

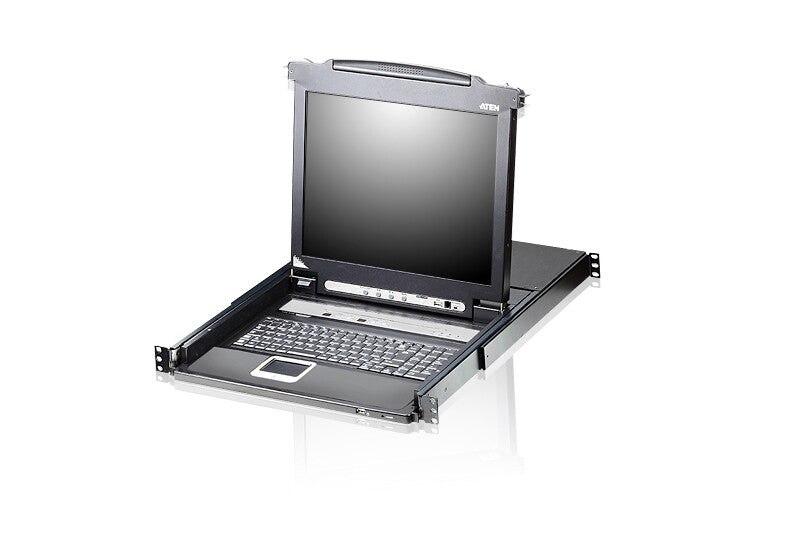

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| Mouse port type |
USB |
| Number of computers controlled |
8 |
| Performance |
|---|
| Hot-swap |
Yes |
| DDC2B support |
Yes |
| Scan interval |
1,255 s |
| Maximum resolution |
1280 x 1024 pixels |
| Design |
|---|
| LED indicators |
Yes |
| Housing material |
Metal, Plastic |
| Product colour |
Black |
| Rack capacity |
1U |
| Rack mounting |
Yes |
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Display diagonal |
43.2 cm (17") |
| Display |
LCD |
| Built-in display |
Yes |
| Power |
|---|
| Power consumption (typical) |
16 W |
| Input current |
1 A |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
100-240 V |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
13.5 kg |
| Height |
44 mm |
| Depth |
480 mm |
| Width |
642.7 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
