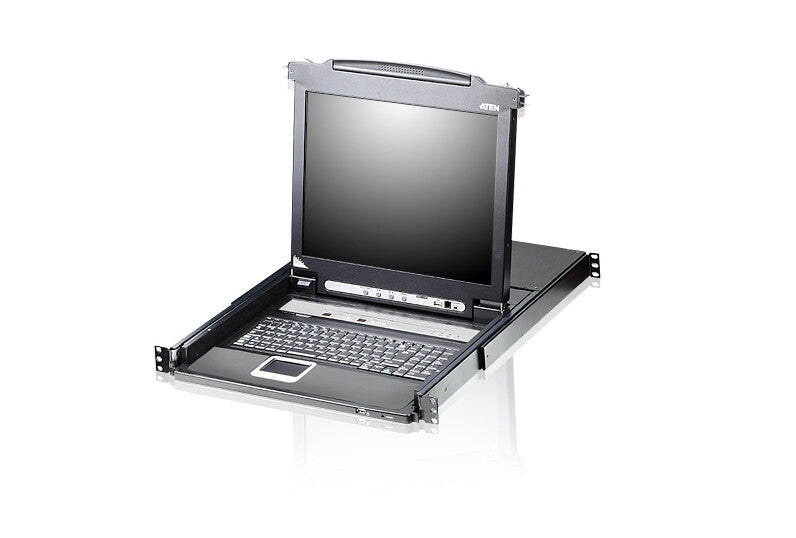

The CL5708 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

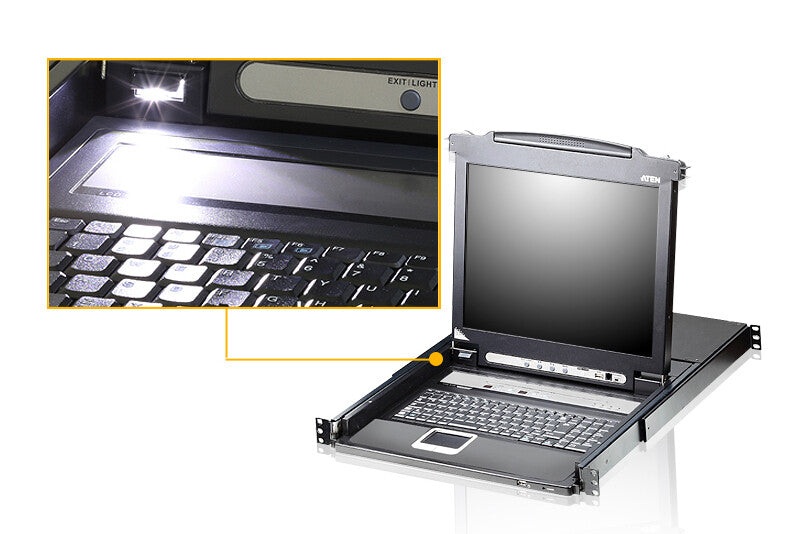

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
| Display |
|---|
| On Screen Display (OSD) |
Yes |
| Display |
LCD |
| Display diagonal |
43.2 cm (17") |
| Technical details |
|---|
| Rack capacity |
1U |
| Product colour |
Black |
| Maximum resolution |
1280 x 1024 pixels |
| Operating relative humidity (H-H) |
0 - 80% |
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Number of computers controlled |
8 |
| Ports & interfaces |
|---|
| Mouse port type |
USB |
| Keyboard |
|---|
| Keyboard language |
French |
| Keyboard layout |
AZERTY |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Power |
|---|
| Input current |
1 A |
| Power consumption (typical) |
16 W |
| Weight & dimensions |
|---|
| Weight |
13.5 kg |
| Depth |
480 mm |
| Height |
44 mm |
| Width |
642.7 mm |
