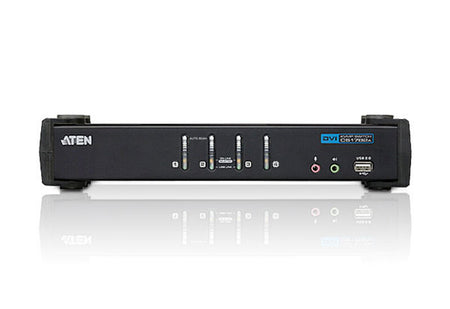

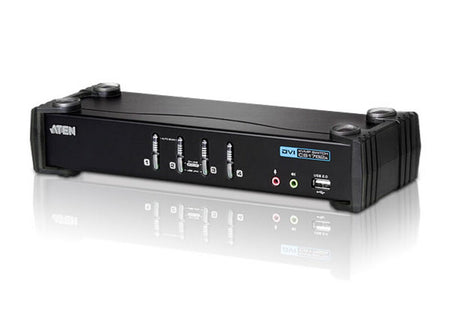

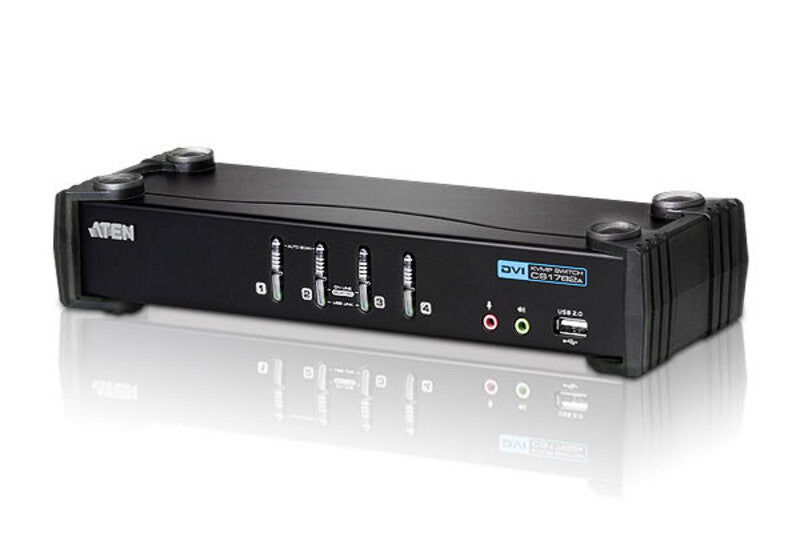

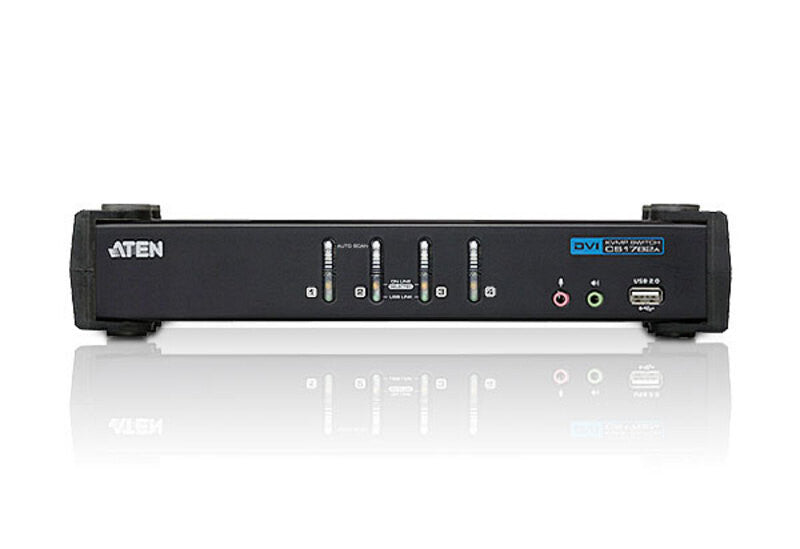

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
1 x CS1764A USB 2.0 DVI KVMP™ Switch
4 x 2L-7D02U USB DVI-D Single Link KVM Cables (1.8m)
1 x 0AD8-1605-24M1 Power Adapter
1 x User Instructions
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Number of microphone inputs |
6 |
| Headphone outputs |
6 |
| Audio connections |
Yes |
| USB connector type |
USB Type-A, USB Type-B |
| USB hub |
Yes |

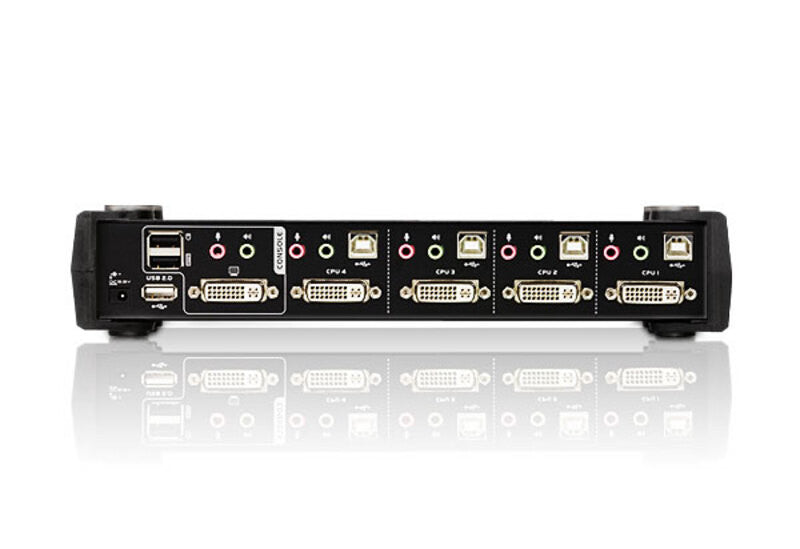

| Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity |
4 |
| USB 2.0 Type-B ports quantity |
4 |
| DVI-I ports quantity |
4 |
| Video port type |
DVI-I |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
4 |
| Performance |
|---|
| DDC2B support |
Yes |
| Scan interval |
1,5,99 s |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| HD type |
WUXGA |
| Design |
|---|
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
4.8 W |
| Input voltage |
5.3 V |
| Power source |
DC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
2.1 kg |
| Height |
55.5 mm |
| Depth |
88 mm |
| Width |
270 mm |
| Packaging data |
|---|
| Package weight |
2.41 kg |
| Package height |
210 mm |
| Package depth |
325 mm |
| Package width |
98 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
