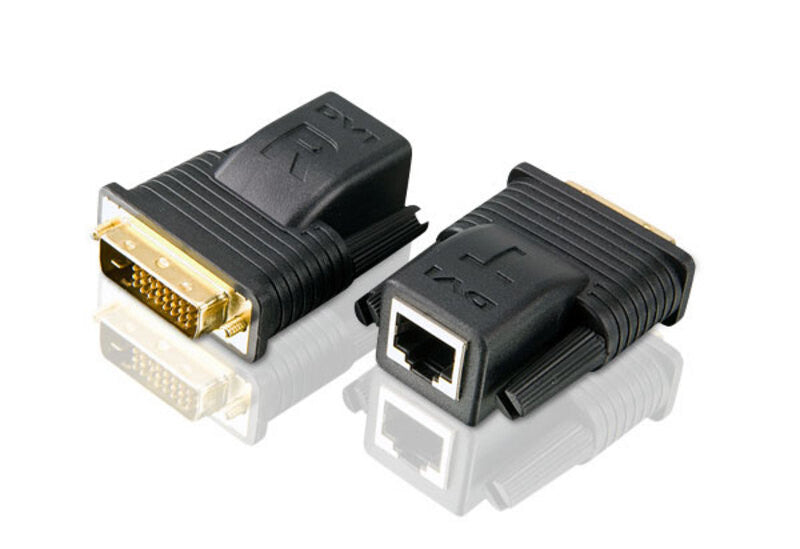

The VE066 Mini Cat 5 DVI Extender allows you to increase the distance between your DVI display and DVI source by up to 20 m using only one Cat 5e or Cat 6 cable, providing a convenient way to replace heavy and expensive DVI cables. With hot-plugging support, easily add or remove the VE066 Transmitter connected to the source or the VE066 Receiver connected to the display without having to power down the devices. Compatible with all ATEN DVI switches and DVI splitters, the VE066 Mini Cat 5 DVI Extender is a compact, convenient and economical way to extend your DVI display.
1x VE066T Mini Cat 5 DVI Extender (Transmitter)
1x VE066R Mini Cat 5 DVI Extender (Receiver)
1x User Instructions
Features |
Product colour |
Black |
Material |
Plastic |
HDCP |
Yes |
Bandwidth |
165 MHz |
Impedance |
100 Ω |
Maximum transfer distance |
20 m |
Cable types supported |
Cat5e |
Maximum resolution |
1920 x 1080 pixels |
Type |
AV transmitter & receiver |
Ports & interfaces |
Video in |
1 x DVI-D |
Video out |
1 x DVI-D |
DVI input ports |
1 |
DVI output ports |
1 |
Connectivity technology |
Wired |
Operational conditions |
Operating temperature (T-T) |
0 - 50 °C |
Storage temperature (T-T) |
-20 - 60 °C |
Operating relative humidity (H-H) |
0 - 80% |
Weight & dimensions |
Transmitter weight |
50 g |
Transmitter dimensions (WxDxH) |
56.6 x 40.7 x 21.5 mm |
Receiver weight |
50 g |
Receiver dimensions (WxDxH) |
56.6 x 40.7 x 21.5 mm |
Weight |
96 g |
Packaging data |
Package weight |
158 g |
Package height |
196 mm |
Package depth |
107 mm |
Package width |
38 mm |
Quantity per pack |
2 pc(s) |
Packaging content |
Quick start guide |
Yes |
Technical details |
Compliance certificates |
RoHS |
Logistics data |
Products per master (outer) case |
20 pc(s) |
Master (outer) case net weight |
1.92 kg |
Master (outer) case gross weight |
3.93 kg |
Master (outer) case height |
240 mm |
Master (outer) case length |
410 mm |
Master (outer) case width |
225 mm |
