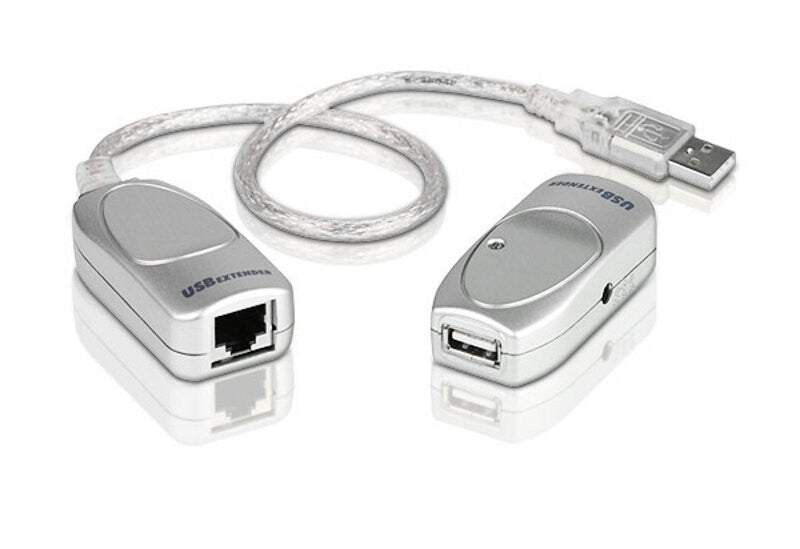

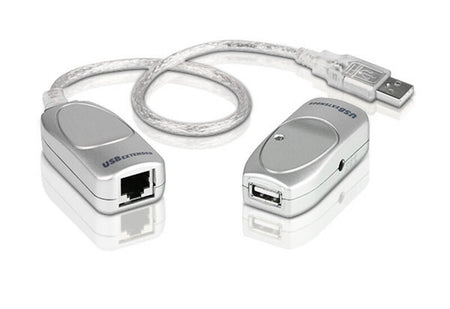

UCE60 lets you locate your USB device or hub up to 60m (198 ft) from you computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Cat 5/Cat 5e/Cat 6 cable.
1x Local Unit (1 ft USB Cable attached)
1x Remote Unit
| Features |
|---|
| Material |
Plastic |
| Product colour |
Grey |
| Maximum transfer distance |
60 m |
| Connectivity technology |
Wired |
| Type |
Transmitter & receiver |
| Transmitter |
|---|
| RJ-45 ports quantity (transmitter) |
1 |
| Transmitter local keyboard/mouse port type |
USB |
| Receiver |
|---|
| RJ-45 ports quantity (receiver) |
1 |
| Receiver local keyboard/mouse port type |
USB |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| Weight & dimensions |
|---|
| Receiver weight |
30 g |
| Receiver height |
2.19 cm |
| Receiver depth |
3.1 cm |
| Receiver width |
6.3 cm |
| Transmitter weight |
20 g |
| Transmitter height |
2.19 cm |
| Transmitter depth |
3.1 cm |
| Transmitter width |
6.3 cm |
| Packaging data |
|---|
| Package weight |
185 g |
| Package height |
239 mm |
| Package depth |
160 mm |
| Package width |
116 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 80% |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Weight |
61 g |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case gross weight |
4.64 kg |
| Master (outer) case height |
340 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case width |
330 mm |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case net weight |
1.22 kg |
