SKU: VE150A

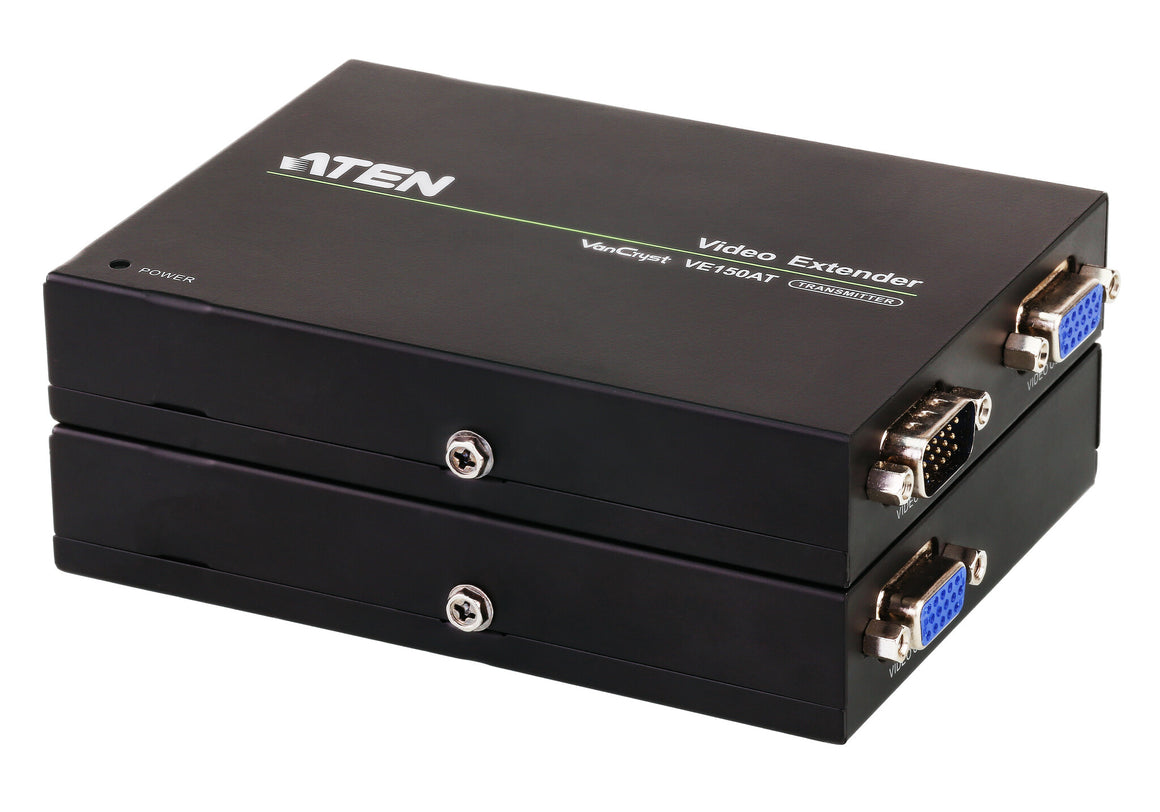

ATEN VE150A AV extender AV transmitter & receiver Black

Aten
£117.62
  • Uses Cat 5e cables to connect the local and remote units
  • Supports one local and one remote display
  • Long distance transmission – up to 150 m
  • Adjustable gain control – manually adjust signal strength to compensate for distance
  • Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • Supports wide screen formats
  • Supports hot-plugging
  • Built-in 8KV/15KV ESD protection
  • Supports DDC for the local monitor
  • Easy installation
  • Rack Mountable
  • Plug-and-play – no software installation required

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Features
Product colour Black
Supported graphics resolutions 1280 x 1024 (SXGA)
Cable length 150 m
Cable types supported Cat5e
Maximum resolution 1280 x 1024 pixels
Type AV transmitter & receiver
Ports & interfaces
DC-in jack Yes

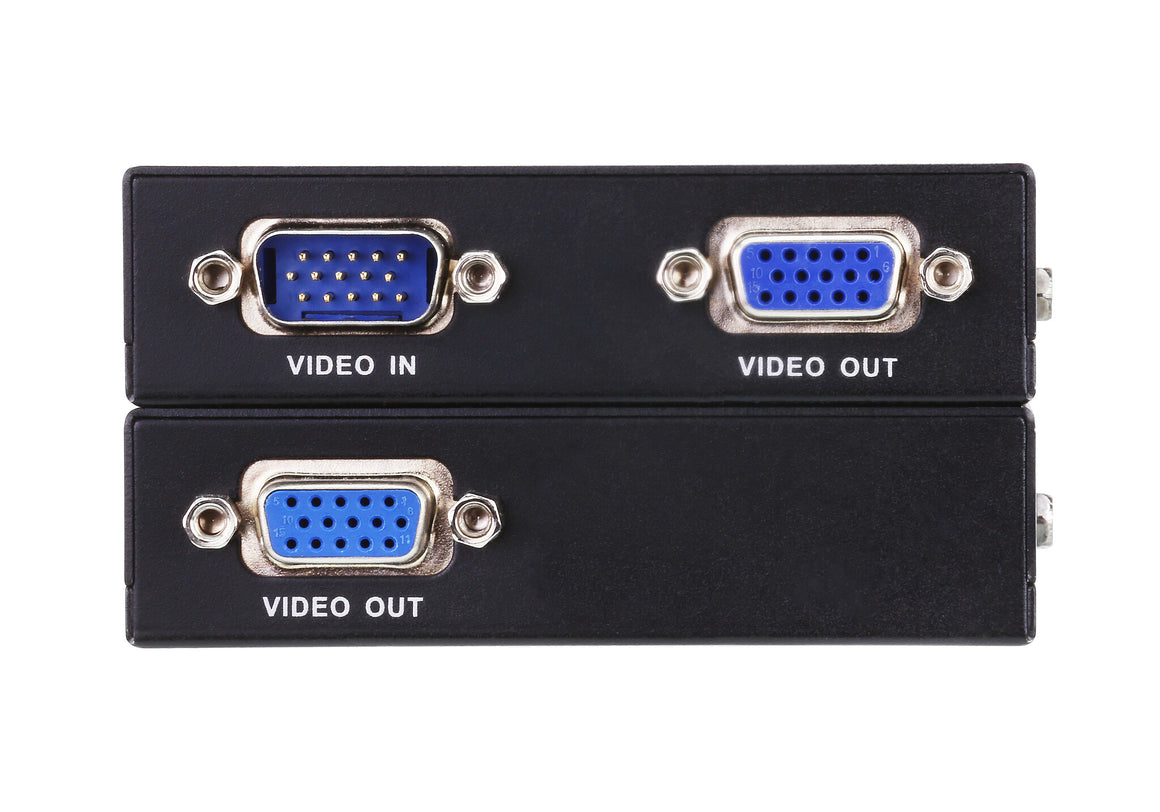

VGA (D-Sub) input ports 1
VGA (D-Sub) output ports 1

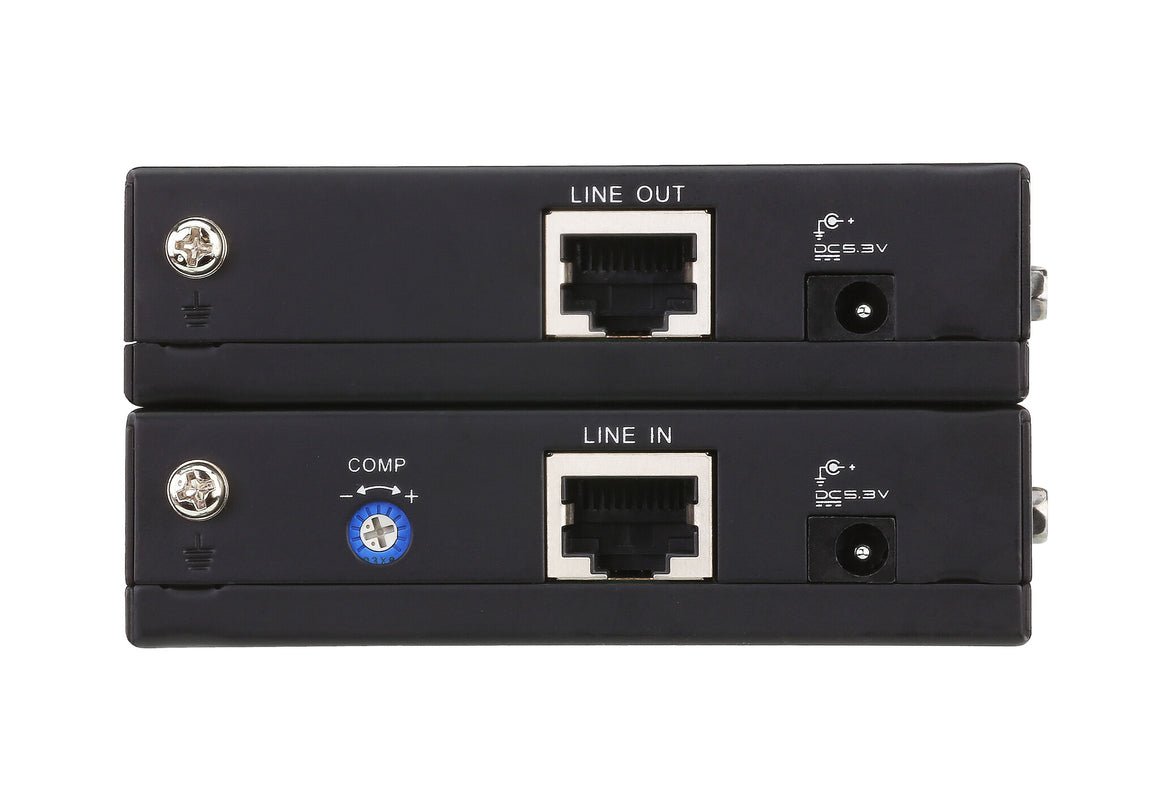

RJ-45 input ports 1
Power
Power requirements 1.2W
Operating voltage 5.3 V
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Weight 250 g
Dimensions (WxDxH) 86 x 119 x 23 mm
