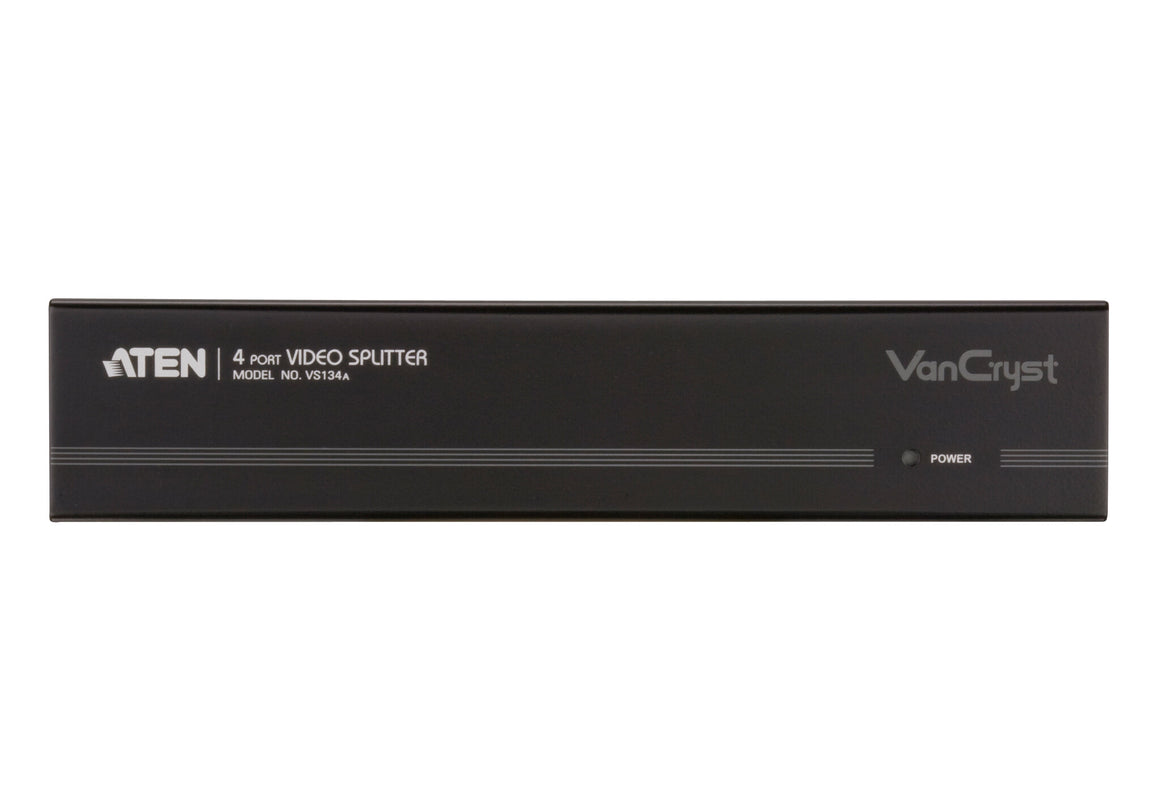

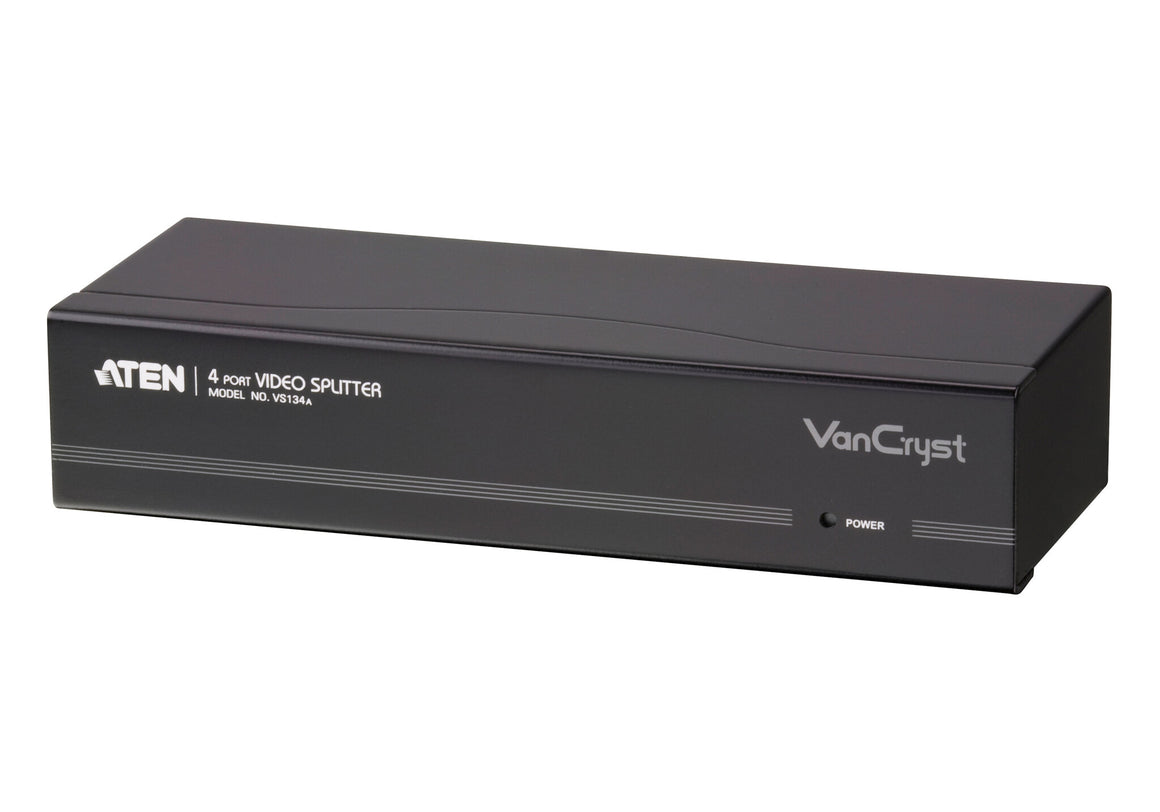

The VS134A Video Splitter is a boosting device that duplicates a video signal from one source to 4 output devices. Cascadable to three levels, the VS134A provides up to 64 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS134A is your best choice.
Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos

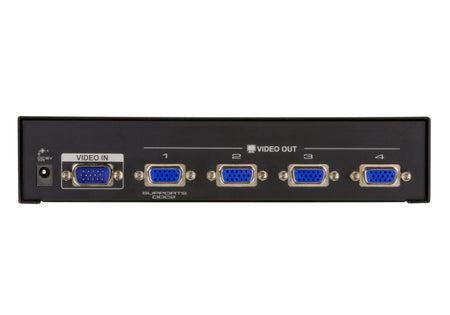

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Video out |
4x VGA |
| Video port type |
VGA |
| Video ports quantity |
4 |
| Features |
|---|
| Supported graphics resolutions |
1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Power LED |
Yes |
| HDCP |
No |
| Remote control included |
No |
| Bandwidth |
450 MHz |
| Maximum operating distance |
65 m |
| 3D |
No |
| Maximum resolution |
2048 x 1536 pixels |
| Product colour |
Black |
| Power |
|---|
| USB powered |
No |
| Power consumption (typical) |
0.95 W |
| Weight & dimensions |
|---|
| Weight |
610 g |
| Dimensions (WxDxH) |
200 x 75 x 45 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
