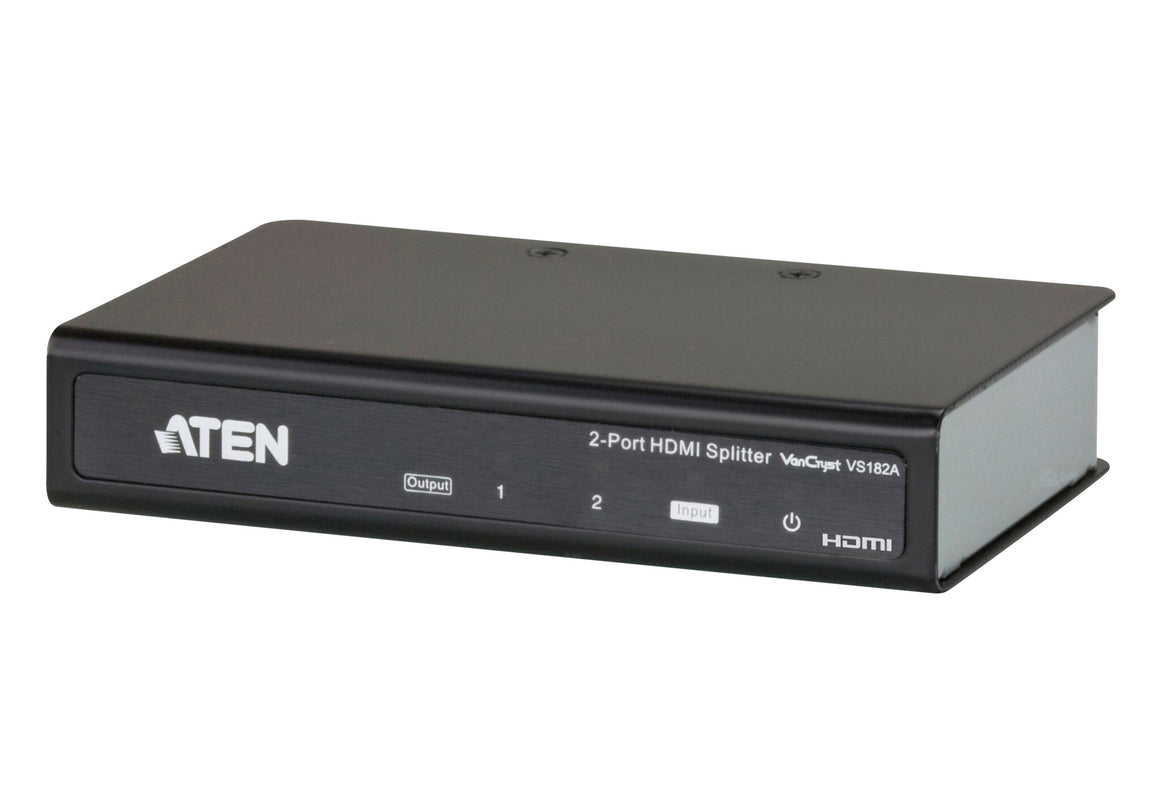

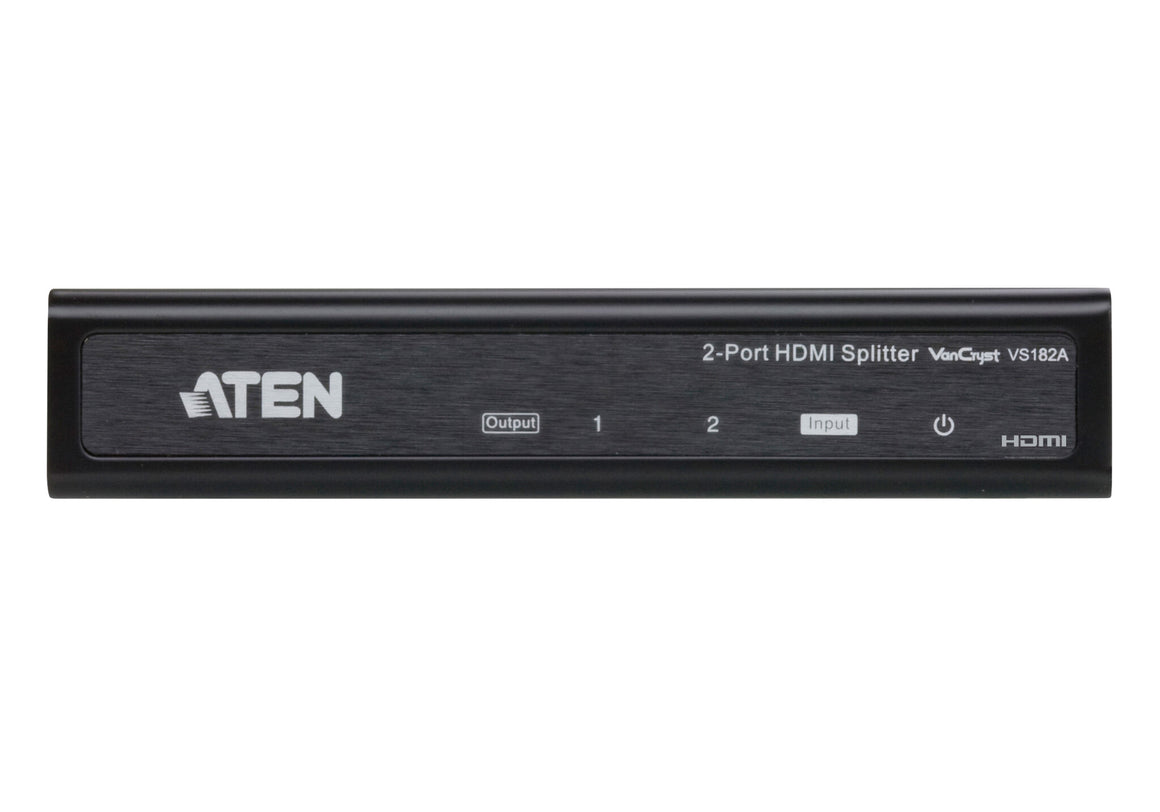

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K

SKU: VS182A
£58.13 inc. VAT
  • Connects one HDMI source to two HDMI displays at the same time
  • HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission – up to 15 m (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Plug-and-play – no software installation required

The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

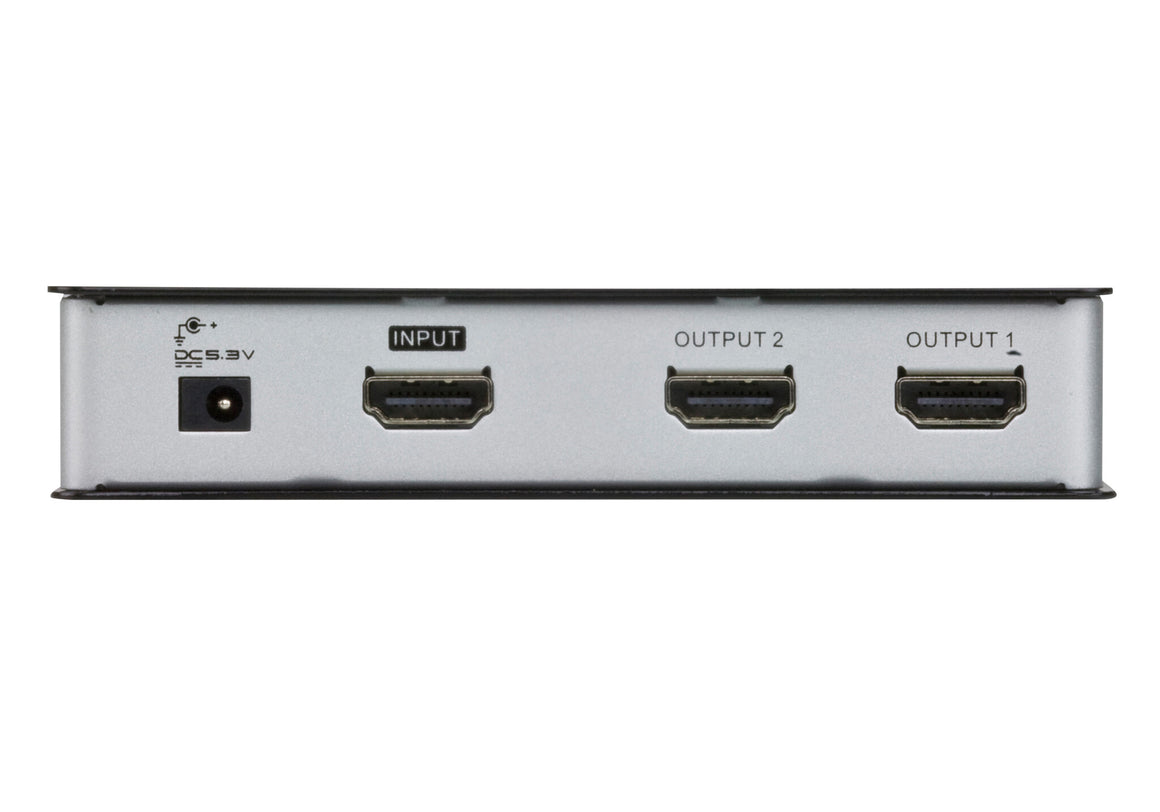

Ports & interfaces
DC-in jack Yes
Video out 2x HDMI
Video in 1 x HDMI Type A Female (Black)
Video port type HDMI
Video ports quantity 3
Features
Mac compatibility Yes
Mac operating systems supported Yes
Windows operating systems supported Yes
Supported video modes 2160i, 2160p
LED indicators Yes
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Plug and Play Yes
Dolby technologies DTS-HD Master Audio, Dolby TrueHD
HDCP Yes
HDCP version 1.4
Bandwidth 340 MHz
Maximum refresh rate 60 Hz
Maximum operating distance 15 m
3D Yes
HD type 4K Ultra HD
Maximum resolution 4096 x 2160 pixels
Housing material Metal
Product colour Black
Power
Power consumption (typical) 3.12 W
AC input voltage 5 V
Weight & dimensions
Weight 504 g
Height 25 mm
Depth 125 mm
Width 80 mm
Packaging data
Package weight 642 g
Package height 160 mm
Package depth 239 mm
Package width 59 mm
Quantity per pack 1 pc(s)
Packaging content
AC adapter included Yes
User guide Yes
Cables included HDMI
Manual Yes
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
