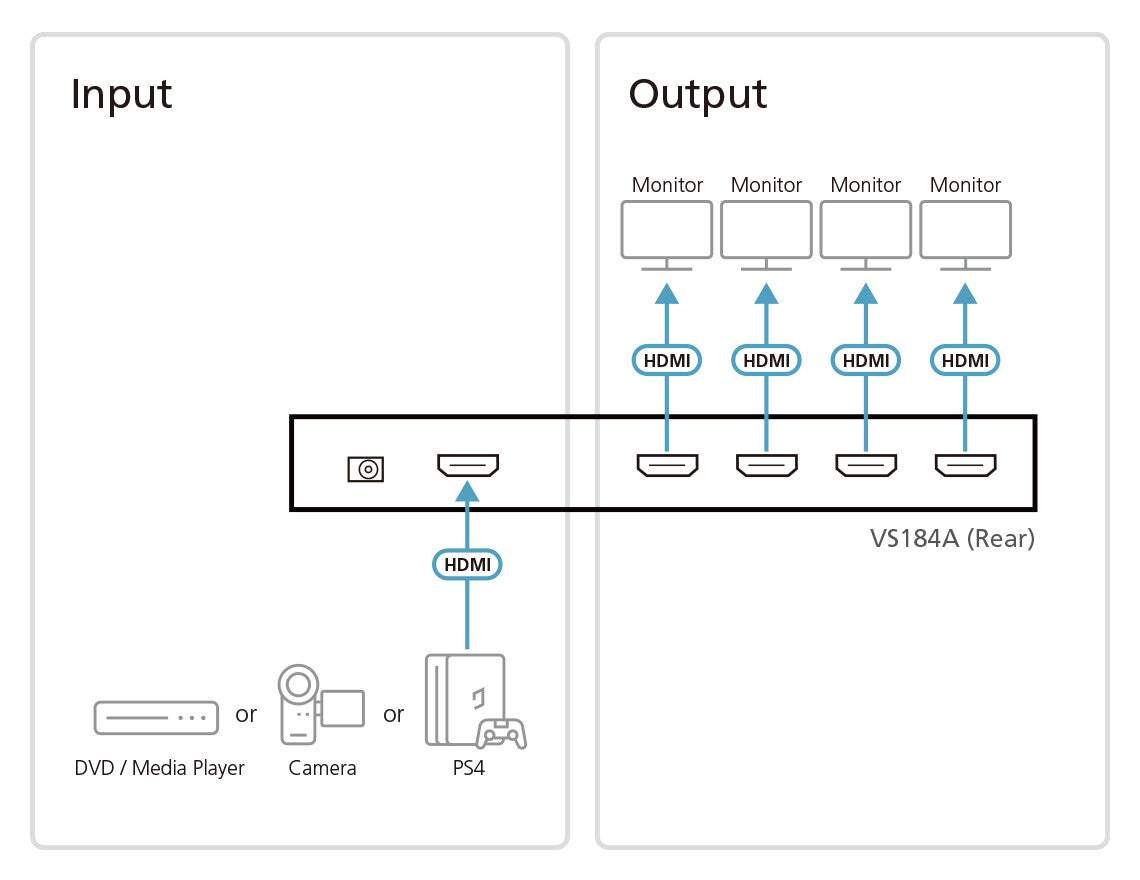

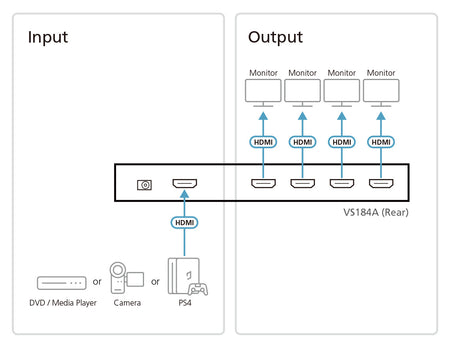

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Connector(s) |
4 |
| Video out |
4x HDMI |
| Video in |
1 |
| Video port type |
HDMI |
| Video ports quantity |
5 |
| Features |
|---|
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| HDCP |
Yes |
| Rack mounting |
Yes |
| Remote control included |
No |
| Maximum operating distance |
15 m |
| 3D |
Yes |
| Full HD |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Power |
|---|
| USB powered |
No |
| Power consumption (typical) |
6.02 W |
| AC input voltage |
5.3 V |
| Weight & dimensions |
|---|
| Weight |
470 g |
| Dimensions (WxDxH) |
200 x 80 x 25 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Technical details |
|---|
| Resolution |
4096 x 2160 pixels |
| Connector type |
HDMI Type A Female |
| Number of connectors |
4 |
| Maximum cable length |
15 m |
| Maximum video resolution |
4096 x 2160 pixels |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
