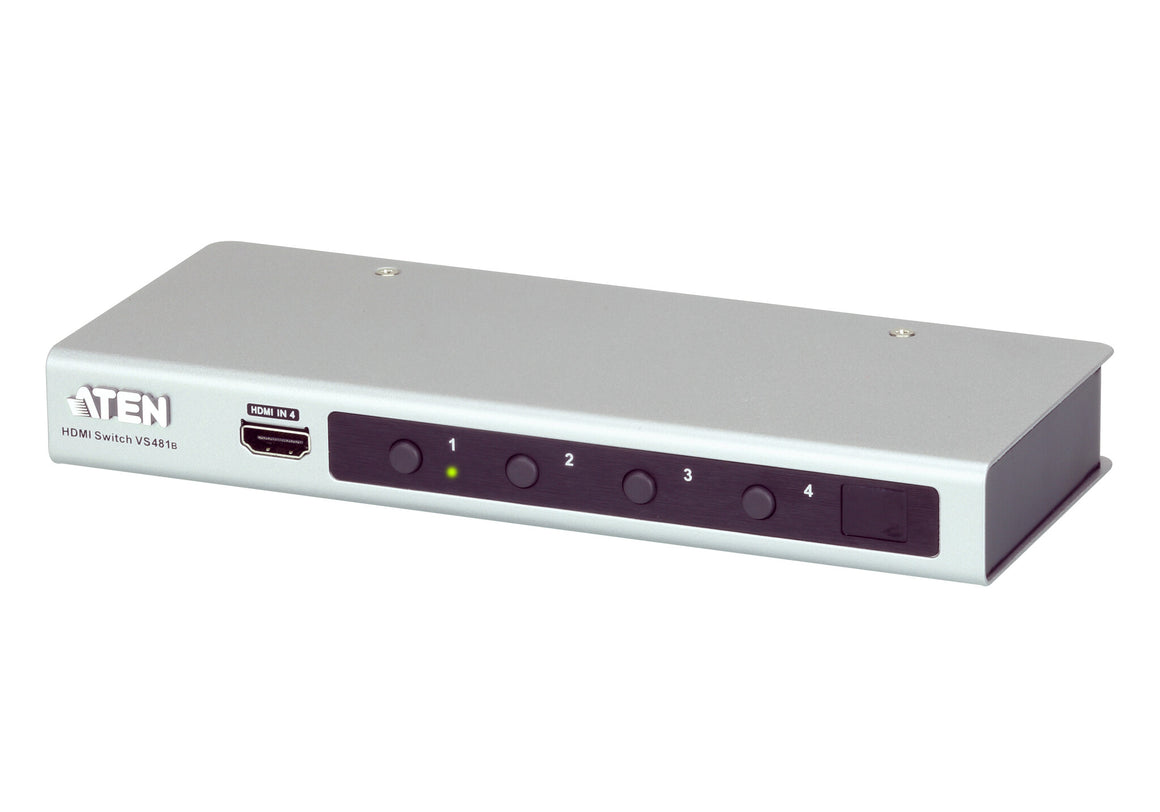

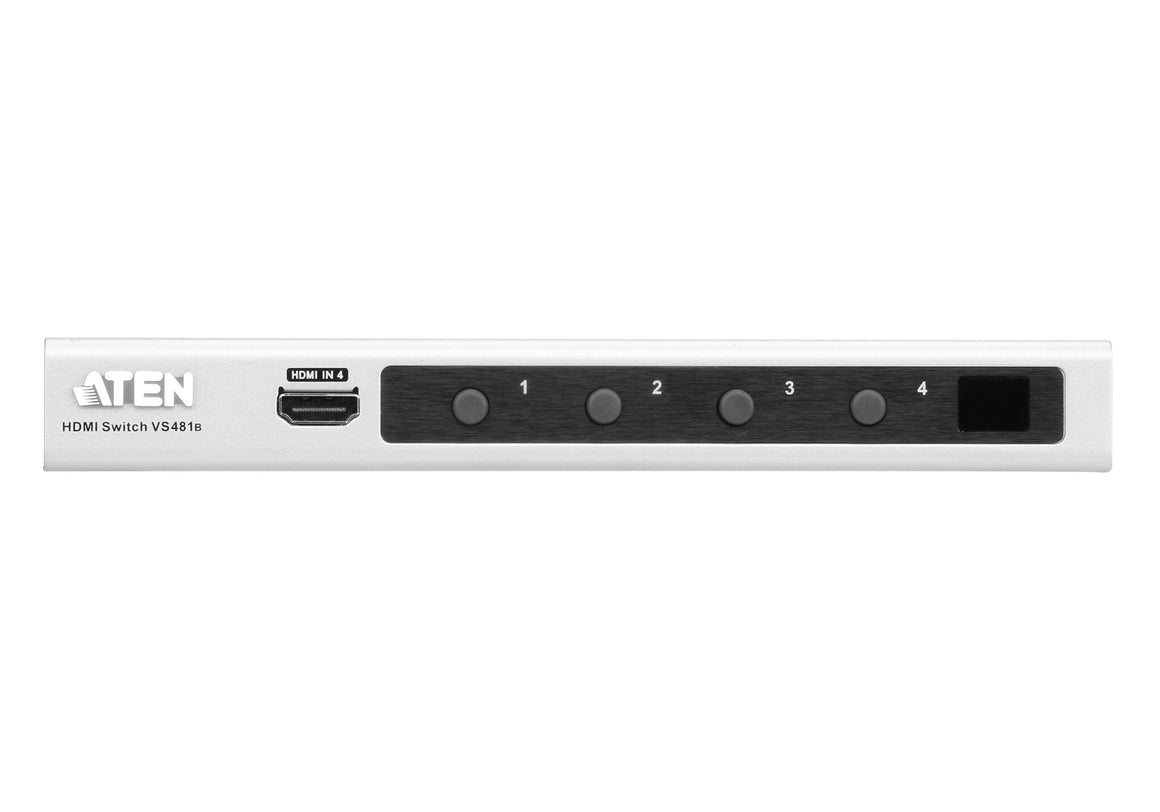

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

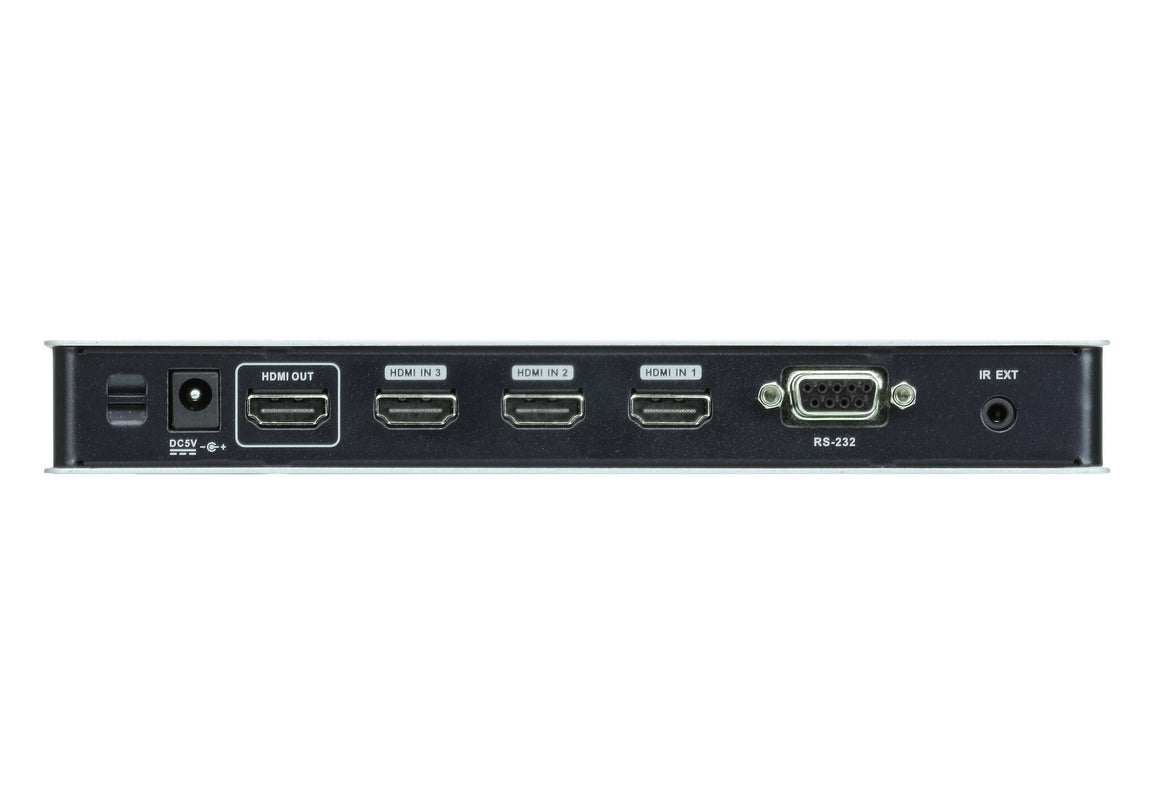

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| RS-232 ports |
1 |
| Number of HDMI outputs |
1 |
| HDMI in |
4 |
| Video port type |
HDMI |
| Features |
|---|
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Supported video modes |
480p, 720p, 1080i, 1080p, 2160p |
| LED indicators |
Yes |
| Material |
Metal |
| Product colour |
Black, White |
| Power |
|---|
| Power consumption (typical) |
5 W |
| AC adapter output voltage |
5 V |
| Weight & dimensions |
|---|
| Weight |
470 g |
| Height |
25 mm |
| Depth |
82.5 mm |
| Width |
200 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
