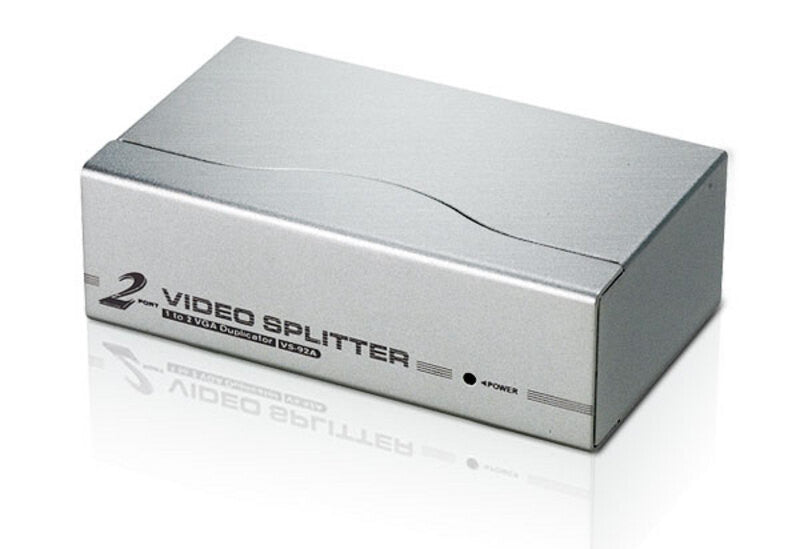

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Package Contents
1x 2-Port Video Splitter
1x Power Adapter
1x User Instructions

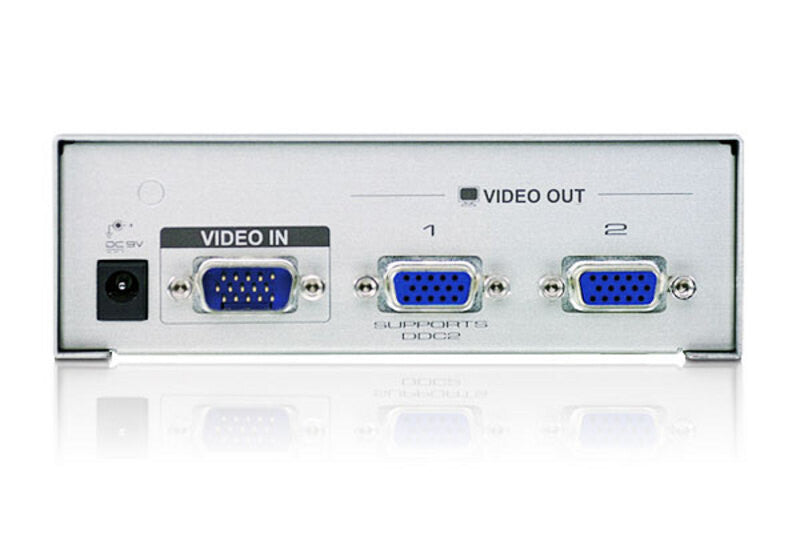

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Video out |
2x VGA |
| Video port type |
VGA |
| Video ports quantity |
2 |
| Features |
|---|
| Bandwidth |
350 MHz |
| Maximum refresh rate |
60 Hz |
| Maximum operating distance |
30 m |
| Maximum resolution |
1920 x 1440 pixels |
| Housing material |
Metal |
| Product colour |
Silver |
| Power |
|---|
| Power consumption (typical) |
1.24 W |
| AC input voltage |
9 V |
| Weight & dimensions |
|---|
| Weight |
420 g |
| Height |
44 mm |
| Depth |
75.1 mm |
| Width |
130 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
