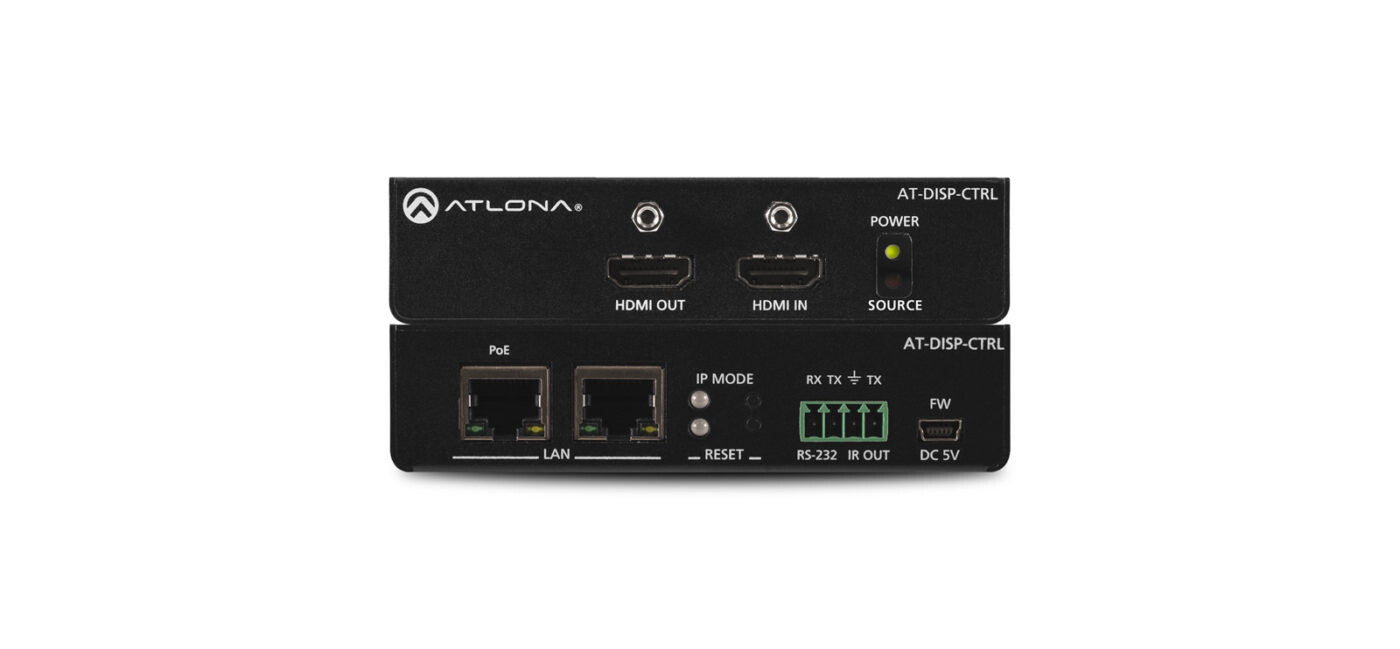

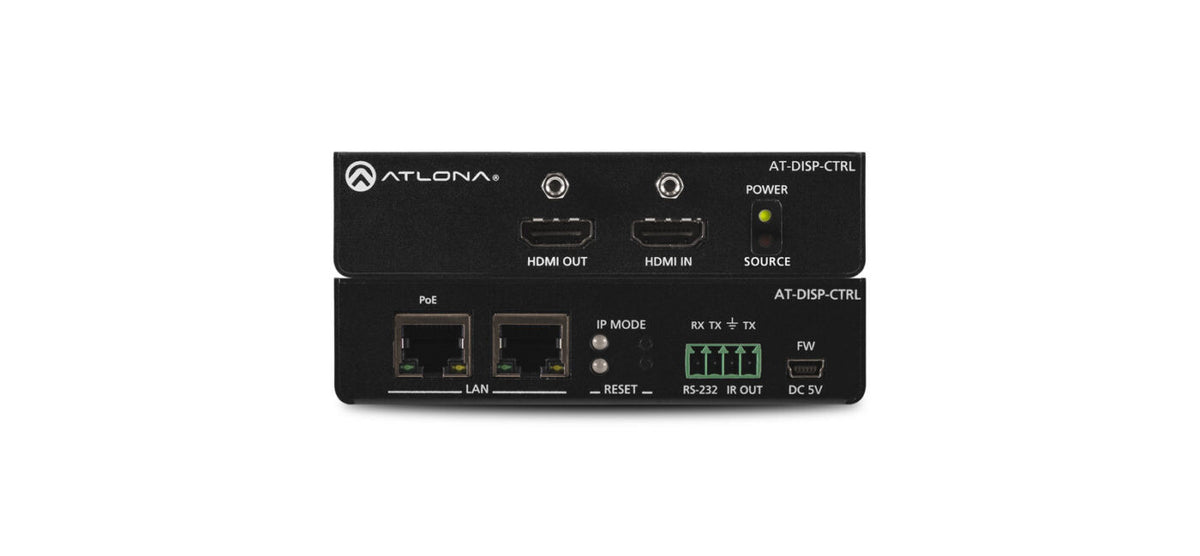

The Atlona AT-DISP-CTRL is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI® data rates up to 18 Gbps.
| Design |
|---|
| Housing colour |
Black |
| Ports & interfaces |
|---|
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Current |
0.5 A |
| AC input voltage |
5 V |
| Connected load |
5.3 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-4 - 140 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
300 g |
| Height |
26 mm |
| Depth |
89 mm |
| Width |
109 mm |
