The best just got better
THE EVOLUTION OF NINJA

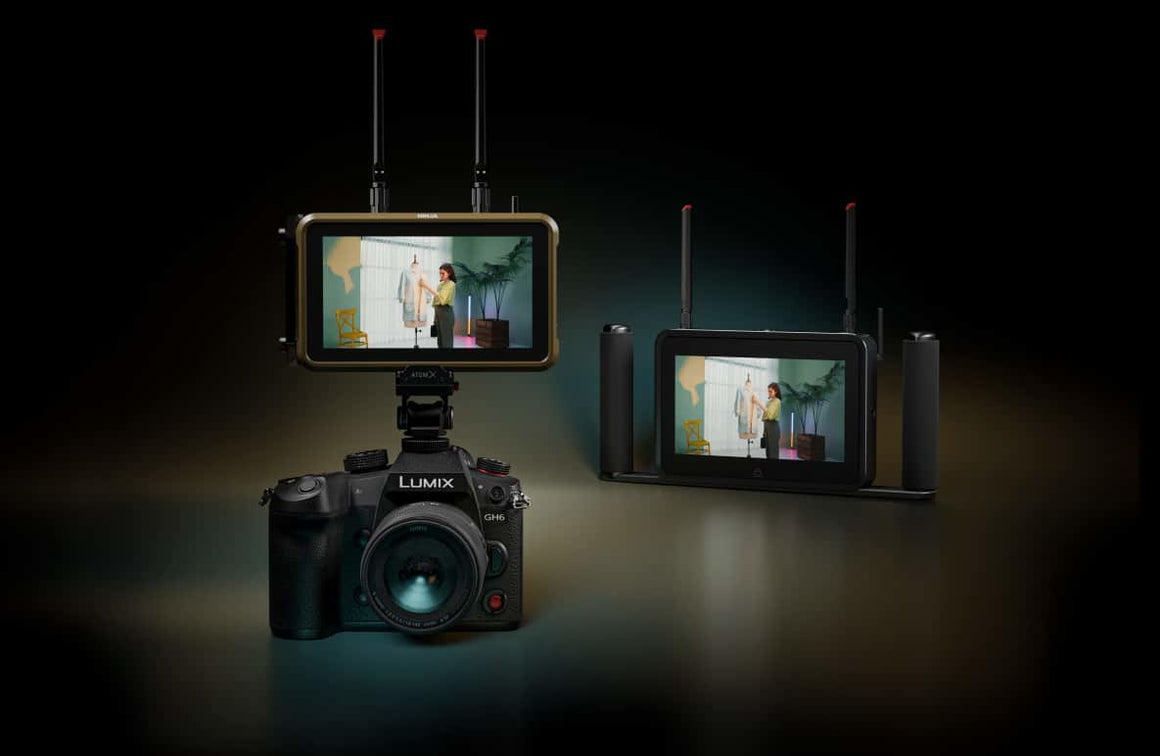

The small form factor monitor-recorder, ideal for DSLR and mirrorless cameras. More codecs and monitoring tools than ever before.
DESIGNED FOR VERSATILITY
The evolution of Ninja
The original Ninja rocked the world, combining an HD disk recorder with a touchscreen monitor you could hold in your hand. It captured pristine, uncompressed video direct from the first generation of DSLRs straight onto a removable SSD. Today, Ninja handles video sources up to nine times that resolution, has a 5-inch HDR screen, records ProRes, and connects to almost every camera in the world. Little wonder “Atomos” is now in the vocabulary of almost every filmmaker.
THE NEW ATOMOS 11
Cleaner, fresher, faster
Introducing a new version of our operating system, AtomOS 11. Built uniquely for the new Ninja and Ninja Ultra, it not only looks beautiful but introduces a host of great new features. We’ve made the tools more visible and improved the icons so you know exactly what you’re selecting. It’s easier to use, more logical and feels more professional.
AtomOS 11 unleashes the full potential Ninja with new firmware that optimizes memory management for greater responsiveness. It also enables a host of new features.
New ways
to Ninja
The new Ninja gains a ton of new features, enabled by the new AtomOS 11. All designed to make you more productive by taking the friction out of your working day.
ACCURATE COLOR
Colorized
Exposure
EL Zone exposure referenced colorized image and ARRI False Color
A powerful new addition to AtomOS 11 provides industry-recognized EL Zone and ARRI colorized exposure display as a selectable alternative to Atomos false color. This allows Atomos monitors to display consistent colorized exposure with multiple monitors in the production pipeline. EL Zone is designed for camera operators. By colorizing exposure in stops so you can see exactly the true scene-referred dynamic range directly from the camera, which is ideal for exposure assessment of both HDR and SDR production. It’s the best way to see colorized exposure on a monitor, and it’s industry-standard
MORE CONTROL
TimeLapse
Set up time lapse recording and control it from your Ninja, completely independent of your camera’s controls. Use the Ninja’s screen for accurate visual alignment and its massive removable storage for longer projects.
TIMED RECORDING
RecordAssist

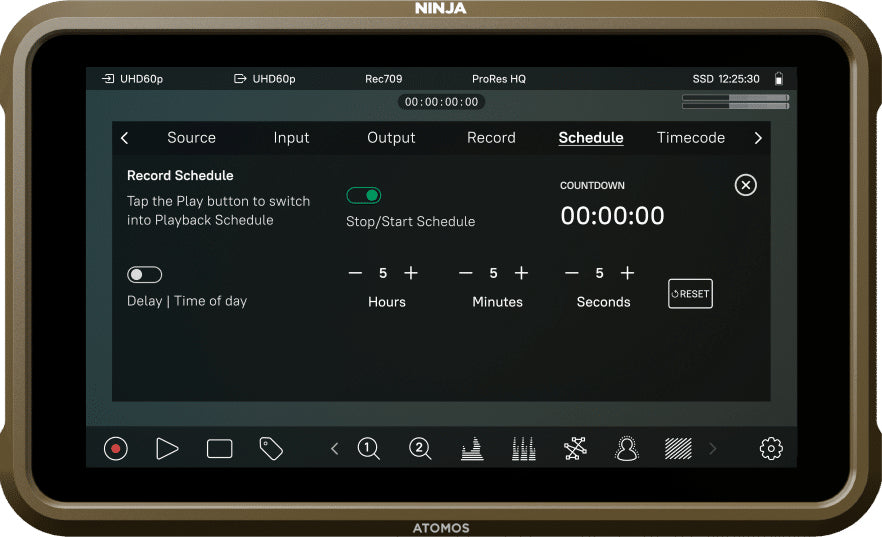

Set a time for your recording to start. It’s ideal for covering pre-arranged events when you need to be somewhere else. If you have several Ninjas you can even record in multiple locations simultaneously. It’s also a safer way to cover dangerous locations without risk to you and your colleagues. Finally, it’s perfect for wildlife shooting. Want to capture the action by the riverbank at sunset? Just dial-in the time and come back later.
CODEC CHOICE
Multiple Codecs

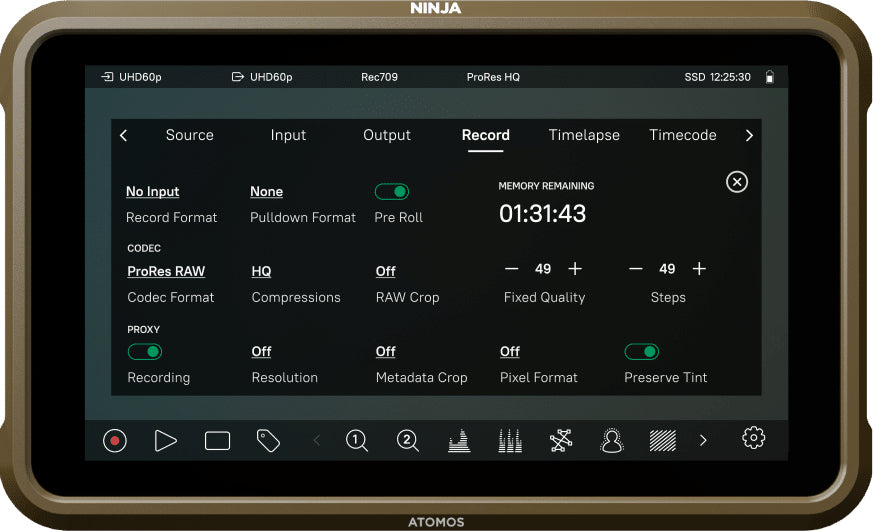

The new Ninja line includes the following codecs free of charge, giving you more options to choose the ideal codec for your projects.
- Apple ProRes
- Apple ProRes RAW
- H.265
- DNx (QuickTime)
- DNx (MXF)* coming later in 2023
The Apple ProRes codec is pre-activated to use out of the box, so you can start shooting immediately. To activate the H.265 and DNx codecs, visit my.atomos.com to register your product, then follow the simple online instructions to activate these codecs for free using an activation token system.
To activate the Apple ProRes RAW codec you need to go to the my.atomos.com portal. There is a small additional step to get the correct activation token and access the codec for free. You simply need to plug in your compatible RAW camera to complete the process. You only need to do this once to unlock this super-flexible and unique codec in perpetuity.
VIDEO OVER IP
NDI HD TX

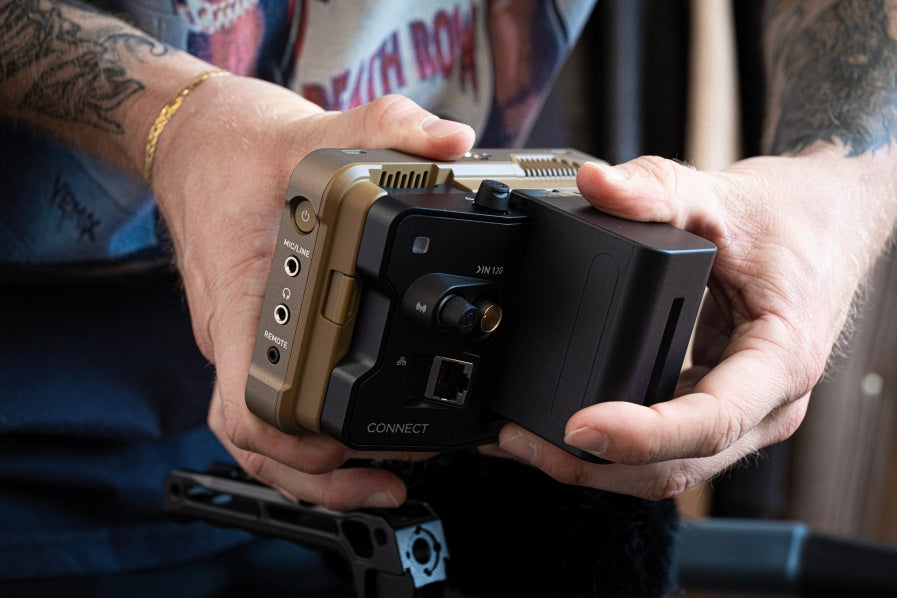

NDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It’s increasingly used in live production, and now your Ninja can take part in an NDI environment. The NDI TX option turns your Connect-enabled Ninja into an NDI source, visible to all other authorized devices on the network.
Paid option. Requires Atomos Connect.
MORE FUNCTIONALITY
Enhance your camera
The new Ninja has an ultra-bright, 5-inch HDR screen that’s easily visible outdoors. Capture RAW video from a vast range of mirrorless and DSLR cameras. It’s packed with on-screen tools for focus, exposure, customer LUTs and metadata. Ninja takes care of your workflow while you focus on creative ideas.
Improve your shots through accurate framing and check your exposure and focus on a clear, bright screen. We work with all popular camera manufacturers to support the widest range of cameras. Not just for recording uncompressed video via HDMI but working with RAW formats and being able to stop/start trigger the camera’s own recording.
ACCURATE MONITORING
Optimum performance
Ninja can capture RAW HDMI inputs up to 6K at 30fps and simultaneously output a standard viewable video signal via HDMI for devices that don’t support RAW formats.

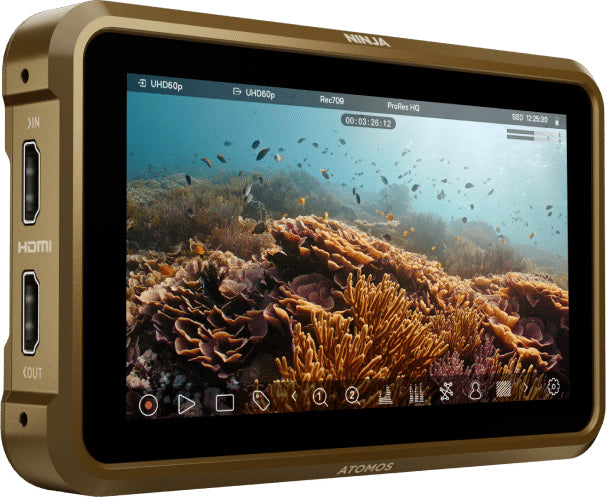

With a versatile 5.2-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Ninja now has a new operating system and user interface. The screen is designed for outdoor usability, with a generous 1000nits, viewable even in direct sunlight. You can also adjust the screen for optimum performance in dimly lit locations.
INDUSTRY-STANDARD FORMATS
Feature-packed, even more versatile
You can pair the new, faster Ninja with a huge range of DSLR, mirrorless or video cameras. Choose from a selection of industry-standard recording formats, including Apple ProRes. Pick the best frame size, frame rate, and codec for your project and delivery requirements. Ninja also allows you to record HDMI RAW inputs up to 6K at 30fps while simultaneously looping out standard YCC video via HDMI to non-RAW compatible devices.
FORMAT FREEDOM
Any camera,
any format. Anywhere.

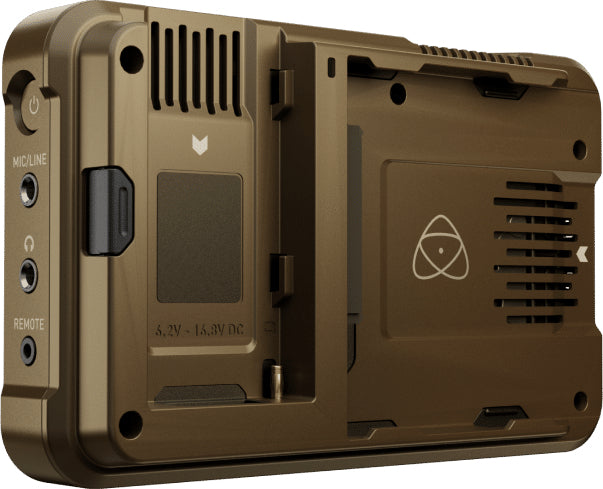

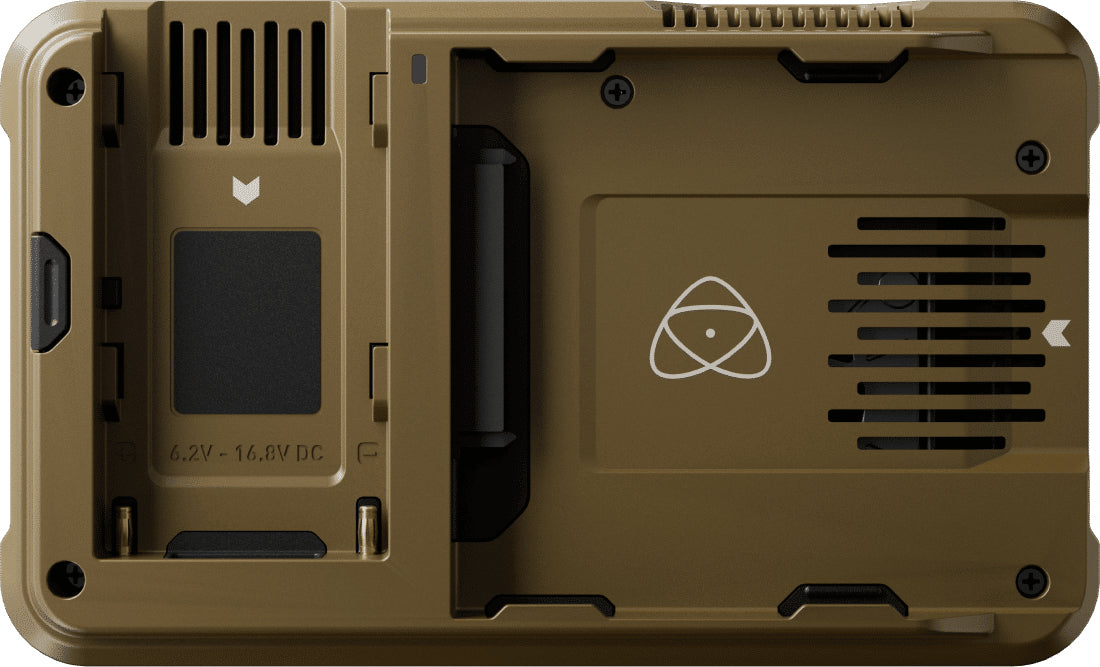

Pair the Ninja equally well with smaller cameras as part of a minimal setup, or with full-size camera rigs on large-scale productions. Ninja is made from precision materials, carefully crafted for maximum durability. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Ninja includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.
ONION SKIN AND FRAME GRAB
On set. In post. Get creative.
Stage clever cinematic shots and save time in post-production with the powerful Onion Skin and Frame Grab features built-in as standard. Onion skin overlay simplifies stop-motion and jump or match cuts. Capturing frame grabs live on set saves time making thumbnails and acts as a quick reference to share with the team.
ATOMREMOTE APP
Connect.
Control.
Configure.
Create.
The AtomRemote app for iOS and macOS has an array of controls for Ninja via Atomos Connect. It lets you configure and control your Ninja from up to 15 meters away via Bluetooth LE while you define camera connections, select Gamma/EOTF and adjust Gamut settings. AtomRemote can control playback, select monitoring modes, apply custom 3D LUTs, and view image analysis tools, including exposure and focus. Output controls include options for 4K to HD, LUT preview and HDR output.
ATOMREMOTE APP
Perfectly synchronised
The AtomRemote app for iOS and macOS has an array of controls for Ninja via Atomos Connect. It lets you configure and control your Ninja from up to 15 meters away via Bluetooth LE while you define camera connections, select Gamma/EOTF and adjust Gamut settings. AtomRemote can control playback, select monitoring modes, apply custom 3D LUTs, and view image analysis tools, including exposure and focus. Output controls include options for 4K to HD, LUT preview and HDR output.
QUALITY BOOST
Add value to your production
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera outputs video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Ninja can record more color information and immediately add value to your production with your existing camera rig.
If you’re shooting Log footage, bypassing the camera’s internal compression will give the best possible dynamic range. We designed Ninja to maximize your video quality.
ATOMX SSDMINI DRIVE
Record without limitations
To record up to 6K using advanced edit-ready formats like ProRes RAW, ProRes, and DNxHD/HR, you need fast and robust storage – and lots of it. Ninja supports removable SSD drives, which provide the space and sustained performance you need. AtomX SSDmini drives are more compact than standard SATA SSDs: an affordable alternative to an SD card of equivalent capacity or performance. They support up to 4TB storage, sequential read speeds of up to 550MB/s and write speeds up to 500MB/s. AtomX SSDmini drives record up to 150 minutes of 4K ProRes. Measuring 8cm long, 7.5cm wide and weighing as little as 88g, the custom-built drive neatly fits into the Ninja
