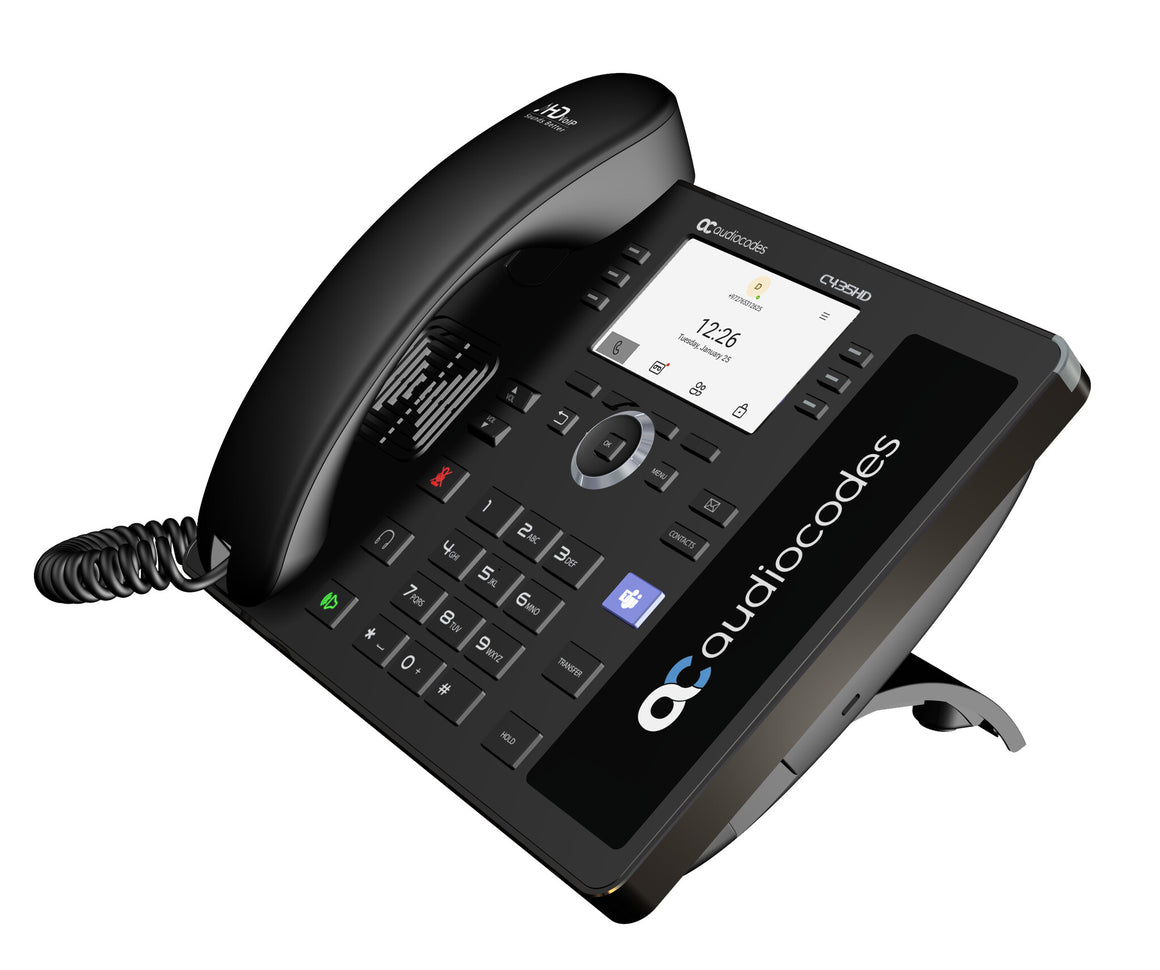

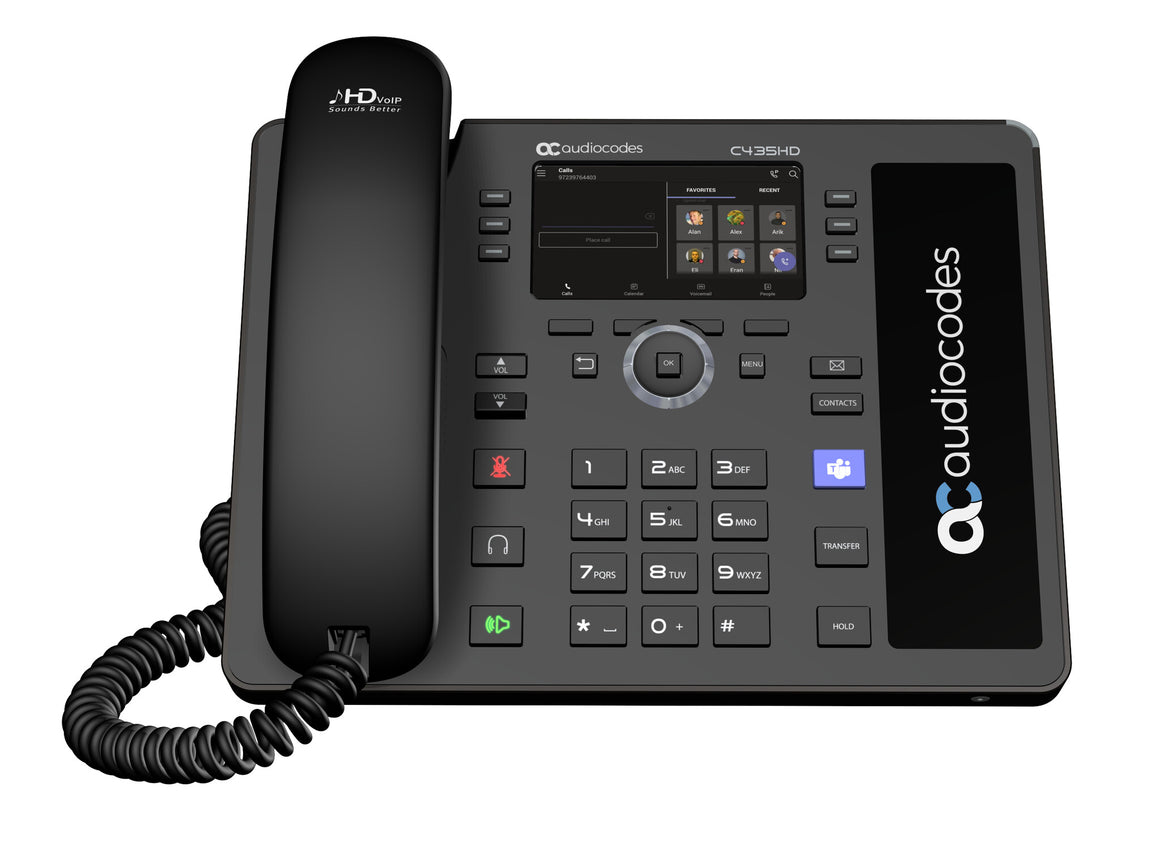

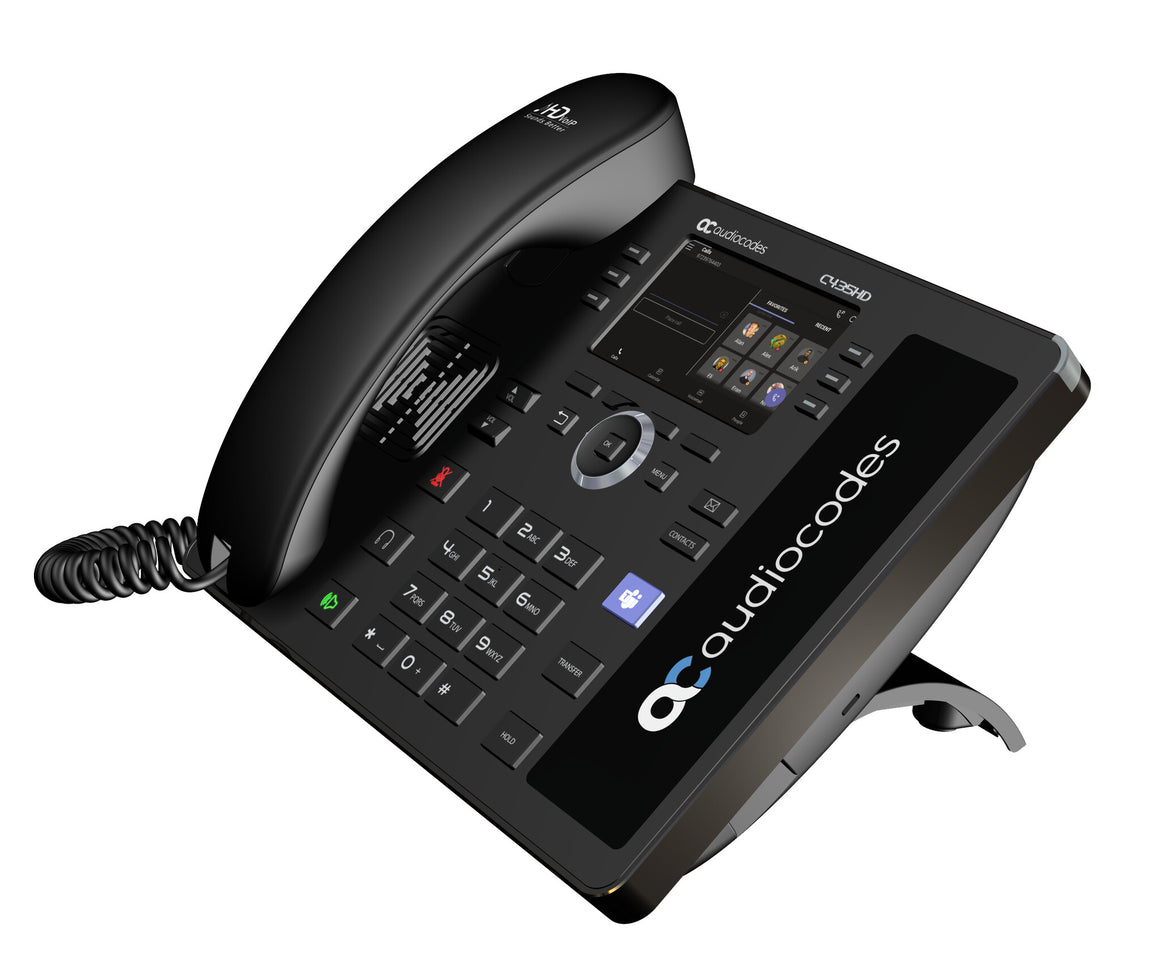

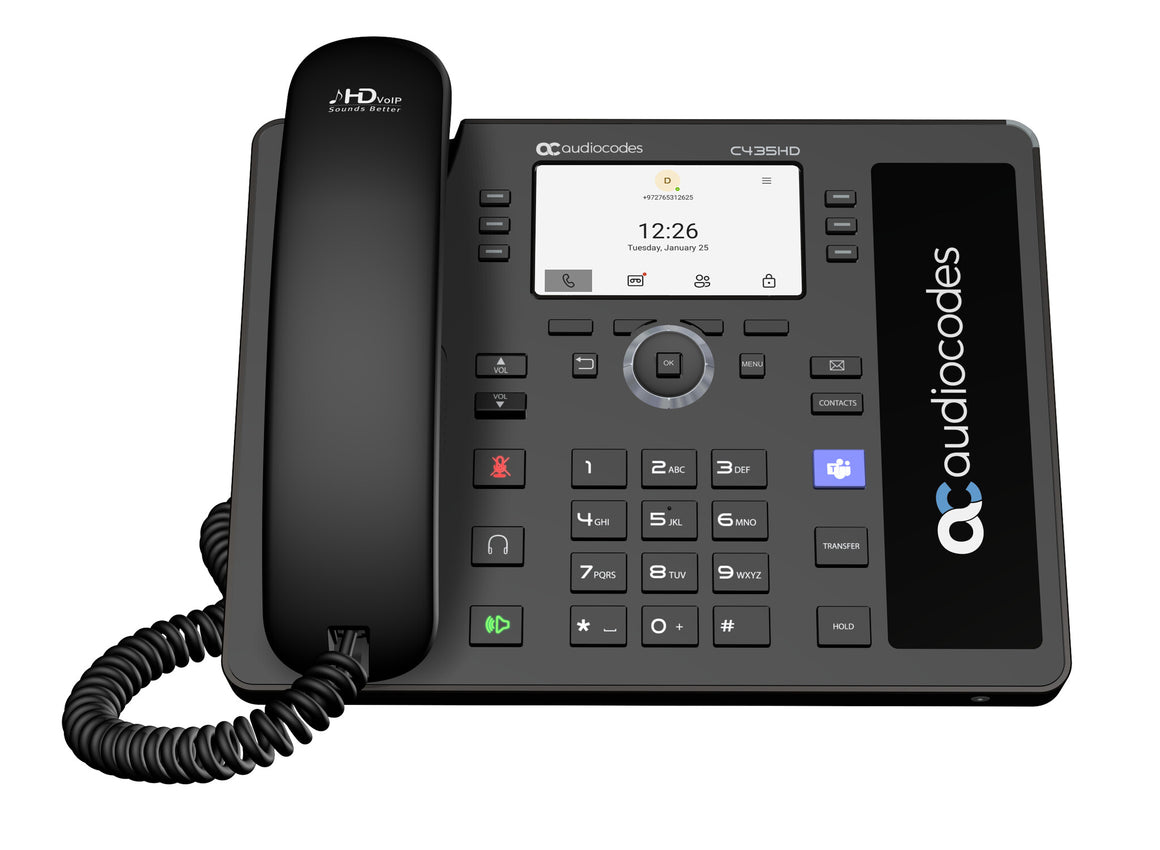

The AudioCodes C435HD IP phone is a Microsoft Teams-native entry level/common area phone designed to support the next generation of enterprise collaboration technologies. Equipped with a 4.3” color LCD screen, the C435HD supports Microsoft Teams out-of-the-box to deliver feature-rich unified communications.
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| Handset type |
Wired handset |
| Product type |
IP Phone |
| Performance |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes |
SIP info |
| Operating system version |
9.0 |
| Operating system installed |
Android |
| Phone features |
|---|
| Caller ID |
Yes |
| Call pick up |
Yes |
| Call waiting |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Conference call |
Yes |
| Redialing |
Yes |
| Do not disturb function |
Yes |
| Message-waiting indicator (MWI) |
Yes |
| Full duplex |
Yes |
| Call transfer |
Yes |
| Call park |
Yes |
| Answering machine |
Yes |
| Management features |
|---|
| Keypad number of keys |
8 |
| Volume control |
Buttons |
| Integrated voicemail |
Yes |
| Display |
|---|
| Touchscreen |
Yes |
| Display diagonal |
10.9 cm (4.3") |
| Display |
LCD |
| Audio |
|---|
| Voice activity detection |
Yes |
| Adaptive jitter buffers |
Yes |
| Packet loss concealment (PLC) |
Yes |
| Voice codecs |
G.711, G.722, G.729, Silk |
| Echo cancellation |
Yes |
| Comfort noise generation (CNG) |
Yes |
| Microphone mute |
Yes |
| Speakerphone |
Yes |
| Network |
|---|
| Supported network protocols |
UDP/TCP, NTP, DNS/SRV |
| Quality of Service (QoS) support |
Yes |
| Security algorithms |
802.1x RADIUS, HTTPS, SRTP, TLS |
| Networking standards |
IEEE 802.3af |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Cable lock slot |
Yes |
| WAN connection type |
RJ-45 |
| Headset connectivity |
1 |
| Power |
|---|
| AC adapter output voltage |
12 V |
| Input current |
2 A |
| AC adapter input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Weight & dimensions |
|---|
| Package weight |
1.39 kg |
| Package height |
95 mm |
| Package depth |
255 mm |
| Package width |
316 mm |
| Height (min) |
16.1 cm |
| Height (max) |
18.9 cm |
| Weight |
916 g |
| Depth |
132 mm |
| Width |
249 mm |
| Packaging content |
|---|
| Number of handles included |
1 pc(s) |
| Manual |
Yes |
| Cables included |
LAN (RJ-45) |
| Logistics data |
|---|
| Products per master (outer) case |
15900 pc(s) |
| Master (outer) case length |
500 mm |
| Master (outer) case width |
532 mm |
| Master (outer) case height |
361 mm |
