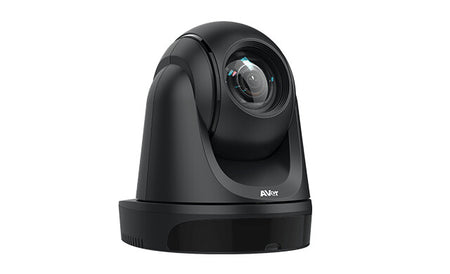

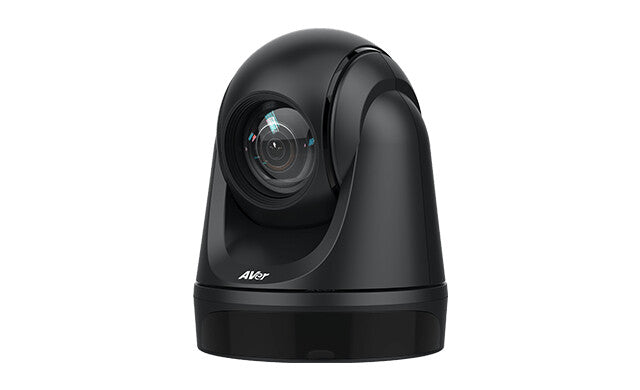

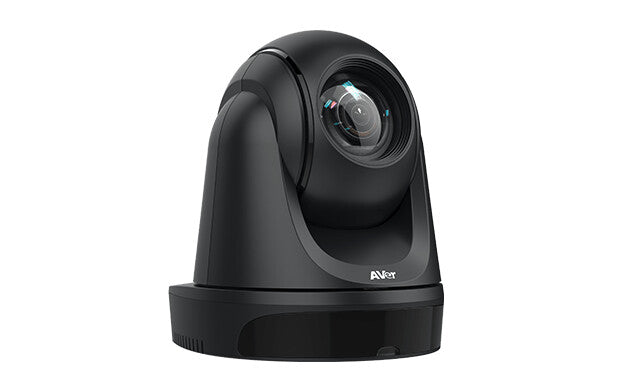

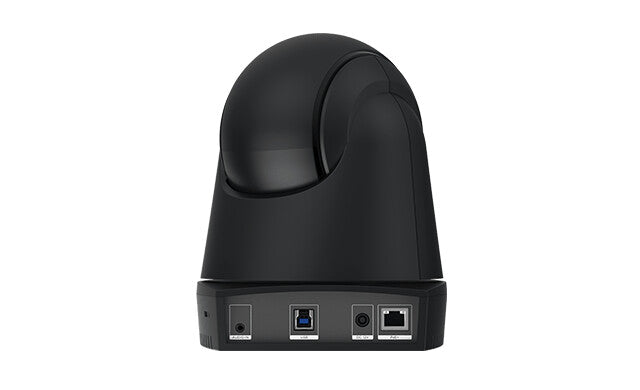

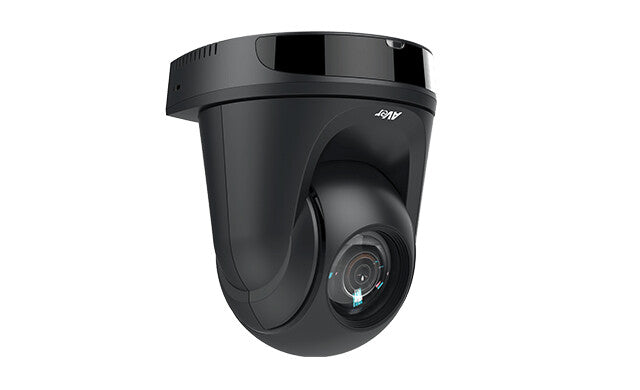

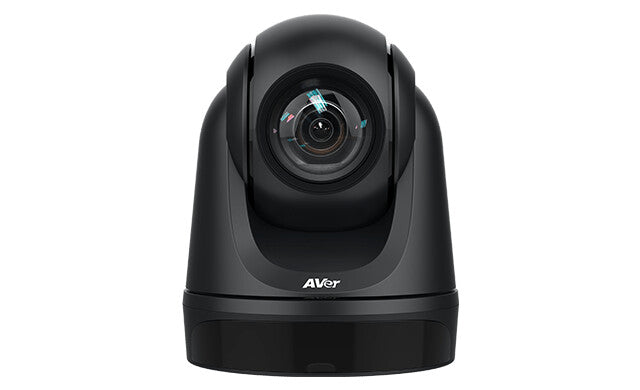

Distance Learning Tracking Camera
When distance learning and hybrid classrooms are the new normal, the AVer DL30 is a must-have solution for online education. With the DL30 connected to a laptop, you can present freely onstage while livestreaming so students can learn no matter where they are. Teachers don’t need to be camera shy anymore—they can just be themselves and teach how they want thanks to the DL30 tracking camera!
| Performance |
|---|
| Operating current |
2 A |
| Operating voltage |
12 V |
| Power consumption (typical) |
12 W |
| Minimum illumination |
0.5 lx |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| White balance |
Auto, Manual |
| Noise reduction |
Yes |
| Diagonal field of view |
84.1° |
| PTZ control |
Yes |
| Privacy camera |
Yes |
| Viewing angle, vertical |
47.3° |
| Viewing angle, horizontal |
76.5° |
| Camera shutter speed |
1/4 - 1/10000; 1/3 - 1/10000 s |
| Focal length range |
3.9-46.8 mm |
| Digital zoom |
2x |
| Optical zoom |
12x |
| Zoom capability |
Yes |
| Video formats supported |
H.264, M-JPEG, YUY2 |
| Supported video modes |
1080p |
| Maximum frame rate |
60 fps |
| Camera HD type |
Full HD |
| Maximum video resolution |
1920 x 1080 pixels |
| Megapixel (approx.) |
2 MP |
| Design |
|---|
| LED indicators |
Yes |
| Pan range |
-170 - 170° |
| Pan speed |
90 °/sec |
| Tilt speed |
45 °/sec |
| Tilt angle range |
-90 - 90° |
| Built-in flash |
No |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Product colour |
Black |
| Interface |
USB |
| Software |
|---|
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 95% |
| Weight & dimensions |
|---|
| Weight |
1.62 kg |
| Height |
346 mm |
| Depth |
228 mm |
| Width |
232 mm |
| Packaging data |
|---|
| Package weight |
7.12 kg |
| Package height |
387 mm |
| Package depth |
486 mm |
| Package width |
260 mm |
| Quantity |
1 |
| Packaging content |
|---|
| Box contents |
Camera, Remote Control, Power Adapter, Power Cord, USB Cable, Cable Ties (x4), Cable Fixing Plate (x1), M2 x 4mm Screws (x2), 1/4'-20L 7.5mm Screw (x1), Quick Start Guide |
| AC adapter included |
Yes |
| Remote control included |
Yes |
| Quick installation guide |
Yes |
| Logistics data |
|---|
| Country of origin |
Taiwan |
| Products per pallet |
60 pc(s) |
| Products per master (outer) case |
2 pc(s) |
| Harmonized System (HS) code |
8517691000 |
| Other features |
|---|
| Supported network protocols |
IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
