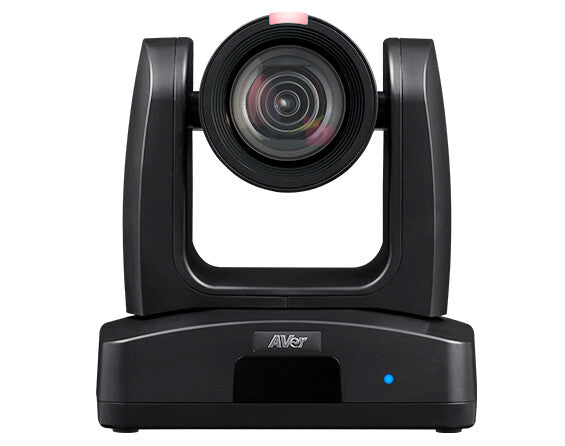

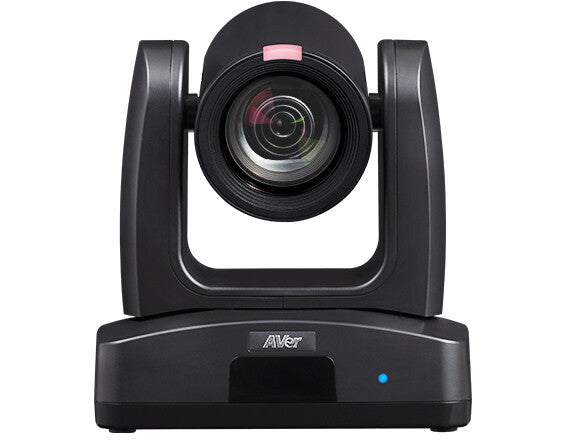

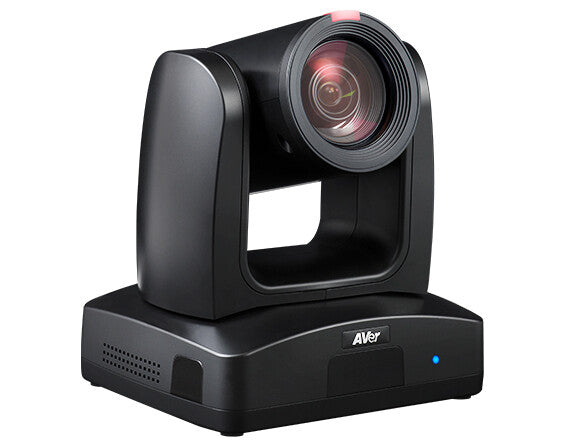

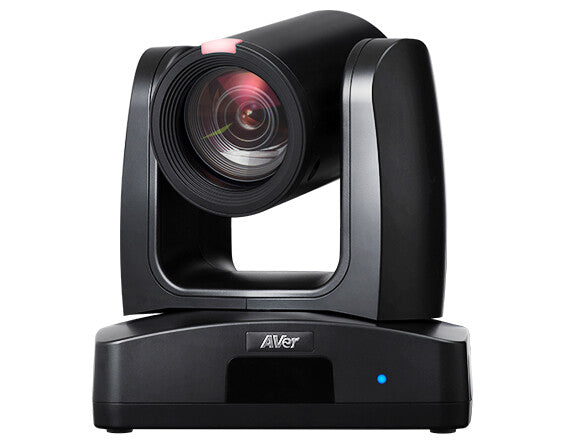

AI Auto Tracking PTZ Camera
The PTC310UV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Upgrade Your Cameras to NDI®!
Upgrade your AVer cameras with NDI®|HX. A separate NDI®|HX license key is required for each camera, and internet connection is required for initial activation.
4K Output Resolution
Equipped with 4K resolution, the PTC310UV2 provides ultra-precise auto tracking. The PTC310UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
12X Optical Zoom & 12X Digital Zoom
The zoom power of PTC310UV2 camera reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310UV2.
Human Detection AI
Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC310UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
Redirect focus in an instant with the PTC310UV2. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
Hybrid Mode
Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.
| Camera |
|---|
| Slowest camera shutter speed |
1 s |
| Fastest camera shutter speed |
1/32000 s |
| 3D NR (Noise Reduction) |
Yes |
| PTZ control |
Yes |
| PTZ protocols |
Pelco-P/D, VISCA |
| Gain control type |
Auto/Manual |
| Back Light Compensation (BLC) |
Yes |
| Number of camera presets |
10 |
| Wide Dynamic Range (WDR) |
Yes |
| Light exposure modes |
Auto, Manual, Shutter priority AE |
| Auto exposure |
Yes |
| White balance |
ATW, Auto, Manual, One push |
| Aperture range (F-F) |
1.6 - 2.8 |
| Flip & mirror |
Yes |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| Minimum illumination |
0.5 lx |
| Vertical field of view (wide) |
42° |
| Vertical field of view (tele) |
3° |
| Horizontal field of view (wide) |
70° |
| Horizontal field of view (tele) |
6° |
| Focal length range |
3.9 - 46.8 mm |
| Optical zoom (super-wide mode) |
144x |
| Digital zoom |
12x |
| Optical zoom |
12x |
| Effective sensor resolution |
8 MP |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Megapixel (approx.) |
8 MP |
| Video |
|---|
| Number of TV lines |
1400 |
| Video formats supported |
H.264, H.265, M-JPEG, YUY2 |
| Supported video modes |
720p, 1080i, 1080p, 2160p |
| HD type |
4K Ultra HD |
| Maximum frame rate |
30 fps |
| Maximum video resolution |
3840 x 2160 pixels |
| Design |
|---|
| Pan speed (max) |
100 °/sec |
| Pan preset speed |
200 °/sec |
| Pan speed (min) |
0.1 °/sec |
| Tilt speed (max) |
100 °/sec |
| Tilt preset speed |
200 °/sec |
| Tilt speed (min) |
0.1 °/sec |
| Tally light |
Yes |
| Pan range |
-170 - 170° |
| Tilt angle range |
-30 - 90° |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Line-in |
Yes |
| Microphone in |
Yes |
| 3G-SDI output |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
2 |
| Power |
|---|
| Power consumption (typical) |
19 W |
| Input current |
5 A |
| DC input voltage |
12 V |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating altitude |
0.3 - 1.5 m |
| Storage relative humidity (H-H) |
20 - 95% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Audio |
|---|
| Audio codecs |
AAC-LC, PCM |
| Audio channels |
2 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Cable ties included |
Yes |
| AC adapter included |
Yes |
| Screws included |
Yes |
| Number of screws |
8 |
| Cables included |
AC, RS-232 |
| Remote control included |
Yes |
| Network |
|---|
| Supported network protocols |
IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
| Network configuration |
DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Bit rate control |
Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate range |
512 - 32000 Kbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Remote control type |
IR |
| Auto-tracking |
Yes |
| Tracking modes |
Presenter mode, Zone mode |
| Live video preview |
Yes |
| System requirements |
|---|
| Mobile operating systems supported |
iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15 |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 7, Windows 8 |
| Weight & dimensions |
|---|
| Weight |
2 kg |
| Height |
145 mm |
| Depth |
192 mm |
| Width |
180 mm |
