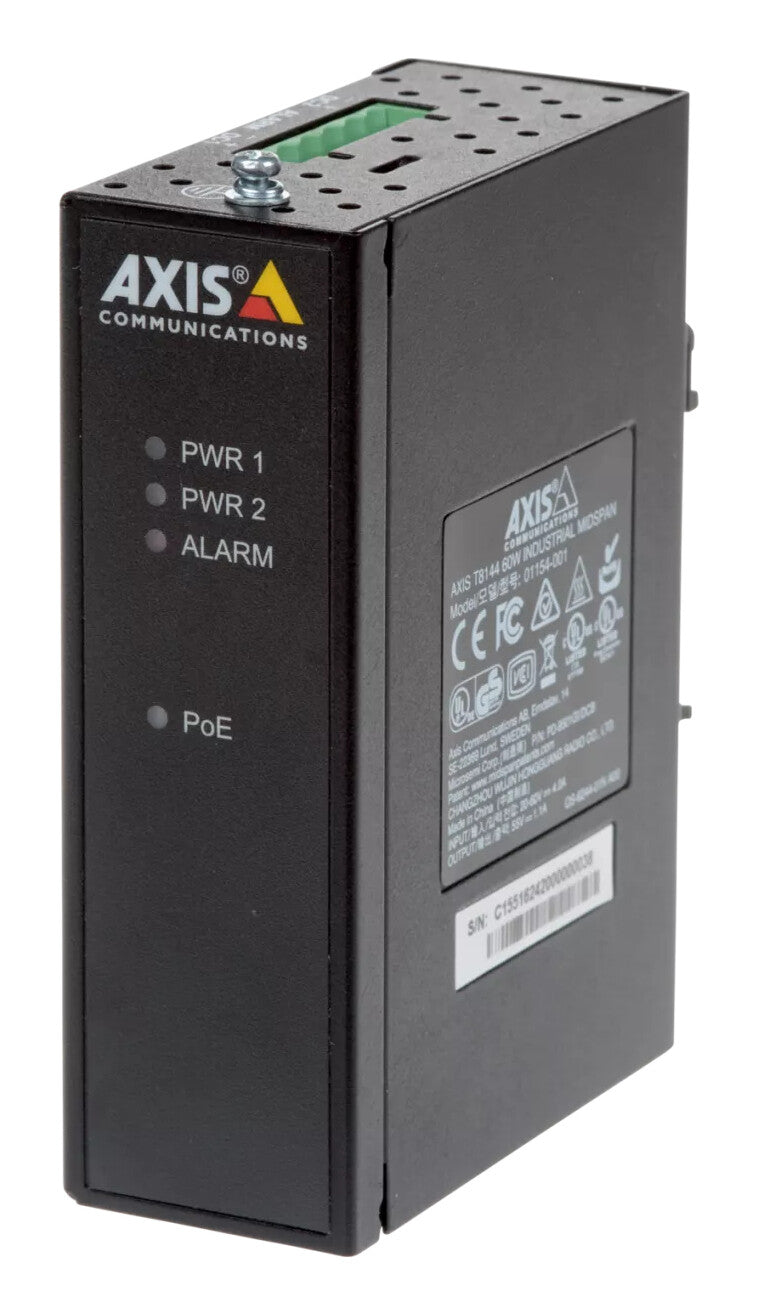

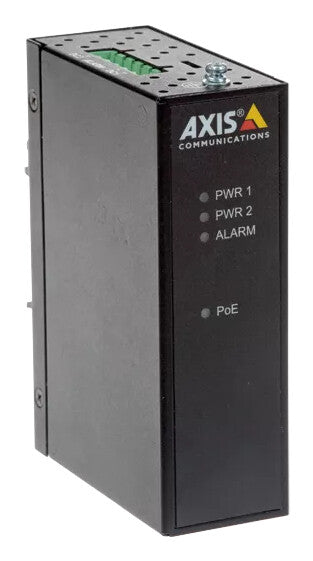

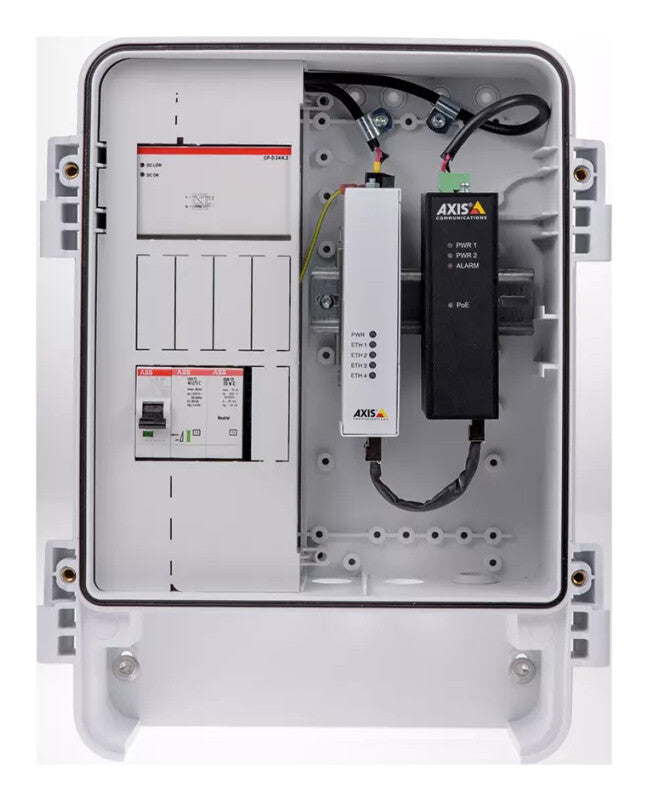

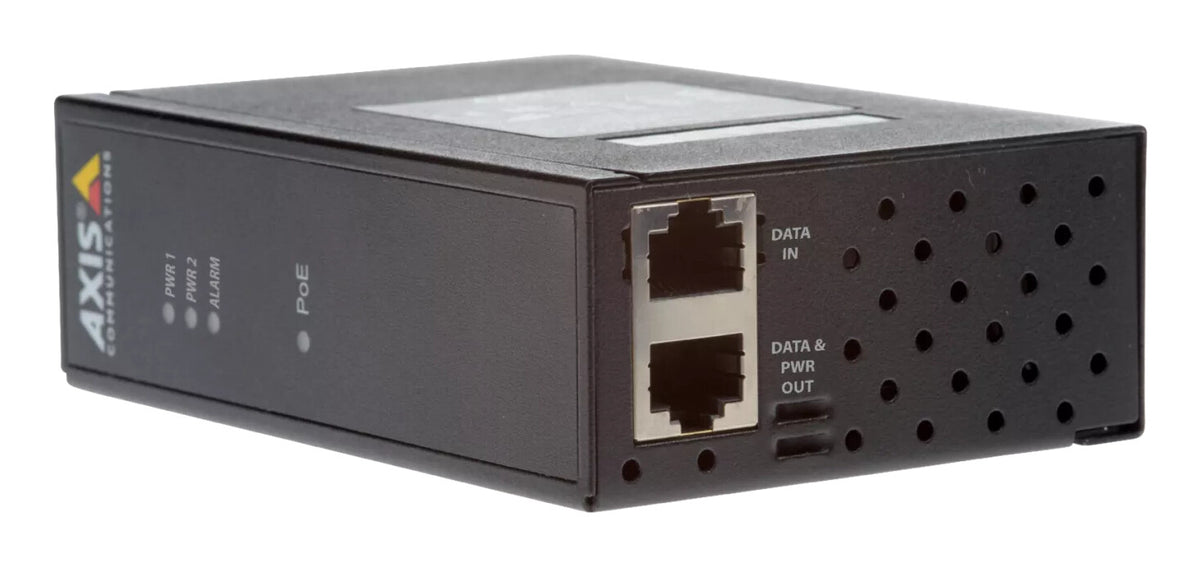

AXIS T814460 W Industrial Midspan is an industrial grade, 1-port midspan offering an easy, fast, and cost-effective solution for powering network products. Ideal for mounting inside cabinets or on DIN rails. Having a wide operating temperature range, AXIS T8144 provides a robust solution for harsh environments. With dual DC inputs for power redundancy, AXIS T8144 is a reliable component in your system.
| Network |
|---|
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
|---|
| Safety |
EC/EN/UL 62368 - 1, UL 508 EMC EN 550 24, EN 55032 Class A, FCC P art 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES - 003 Class A, EAC Environment IEC 60068 - 2 - 6, IEC 60068 - 2 - 27, IEC 60068 - 2 - 32 |
| LED indicators |
Alarm, PoE, Power |
| Rack mounting |
Yes |
| Wall mountable |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
72 W |
| AC adapter output voltage |
55 V |
| Input voltage |
20 - 60 V |
| Output power |
60 W |
| Operational conditions |
|---|
| Operating altitude |
-40 - 185 m |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
-40 - 167 °F |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
78 x 36 x 111 mm |
| Weight |
315 g |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
