SKU: 01679-001

Axis 01679-001 video servers/encoder 720 x 576 pixels 30 fps

£358.18

Extended capacity for analytics; Full frame rate in all resolutions; PoE and PTZ support; Signed firmware and secure boot; Zipstream with support for H.264/H.265

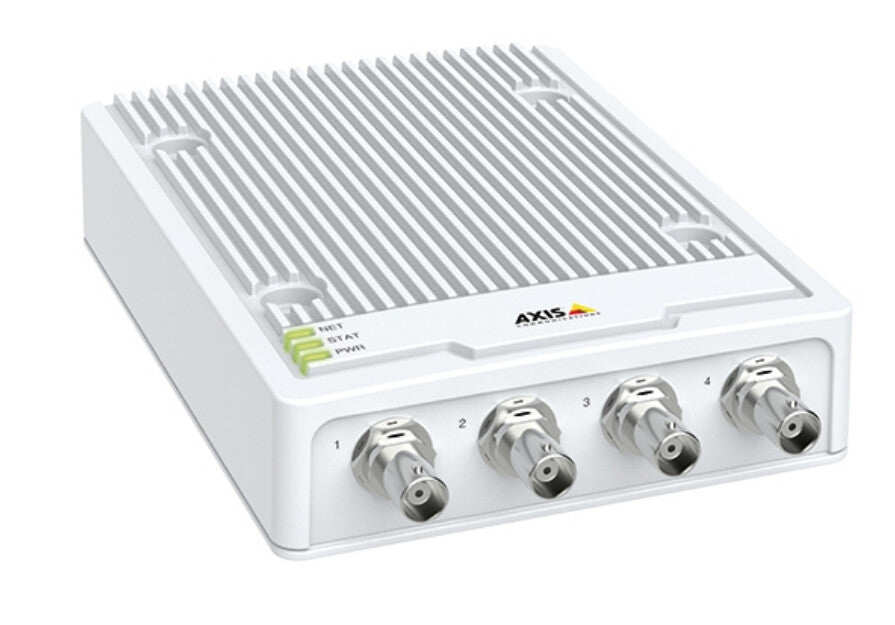

AXIS M7104 is a cost-effective, 4-channel video encoder that adds the benefits of IP surveillance to an analog camera system. It supports standard-resolution analog cameras as well as PTZ control over RS-485/422. The encoder features a memory card slot for edge storage and support for intelligent analytics such as motion detection and active tampering alarm. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements.

Video
Video compression formats	AVC, H.264, H.265, HEVC, MPEG4
NTSC resolutions	720x480 pixels
PAL resolutions	720x576 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	720 x 576 pixels

Performance
Image settings	Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness
PTZ control	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated	Yes
Flash memory	512 MB
Internal memory	1024 MB

Design
Certification	55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267
Wall mountable	Yes
LED indicators	Status
Product colour	White

Network
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Quality of Service (QoS) support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at

Security
Video motion detection	Yes
IP address filtering	Yes
Active tampering alarm	Yes
Security algorithms	HTTPS

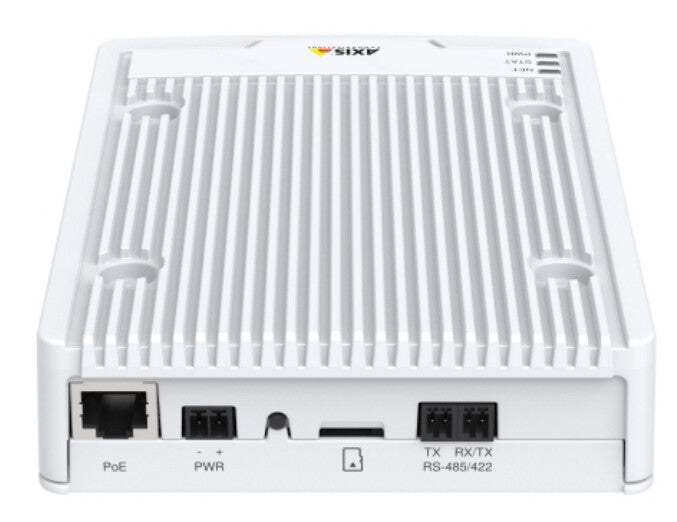

Ports & interfaces
BNC input ports	4
Ethernet LAN (RJ-45) ports	1
RS-485 ports	2

Power
Power consumption (typical)	4.7 W

Weight & dimensions
Weight	650 g
Height	37 mm
Width	187 mm

Packaging content
Manual	Yes

Operational conditions
Operating relative humidity (H-H)	10 - 85%
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 50 °C
