AXIS P7304 is a full-featured, 4-channel video encoder that adds the benefits of IP surveillance to any analog camera system. It supports standard and HD analog cameras up to 4K resolution, and analog PTZ cameras. Enhanced security features such as signed firmware and secure boot ensure the integrity and authenticity of the encoder’s firmware. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements. The encoder features two-way audio, I/O ports, and a memory card slot for edge storage. It also comes with intelligent analytics such as motion detection, audio detection and tampering alarm.
| Video |
|---|
| Video compression formats |
AVC, H.264, H.265, HEVC, MPEG4 |
| NTSC resolutions |
720x480 pixels |
| PAL resolutions |
720x576 pixels |
| Channels quantity |
4 channels |
| Maximum frame rate |
30 fps |
| Maximum video resolution |
1920 x 1080 pixels |
| Performance |
|---|
| Image settings |
Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| PTZ control |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Flash memory |
512 MB |
| Internal memory |
1024 MB |
| Design |
|---|
| Certification |
EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Wall mountable |
Yes |
| LED indicators |
Status |
| Product colour |
Grey |
| Network |
|---|
| Supported network protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Quality of Service (QoS) support |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Power over Ethernet (PoE) |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Security |
|---|
| Video motion detection |
Yes |
| IP address filtering |
Yes |
| Active tampering alarm |
Yes |
| Audio detection |
Yes |
| Security algorithms |
HTTPS |

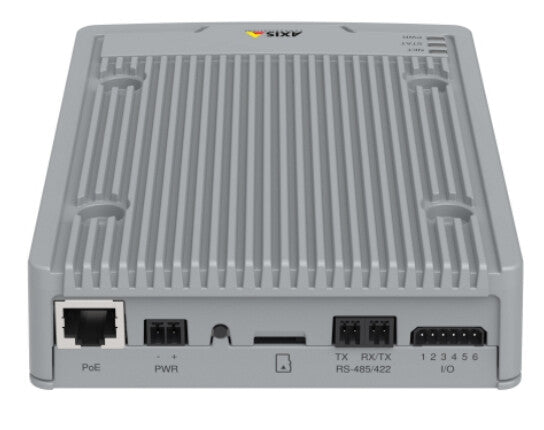

| Ports & interfaces |
|---|

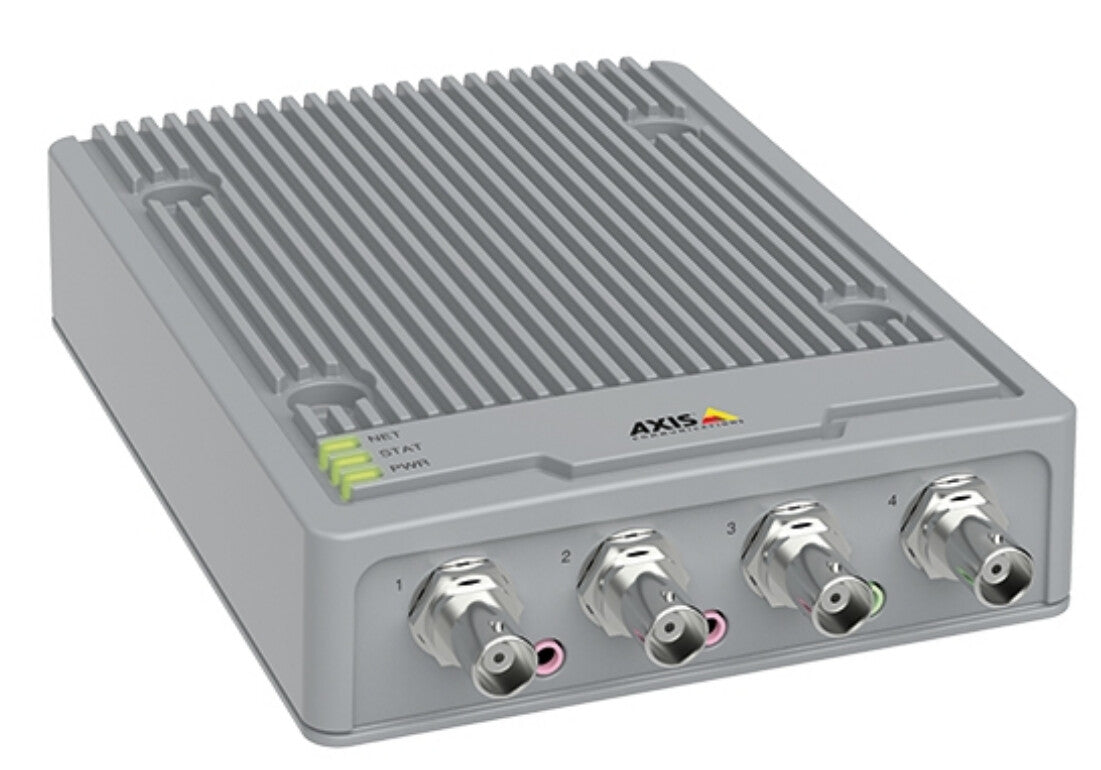

| BNC input ports |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-485 ports |
2 |
| I/O terminal ports |
1 |
| Microphone in |
Yes |
| Line-in |
Yes |
| Line-out |
Yes |
| Power |
|---|
| Power consumption (typical) |
8.2 W |
| Weight & dimensions |
|---|
| Weight |
650 g |
| Height |
37 mm |
| Width |
187 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
0 - 50 °C |
