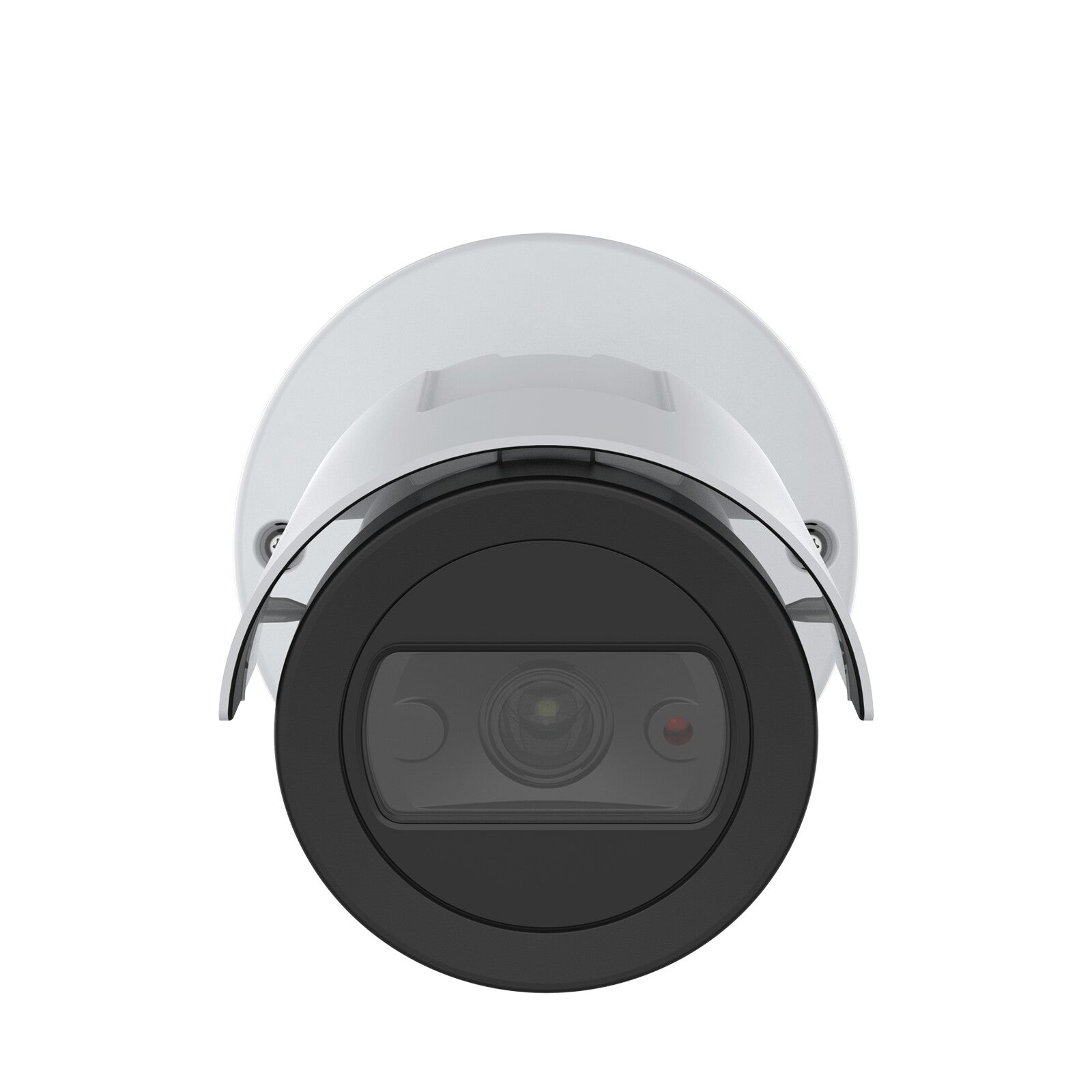

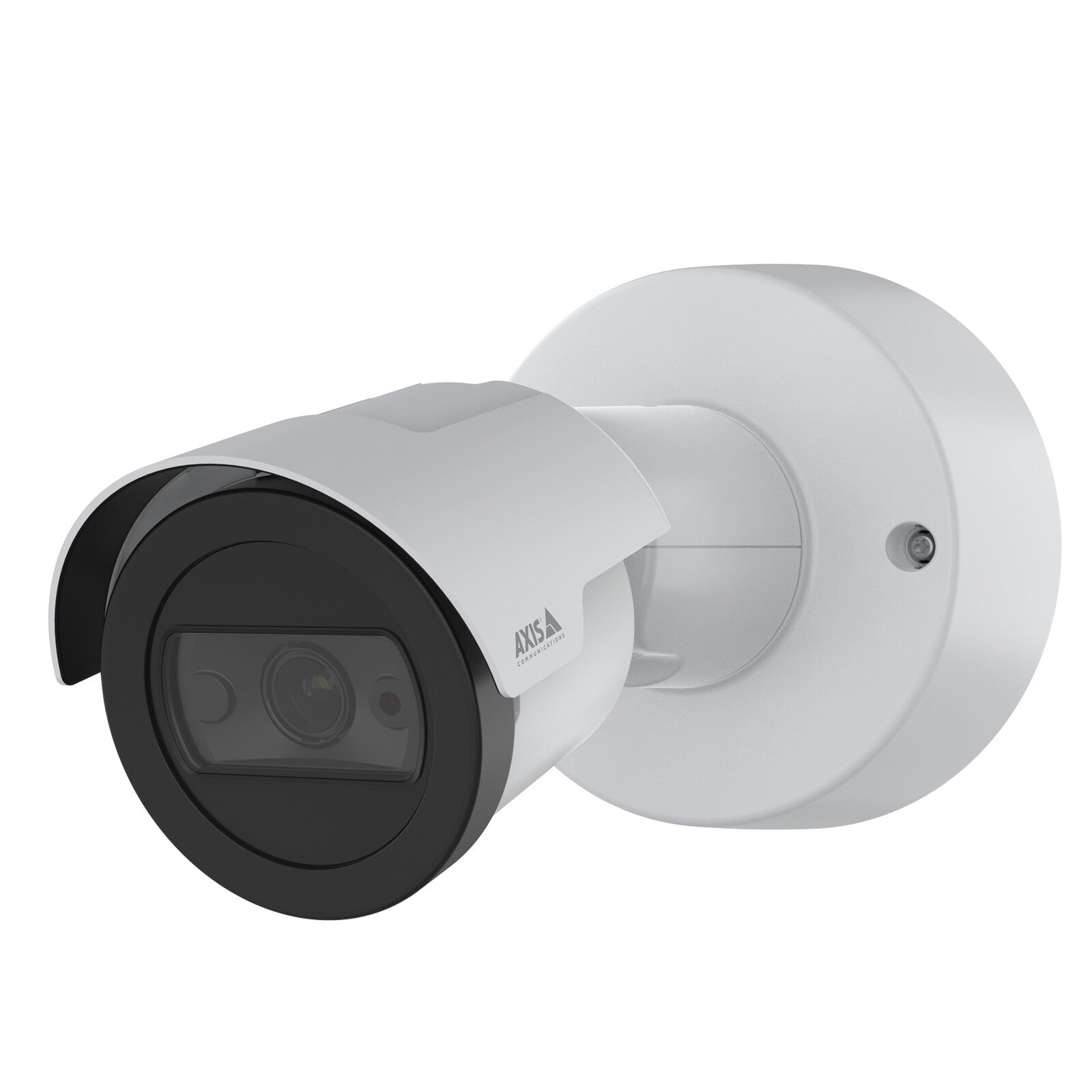

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.
| Performance |
|---|
| Certification |
CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35,RCM AS/NZS CISPR 32 Class A, VCCI Class AIEC/EN 62368-1, IEC 62471, IS 13252IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08NIST SP500-267 |
| Number of languages |
12 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK08 |
| International Protection (IP) code |
IP66, IP67 |
| Protection features |
Dust resistant, Vandal proof, Water resistant |
| Housing material |
Aluminium, Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
|---|
| Camera shutter speed |
1/38500 - 1/5 s |
| White balance |
Auto |
| Lens viewing angle, vertical |
81° |
| Lens viewing angle, horizontal |
130° |
| Minimum illumination |
0 lx |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Lens system |
|---|
| Closest focusing distance |
0.5 m |
| Fixed focal length |
2.4 mm |
| Maximum aperture number |
2.1 |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
855 nm |
| LED type |
IR |
| Night vision distance |
20 m |
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Image stabilizer |
Yes |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Video intelligence analytic |
Yes |
| Video recording |
Yes |
| Supported video modes |
1440p |
| Supported graphics resolutions |
2668 x 1512, 2304 x 1728 |
| Video compression formats |
H.264, H.265, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2304 x 1728 pixels |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Security algorithms |
802.1x RADIUS, EAP-TLS, HTTPS, SSH |
| Alert notification type |
E-mail |
| Password protection |
Yes |
| Power |
|---|
| Power consumption (max) |
12.95 W |
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Diameter |
10.1 cm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Other features |
|---|
| Doesn't contain |
BFR, PVC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85258900 |
