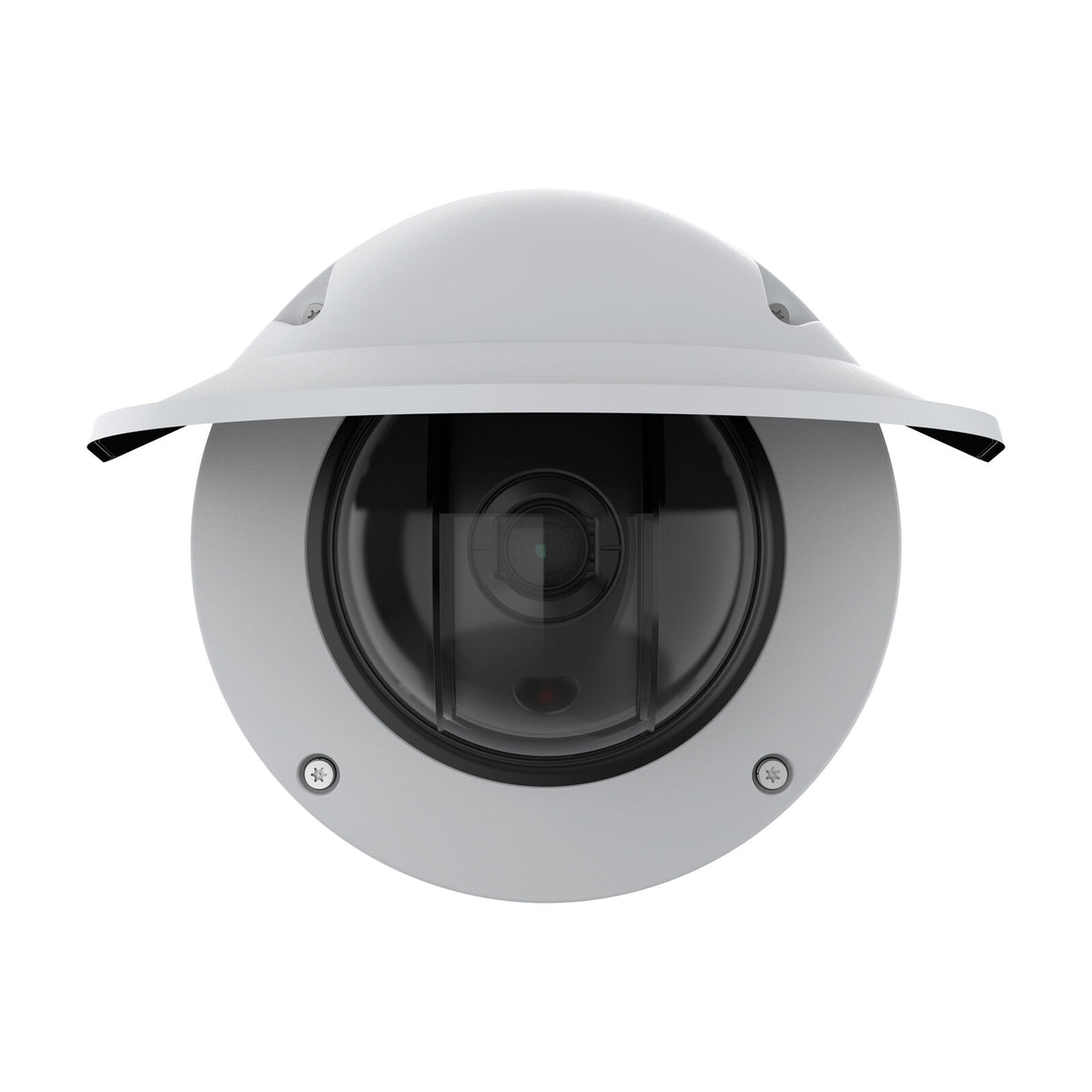

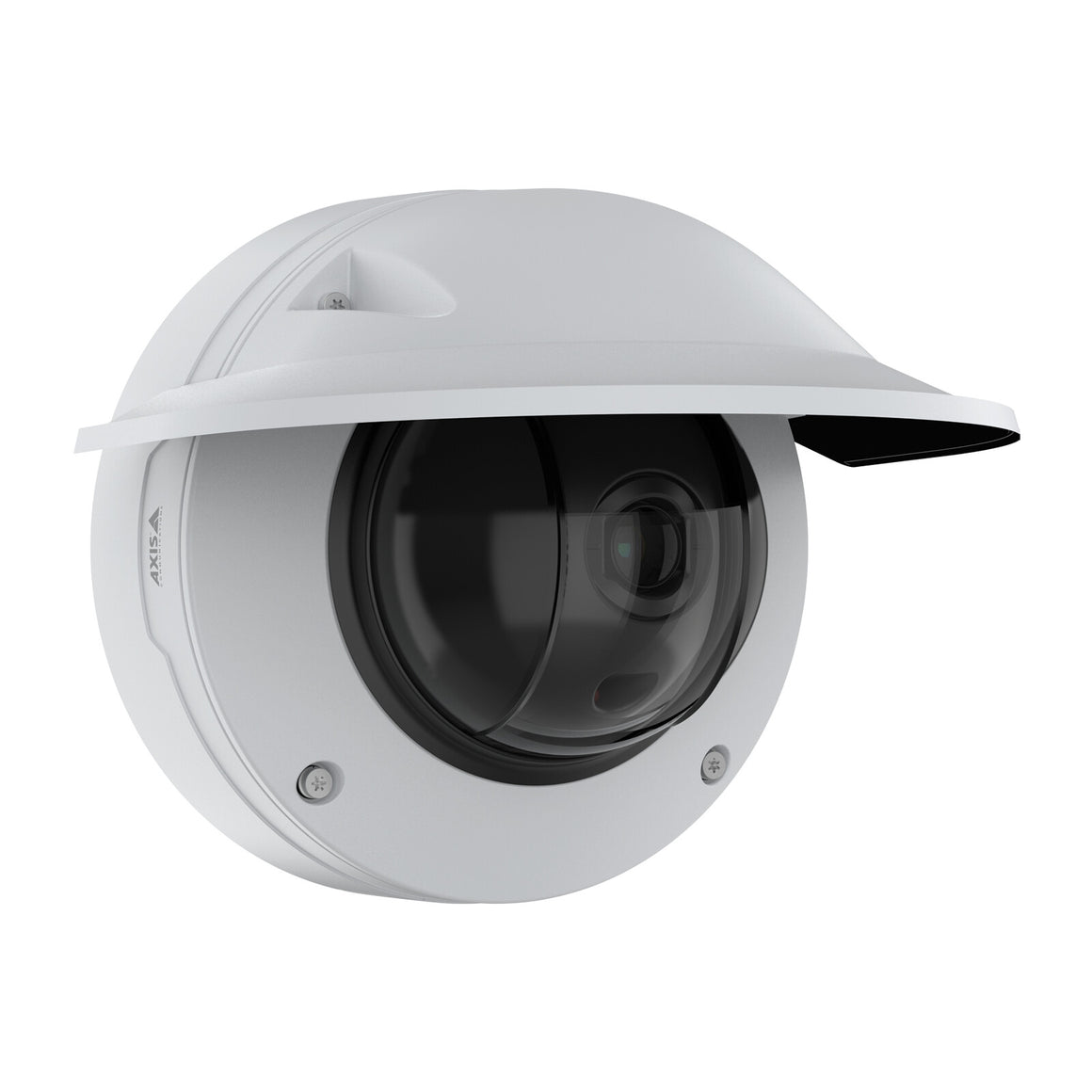

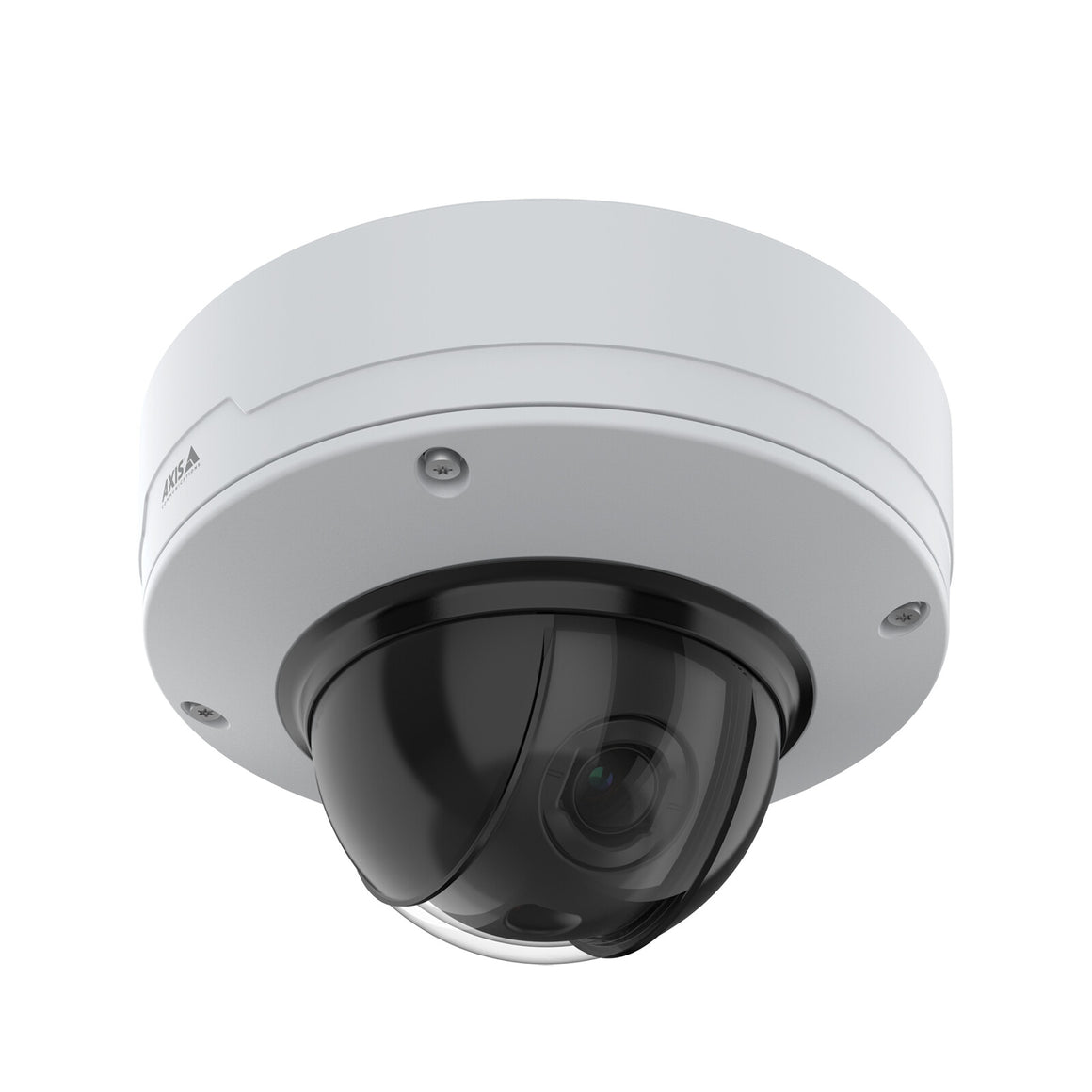

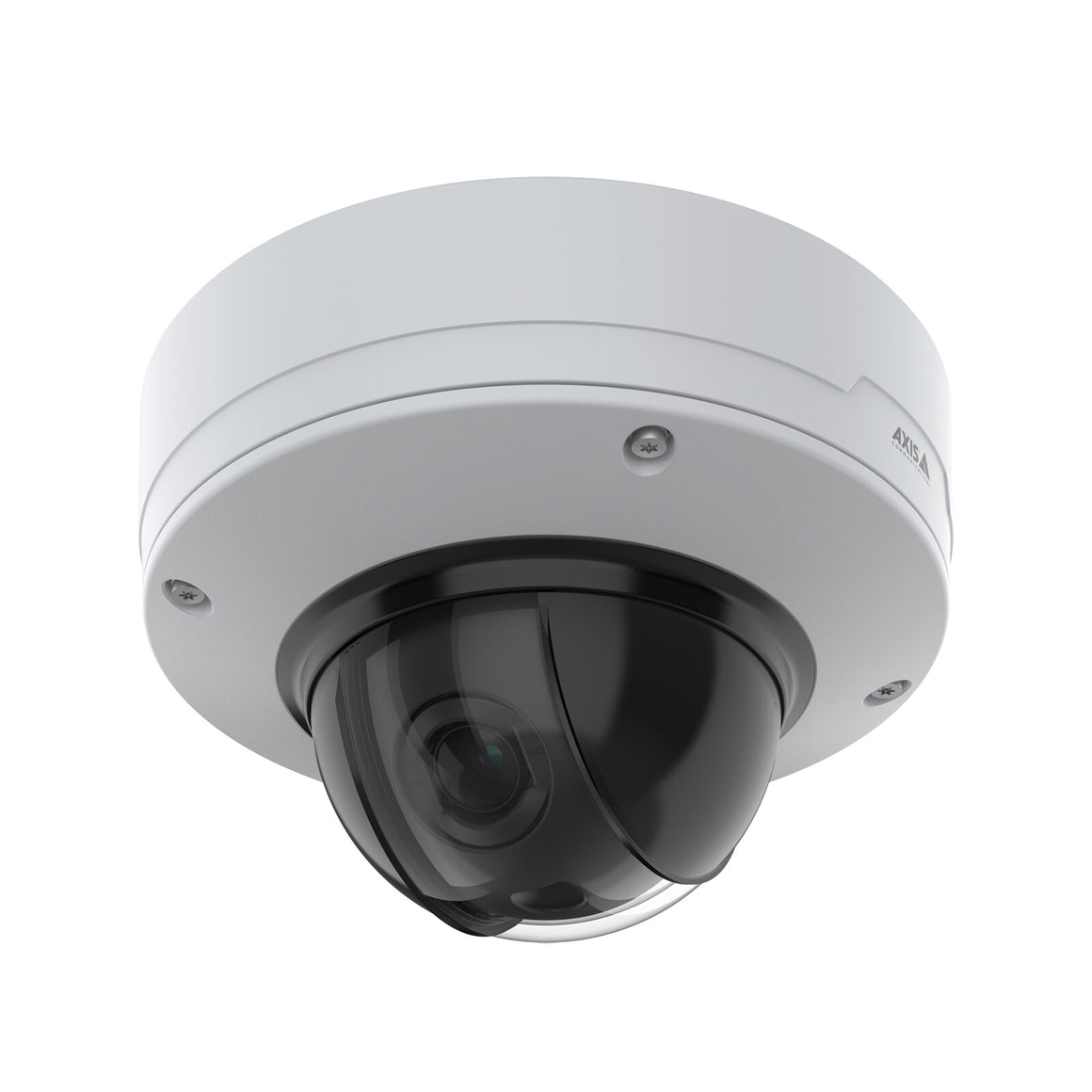

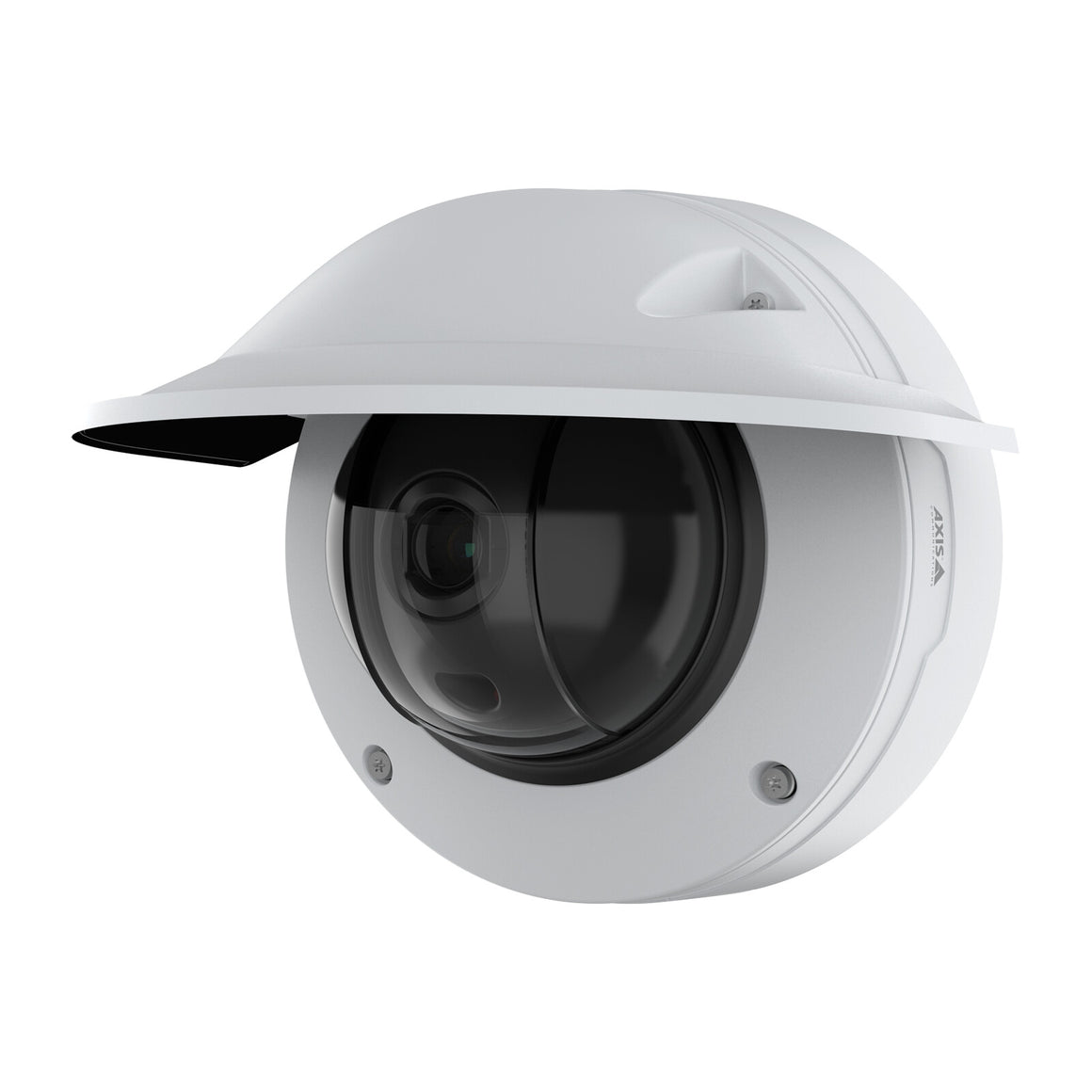

With 4 MP resolution, Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS Q3536-LVE delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring consistently clear, sharp video. Based on the latest generation Axis system-on-chip (SoC), it offers advanced features and powerful applications based on deep learning. For instance, AXIS Object Analytics comes preinstalled offering highly nuanced object classification. This robust camera features redundant power, sensors for intrusion and shock detection, and built-in cybersecurity features such as Axis Edge Vault and a FIPS 140-2 level 2 certified Trusted Platform Module (TPM).
| Performance |
|---|
| Certification |
CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,VCCI Class A |
| Number of languages |
12 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK10+ |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
|---|
| Camera shutter speed |
1/91000 - 1 s |
| Tilt angle range |
-43 - 80° |
| Angle of rotation |
175° |
| Minimum illumination |
0.08 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Optical zoom |
2.6x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
|---|
| LED type |
IR |
| Night vision |
Yes |
| Video |
|---|
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Video recording |
Yes |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1512 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
802.1x RADIUS |
| Alert notification type |
E-mail |
| Password protection |
Yes |
| Power |
|---|
| Power consumption (max) |
23 W |
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Diameter |
18.4 cm |
| Packaging content |
|---|
| Number of cameras |
1 |
