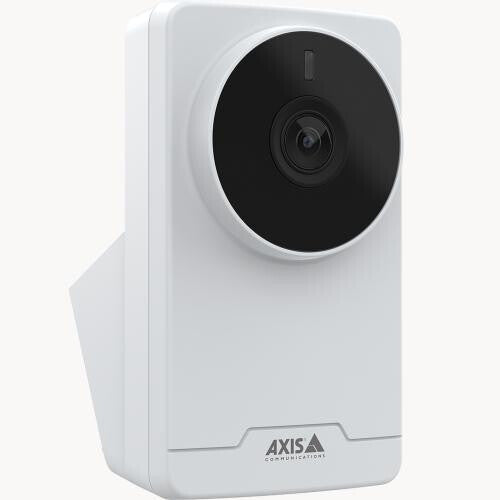

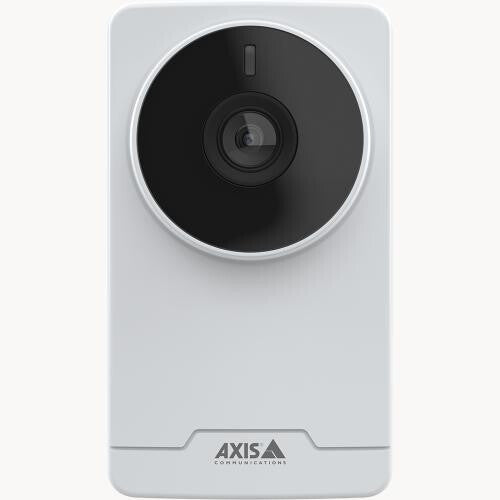

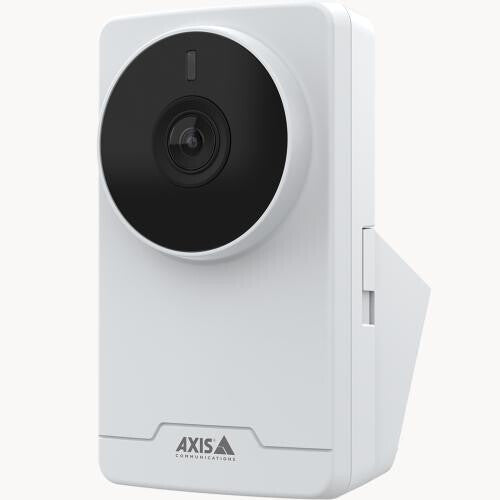

Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network
| Performance |
|---|
| Certification |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Number of languages |
12 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| Housing material |
Aluminium, Plastic |
| LED indicators |
Yes |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Box |
| Camera |
|---|
| Camera shutter speed |
1/19000 s |
| Lens viewing angle, vertical |
55° |
| Lens viewing angle, horizontal |
103° |
| Minimum illumination |
0.03 lx |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Fixed focal length |
3.16 mm |
| Number of lenses |
1 |
| Night vision |
|---|
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Colour depth, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Video intelligence analytic |
Yes |
| Frame rate |
30 fps |
| Supported video modes |
1080p |
| Supported graphics resolutions |
320 x 240, 640 x 360, 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats |
AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution |
1920 x 1080 pixels |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| IP address filtering |
Yes |
| Security algorithms |
EAP-TLS, HTTPS, SNMP |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
4.3 W |
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Height |
105 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
