SKU: 02368-001

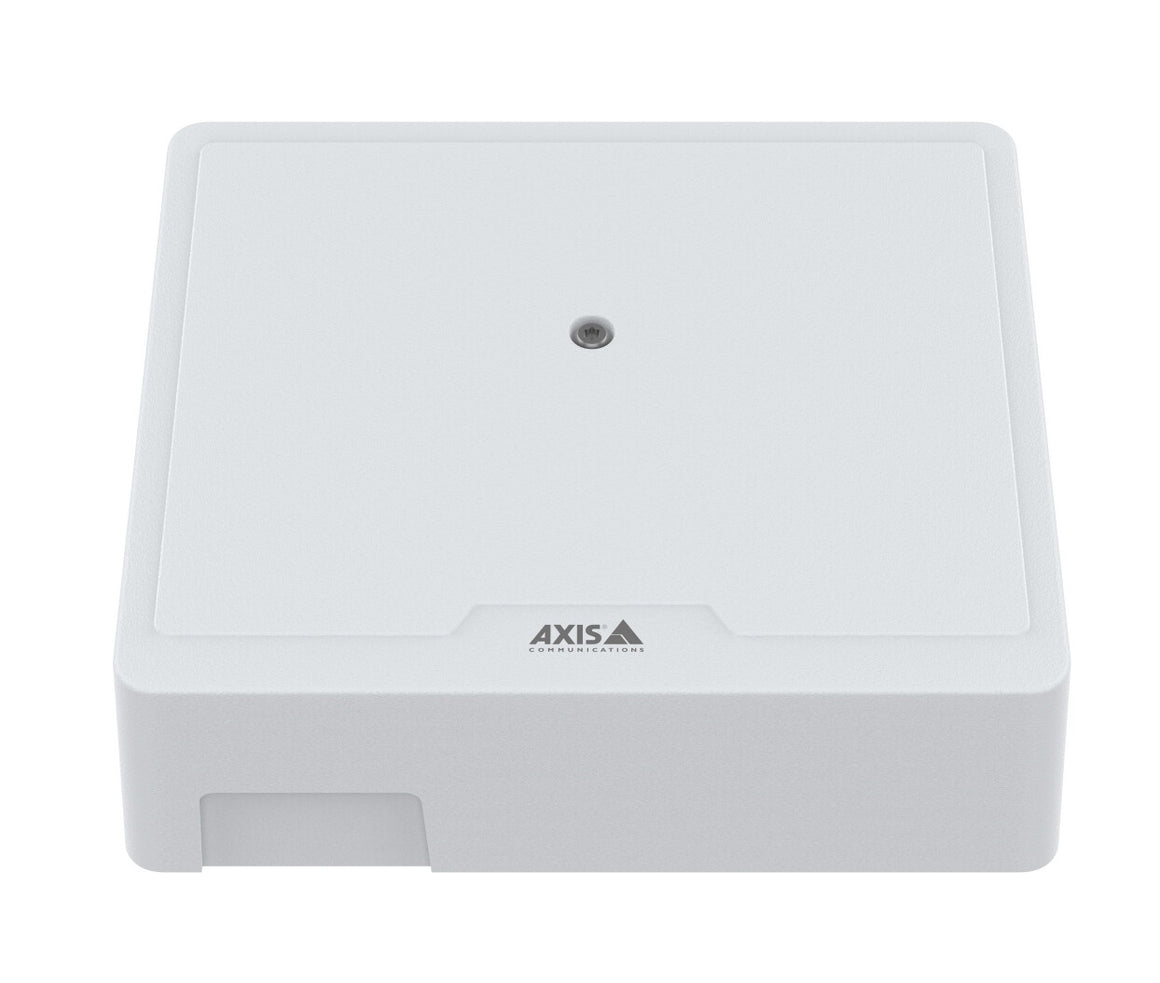

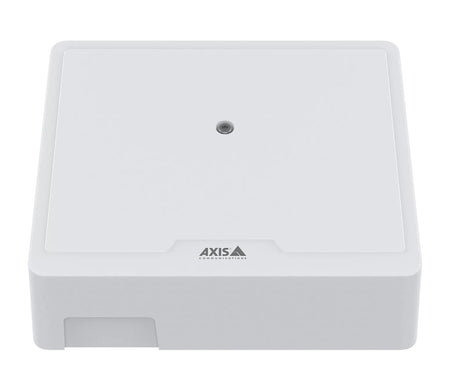

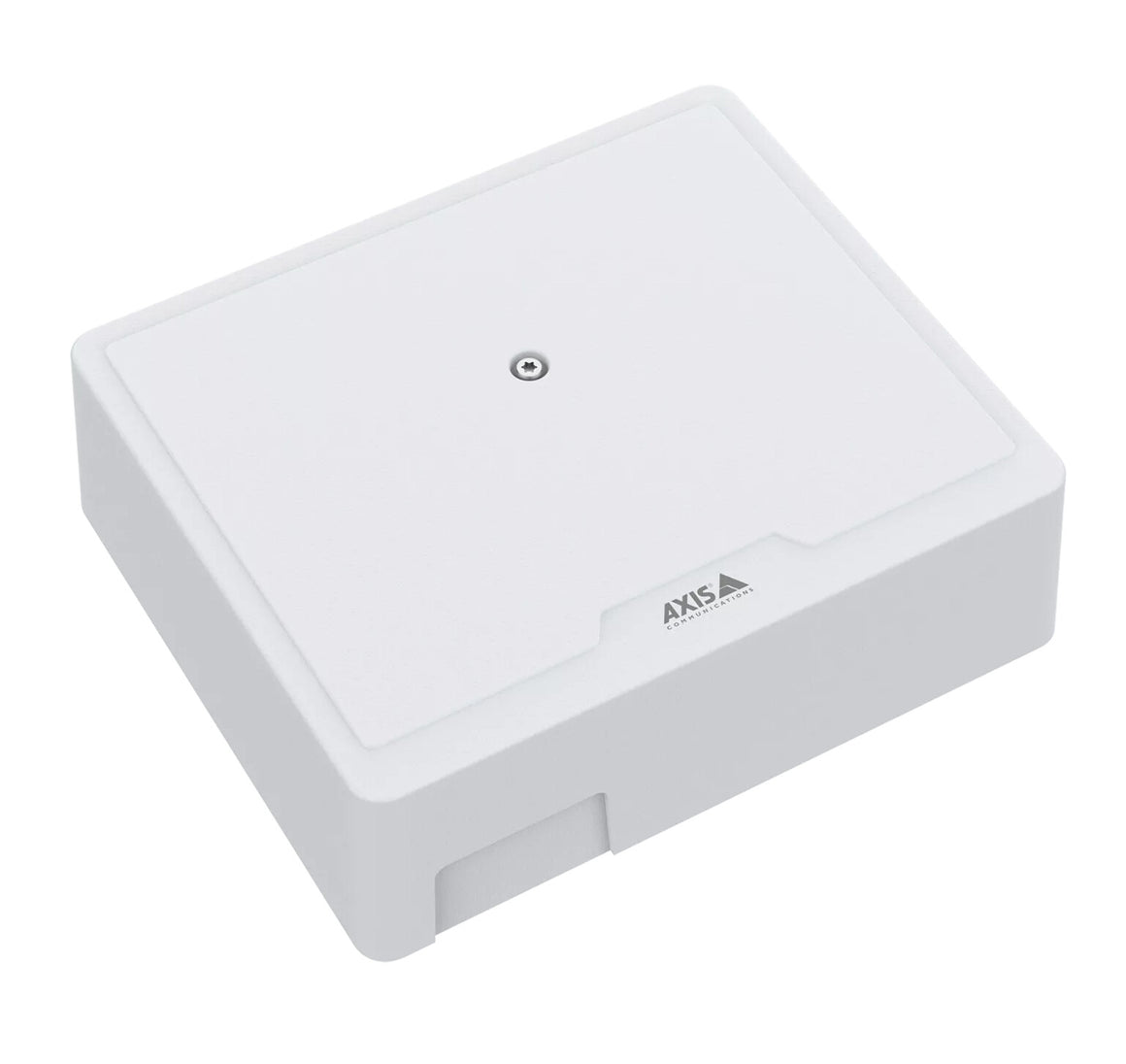

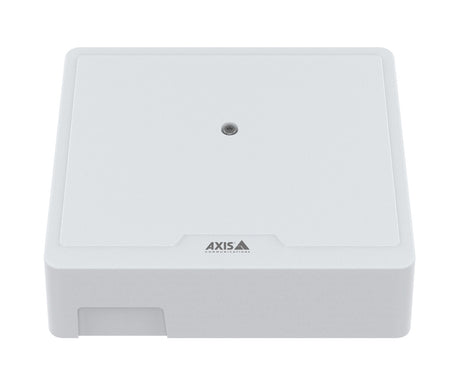

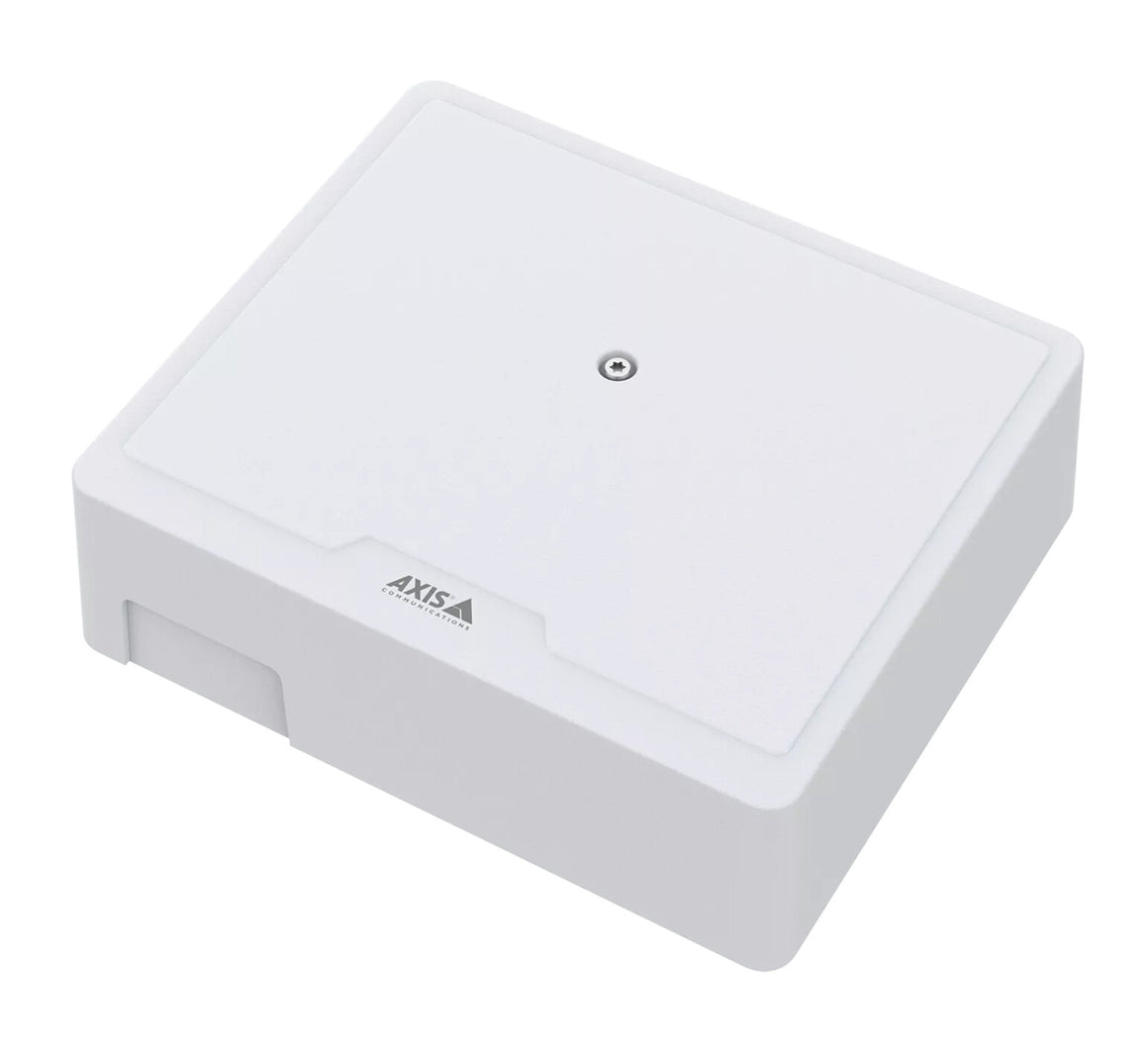

Axis 02368-001 security door controller Housing 1 door(s)

Axis
£496.24
  • Built-in cybersecurity features; Compact form factor; Complete control for one door; Fully integrated within Axis end-to-end solutions; Intelligence on the edge

Suitable for installation anywhere, this compact, competitively priced product offers fast and easy installation on walls. Plus, it’s suitable for plenum spaces. It includes everything needed to control one door all powered by one PoE cable. With intelligence on the edge, it can internally handle all tasks related to door access—even if the network is down. Fully integrated within Axis end-to-end solutions, this scalable product is optimized for both small and large installations and supports flexible authentication using different types of credentials. Furthermore, with built-in cybersecurity features, it prevents unauthorized access and safeguards your system.

Technical details
Supported network protocols IPv4, IPv6, HTTP, HTTPSc, TLSc, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
Maximum number of doors 1 door(s)
Case design Housing
Performance
Certification UL 2043 UL294EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2,EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A,VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B,KC KN35IEC/EN/UL 62368-1, UL 294, UL 2043EnvironmentNEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78CSA C22.2 No. 205-1983
Alarm input channels 7
Wiegand interface Yes
Number of built-in relays 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Storage media Flash
Internal storage capacity 2 GB
Internal memory 0.512 GB
Power
DC voltage range 11.5 - 12.5 V
Operating voltage 12 V
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Operational conditions
Operating relative humidity (H-H) 20 - 85%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 55 °C
Weight & dimensions
Width 144 mm
Depth 122 mm
Height 50 mm
Weight 645 g
