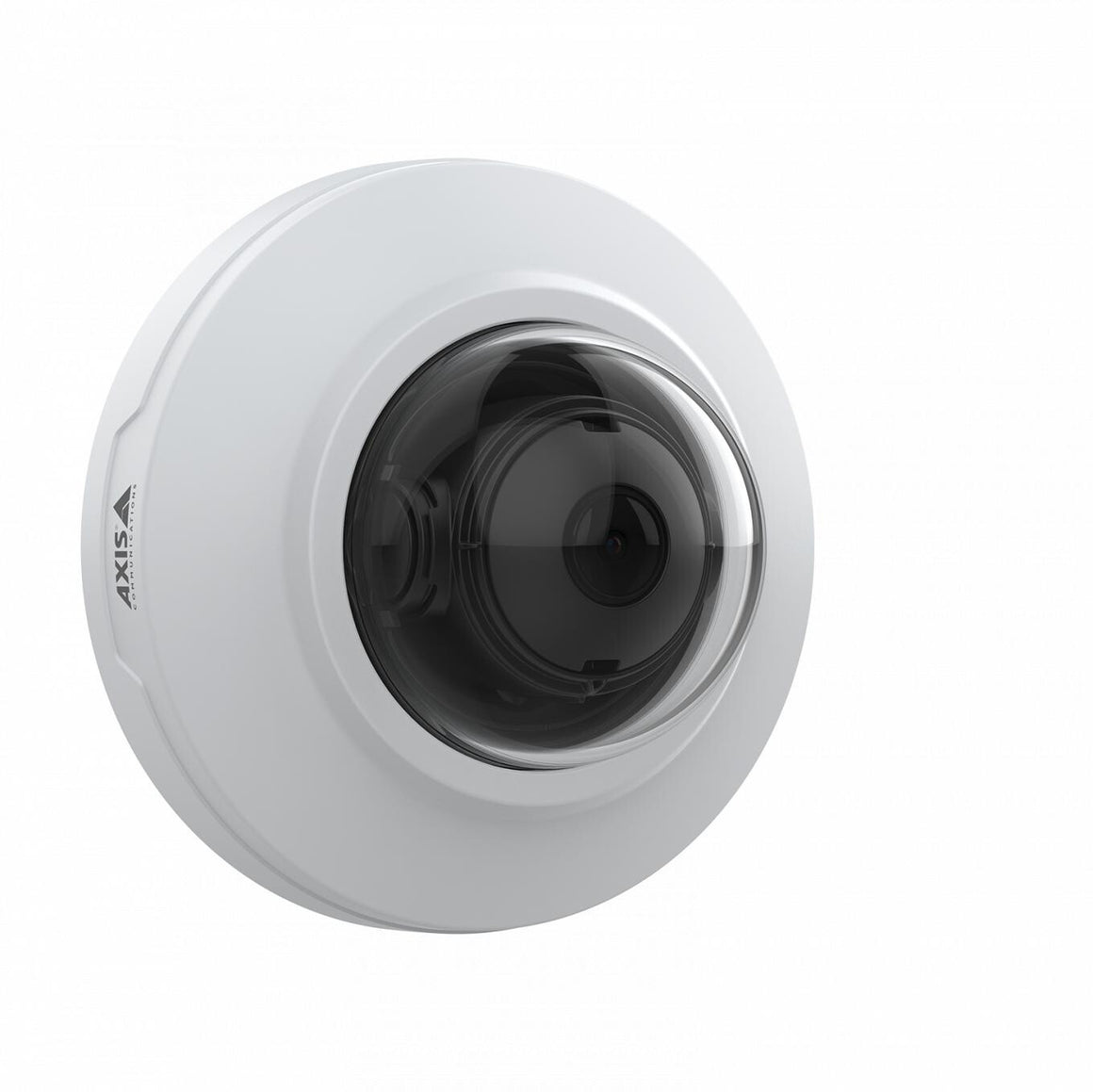

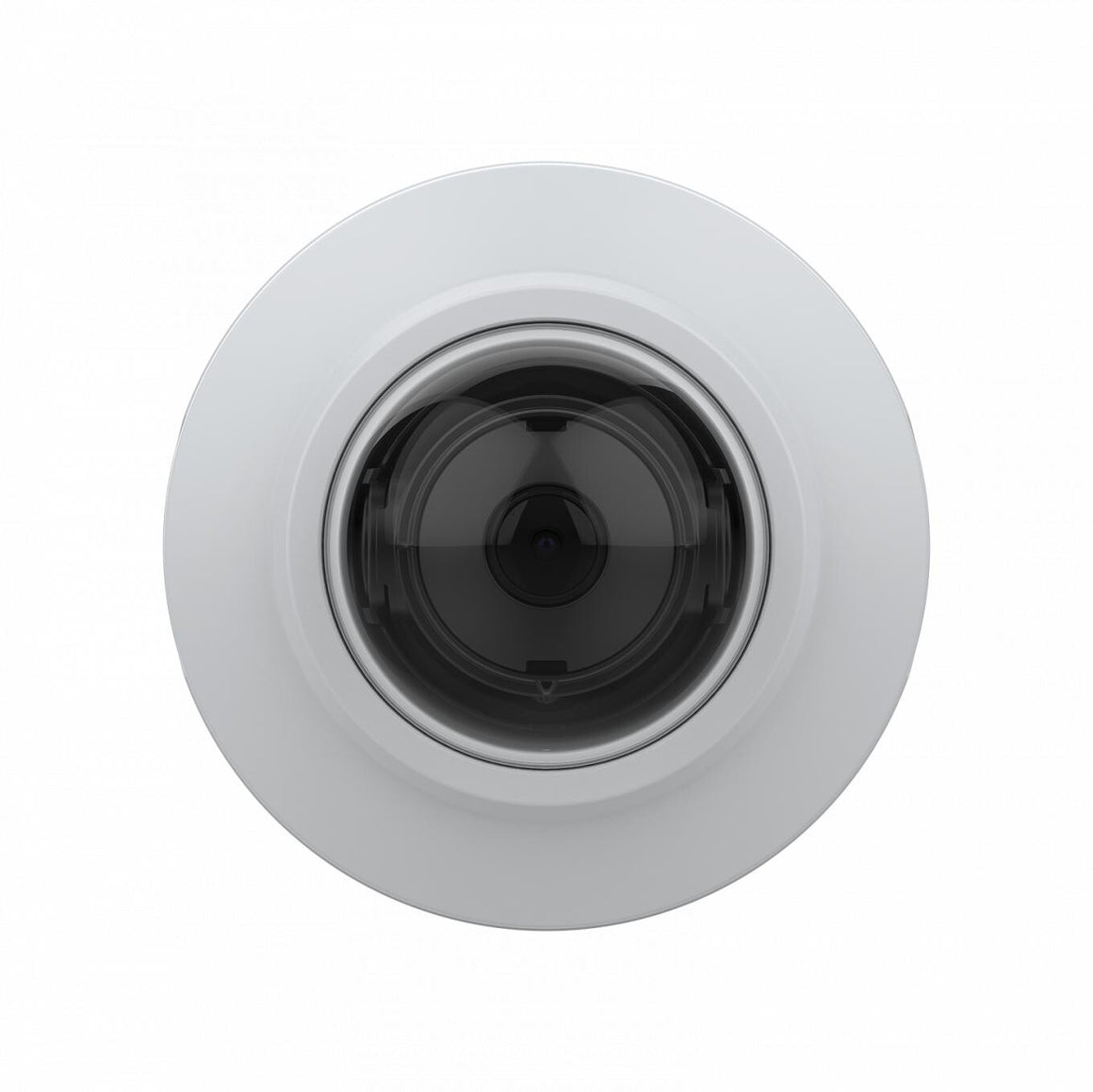

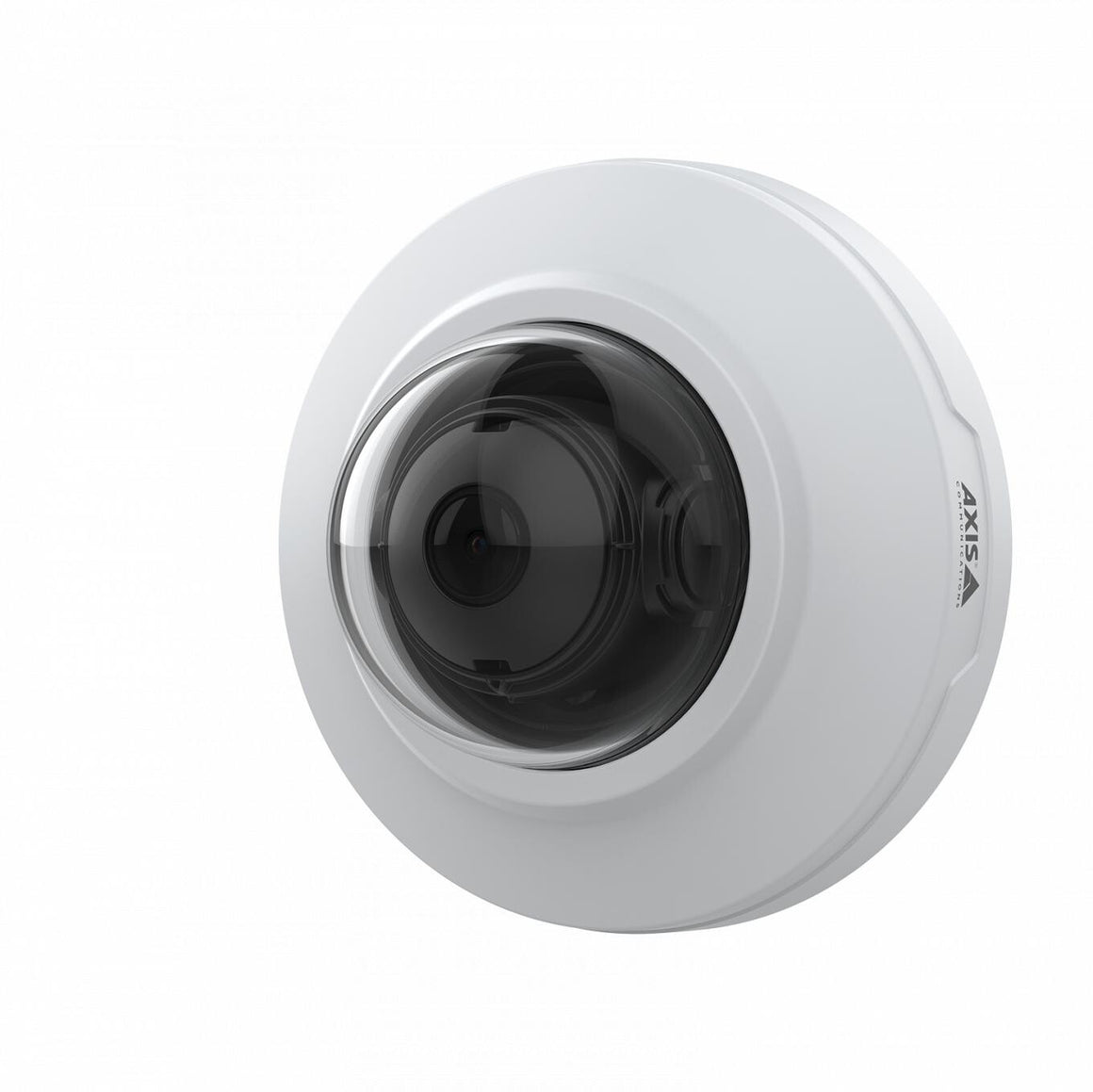

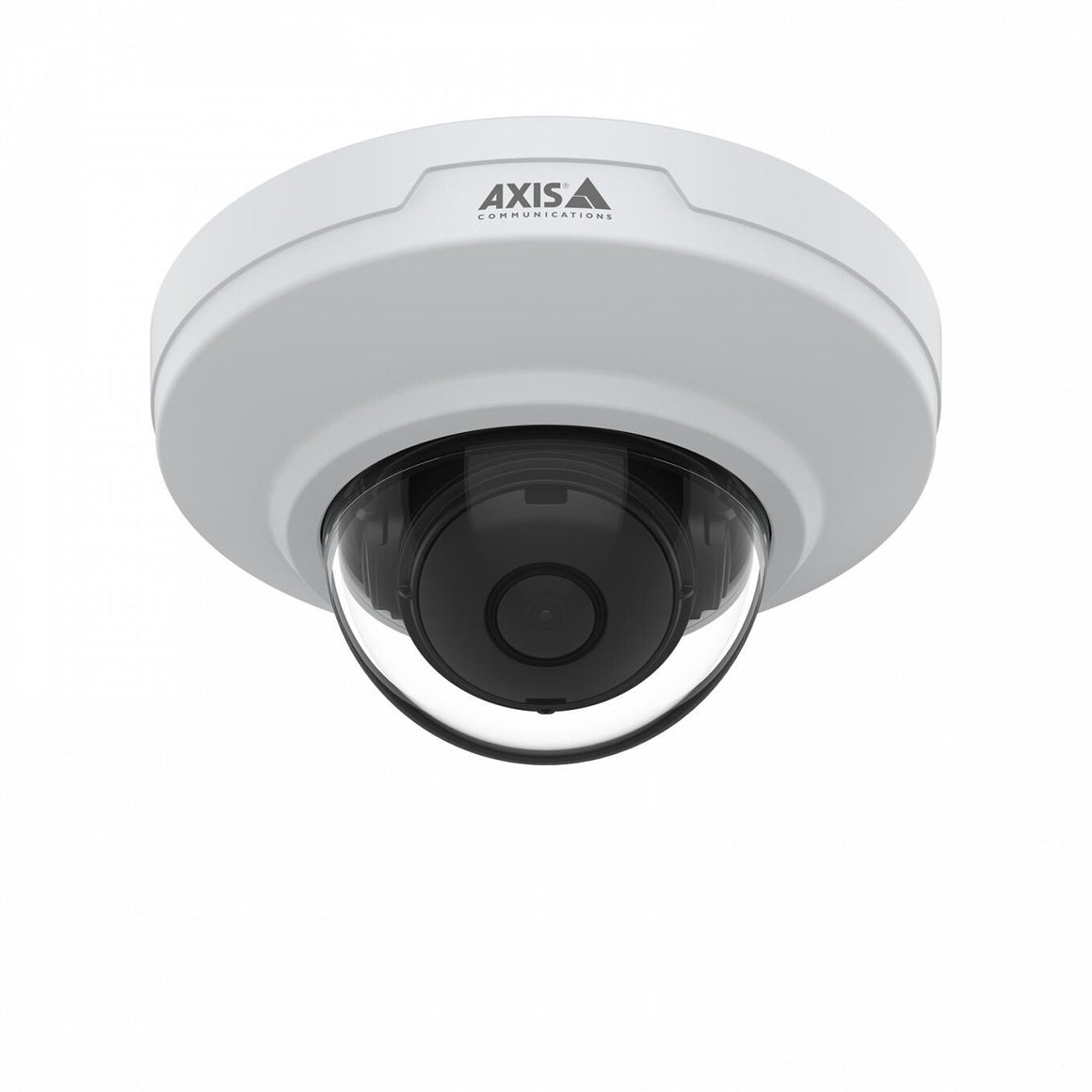

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and light areas in the scene. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. Plus, AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. This compact, easy-to-install, vandal-resistant camera comes factory focused so there’s no manual focusing required. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
| Performance |
|---|
| Number of languages |
18 |
| Languages support |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK08 |
| International Protection (IP) code |
IP42 |
| Protection features |
Dust resistant, Impact resistant, Water resistant |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
|---|
| Camera shutter speed |
1/71500 - 1/5 s |
| Pan range |
0 - 175° |
| Tilt angle range |
0 - 80° |
| Lens viewing angle, vertical |
56° |
| Lens viewing angle, horizontal |
109° |
| Angle of rotation |
175° |
| Minimum illumination |
0.25 lx |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Focal length range |
2.9 mm |
| Night vision |
|---|
| Night vision |
Yes |
| Video |
|---|
| Image quality adjustment |
Brightness, Contrast, Sharpness |
| Privacy masking |
Yes |
| Frame rate |
15 fps |
| Video compression formats |
H.264, H.265, M-JPEG, MPEG4 |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Pixel counter |
Yes |
| Network access storage (NAS) |
Yes |
| Password protection |
Yes |
| Power |
|---|
| Power consumption (max) |
4.2 W |
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Diameter |
10.1 cm |
| Height |
56 mm |
| Packaging content |
|---|
| Number of cameras |
1 |
| Other features |
|---|
| Doesn't contain |
BFR, PVC |
| Warranty period |
5 year(s) |
