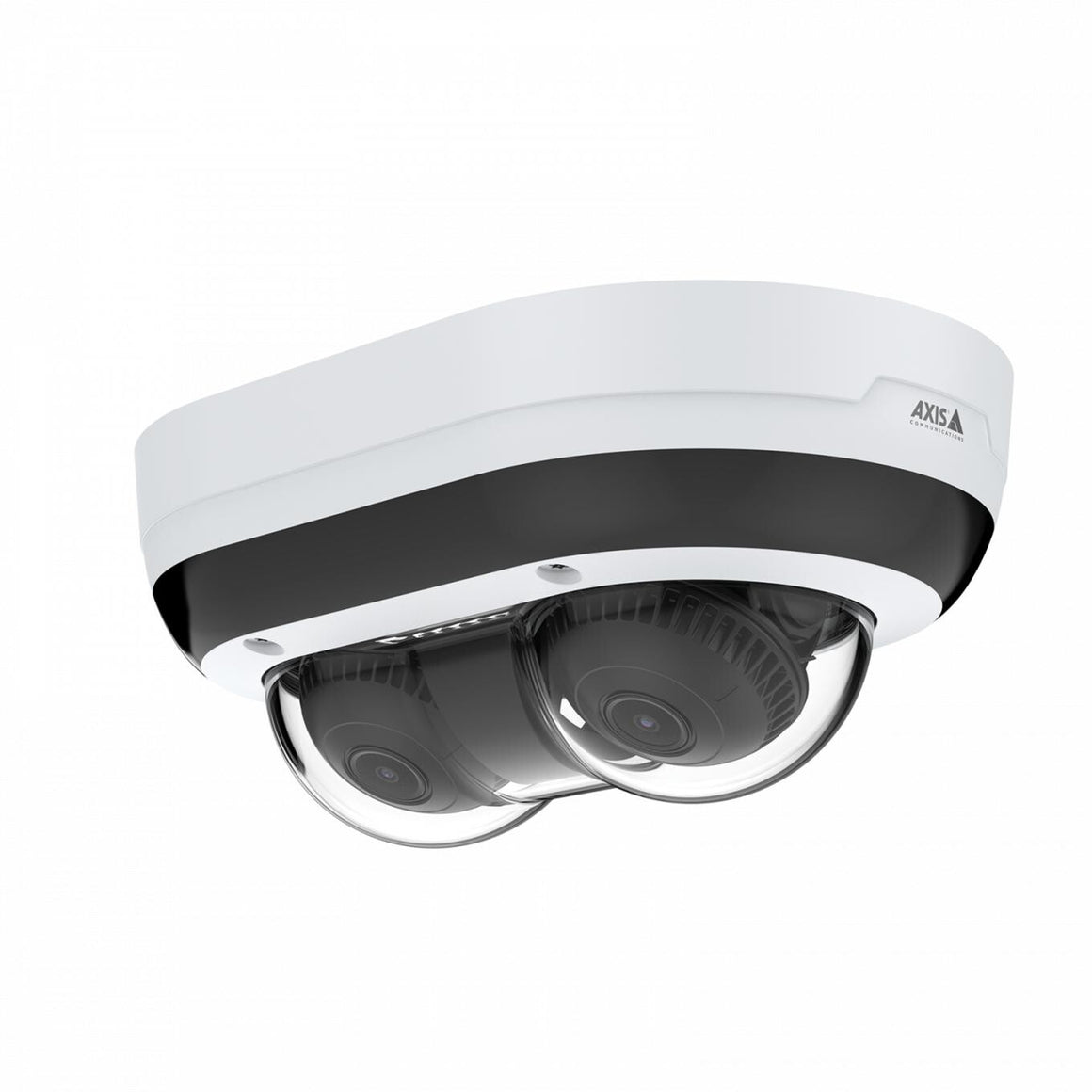

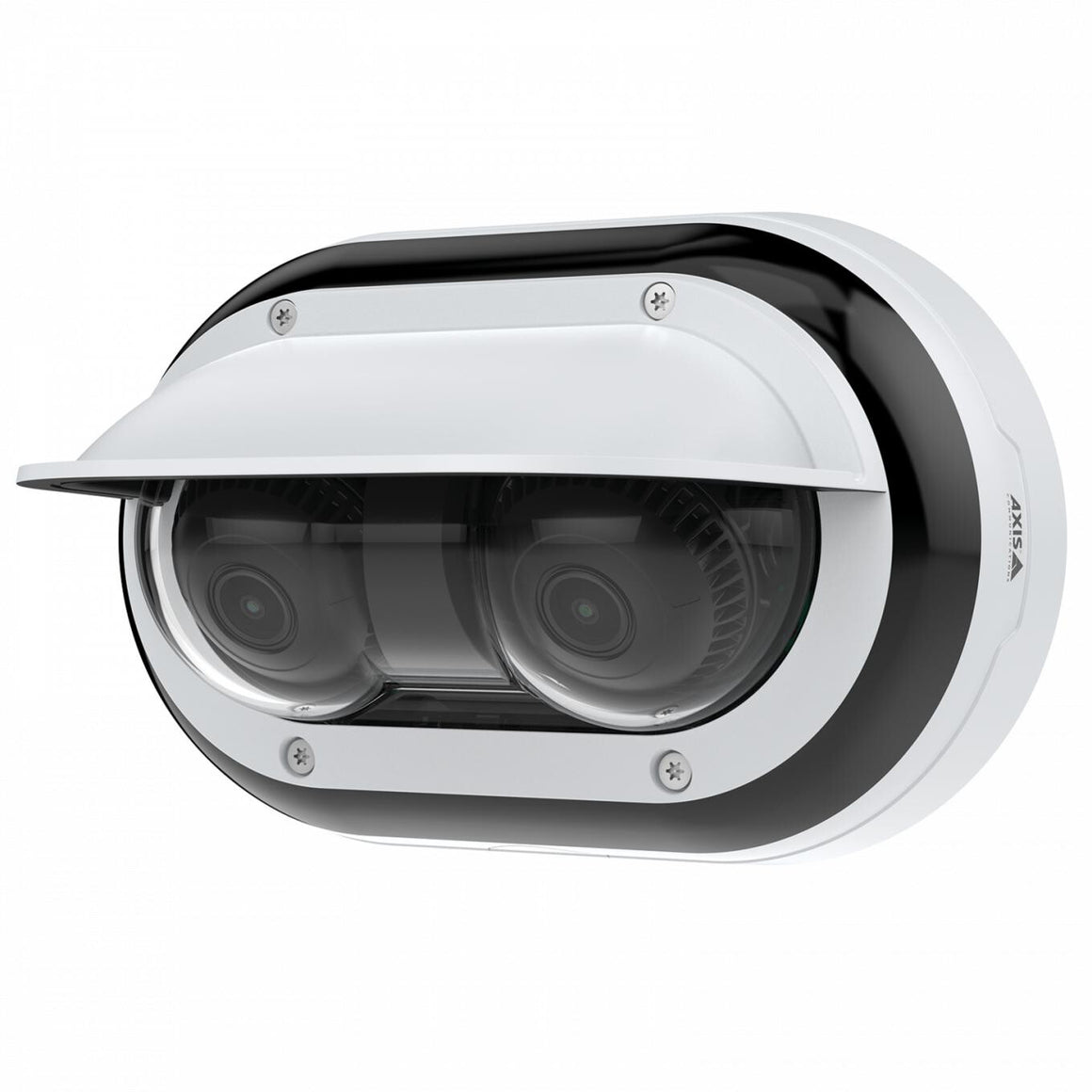

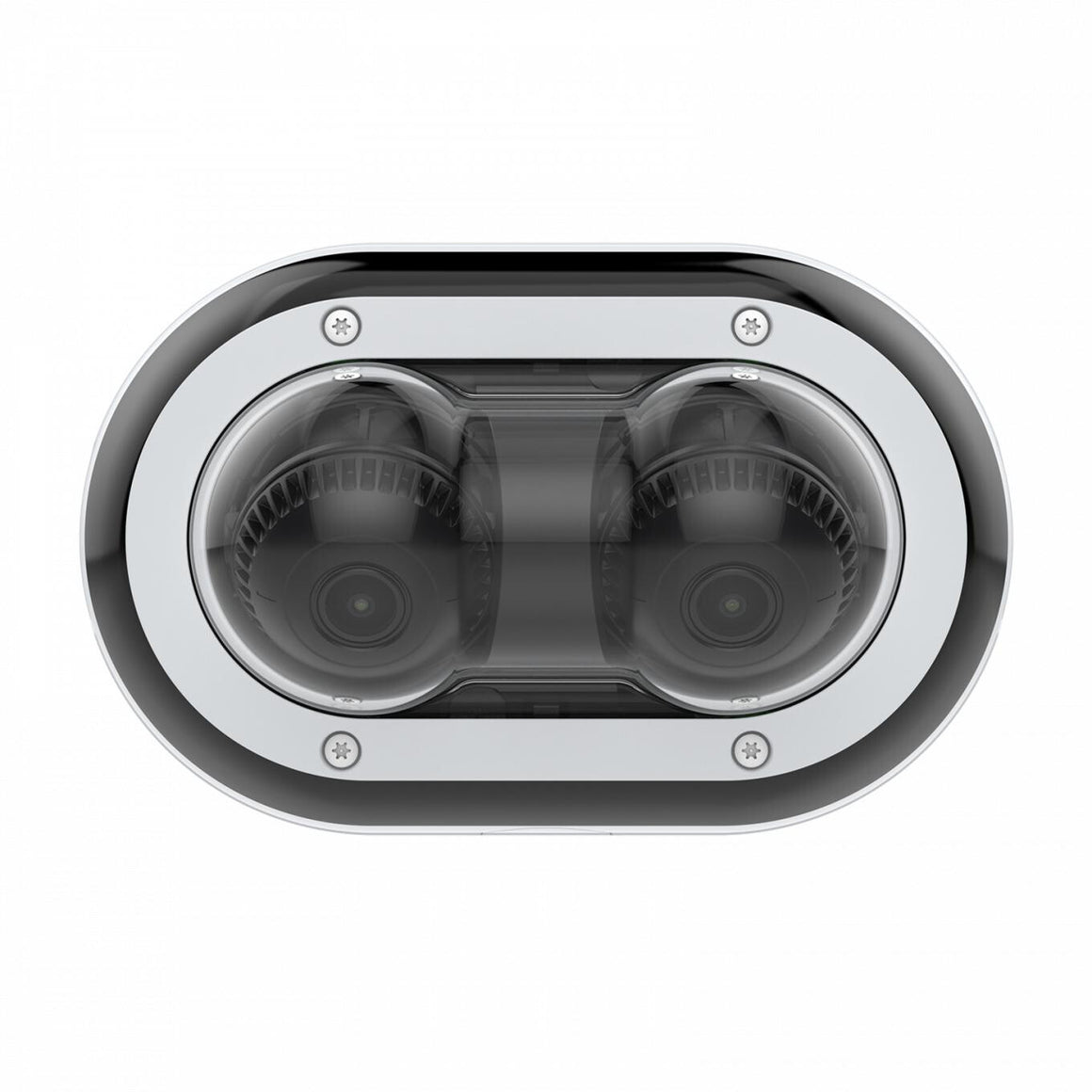

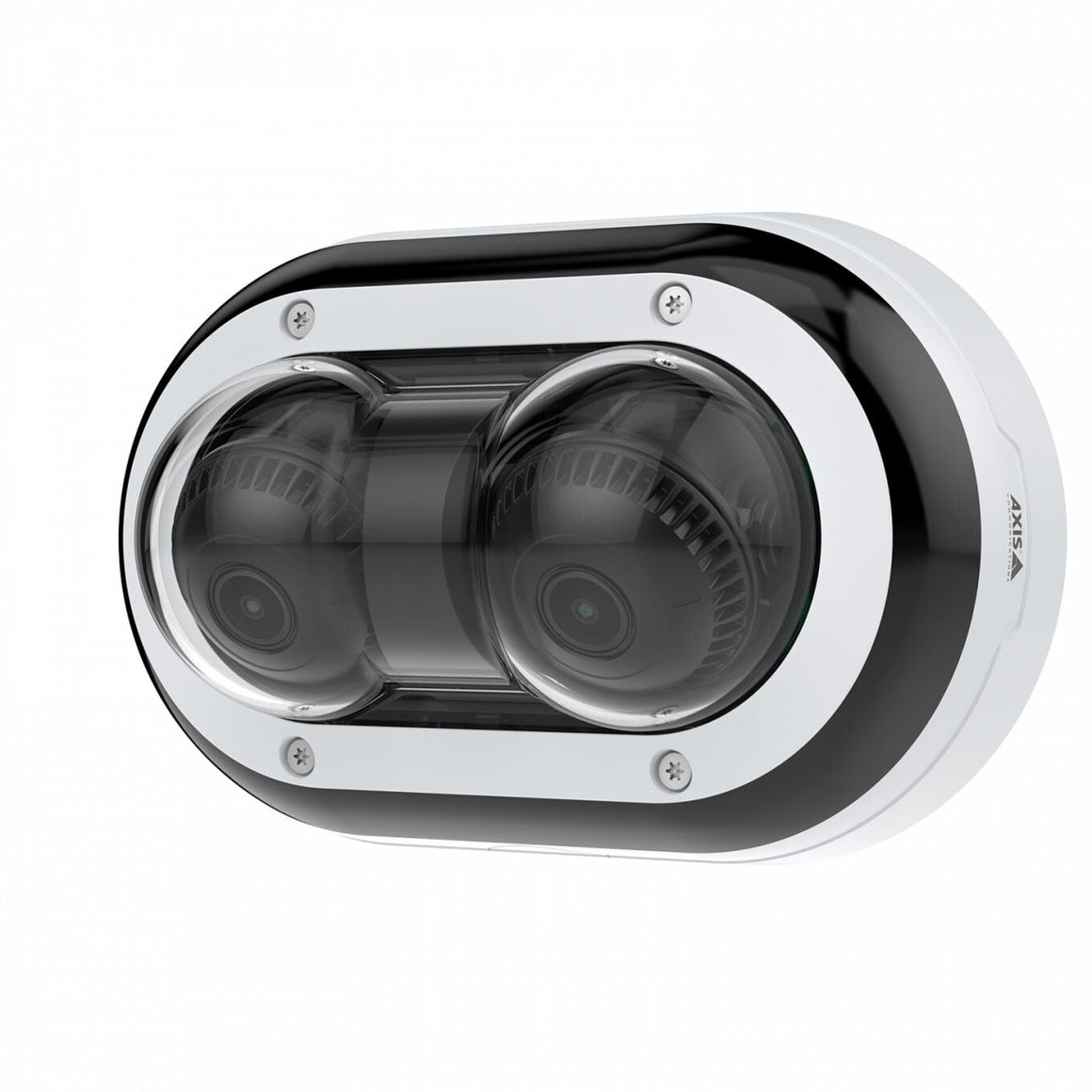

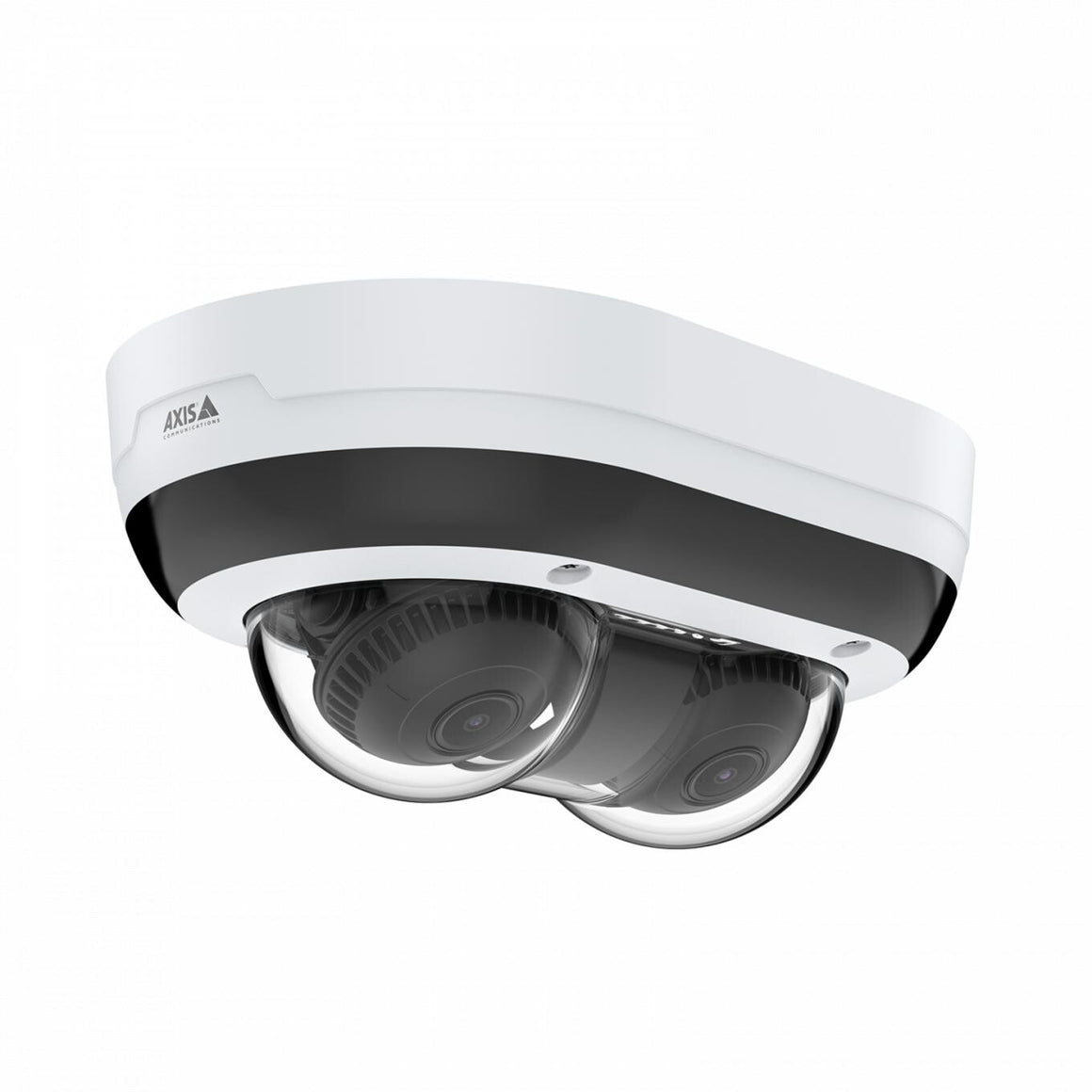

This dual-sensor, multidirectional camera offers 2*2 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.
| Performance |
|---|
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK10 |
| International Protection (IP) code |
IP66, IP67 |
| Product colour |
Black, White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bulb |
| Camera |
|---|
| Camera shutter speed |
1/20000 - 1.5 s |
| Pan range |
-100 - 110° |
| Tilt angle range |
-75 - 75° |
| Lens viewing angle, diagonal |
131 - 45° |
| Lens viewing angle, vertical |
55 - 22° |
| Lens viewing angle, horizontal |
107 - 39° |
| Angle of rotation |
170° |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Panoramic camera |
|---|
| Minimum illumination (panoramic camera) |
0.1 lx |
| Camera shutter speed (panoramic camera) |
1/20000 - 1.5 s |
| Optical sensor size (panoramic camera) |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type (panoramic camera) |
CMOS |
| Lens system |
|---|
| Auto focus |
Yes |
| Focal length range |
3.3 – 8.1 |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
|---|
| LED type |
IR |
| Night vision |
Yes |
| Video |
|---|
| Image quality adjustment |
Brightness, Contrast, Sharpness |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Supported video modes |
1080p |
| Supported graphics resolutions |
640 x 360, 1920 x 1080 (HD 1080) |
| Video compression formats |
H.264, H.265, M-JPEG |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| IP address filtering |
Yes |
| Security algorithms |
HTTPS |
| Password protection |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Weight & dimensions |
|---|
| Height |
88 mm |
| Packaging content |
|---|
| Number of cameras |
2 |
| Other features |
|---|
| Doesn't contain |
BFR, PVC |
