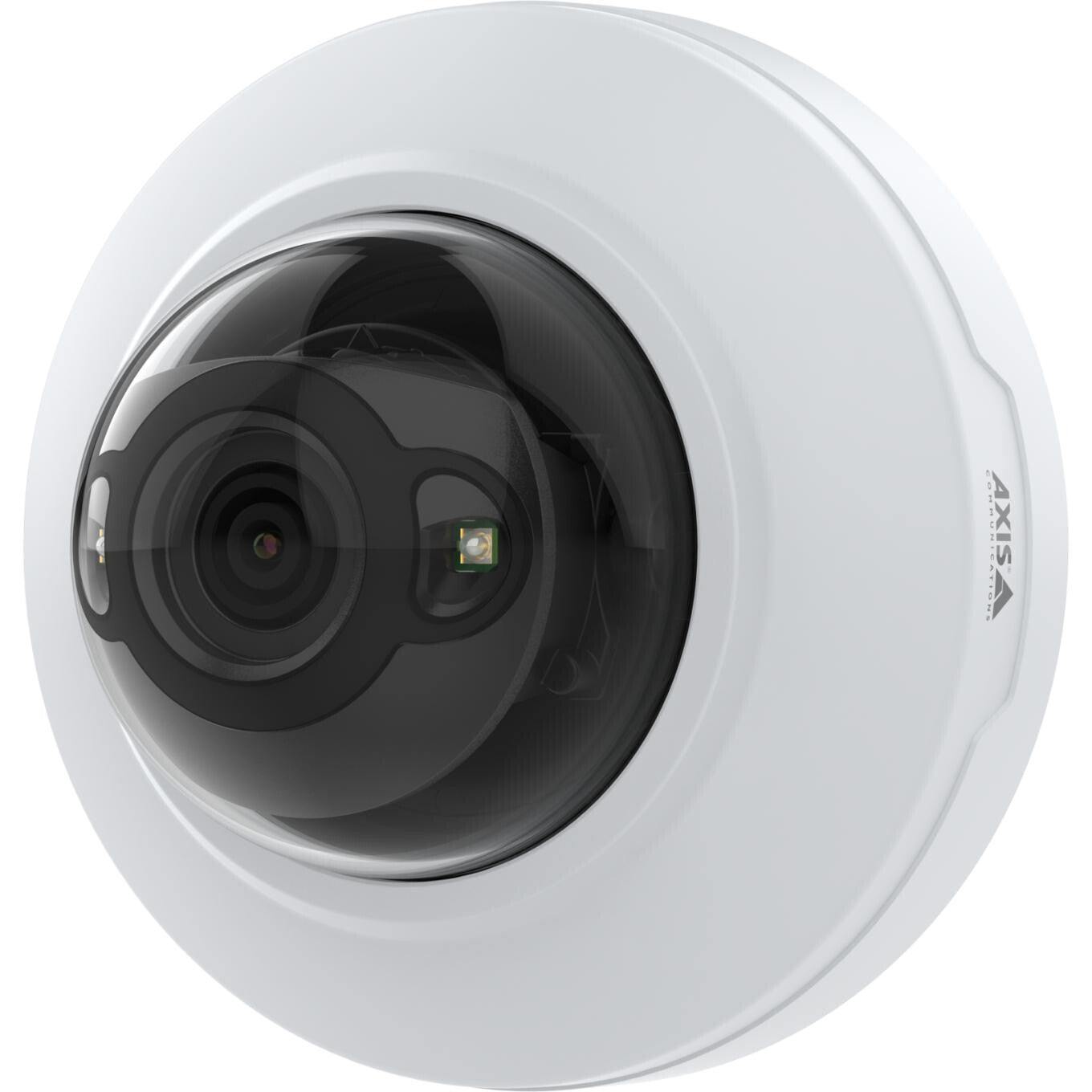

This discreet dome delivers great images in any light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.
Great images, every time
Ideal for indoor surveillance applications, AXIS M4218-LV delivers great image quality in superior 4K. With a varifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed. Thanks to WDR, it can handle difficult light conditions. And Axis OptimizedIR allows for surveillance in pitch darkness. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.
Extended possibilities
AXIS M4218-LV offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity using AXIS T61 Series. It offers advanced analytics based on deep learning on the edge to deliver valuable metadata facilitating efficient forensic search capabilities in live or recorded video. And AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering.
Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment. This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it’s always safe and secure.
Key features
- Great image quality in superior 4K
- Varifocal lens with remote zoom and focus
- WDR and OptimizedIR
- Analytics with deep learning
- HDMI output for public viewing monitors
| Performance |
|---|
| Type |
IP security camera |
| Placement supported |
Indoor |
| Connectivity technology |
Wired |
| PTZ control |
Yes |
| PTZ modes |
Digital PTZ |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Built-in processor |
Yes |
| Number of languages |
19 |
| Languages support |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Certification |
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Design |
|---|
| Form factor |
Dome |
| Mounting type |
Ceiling/wall |
| Product colour |
White |
| Housing material |
Aluminium, Polycarbonate (PC) |
| International Protection (IP) code |
IP42 |
| IK code |
IK08 |
| Camera |
|---|
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Minimum illumination |
0.24 lx |
| Angle of rotation |
105° |
| Lens viewing angle, horizontal |
93 - 47° |
| Lens viewing angle, vertical |
50 - 26° |
| Tilt angle range |
-40 - 65° |
| Pan range |
-180 - 180° |
| Camera shutter speed |
1/71500 - 1/5 s |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan |
Yes |
| Sensor type |
CMOS |
| Lens system |
|---|
| Zoom capability |
Yes |
| Maximum aperture number |
2.6 |
| Minimum aperture number |
1.7 |
| Night vision |
|---|
| Night vision |
No |
| Video |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Total megapixels |
8 MP |
| Video compression formats |
H.264, H.265, M-JPEG |
| Video recording |
Yes |
| Frame rate |
15 fps |
| Video streaming |
Yes |
| Noise reduction |
Yes |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Privacy masking |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Fast Ethernet |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| Wi-Fi |
No |
| Bluetooth |
No |
| Quality of Service (QoS) support |
Yes |
| Storage |
|---|
| Built-in HDD |
No |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory |
512 MB |
| Internal memory |
2048 MB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Security |
|---|
| Password protection |
Yes |
| Video motion detection |
Yes |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Pixel counter |
Yes |
| Digest authentication |
Yes |
| Network access storage (NAS) |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
9.7 W |
| Power consumption (Power over Ethernet (PoE)) |
5 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-30 - 65 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Height |
71 mm |
| Diameter |
12 cm |
| Weight |
375 g |
| Packaging content |
|---|
| Number of cameras |
1 |
| Manual |
Yes |
| Packaging content |
Owner authentication key, virtual client license for H.264/H.265 |
