AXIS P1245 Mk II Modular Standard Camera
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet

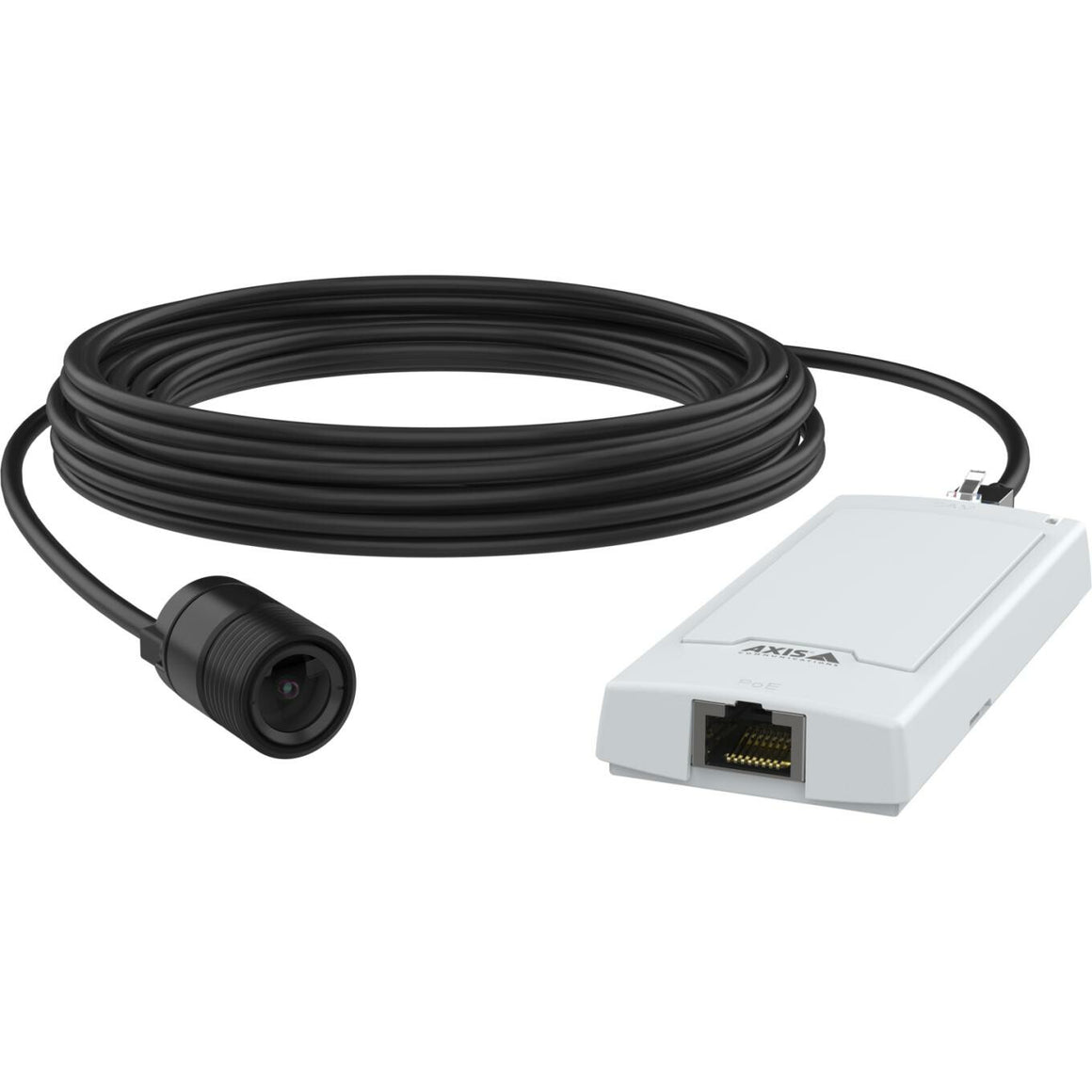

With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
| Performance |
|---|
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Type |
IP security camera |
| Design |
|---|
| International Protection (IP) code |
IPX3 |
| Housing material |
Plastic, Steel |
| LED indicators |
Yes |
| Product colour |
Black, White |
| Mounting type |
Ceiling |
| Form factor |
Covert |
| Camera |
|---|
| Camera shutter speed |
1/6500 - 1/5 s |
| Lens viewing angle, vertical |
61° |
| Lens viewing angle, horizontal |
111° |
| Minimum illumination |
0.2 lx |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Closest focusing distance |
0.2 m |
| Fixed focal length |
2.8 mm |
| Maximum aperture number |
2 |
| Number of lenses |
1 |
| Video |
|---|
| Text caption overlay |
Yes |
| Bit rate control |
Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080) |
| Video formats supported |
AVC, H.264, HEVC, M-JPEG, MPEG4 |
| Maximum resolution |
1920 x 1080 pixels |
| Storage |
|---|
| Card reader integrated |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Pixel counter |
Yes |
| Security algorithms |
802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS |
| Alert notification type |
E-mail |
| Human and vehicle targets classification |
Yes |
| Power |
|---|
| Power consumption (max) |
4.1 W |
| Power source type |
PoE |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Number of cameras |
1 |
| Other features |
|---|
| Doesn't contain |
PVC |
