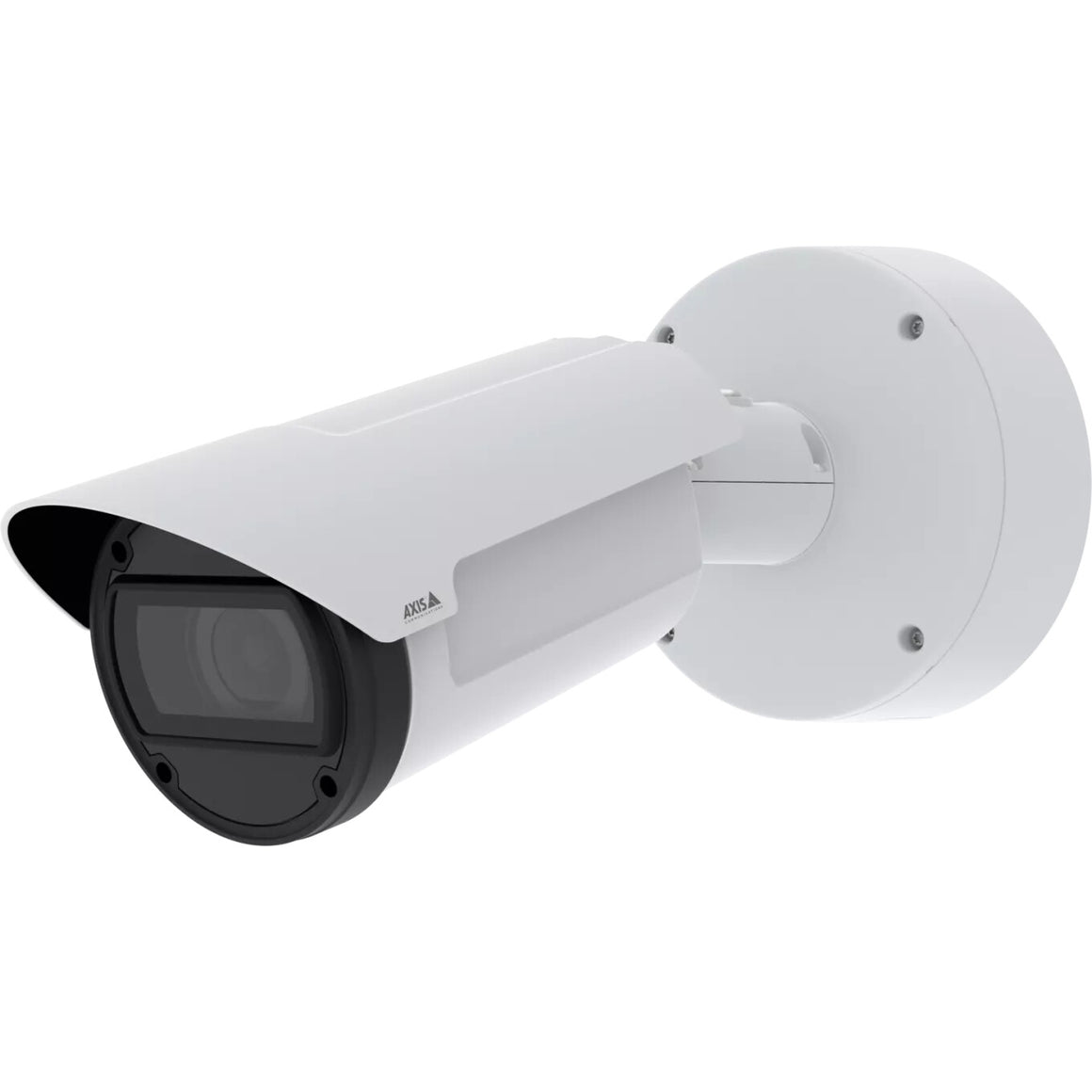

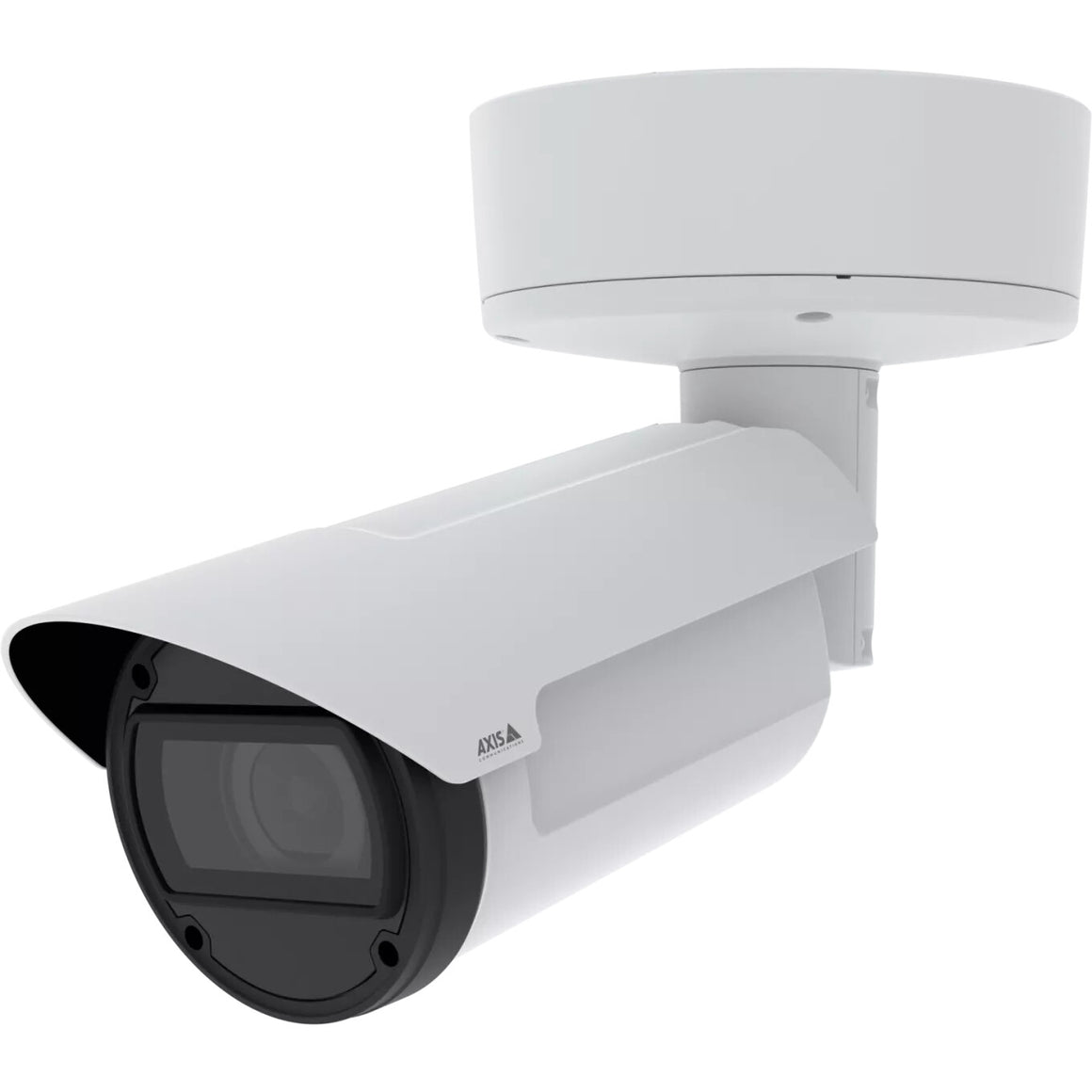

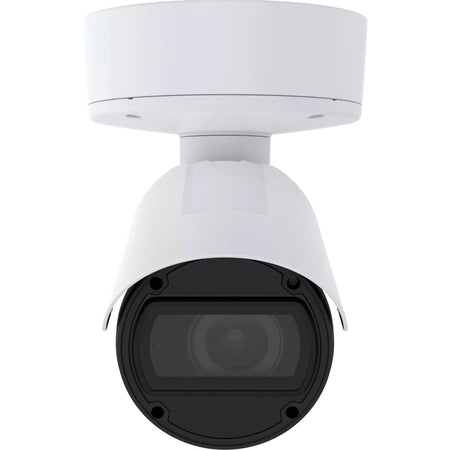

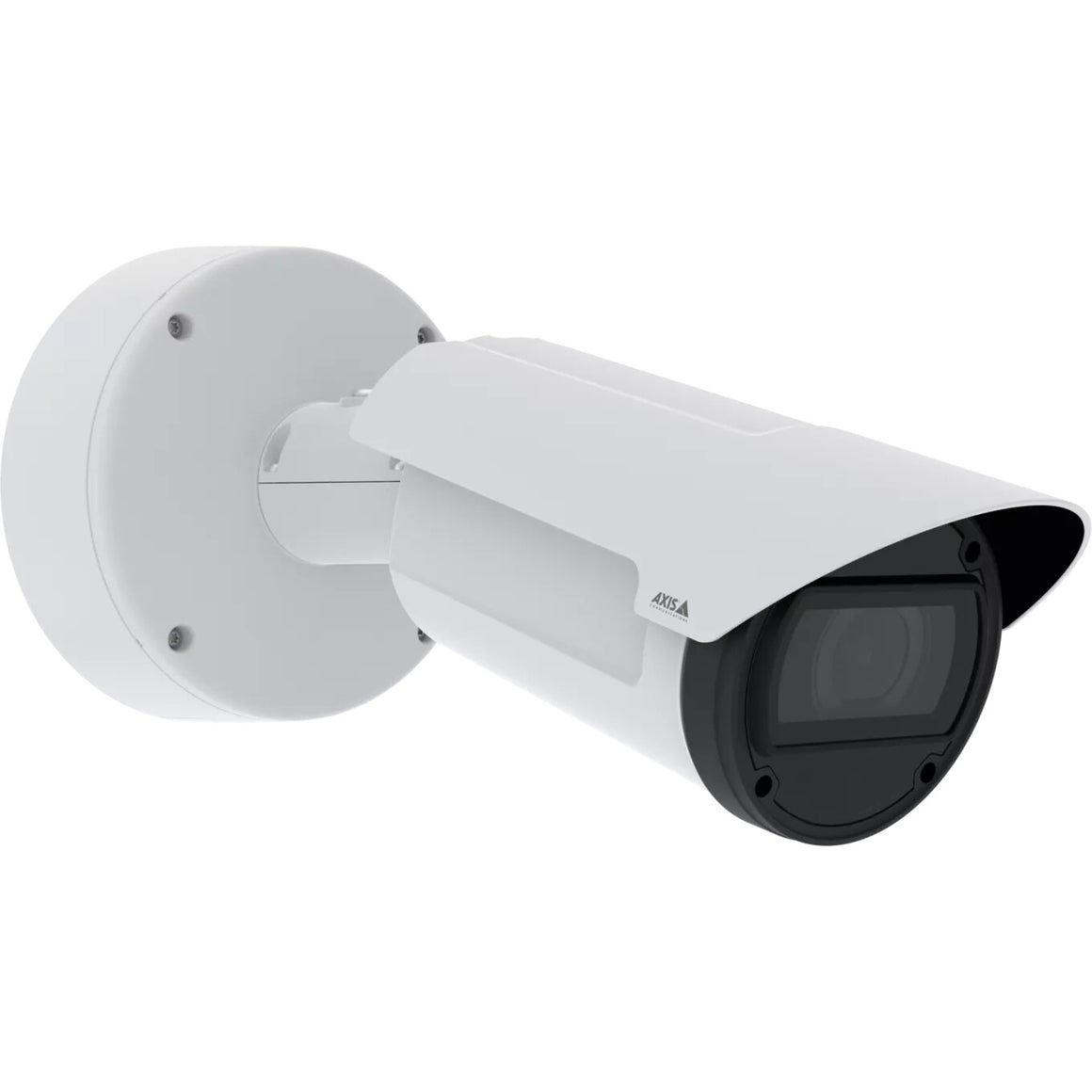

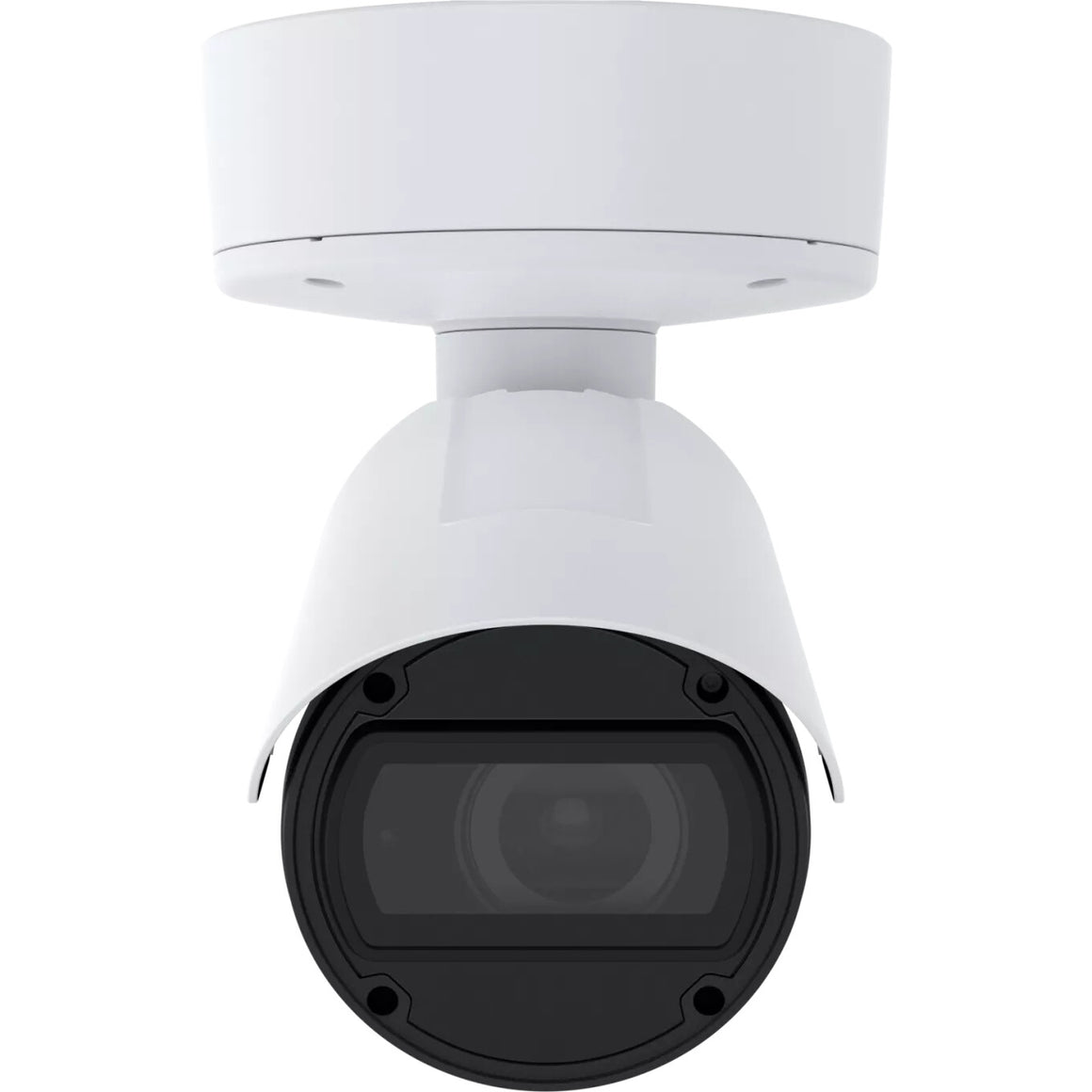

Ideal for long distance surveillance, this all-in-one, outdoor-ready bullet camera delivers superior image quality in 41 MP with high light sensitivity and extremely high pixel density.
See all the details
Built on a dual Axis system-on-chip, this device delivers extreme detail over great distances and excellent forensic value. It offers 41 MP at 15 fps or 8K at up to 30 fps. And a 4/3” image sensor ensures exceptional low-light performance. With a custom-made, tele Canon lens, it’s perfect for long-distance surveillance and delivers extremely high pixel density. Electronic image stabilization (EIS) ensures smooth video in situations where a camera is subject to vibrations, for instance, at sports arenas or windy harbors. Furthermore, Axis Zipstream reduces bandwidth and storage requirements without compromising image quality.
All-in-one and ready for everything
This powerful camera offers everything you need and is out-of-the-box ready to use. Enclosed in a robust aluminum casing, it also includes a mounting arm for easy installation. And a spacious back box ensures secure cable management. It features a custom-made, tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view. With 3x zoom, it’s ideal for identification purposes. In addition, thanks to PoE out, you can connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation.
Secure and robust surveillance
AXIS Q1809-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. This robust, weather-protected, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and features a IK08-rated impact-resistant glass front window. It has an operating temperature range from -40 °C to 55 °C (-40 °F to 131 °F). Furthermore, surge protection minimizes damage in the case of a power surge.
| Performance |
|---|
| Certification |
CSA, UL/cUL, CE, EAC, VCCI, RCM |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK10 |
| International Protection (IP) code |
IP66, IP67 |
| Protection features |
Impact resistant |
| Housing material |
Aluminium, Glass |
| Product colour |
Black, White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
|---|
| Camera shutter speed |
1/15500 - 2 s |
| Camera pixel size |
2.315 µm |
| Pan range |
-180 - 180° |
| Tilt angle range |
0 - 90° |
| Lens viewing angle, vertical |
12 - 4° |
| Lens viewing angle, horizontal |
21 - 7° |
| Angle of rotation |
270° |
| Minimum illumination |
0.04 lx |
| Image sensor |
|---|
| Optical sensor size |
101.6 / 3 mm (4 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Detect distance (wide) |
853.8 m |
| Detect distance (tele) |
2551.6 m |
| Observe distance (wide) |
338.8 m |
| Observe distance (tele) |
1012.6 m |
| Recognize distance (wide) |
170.8 m |
| Recognize distance (tele) |
510.2 m |
| Identify distance (wide) |
85.4 m |
| Identify distance (tele) |
255.2 m |
| Closest focusing distance |
5 m |
| Maximum aperture number |
4 |
| Focus |
Motorized |
| Focal length range |
50 - 150 mm |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
900 nm |
| LED type |
IR |
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Image stabilizer |
Yes |
| Bit rate control |
Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Contrast, Mirror, Sharpness |
| Gain control type |
Auto |
| Noise reduction technology |
2D noise reduction, 3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported graphics resolutions |
160 x 120, 160 x 90, 1280 x 800, 3840 x 2160 |
| Video compression formats |
H.264, H.265 |
| Video formats supported |
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Total megapixels |
41 MP |
| Maximum resolution |
7680 x 4320 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Security |
|---|
| Pixel counter |
Yes |
| Security algorithms |
EAP-TLS, HTTPS |
| Alert notification type |
E-mail |
| Password protection |
Yes |
| Power |
|---|
| Power consumption (max) |
35 W |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Diameter |
18.3 cm |
| Height |
183 mm |
| Sustainability |
|---|
| Compliance certificates |
REACH, RoHS |
| Packaging content |
|---|
| Number of cameras |
1 |
