Axis

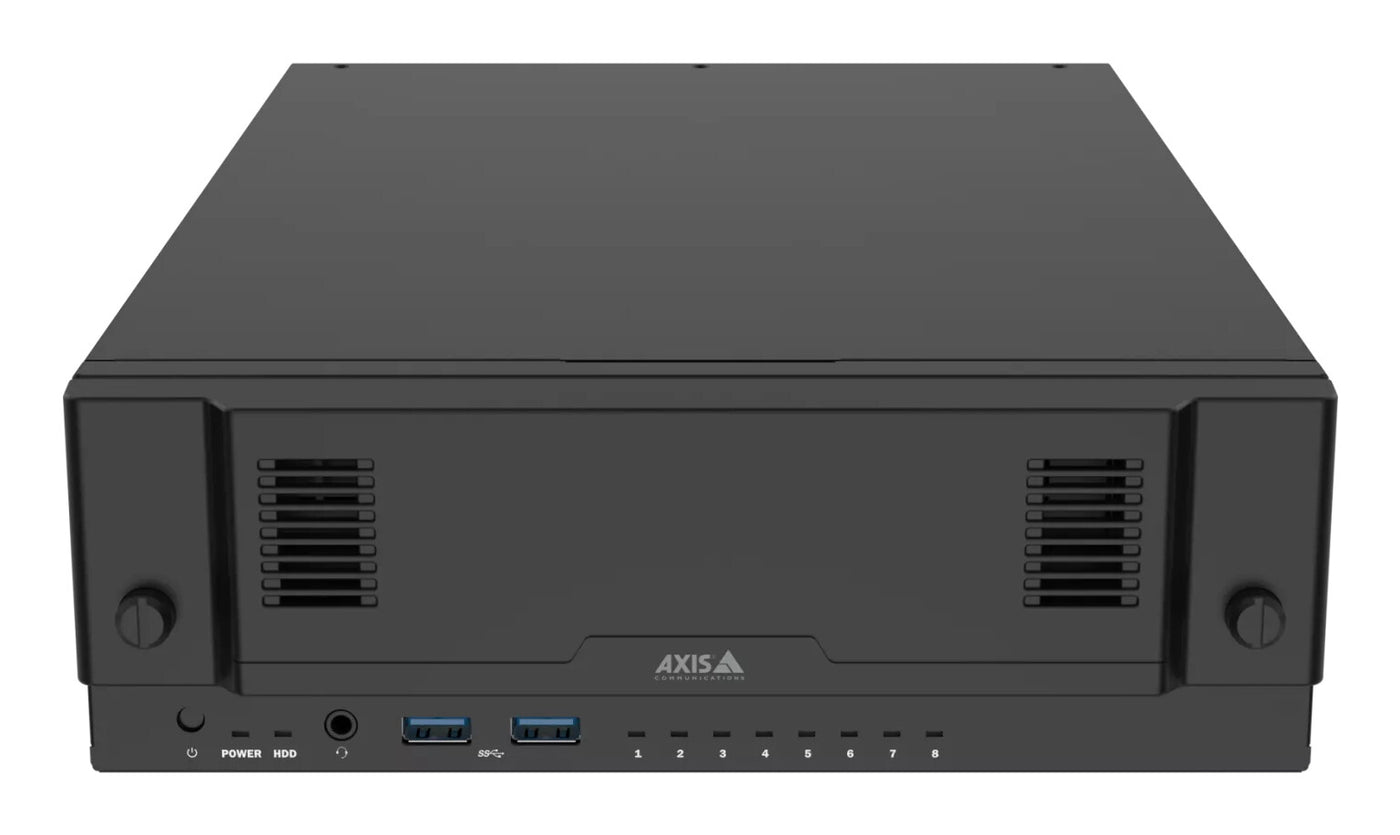

Axis S2208 Mk II 4 TB Black

SKU: 02807-003
£4,157.99

Overview

This 8-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, an 8-port PoE switch, and 4 TB of storage. It comes with pre-loaded software and tools to minimize installation time.

Powerful and versatile
This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With eight channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.

Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.

Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It includes an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.

Key features

  • All-in-one solution with integrated PoE switch
  • 8 AXIS Camera Station Pro licenses included
  • Silent- won’t disturb operations
  • High cybersecurity features and standards
Performance
Video input channels 8 channels
Maximum resolution 7680 x 4320 pixels
Internal memory 16 MB
Internal memory type DDR5
Hard drive
Number of HDDs installed 1
HDD capacity 4 GB
Number of HDDs supported 2
Total installed storage capacity 4 GB
Maximum storage capacity 8 TB
HDD interface SATA
HDD size 3.5"
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
HDMI output Yes
HDMI ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
DC-in jack Yes
Networking standards IEEE 802.3at
Features
Brand compatibility Ajax
Reset button Yes
Product colour Black
Certification UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM
Processor
Built-in processor Yes
Power
Power consumption (max) 270 W
Power consumption (typical) 75 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Output current 3.5 A
Total Power over Ethernet (PoE) budget 135 W
System requirements
Windows operating systems supported Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 65 °C
Storage relative humidity (H-H) 10 - 90%
Technical details
Compliance certificates Trade Agreements Act (TAA)
Safety warning CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252
Weight & dimensions
Width 330 mm
Depth 230 mm
Height 78 mm
Weight 5.8 kg
Packaging content
AC adapter included Yes
Quick installation guide Yes
