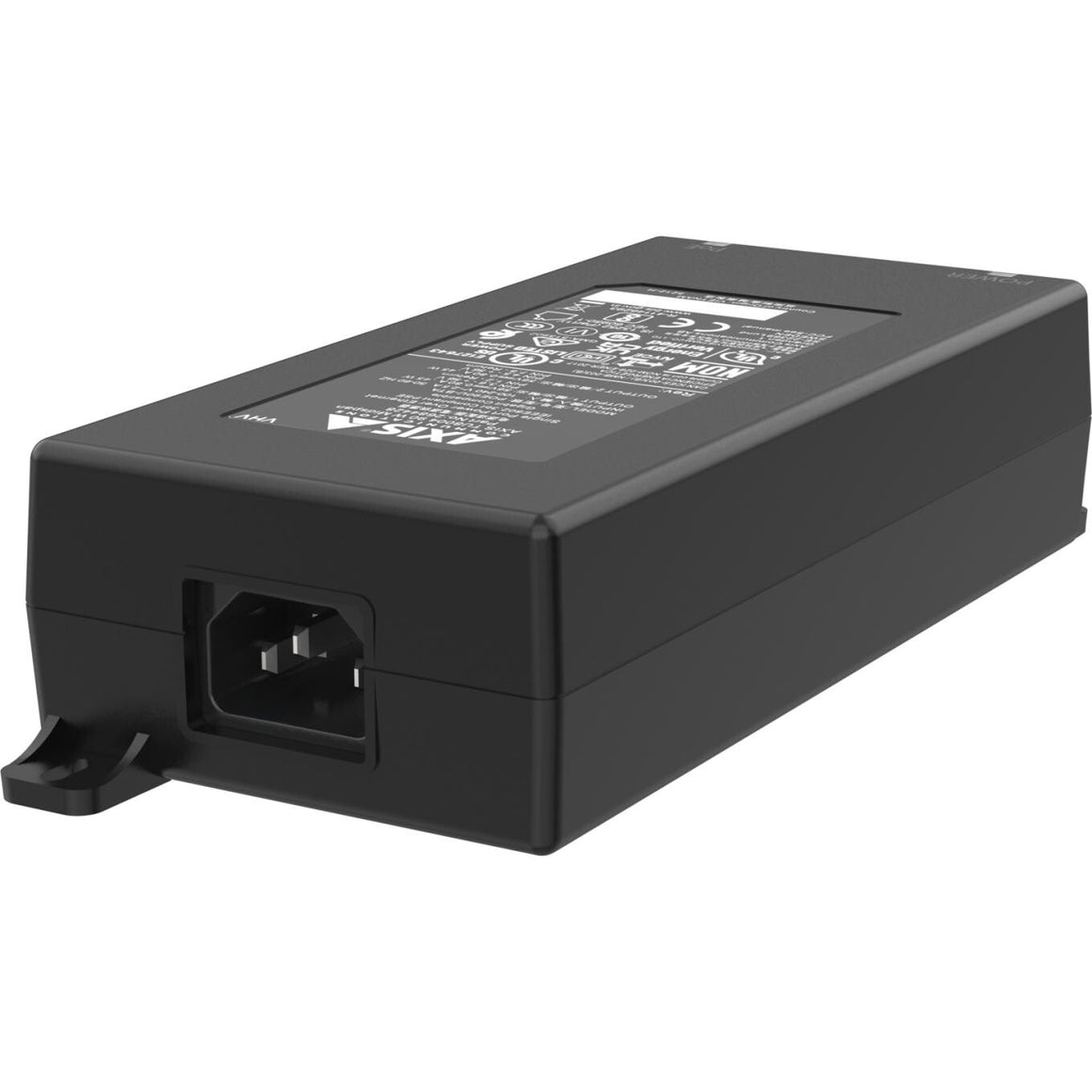

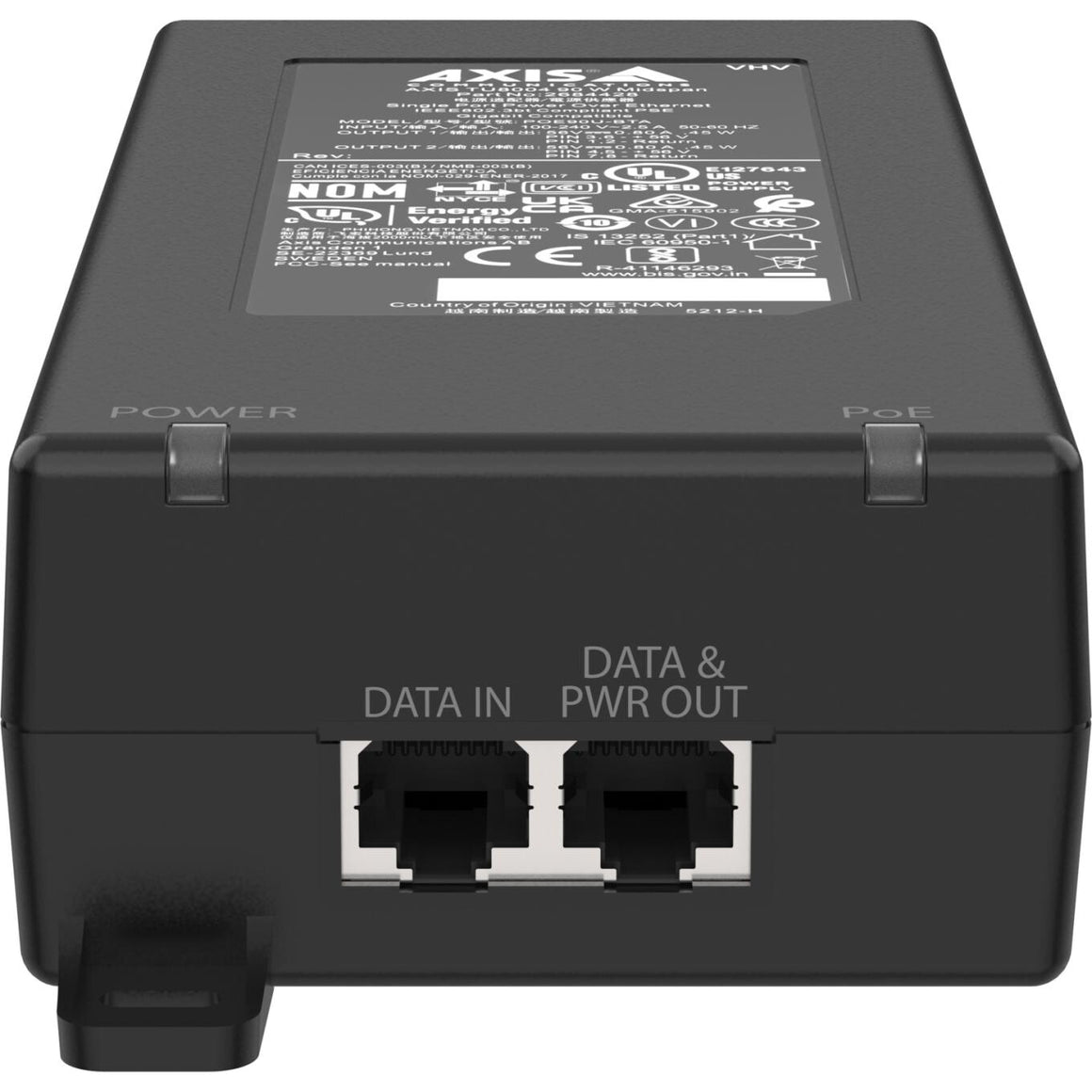

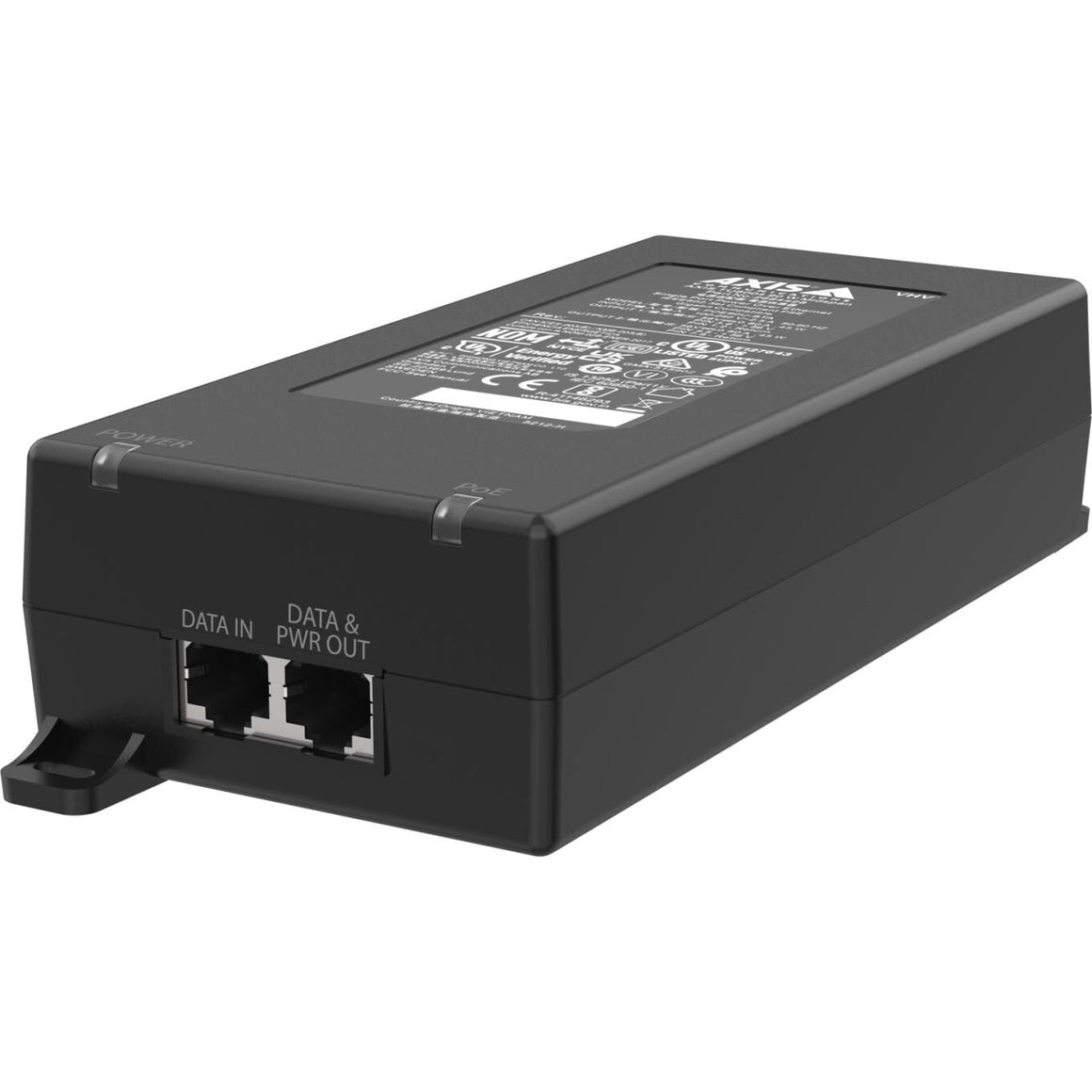

AXIS TU8004 90 W Midspan
AXIS TU8004 is a single port 90 W midspan, compliant with IEEE 802.3bt and High PoE devices. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS TU6011 Mains Cable is sold separately. The midspan can be installed on a wall, shelf or DIN rail with AXIS T91A03 DIN Rail Clip A.
| Features |
|---|
| Certification |
IS 13252, IEC/EN/UL 62368-1, CCC, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC, RCM AS/NZS CISPR 32, VCCI, EN 50121-4, IEC 62236-4, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Networking standards |
IEEE 802.3af, IEEE 802.3bt |
| Housing material |
Plastic |
| Product colour |
Black |
| Brand compatibility |
Axis |
| Type |
Midspan |
| Ports & interfaces |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500,5000 Mbit/s |
| Number of inputs |
1 inputs |
| Number of outputs |
1 outputs |
| Connectivity technology |
Wired |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
91.7 W |
| Power consumption (typical) |
64.3 W |
| Output voltage |
57 V |
| Input frequency |
50/60 Hz |
| Input voltage |
100 - 240 V |
| Rated power |
90 W |
| Weight & dimensions |
|---|
| Width |
80 mm |
| Depth |
166 mm |
| Height |
44 mm |
| Weight |
500 g |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-20 - 65 °C |
| Technical details |
|---|
| Doesn't contain |
Halogen, PVC |
