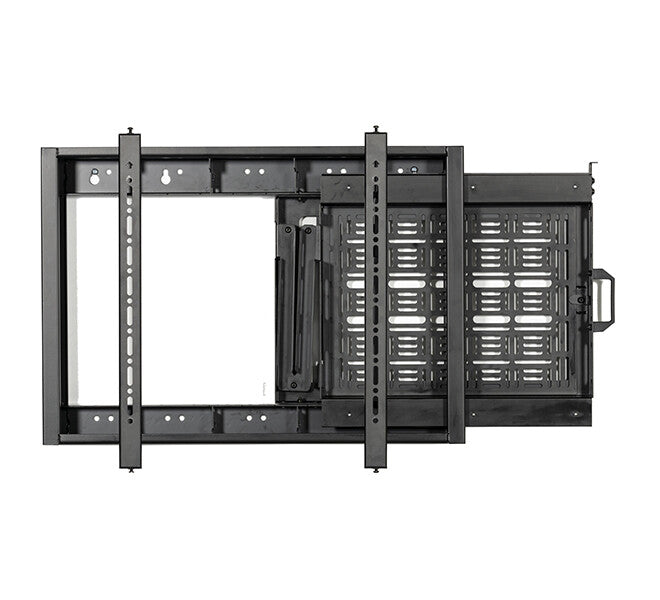

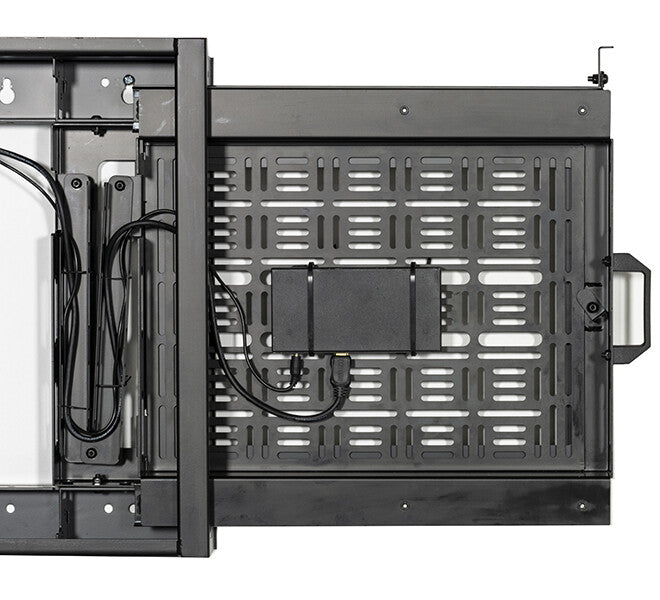

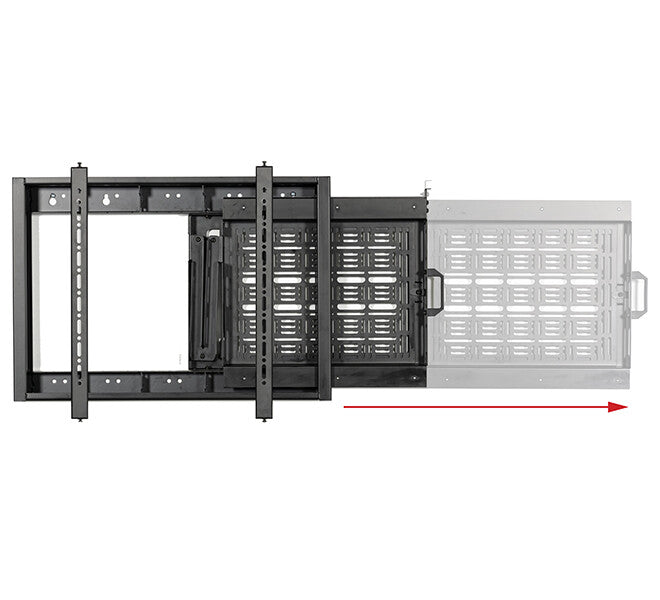

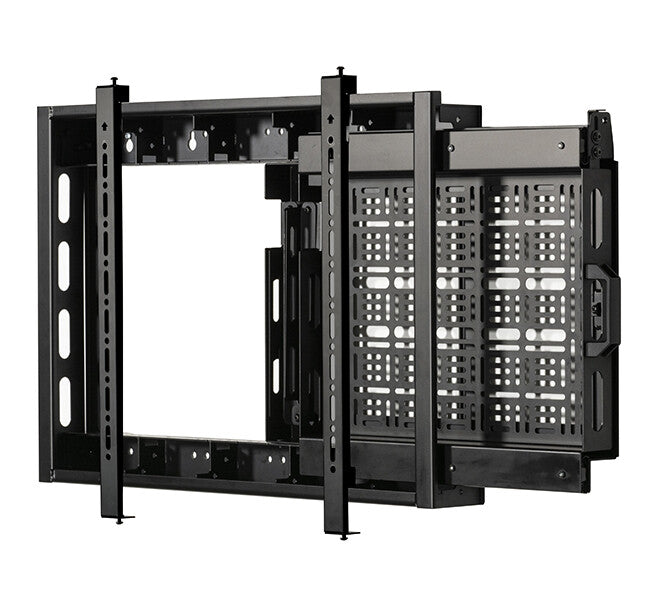

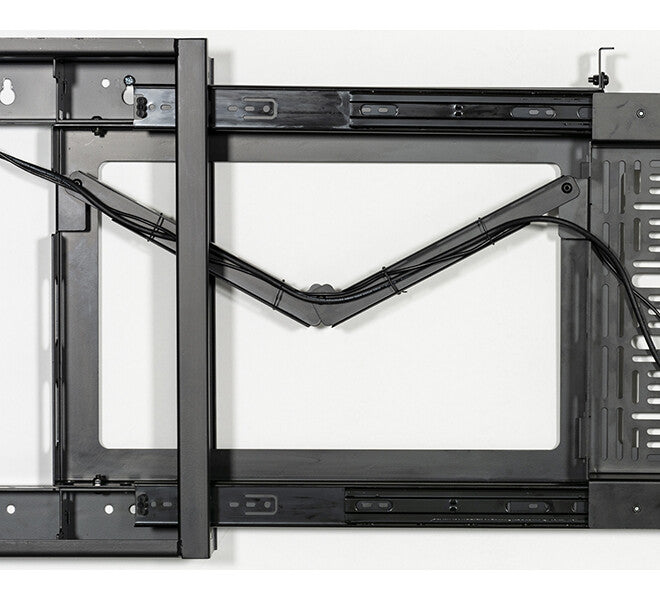

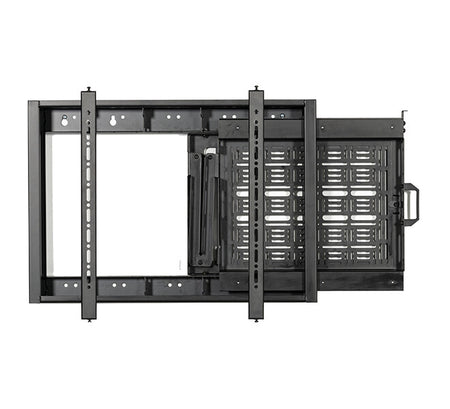

The BT7883 is a screen mounting solution with an integrated slide-out tray for storing AV equipment behind the screen. Featuring a quick release equipment interface plate which can be separated from the mount, AV equipment can be easily added or removed from the install without needing to remove the screen first. The tray mechanism is tool-less for ease and speed of use, with the option to add a padlock (not included) to help prevent unauthorised access to the equipment. To ensure cables do not get tangled or pinched when the tray is opened and closed, an integrated cable management track moves in unison with the tray. The BT7883 is suitable for wall mounting as well as to B-Tech’s System 2 poles and System X/Mode-AL columns.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 200,600 x 400 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
200 x 200 mm |
| Mounting type |
Wall |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
100 kg |
| Ergonomics |
|---|
| Distance to the wall (max) |
10 cm |
| Easy to adjust |
Yes |
| Cable management |
Yes |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
424 mm |
| Depth (max) |
6.5 cm |
| Width |
335 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
